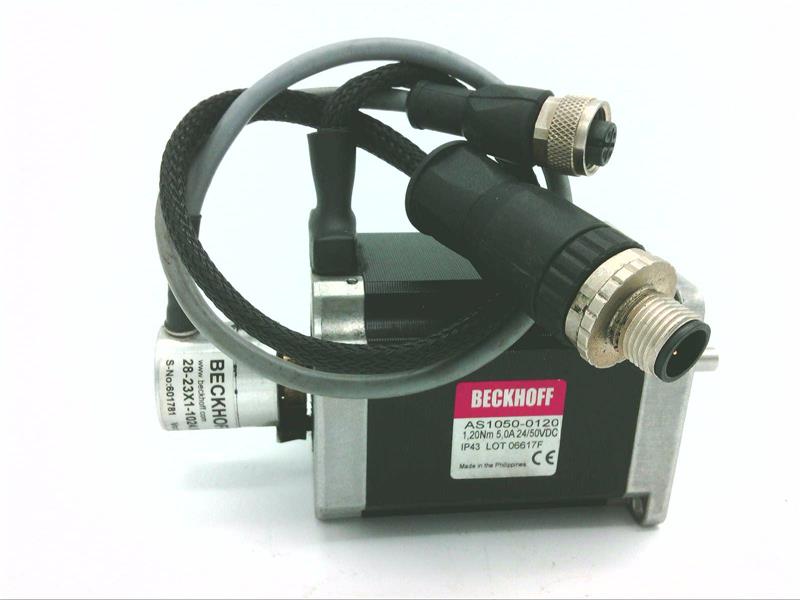

AS1050-0120 | BECKHOFF Stepper Motor

The AS1050-0120 is a high-precision stepper motor designed for applications within the Servo Products category, specifically tailored for demanding motion control tasks. As part of the stepper motor subcategory, this component offers a reliable solution for industries that require precise positioning and consistent performance in automation systems. With a weight of 3.26 lbs, the AS1050-0120 is engineered for both stability and durability, making it suitable for a range of industrial environments where reliable operation is critical.

This stepper motor operates within a voltage range of 24-48 VDC, allowing for flexibility in its application across various power supply configurations. The motor is designed to handle a current rating of 5 A, ensuring that it can deliver consistent performance across a variety of loads and operating conditions. This current rating also contributes to the motor's ability to maintain its specified performance characteristics even under prolonged use, making it a dependable component for continuous operation in industrial settings.

One of the key features of the AS1050-0120 is its standstill torque, rated at 1.2 Nm. This torque specification is crucial for applications where the motor needs to hold a position without movement, even when external forces are applied. The ability to maintain a steady position under load makes this stepper motor ideal for tasks such as precision machining, robotics, and automated assembly processes, where maintaining exact positioning is essential to the success of the operation.

The motor is equipped with an incremental encoder that provides 1024 increments, enhancing the accuracy and resolution of the motor's position feedback. This encoder allows for precise control over the motor's movements, ensuring that each step is accurately tracked and executed. The high resolution of the encoder makes the AS1050-0120 suitable for applications that require fine adjustments and high levels of precision, such as in optical equipment, semiconductor manufacturing, or medical devices.

Connectivity and integration are streamlined with the inclusion of an M12 cable bundle. The M12 connectors are widely recognized for their robustness and reliability in industrial environments, ensuring secure electrical connections that can withstand vibrations and mechanical stresses. This feature simplifies the motor's integration into existing systems, reducing installation time and minimizing the risk of connection failures during operation.

The AS1050-0120 is designed to operate within a temperature range of 0 to +40°C, making it suitable for use in controlled indoor environments. This operating temperature range ensures that the motor can function reliably in various industrial applications without the risk of overheating or performance degradation. The specified temperature range also supports the motor's longevity, as operating within these limits helps to prevent thermal stress on the motor's components.

In terms of environmental protection, the AS1050-0120 carries an IP43 rating. This rating indicates that the motor is protected against solid objects greater than 1 mm in size, such as tools or small wires, and against water spray at angles up to 60 degrees from the vertical. While the motor is not fully waterproof, the IP43 rating ensures that it can be used in environments where there is occasional exposure to dust and moisture without compromising its performance or safety. This protection rating is suitable for most indoor industrial applications, where the motor is unlikely to encounter extreme environmental conditions.

The AS1050-0120 stepper motor is designed with durability and reliability in mind, making it a dependable choice for applications that demand high precision and consistent performance. Its combination of a robust current rating, flexible voltage range, and high standstill torque makes it suitable for a wide range of motion control tasks, from simple positioning to complex automation processes. The incremental encoder with 1024 increments provides the necessary resolution for applications requiring detailed and accurate feedback, ensuring that the motor can meet the exacting standards of modern industrial automation.

The inclusion of M12 connectors further enhances the motor's suitability for industrial environments, providing secure and reliable connections that can withstand the rigors of daily operation. Additionally, the motor's ability to operate within a specific temperature range and its IP43 protection rating ensure that it can be used in a variety of indoor settings without risk of damage or failure.

Overall, the AS1050-0120 stepper motor is a well-rounded component designed to meet the needs of modern automation systems. Its precise control capabilities, combined with its robust design and reliable performance characteristics, make it an ideal choice for engineers and technicians looking to enhance the accuracy and efficiency of their motion control applications. Whether used in new installations or as part of an upgrade to existing systems, the AS1050-0120 offers a dependable solution for achieving precise and reliable motion control in a wide range of industrial applications.
