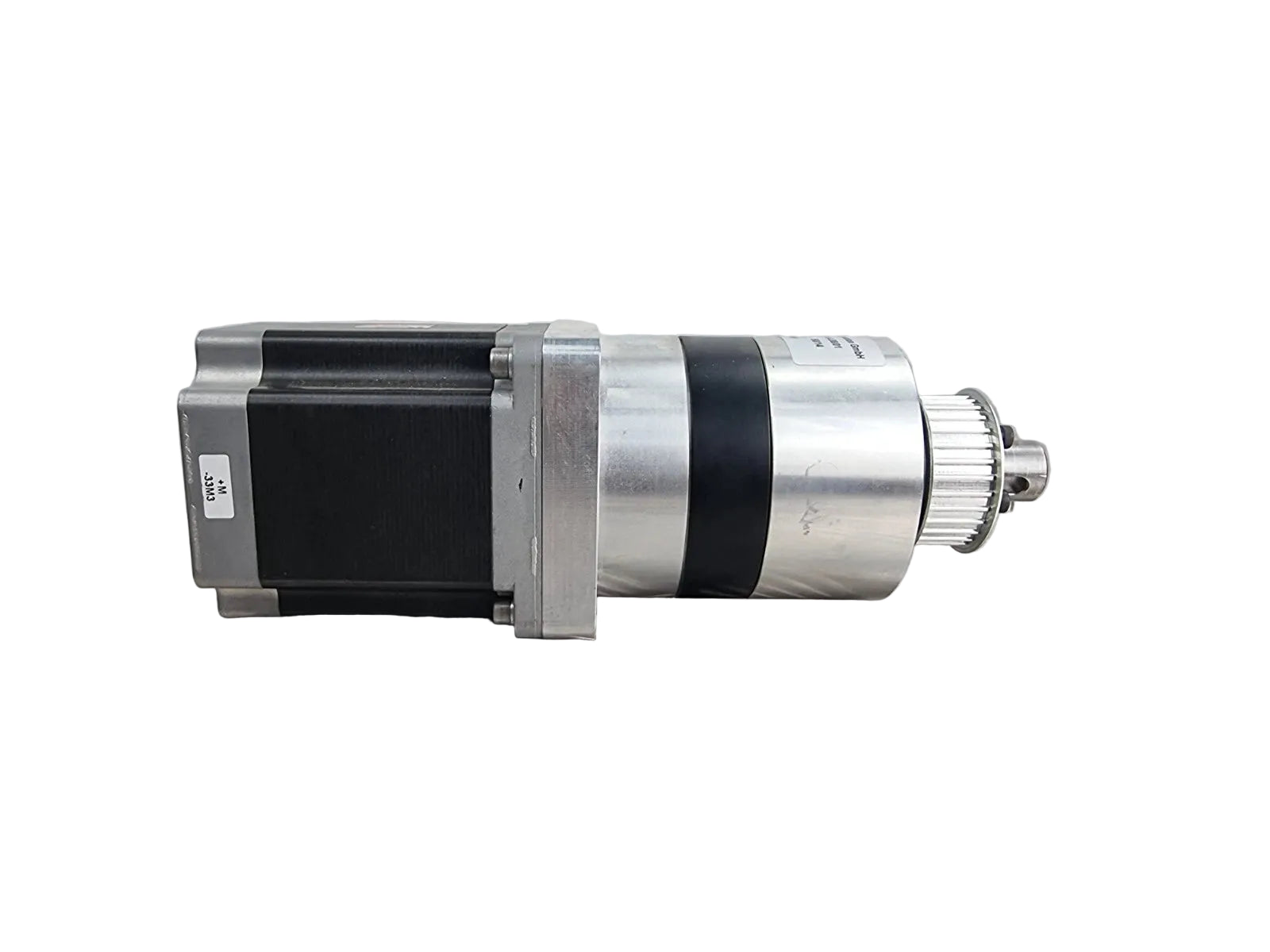

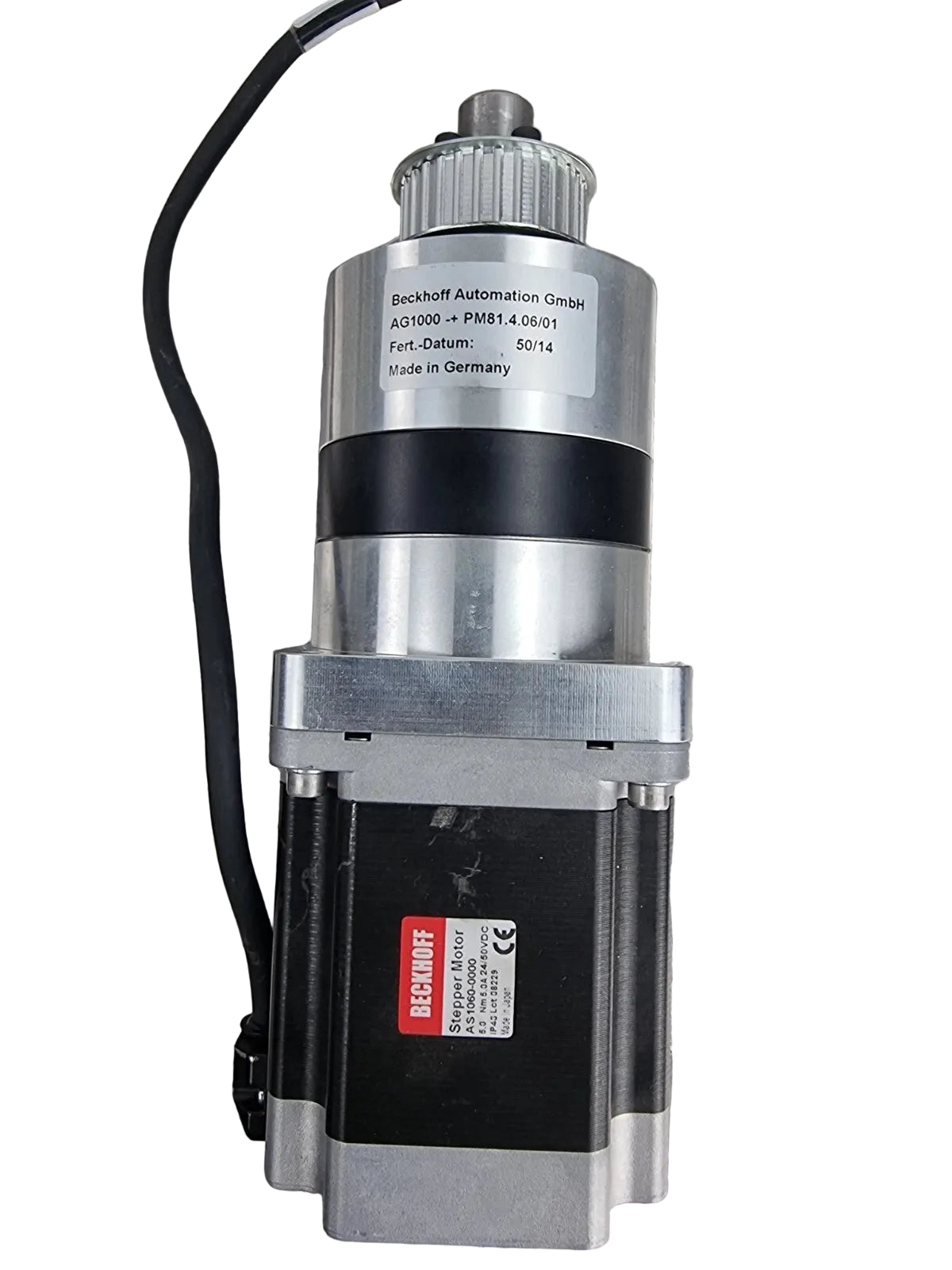

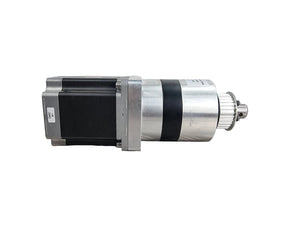

AS1060-0000 | Beckhoff NEMA34 Stepper Motor N3 Frame 5.0 Nm Holding Torque 24–48 V DC
- Regular price
- $814.00
- Sale price
- $814.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AS1060-0000
Description
The Beckhoff AS1060-0000 is a high-torque stepper motor designed for precise positioning and auxiliary axis control in industrial automation systems. With a 5.0 Nm holding torque and an N3 (NEMA34/86 mm) flange size, it supports stable, repeatable motion in open-loop applications. It is intended for use with a motion terminal to provide the required power electronics.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Motors |
| Part Number | AS1060-0000 |
| Subcategory | Stepper Motors |
| Series | AS1000 |
| Motor Type | Stepper Motor |
| Flange / Frame Size | N3 (NEMA34 / 86 mm) |
| Nominal Voltage | 24–48 V DC |
| Holding Torque | 5.0 Nm |
| Rated Current | 5.0 A |
| Step Angle / Resolution | 1.8° / 200 full steps |
| Connection Technology | M12 cable bundle |
| Operating Temperature | 0 to 40 °C |
| Protection Rating | IP20 |
| Approvals / Markings | CE |
| Weight | Approx. 4.5 kg |
Information About ![]()
AS1060-0000
The AS1060-0000 is a Beckhoff AS1000 series stepper motor engineered for robust positioning drives and auxiliary axes in machinery and automation equipment. The AS1000 series covers multiple flange sizes and torque classes, allowing consistent mechanical integration across different axis requirements. Integrated micro-stepping improves motion smoothness and positioning accuracy, enabling fine control even without an encoder feedback system. With industrial M12 connection technology and standard compliance markings, it is suited to structured control cabinets and automation installations where reliable wiring and predictable performance are required.
Key Features:
- High Holding Torque: Provides 5.0 Nm holding torque to maintain position under load and during standstill.
- N3 / NEMA34 Frame: 86 mm flange format for mid-to-high torque axis implementations.
- Integrated Micro-Stepping: Enables smoother rotation and finer positioning without external feedback devices.
- 24–48 V DC Operation: Designed for DC supply systems common in motion control cabinets.
- 5.0 A Rated Current: Supports higher torque output and dynamic motion profiles within rated limits.
- 1.8° Step Angle: Standard 200 full steps per revolution for straightforward motion calculations.
- M12 Cable Bundle Connection: Industrial connector concept for reliable signal and power routing.
- CE Marking: Meets applicable conformity requirements for industrial integration.
- IP20 Protection Rating: Intended for protected installation inside enclosures or control cabinets.
The AS1060-0000 delivers the reliability and precision required for industrial positioning, auxiliary axes, and open-loop motion control applications.
