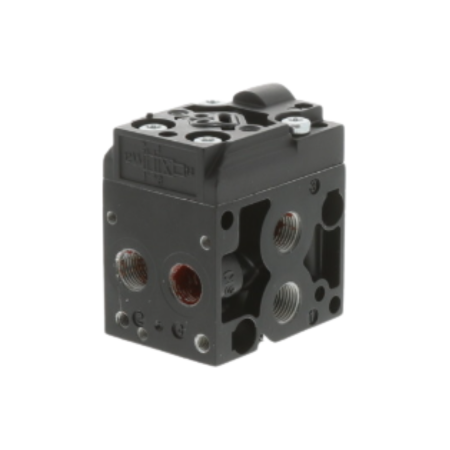

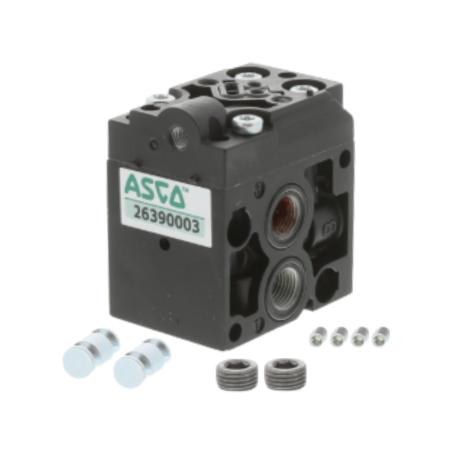

ASCO 26390003 Series 263 Four-Way Two-Position Air-Piloted Solenoid Valve for Pneumatic Control Applications
- Regular price
- $785.00
- Sale price
- $785.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 26390003
Description
The ASCO 26390003 is a four-way, two-position air-piloted solenoid valve designed for directional control of pneumatic actuators in industrial automation systems. Featuring a compact body with 1/8 inch National Pipe Thread ports, the valve provides fast and reliable switching for cylinders, valve actuators, and other pneumatic devices. Its rugged construction supports dependable performance in high-cycle industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 26390003 |
| Subcategory | Solenoid Valve |
| Product Type | Series 263 Directional Control Solenoid Valve |
| Valve Function | Four-Way, Two-Position |
| Valve Operation | Remote Air and Solenoid Piloted |
| Valve Construction | Poppet Valve |
| Body Material | Die-Cast Zinc |
| Pipe Connection Size | 1/8 Inch National Pipe Thread |
| Number of Ports | Four |
| Actuator Type | Single Solenoid with Spring Return |
| Operating Pressure Range | 30 to 150 PSI |
| Pilot Pressure | 30 PSI |
| Flow Coefficient | 0.20 Cv |
| Operating Temperature Range | 20 °F to 140 °F (-7 °C to 60 °C) |
| Manual Override | Locking |
| Solenoid Coil | Not Included |
| Weight | 1.00 lbs |
Information About 26390003
The 26390003 is an ASCO Series 263 directional control solenoid valve engineered for pneumatic control systems requiring precise four-way, two-position operation. It utilizes a remote air-piloted poppet valve design with a single solenoid and spring return mechanism to deliver rapid response and dependable directional control. Constructed with a durable die-cast zinc body and equipped with four 1/8 inch National Pipe Thread ports, the valve is designed for compressed air service in factory automation, material handling equipment, packaging machinery, and HVAC control systems. This valve body is supplied without a solenoid coil, allowing the appropriate coil to be selected according to the required voltage and application.
Key Features:
- Four-Way Two-Position Design: Provides reliable directional control for pneumatic actuators and cylinders.
- Remote Air-Piloted Operation: Combines pneumatic pilot control with solenoid actuation for dependable switching.
- Die-Cast Zinc Body: Offers strength, corrosion resistance, and long service life.
- Compact 1/8 Inch Port Size: Simplifies installation in space-constrained pneumatic systems.
- Single Solenoid with Spring Return: Automatically returns the valve to its normal position when de-energized.
- Poppet Valve Construction: Delivers rapid response with bubble-tight shutoff characteristics.
- Locking Manual Override: Allows manual valve operation during maintenance and commissioning.
- High-Speed Performance: Typical response time of approximately 5 milliseconds for fast automation cycles.
The 26390003 delivers the reliability and precision required for directional pneumatic control in industrial automation and process equipment.
