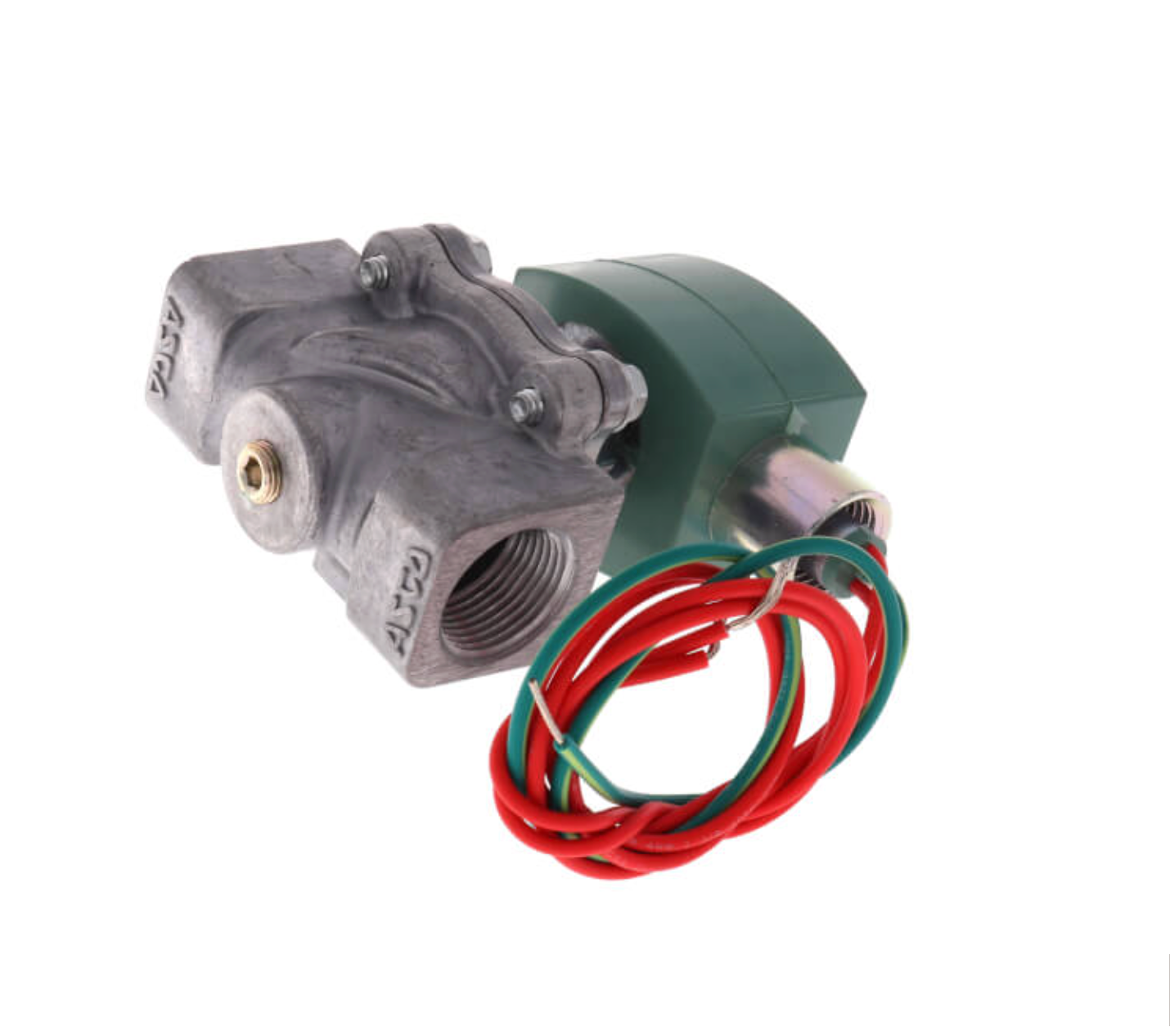

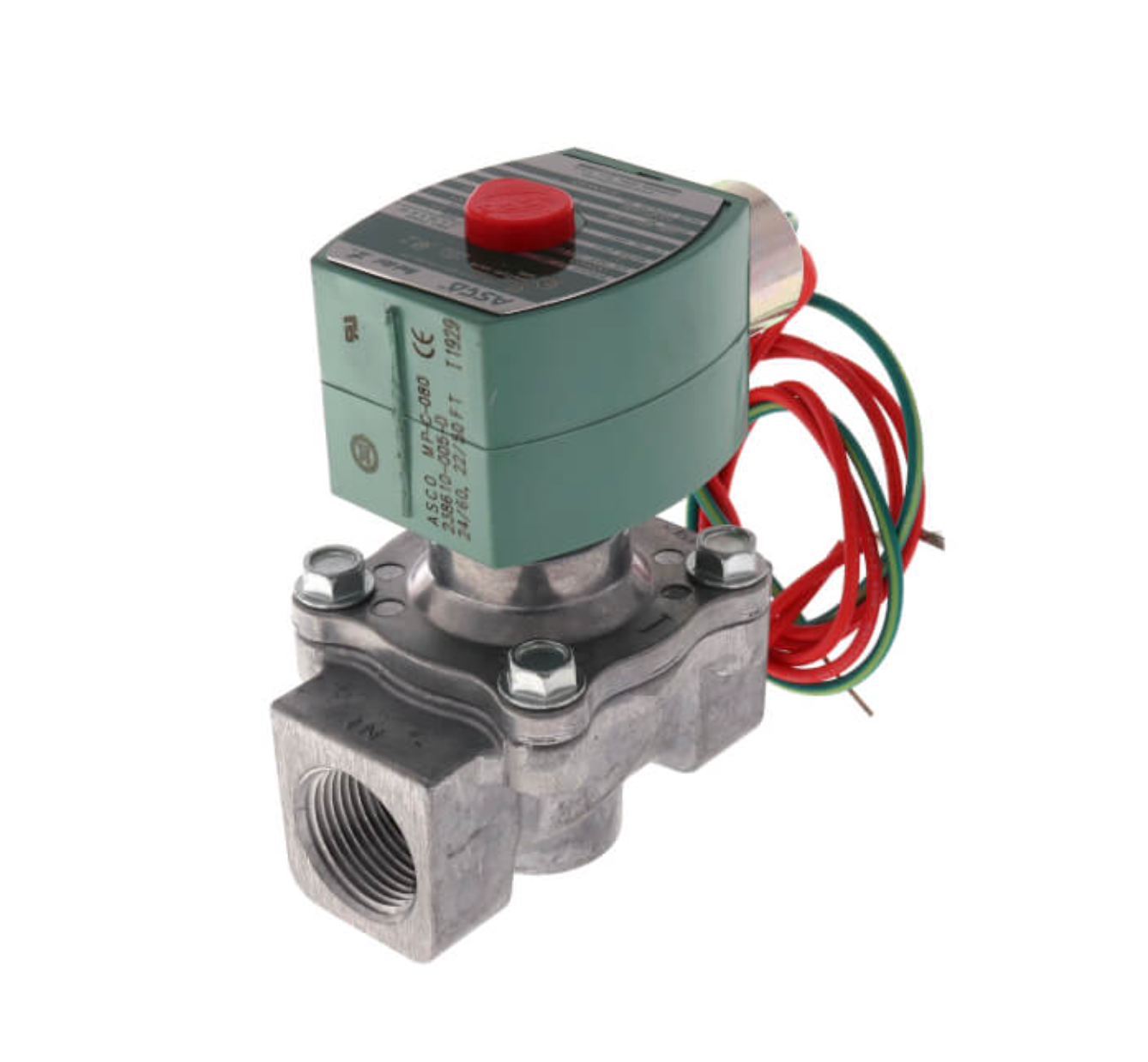

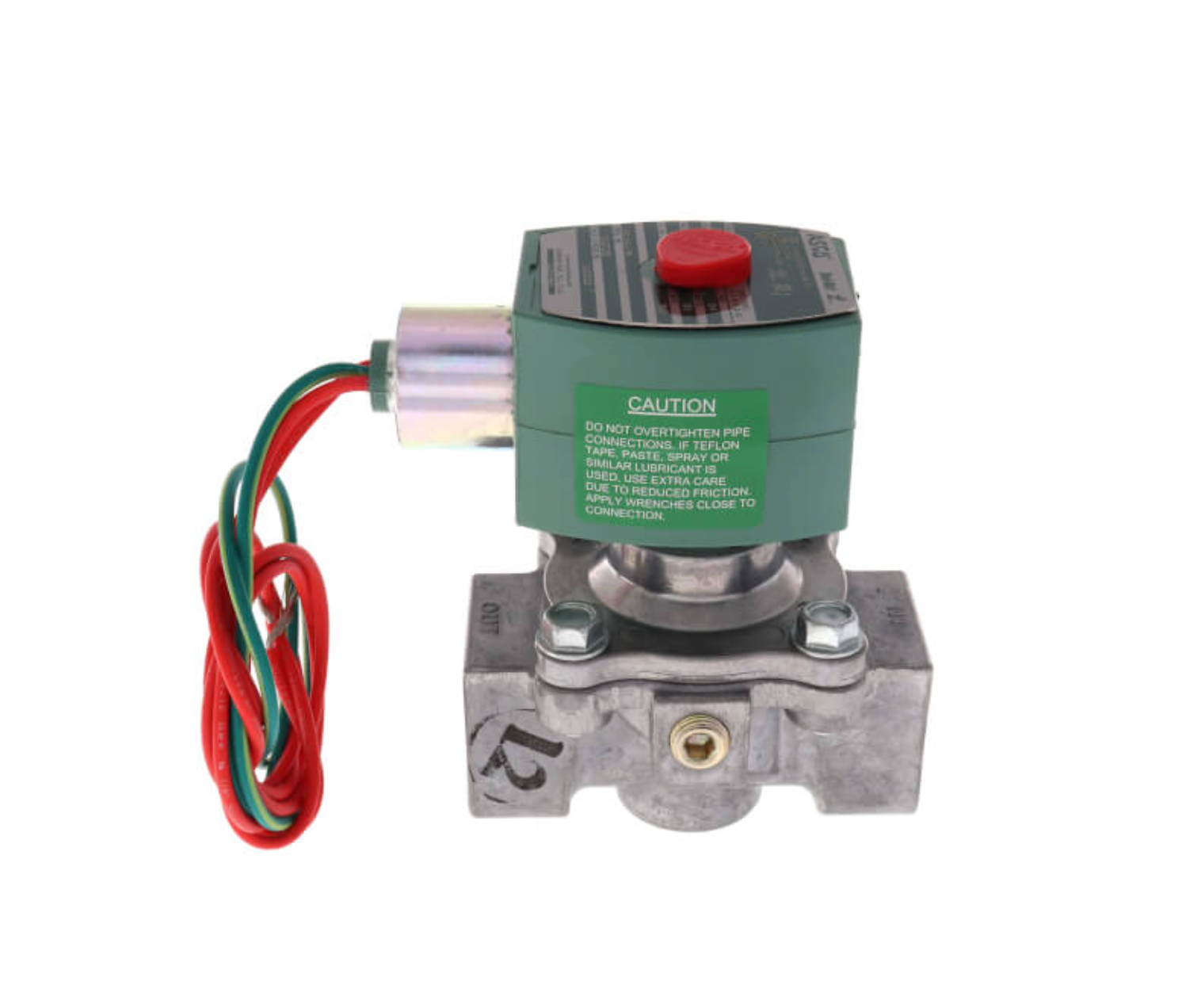

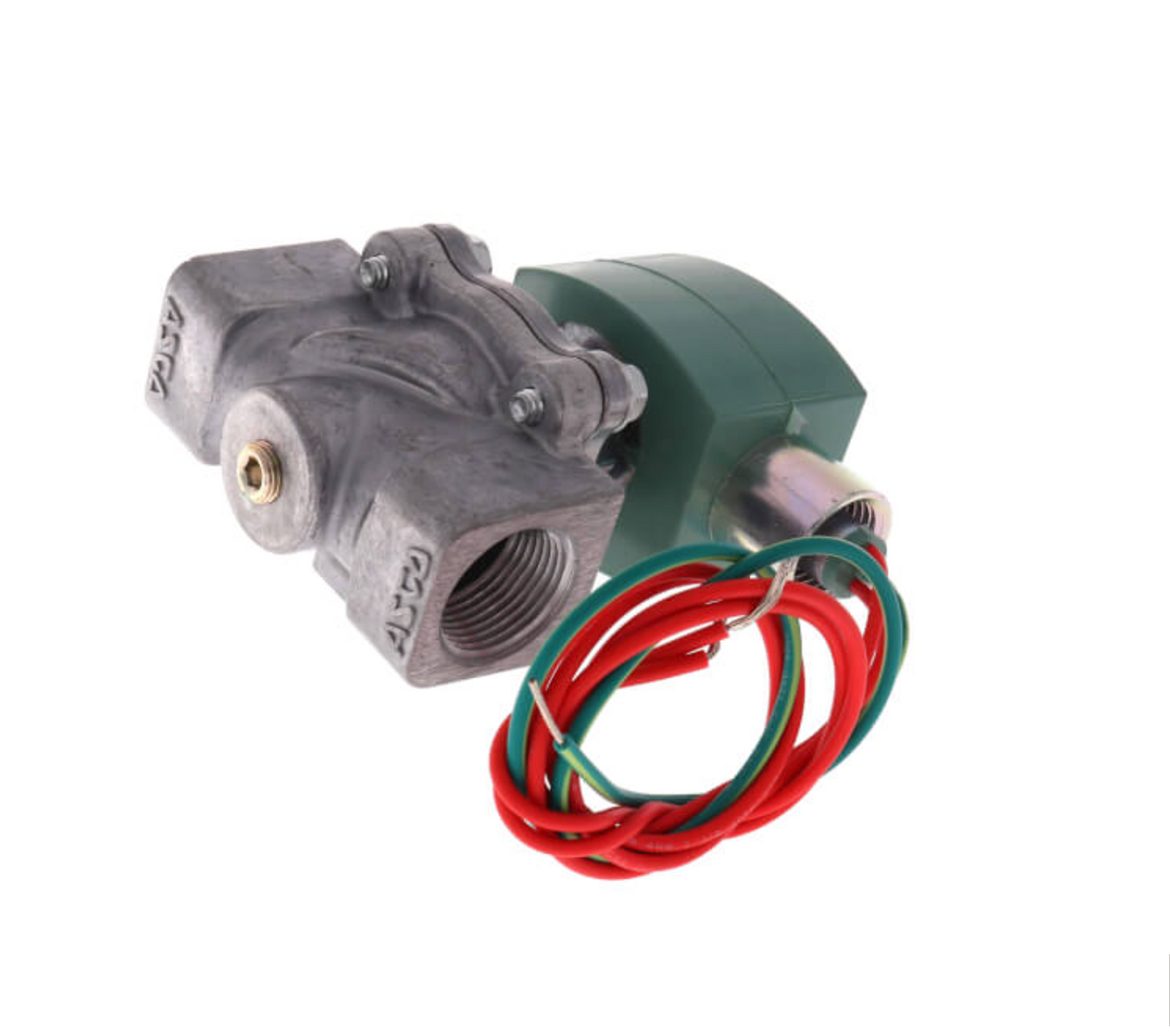

ASCO 8040G023 Series 8040 Gas Safety Shutoff Solenoid Valve for Commercial and Industrial Fuel Gas Systems
- Regular price
- $269.00
- Sale price
- $269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8040G023
Description
The ASCO 8040G023 is a Series 8040 direct-acting gas safety shutoff solenoid valve engineered for reliable on/off control of fuel gas in commercial and industrial combustion systems. Featuring a normally closed configuration and durable aluminum body, the valve provides dependable gas flow control for burners, boilers, furnaces, ovens, and other gas-fired equipment. It operates on 110 VAC 50 Hz or 120 VAC 60 Hz and is designed to meet stringent gas safety requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8040G023 |
| Subcategory | Solenoid Valve |
| Product Type | Series 8040 Gas Safety Shutoff Solenoid Valve |
| Valve Function | Two-Way, Normally Closed |
| Valve Operation | Direct-Acting |
| Body Material | Aluminum |
| Pipe Connection Size | 3/4 Inch Female NPT |
| Orifice Size | 3/4 Inch |
| Flow Coefficient (Cv) | 9.5 |
| Compatible Media | Fuel Gas, Air, Inert Gas |
| Supply Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Coil Number | 238610-032-D |
| Power Consumption | 10.1 Watts |
| Maximum Fuel Gas Pressure | 2 PSI |
| Electrical Connection | 1/2 Inch Conduit with 18 Inch Leads |
| Approvals | UL Listed, CSA Certified, FM Approved |
| Weight | 3.00 lbs |
Information About 8040G023
The 8040G023 is a member of the ASCO Series 8040 family of gas safety shutoff valves developed for pilot and main burner control in commercial and industrial combustion applications. Its direct-acting solenoid design provides dependable operation without requiring a minimum operating pressure, while the normally closed configuration automatically stops gas flow when power is removed. Constructed with an aluminum body, Buna-N seating material, and a RedHat™ watertight solenoid enclosure, the valve is designed for indoor and outdoor installations where reliable gas shutoff is essential. Equipped with Coil Number 238610-032-D, the valve is approved by UL, CSA, and FM for gas safety shutoff service and includes upstream and downstream test ports for simplified maintenance and system testing.
Key Features:
- Series 8040 Design: Engineered specifically for commercial and industrial gas safety shutoff applications.
- Direct-Acting Operation: Provides reliable valve actuation without requiring minimum differential pressure.
- Normally Closed Configuration: Automatically stops fuel gas flow when electrical power is removed.
- Aluminum Valve Body: Combines durability with corrosion resistance for long service life.
- Fuel Gas Service: Designed for natural gas, manufactured gas, propane, and other compatible fuel gases.
- Safety Certified Construction: Approved by UL, CSA, and FM for gas safety shutoff applications.
- Integrated Test Ports: Includes upstream and downstream pipe taps for routine pressure testing and maintenance.
- RedHat™ Solenoid Enclosure: Watertight enclosure supports dependable operation in demanding environments.
The 8040G023 delivers the reliability and precision required for safe fuel gas shutoff and dependable combustion control in industrial heating systems.
