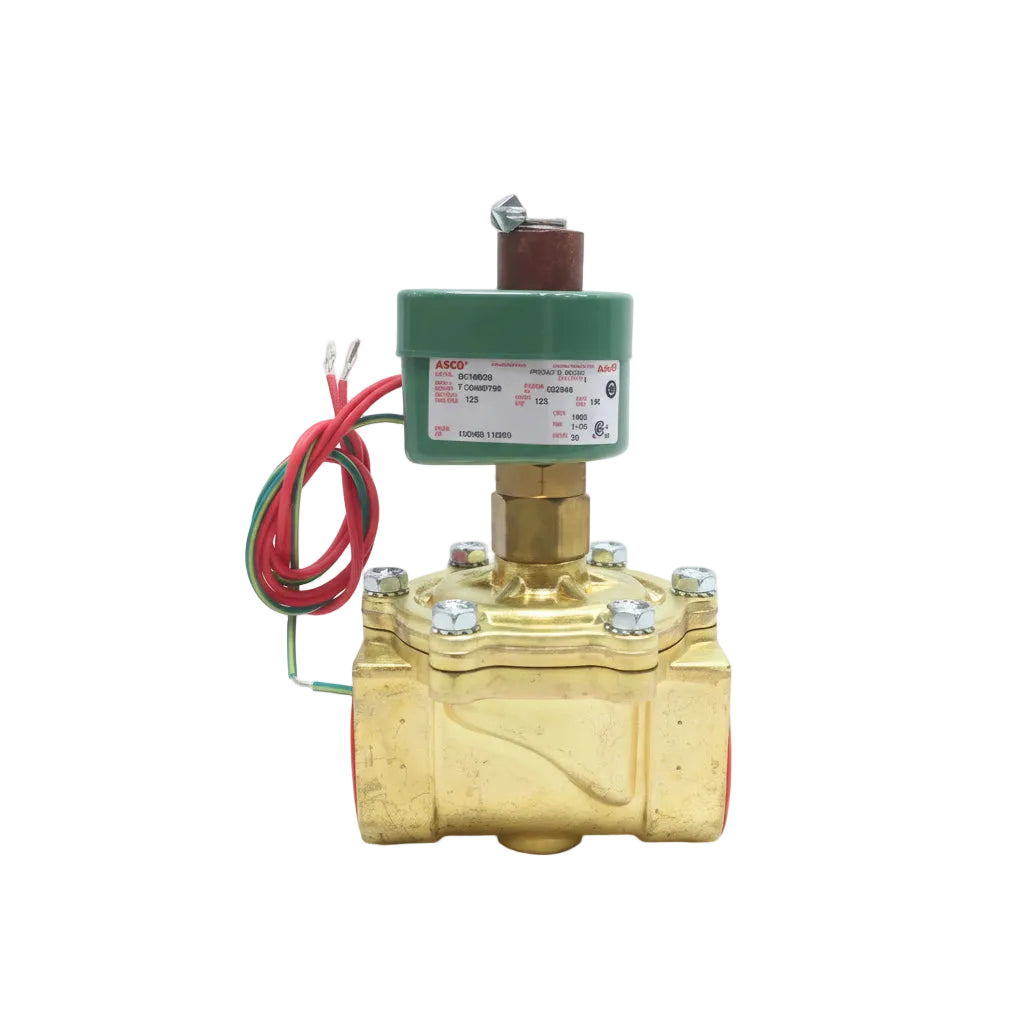

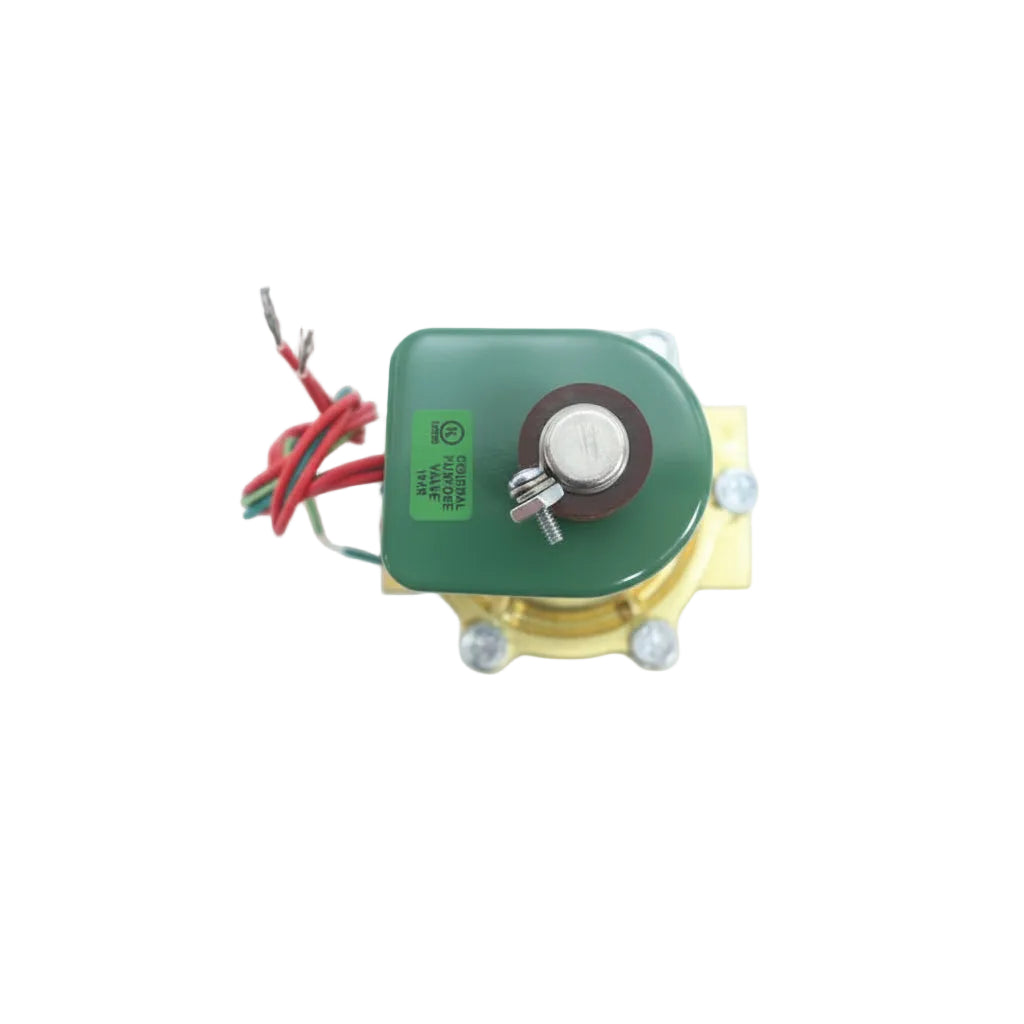

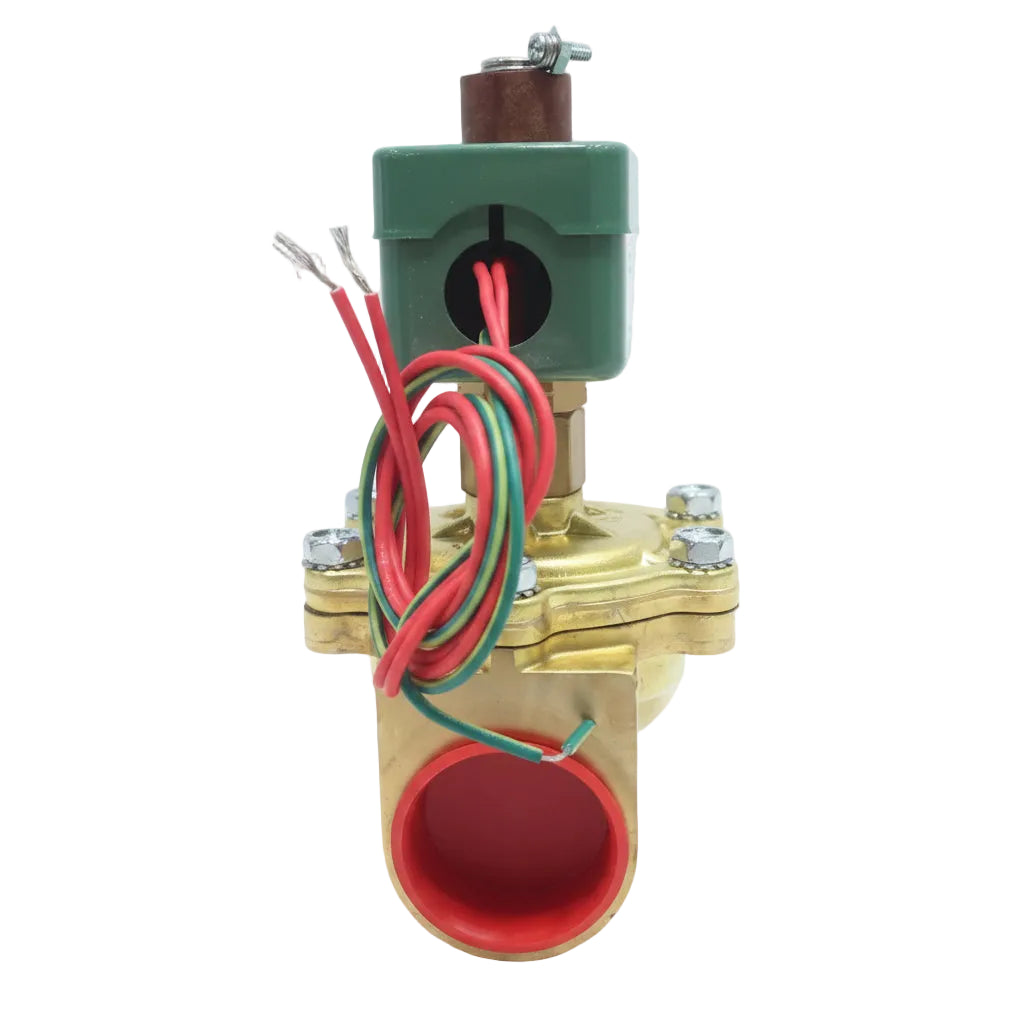

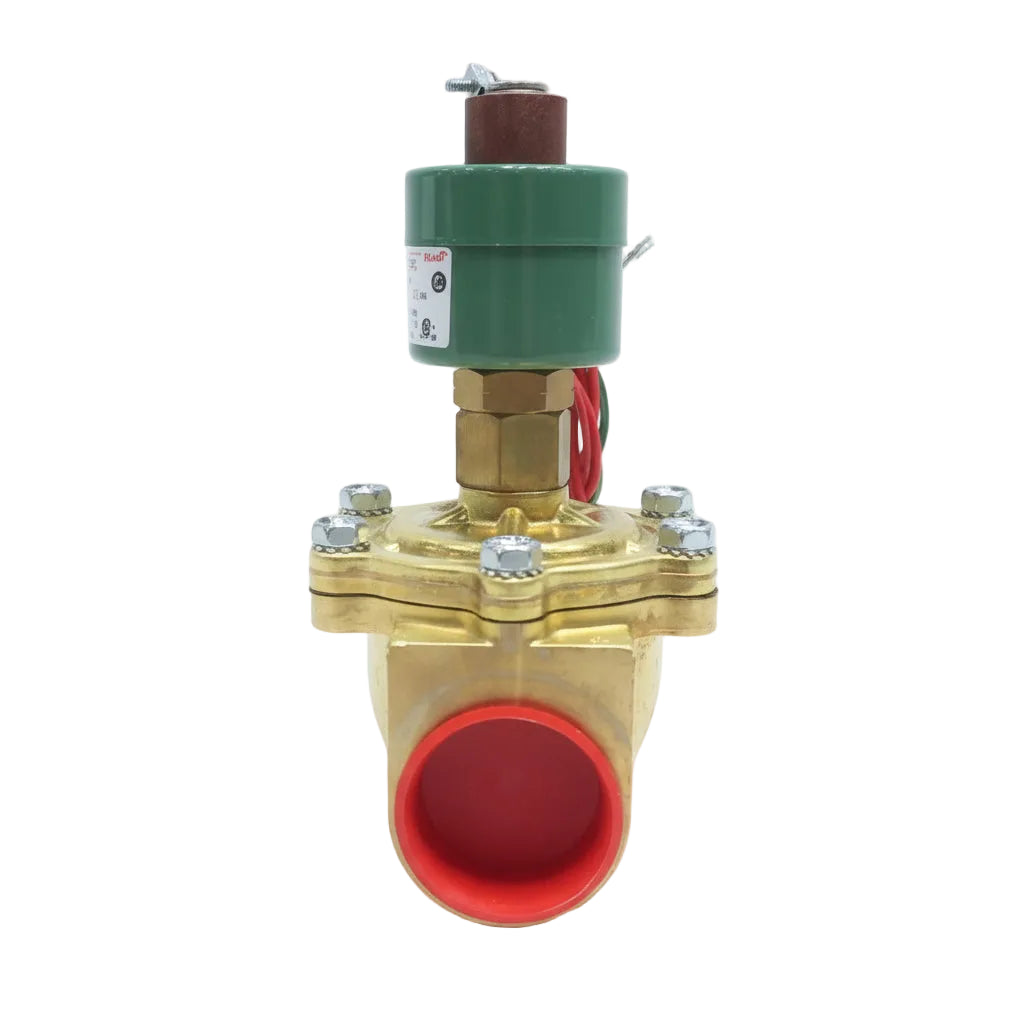

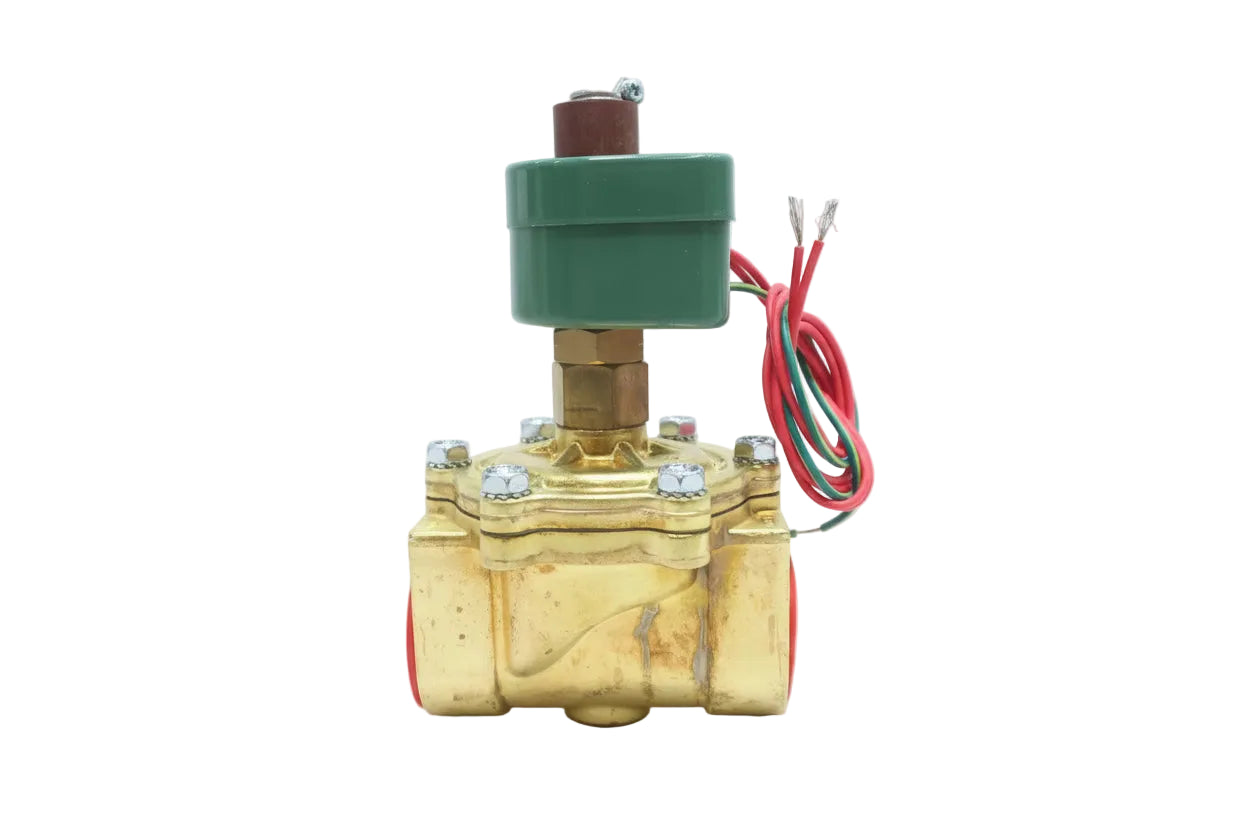

Asco 8210B059 RedHat 1-1/2-Inch Normally Open High-Flow Solenoid Valve 120VAC
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210B059
Description
Asco 8210B059 is a RedHat Series 8210 high-flow solenoid valve designed for industrial control of air, inert gas, water, and light oil. It features a 2-way normally open, pilot-operated configuration with 1-1/2-inch NPT connections, a brass body, and a Cv rating of 22.5.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | 8210B059 |
| Subcategory | Solenoid Valves |
| Product Type | High-Flow Solenoid Valve |
| Series | RedHat 8210 |
| Valve Configuration | 2-Way / 2-Position |
| Starting Position | Normally Open |
| Operation Type | Pilot Operated |
| Nominal Pipe Size | 1-1/2 in |
| Connection Type | NPT Threaded |
| Orifice Diameter | 1-1/4 in |
| Flow Coefficient (Cv) | 22.5 |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 120 VAC / 60 Hz; 110 VAC / 50 Hz |
| Wattage | 20 W |
| Maximum Water Pressure Differential | 125 psi |
| Maximum Light Oil Pressure Differential | 125 psi |
| Maximum Air/Inert Gas Pressure Differential | 350 psi |
| Maximum Fluid Temperature | 180°F |
| Ambient Temperature Range | 14°F to 140°F |
| Coil Enclosure | Watertight |
| Coil Insulation Class | Class F |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| IP Rating | IP66 |
| Mounting Orientation | Vertical |
| Overall Height | 7-11/16 in |
| Overall Length | 4-7/16 in |
| Overall Width | 3-15/16 in |
| Standards | UL Listed |
| Weight | 8.5 lb |
Information About 8210B059
The 8210B059 is an Asco RedHat general-service solenoid valve designed for high-flow industrial fluid-control applications. It uses a pilot-operated 2-way/2-position normally open configuration and incorporates a brass body with NBR sealing material. The valve operates from 120 VAC at 60 Hz or 110 VAC at 50 Hz and uses a 20 W solenoid coil. Its watertight enclosure and NEMA 1, 2, 3, 3S, 4, and 4X ratings support installation in indoor and outdoor industrial environments.
Key Features:
- Normally Open Configuration: Remains open when de-energized and switches position when the solenoid is energized.
- High-Flow Design: Provides a Cv coefficient of 22.5 through a 1-1/4-inch valve orifice.
- 1-1/2-Inch Connections: Uses 1-1/2-inch threaded connections for integration into compatible industrial piping.
- Pilot-Operated Mechanism: Employs pilot-assisted operation for controlling higher fluid-flow capacities.
- Brass Valve Body: Uses brass construction with NBR sealing material for general industrial fluid service.
- Dual-Frequency AC Coil: Rated for 120 VAC at 60 Hz and 110 VAC at 50 Hz with 20 W power consumption.
- Watertight Enclosure: Standard configuration supports NEMA Types 1, 2, 3, 3S, 4, and 4X environmental protection.
- Industrial Applications: Suitable for equipment such as air compressors, pumps, car-wash systems, laundry equipment, and industrial water controls.
The 8210B059 delivers the reliability and precision required for high-flow automated fluid control in industrial systems.
