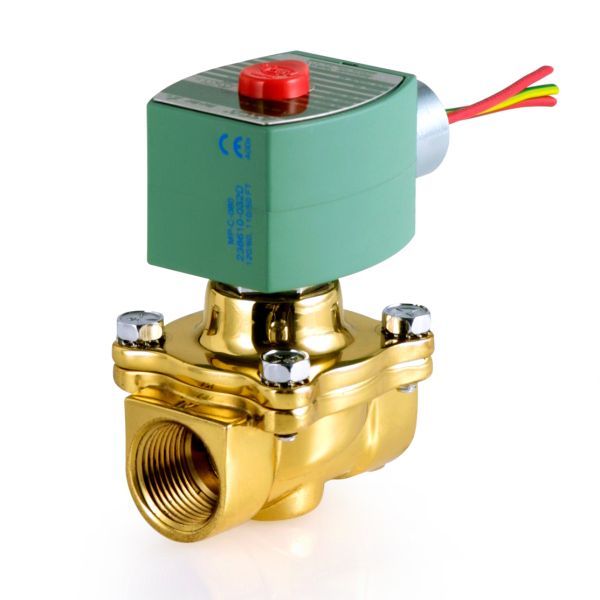

ASCO 8210G002 Series 8210 2-Way Normally Closed 1/2 Inch Brass Solenoid Valve
- Regular price
- $262.00
- Sale price
- $262.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G002
Description
The ASCO 8210G002 is a Series 8210 general service solenoid valve designed for reliable on/off control of air, water, light oil, and other compatible non-corrosive fluids in industrial applications. This 2-way, normally closed, pilot-operated valve features a brass body, 1/2-inch NPT threaded ports, and a high-flow diaphragm design that delivers dependable performance with minimal internal leakage. The ASCO 8210G002 is commonly installed in air compressors, pumps, industrial water systems, car wash equipment, and automated process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8210G002 |
| Subcategory | Solenoid Valve |
| Series | 8210 (Series 210) |
| Valve Type | General Service Solenoid Valve |
| Valve Configuration | 2-Way |
| Normal Position | Normally Closed |
| Operation | Pilot Operated |
| Body Material | Brass |
| Port Size | 1/2 Inch NPT Female |
| Orifice Size | 5/8 Inch |
| Flow Coefficient (Cv) | 4.0 |
| Seal Material | NBR (Buna-N) |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Operating Pressure (Air) | 5–200 PSI |
| Operating Pressure (Water) | 5–150 PSI |
| Operating Pressure (Light Oil) | 5–135 PSI |
| Voltage | 208 VAC, 60 Hz |
| Power Consumption | 6.1 W |
| Maximum Fluid Temperature | 180°F (82°C) |
| Weight | 1.90 lbs |
Information About 8210G002
The 8210G002 is a member of the ASCO Series 8210 (Series 210) family of general service solenoid valves developed for industrial fluid control applications. Its pilot-operated diaphragm construction provides high flow capacity while maintaining efficient operation and long service life. The brass valve body, NBR sealing material, and 1/2-inch NPT female threaded ports allow the valve to handle air, inert gas, water, and light oil in a wide range of commercial and industrial systems. Available in several AC and DC voltage configurations, including the 208 VAC 60 Hz version, the valve is widely used where dependable automated shutoff and flow regulation are required.
Key Features:
- Series 8210 Construction: Designed for general-purpose industrial fluid control applications.
- 2-Way Normally Closed Valve: Remains closed until the solenoid coil is energized.
- Pilot-Operated Design: Provides efficient operation with high flow capacity.
- Brass Valve Body: Offers durability and corrosion resistance for demanding environments.
- 1/2-Inch NPT Ports: Standard female threaded connections simplify installation.
- Multi-Media Compatibility: Suitable for air, inert gas, water, and light oil service.
- High Flow Performance: Features a 5/8-inch orifice with a Cv rating of 4.0.
- Industrial Duty Operation: Commonly installed in compressors, pumps, industrial water control, laundry equipment, and car wash systems.
The 8210G002 delivers the reliability and precision required for industrial fluid control and automated process applications.
