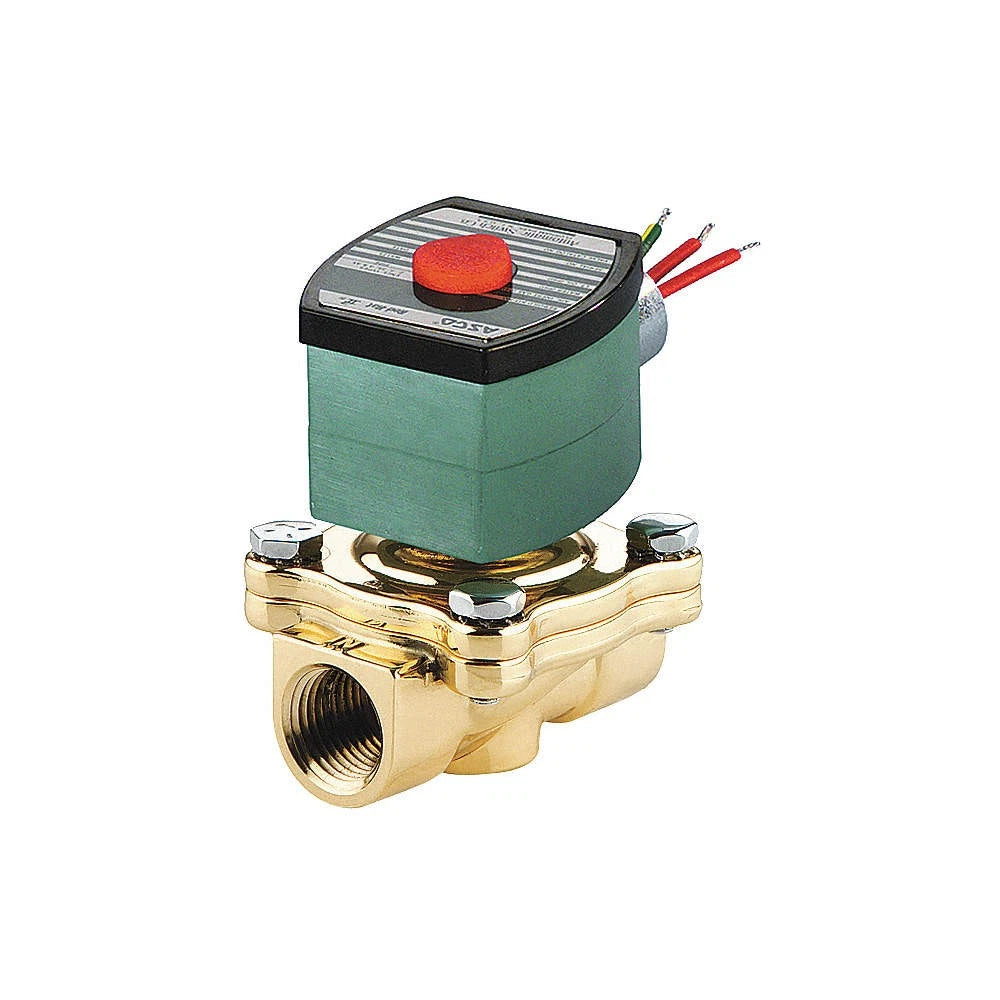

Asco 8210G018 1-1/4-Inch Normally Open High-Flow Solenoid Valve 120V AC
- Regular price
- $889.00
- Sale price
- $889.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G018
Description
Asco 8210G018 is a RedHat Series 8210 high-flow solenoid valve designed for general-service fluid control in industrial systems. It features a 1-1/4-inch connection, 2-way normally open configuration, pilot-operated construction, and a Cv rating of 15. The valve operates at 120V AC/60 Hz or 110V AC/50 Hz and supports air, water, and light-oil applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | 8210G018 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8210 |
| Product Type | High-Flow Solenoid Valve |
| Valve Configuration | 2-Way, Normally Open |
| Operation Type | Pilot Operated |
| Valve Service | General Service |
| Pipe Size | 1-1/4 in |
| Orifice Diameter | 1-1/8 in |
| Flow Coefficient (Cv) | 15 |
| Voltage | 120V AC / 60 Hz; 110V AC / 50 Hz |
| Coil Wattage | 16.1 W |
| Minimum Operating Pressure Differential | 5 psi |
| Maximum Air Pressure Differential | 150 psi |
| Maximum Water Pressure Differential | 150 psi |
| Maximum Light Oil Pressure Differential | 125 psi |
| Maximum Fluid Temperature | 180°F |
| Ambient Temperature Range | 32°F to 125°F |
| Electrical Connection | 1/2 in Conduit with 18 in Leads |
| Solenoid Enclosure | Watertight |
| Repair Kit | 302338 |
| Coil Reference | 272610-032-D |
| Weight | 5.5 lb |
Information About 8210G018
The 8210G018 is an Asco Series 8210 pilot-operated solenoid valve configured for normally open operation. Its 1-1/4-inch flow path incorporates a 1-1/8-inch orifice and provides a Cv coefficient of 15 for high-flow applications. The valve requires a minimum operating pressure differential of 5 psi and supports maximum differential pressures of 150 psi for air and water and 125 psi for light oil. Its watertight solenoid enclosure, 16.1 W AC coil, and general-service construction support automated flow control in industrial equipment.
Key Features:
- Normally Open Configuration: Maintains the flow path open while the solenoid is de-energized and closes when energized.
- High-Flow Design: Provides a Cv rating of 15 for applications requiring substantial fluid-flow capacity.
- 1-1/4-Inch Connection: Features a 1-1/4-inch pipe size for integration into compatible industrial piping.
- 1-1/8-Inch Orifice: Uses a large internal flow opening to support the valve's high-flow performance.
- Pilot-Operated Construction: Employs pilot-assisted actuation with a minimum operating pressure differential of 5 psi.
- Dual-Frequency AC Operation: Rated for 120V AC at 60 Hz or 110V AC at 50 Hz with 16.1 W coil consumption.
- Watertight Enclosure: Solenoid enclosure is designed for environmental protection in demanding industrial installations.
- General-Service Capability: Suitable for controlling compatible air, water, and light-oil media.
The 8210G018 delivers the reliability and precision required for high-flow automated fluid control in industrial systems.
