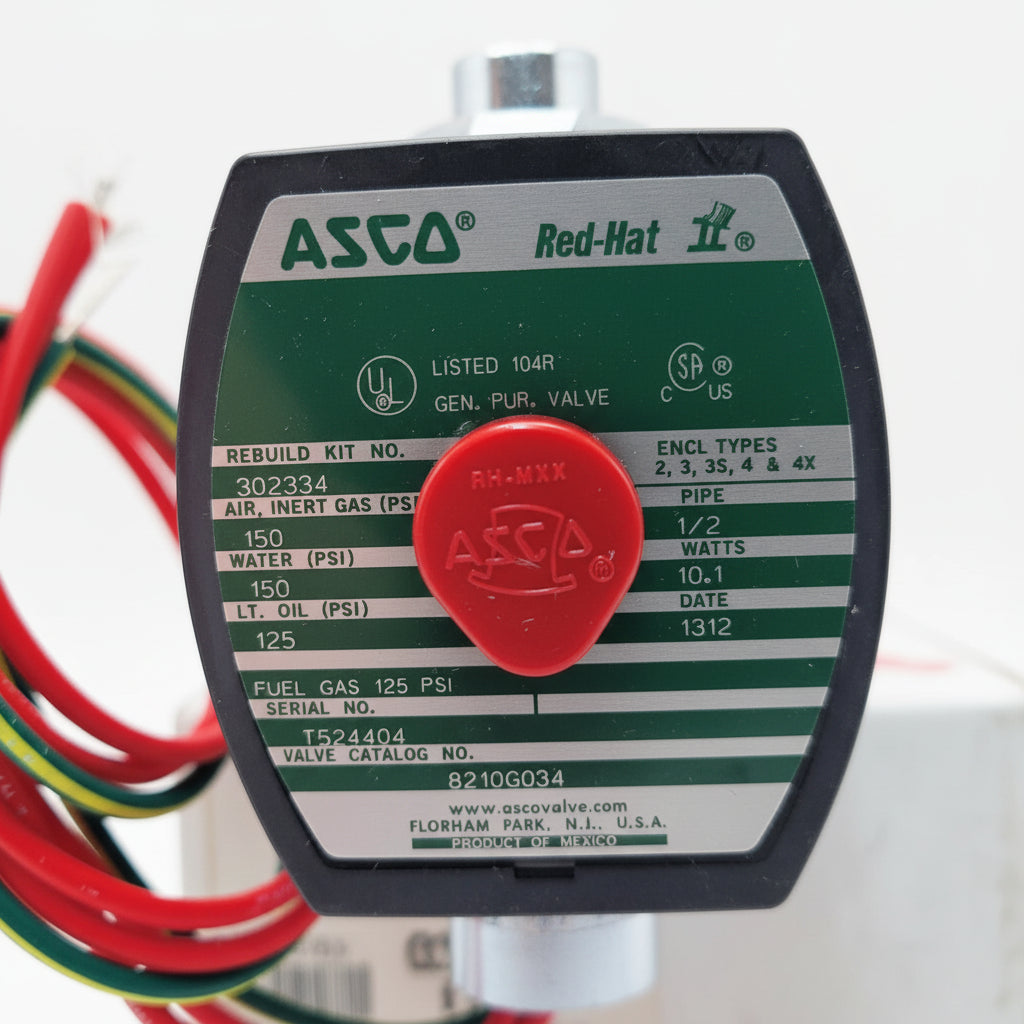

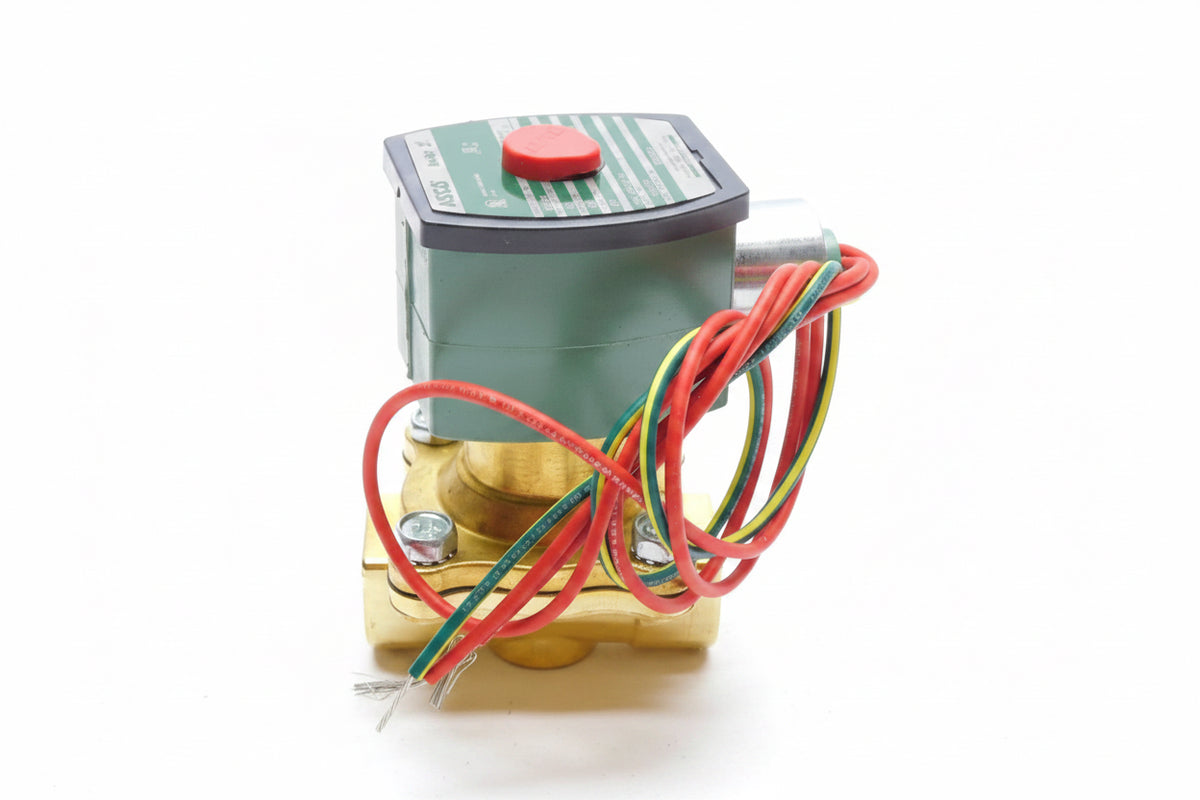

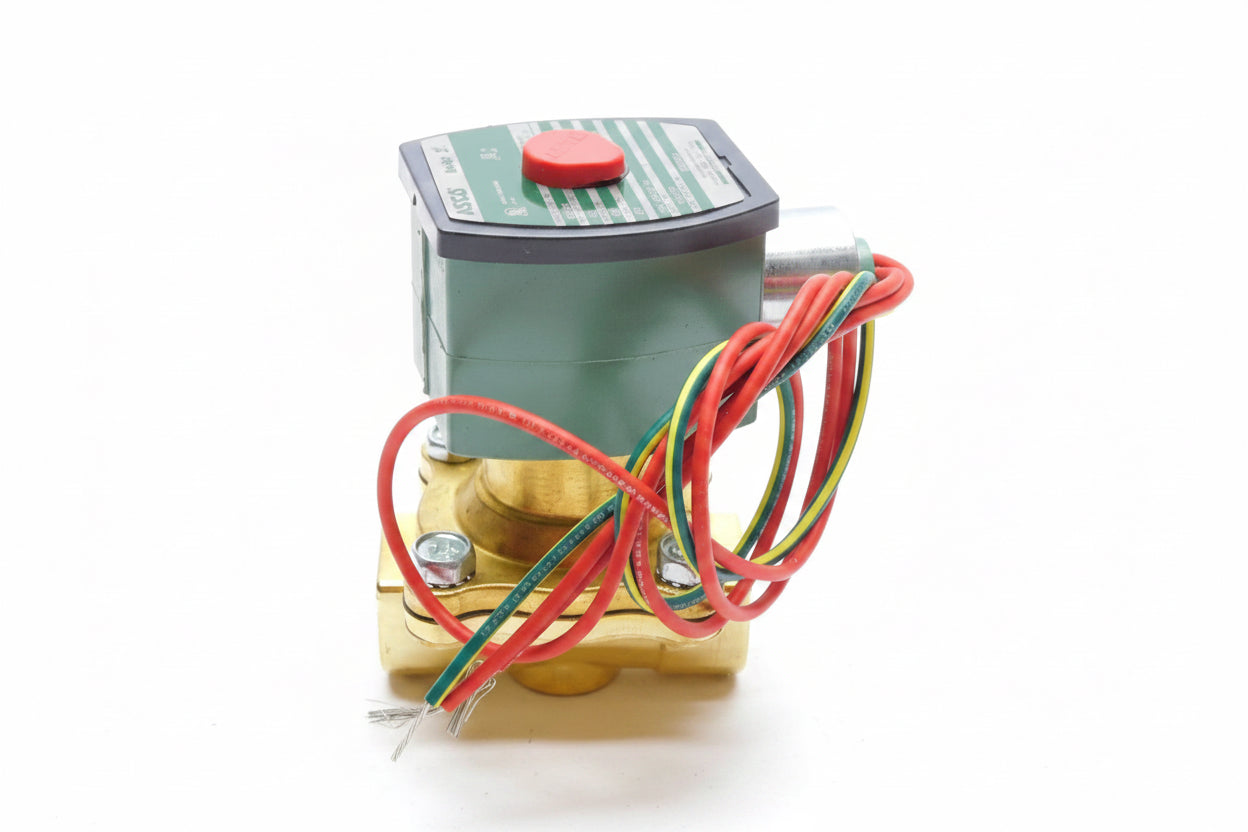

Asco 8210G034 1/2-Inch Normally Open High-Flow Solenoid Valve 120VAC 4 Cv
- Regular price
- $229.00
- Sale price
- $229.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G034
Description
ASCO 8210G034 is a 2-way normally open, pilot-operated solenoid valve designed for high-flow control of air, inert gas, water, and light oil. This Series 8210 valve features a 1/2-inch NPT connection, brass body, Cv rating of 4, and a 120 VAC 60 Hz / 110 VAC 50 Hz coil configuration for general industrial fluid-control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | 8210G034 |
| Subcategory | Solenoid Valves |
| Series | 8210 / 210 Series |
| Product Type | High-Flow Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Starting Position | Normally Open |
| Operation Type | Pilot Operated |
| Connection Size | 1/2 in |
| Connection Type | NPT Threaded |
| Orifice Size | 5/8 in |
| Body Material | Brass |
| Seal Material | NBR / Buna-N |
| Flow Coefficient (Cv) | 4 |
| Voltage | 120 VAC, 60 Hz / 110 VAC, 50 Hz |
| Wattage | 10.1 W |
| Coil Insulation | Class F |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Maximum Water Pressure | 150 psi |
| Maximum Air Pressure | 150 psi |
| Maximum Light Oil Pressure | 125 psi |
| Minimum Pressure Differential | 0 psi |
| Maximum Fluid Temperature | 180°F |
| Standard NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Weight | 2.3 lb |
Information About 8210G034
The 8210G034 is an ASCO Series 8210 general-service solenoid valve with a normally open 2-way/2-position flow configuration. It uses pilot-operated actuation, a brass valve body, NBR sealing materials, and a 5/8-inch internal orifice for high-flow service. The valve is compatible with air, inert gas, water, and light oil and is commonly applied in air compressors, pumps, industrial water controls, car-wash equipment, and laundry systems. The standard RedHat II enclosure supports NEMA Types 1, 2, 3, 3S, 4, and 4X protection, while optional enclosure configurations are available for more demanding environments.
Key Features:
- Normally Open Operation: Remains open when de-energized and closes when the solenoid coil is energized.
- 2-Way Valve Design: Provides one inlet and one outlet for electrically controlled on/off fluid flow.
- 1/2-Inch NPT Connection: Uses threaded 1/2-inch connections for installation in compatible piping systems.
- High Flow Capacity: Provides a Cv flow coefficient of 4 through a 5/8-inch internal orifice.
- Pilot-Operated Actuation: Uses pilot operation for efficient control of fluid flow through the main valve.
- Multiple Media Compatibility: Suitable for air, inert gas, water, and light oil applications.
- Brass Body and NBR Seals: Combines a brass valve body with NBR/Buna-N sealing materials for general industrial fluid service.
- Watertight Enclosure: Standard RedHat II construction supports NEMA 1, 2, 3, 3S, 4, and 4X environmental ratings.
The 8210G034 delivers the reliability and precision required for automated flow control in industrial air, water, inert gas, and light-oil systems.
