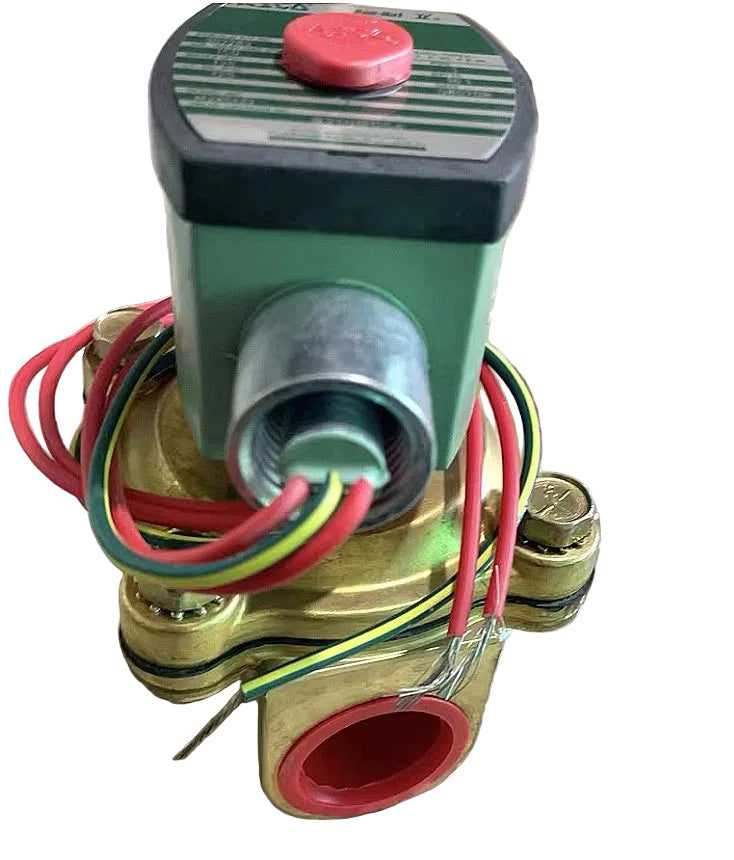

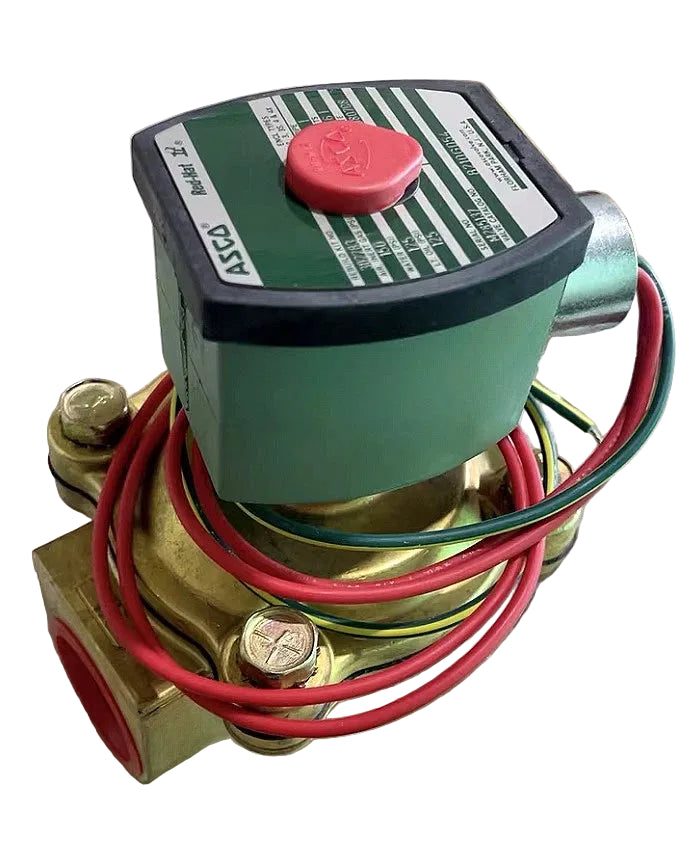

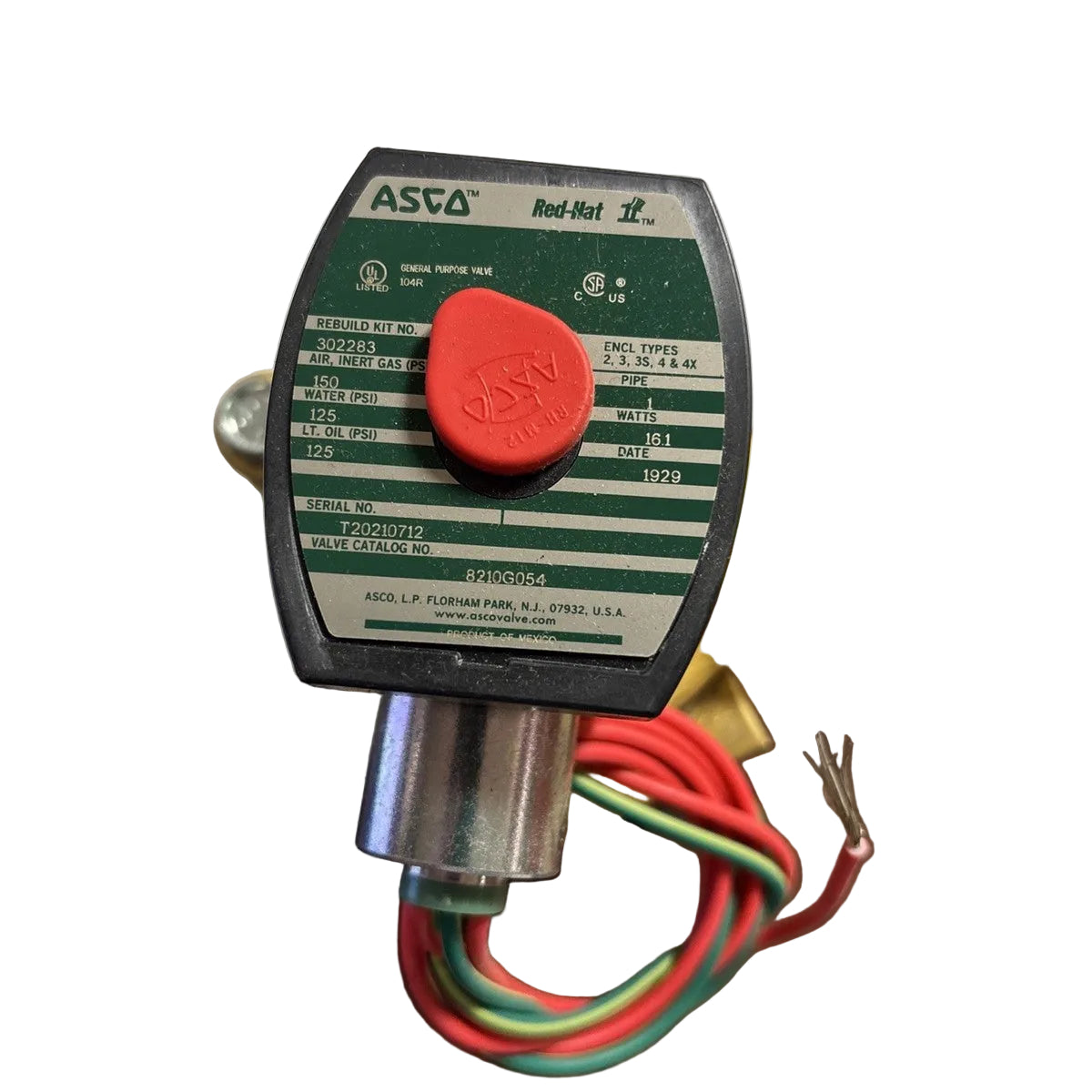

ASCO 8210G054 RedHat II Series 8210 1-Inch Normally Closed Solenoid Valve
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G054
Description
ASCO 8210G054 is a RedHat II Series 8210 pilot-operated solenoid valve designed for high-flow control of air, inert gas, water, and light oil. Its 1-inch brass body, normally closed 2-way configuration, and 13 Cv flow capacity support industrial fluid handling, compressor, pump, and water-control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8210G054 |
| Subcategory | Solenoid Valves |
| Series | RedHat II Series 8210 |
| Product Type | General Purpose Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Operation | Pilot-Operated Diaphragm |
| Body Material | Brass |
| Port Size | 1 in NPTF Female |
| Orifice Size | 1 in |
| Flow Factor | 13 Cv |
| Media | Air, Inert Gas, Water, Light Oil |
| Pressure Rating – Air/Inert Gas | 0–150 PSI |
| Pressure Rating – Water/Light Oil | 0–125 PSI |
| Maximum Fluid Temperature | 180°F |
| Seal Material | NBR |
| Power Rating | 16.1 W |
| Coil Insulation | Class F |
| Enclosure Rating | NEMA 1/2/3/3S/4/4X |
| Ambient Temperature | 32–125°F |
| Replacement Coil | 272610-032-D |
| Replacement Kit | 302283 |
| Weight | 4.29 lbs |
Information About 8210G054
The 8210G054 is an ASCO RedHat II Series 8210 general-purpose solenoid valve built with a pilot-operated diaphragm mechanism. Its brass body incorporates 1-inch NPT female connections, a 1-inch orifice, and NBR sealing components for reliable fluid isolation. The valve provides normally closed 2-way operation with pressure ratings up to 150 PSI for air and inert gas and 125 PSI for water and light oil. Its watertight enclosure configuration supports installation in industrial systems requiring controlled fluid flow under indoor or outdoor operating conditions.
Key Features:
- 2-Way Operation: Provides 2-way, 2-position normally closed fluid control.
- Pilot-Operated Diaphragm: Uses internal pilot pressure to control the main diaphragm and high-flow orifice.
- 13 Cv Flow Capacity: Supports high-volume flow through the 1-inch valve body.
- 1-Inch NPT Connections: Provides female threaded inlet and outlet ports for standard industrial piping.
- Brass Construction: Provides a durable valve body for air, inert gas, water, and light oil service.
- NBR Sealing: Uses an NBR seal with diaphragm components for controlled shutoff and low internal leakage.
- Watertight Enclosure: NEMA 1/2/3/3S/4/4X protection supports demanding indoor and outdoor environments.
- Industrial Pressure Range: Handles up to 150 PSI for air/inert gas and up to 125 PSI for water/light oil.
The 8210G054 delivers the reliability and precision required for high-flow fluid switching, industrial water control, pneumatic systems, pumps, and compressor applications.
