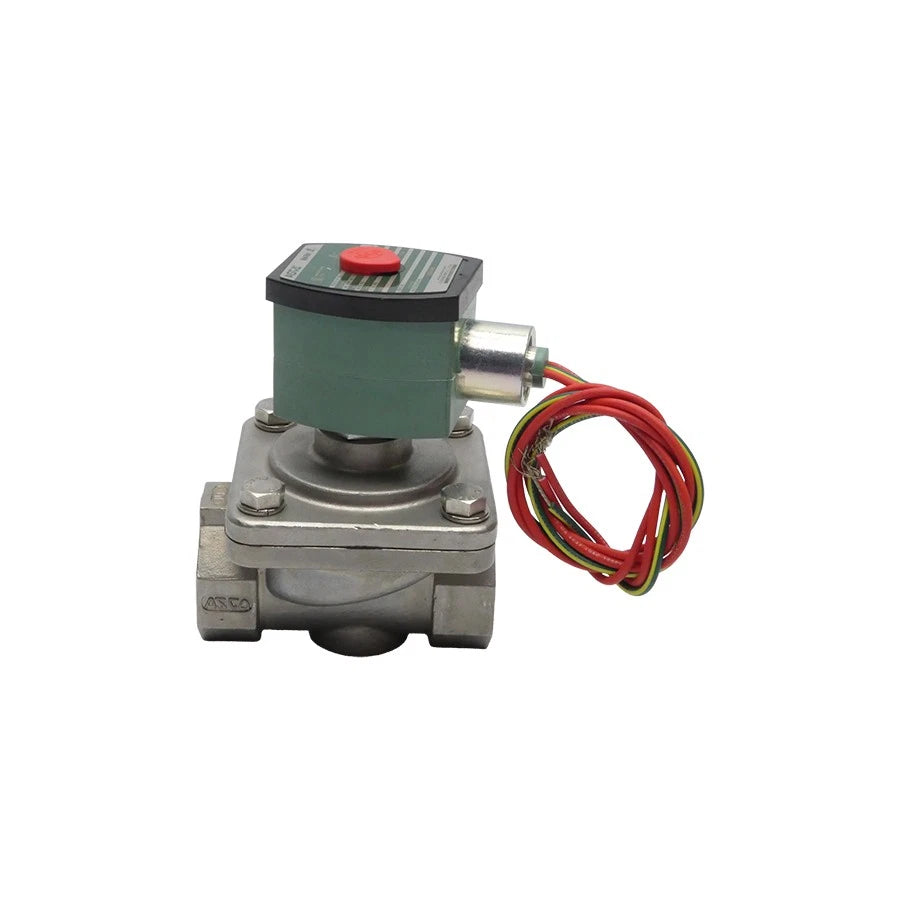

ASCO 8210G089 Series 210 1 Inch Stainless Steel Normally Closed Solenoid Valve
- Regular price
- $1,222.00
- Sale price
- $1,222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G089
Description
The ASCO 8210G089 is a Series 210 general service solenoid valve engineered for reliable on/off control of air, water, light oil, and inert gas in industrial fluid handling systems. This 2-way, normally closed, pilot-operated valve features a stainless steel body with 1-inch NPT threaded ports, providing high flow capacity, low internal leakage, and long service life. The ASCO 8210G089 is commonly used in industrial water control, air compressors, pumps, commercial laundry equipment, and automated process applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8210G089 |
| Subcategory | Solenoid Valve |
| Series | 210 (8210) |
| Valve Type | General Service Solenoid Valve |
| Valve Configuration | 2-Way |
| Normal Position | Normally Closed |
| Operation | Pilot Operated |
| Body Material | Stainless Steel |
| Port Size | 1 Inch NPT Female |
| Orifice Size | 1 Inch |
| Flow Coefficient (Cv) | 13.0 |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Seal Material | FKM |
| Operating Pressure | 0–150 PSI (application dependent) |
| Maximum Fluid Temperature | 180°F (82°C) |
| Coil Insulation Class | Class F |
| Power Consumption | 16.1 W (AC models) |
| Mounting Orientation | Any Position |
| Weight | 3.00 lbs |
Information About 8210G089
The 8210G089 is a member of the ASCO Series 210 (8210) family of high-flow general service solenoid valves developed for demanding industrial applications. Its pilot-operated diaphragm design combines a stainless steel body with resilient sealing materials to provide dependable performance and extended operating life. The valve is designed to handle air, inert gas, water, and light oil while offering a 2-way normally closed configuration for secure shutoff when de-energized. With its 1-inch NPT ports and corrosion-resistant construction, the valve is well suited for industrial processing equipment, water treatment systems, compressors, and manufacturing automation.
Key Features:
- Series 210 Design: Built for high-flow industrial fluid control applications.
- 2-Way Normally Closed Valve: Provides reliable shutoff until the solenoid is energized.
- Pilot-Operated Construction: Delivers efficient operation with high flow capacity.
- Stainless Steel Body: Offers excellent corrosion resistance for demanding environments.
- 1-Inch NPT Connections: Standard female threaded ports simplify installation.
- Multi-Media Compatibility: Suitable for air, inert gas, water, and light oil service.
- High Flow Performance: Features a 1-inch orifice with a flow coefficient of Cv 13.0.
- Continuous-Duty Operation: Designed for industrial automation, pumps, compressors, and water control systems.
The 8210G089 delivers the reliability and precision required for industrial fluid control and automated process applications.
