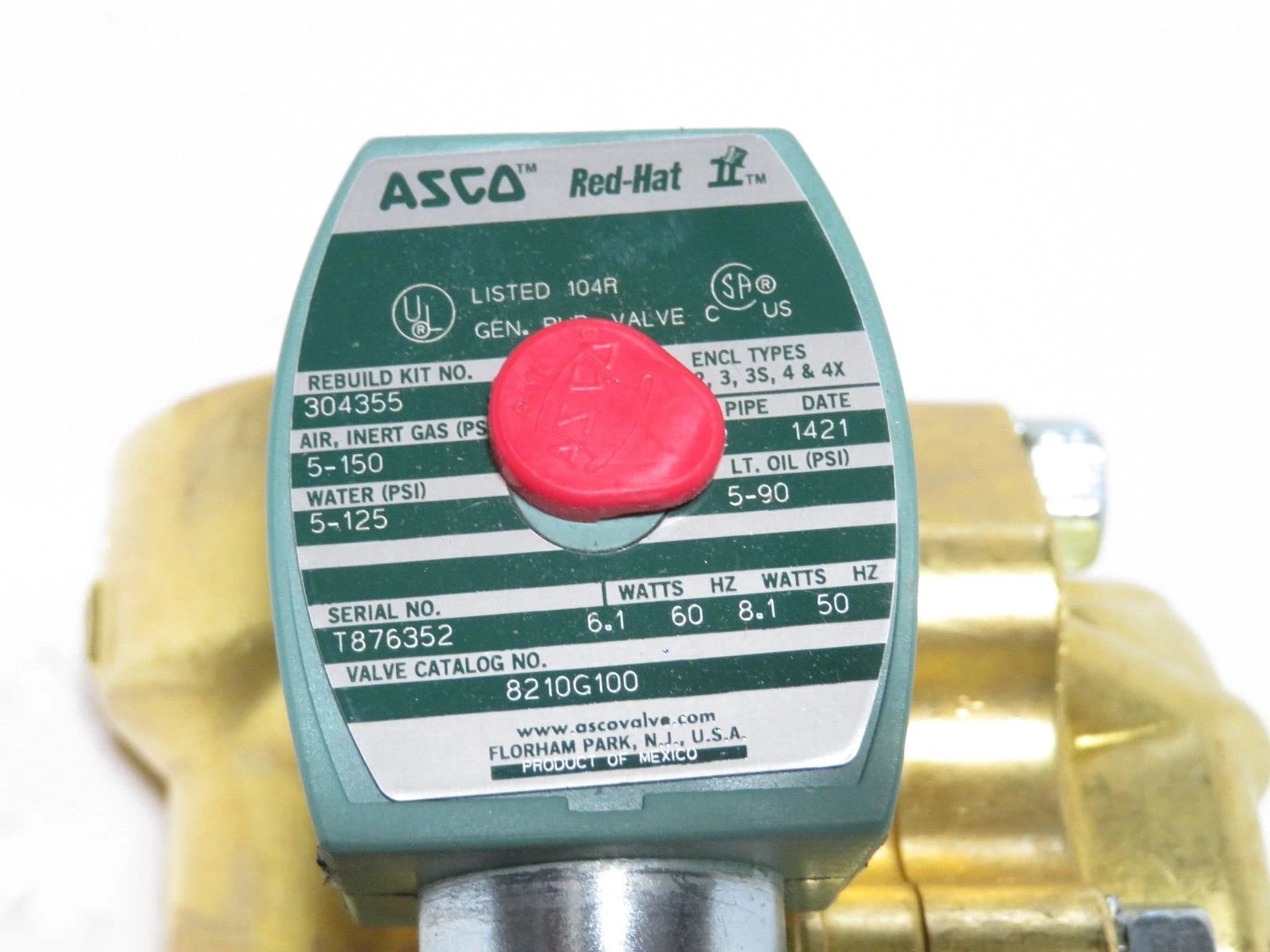

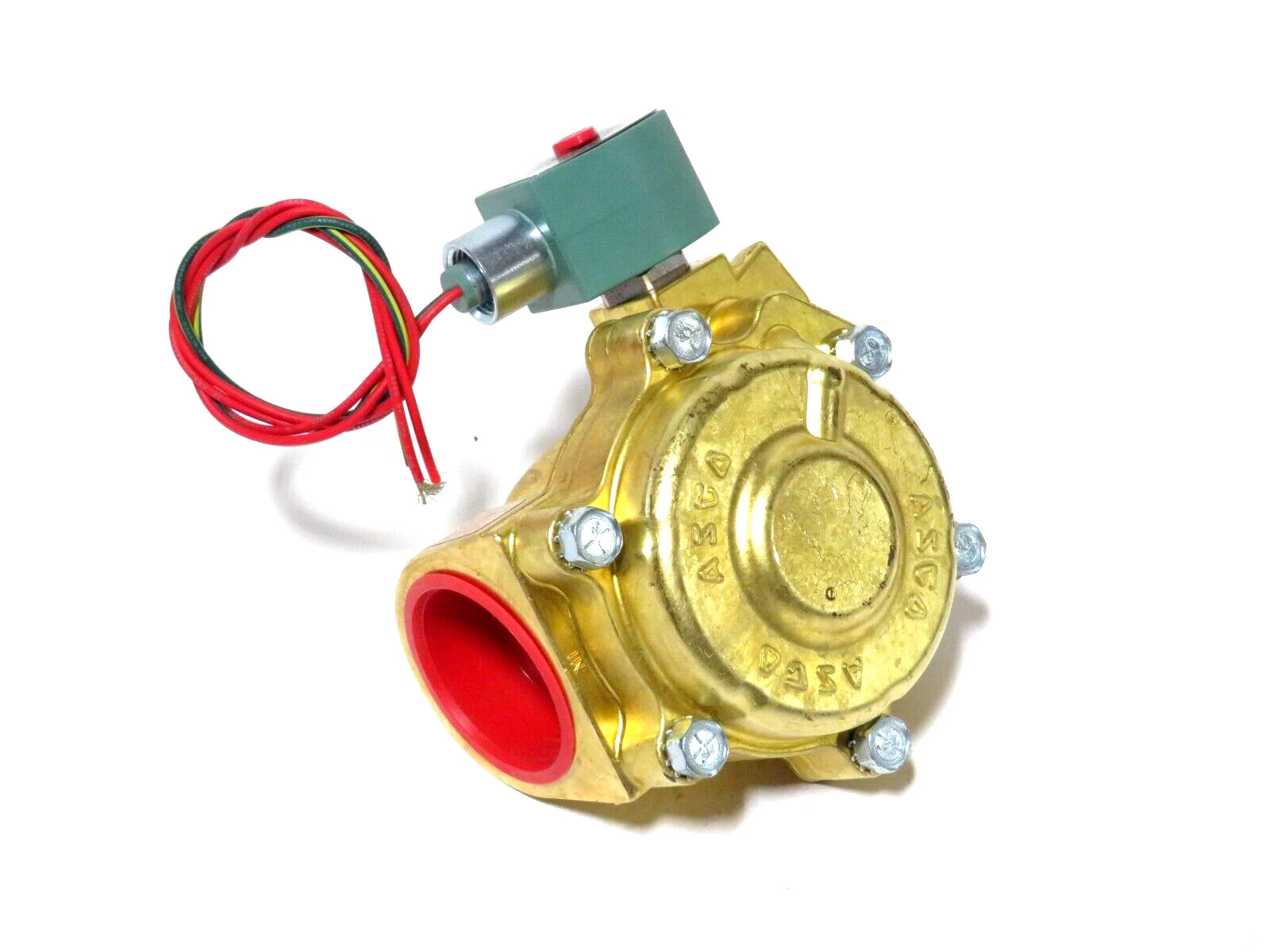

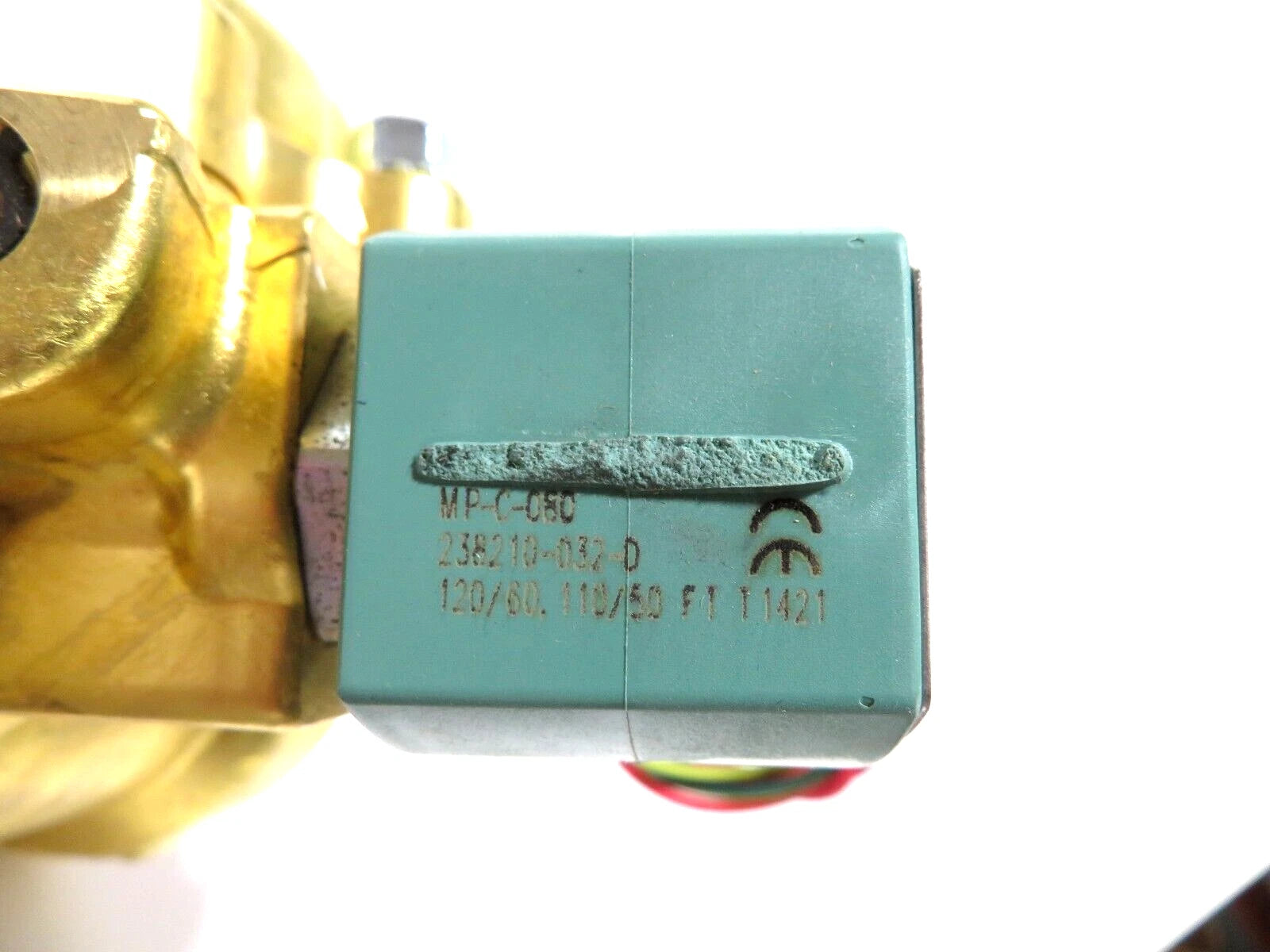

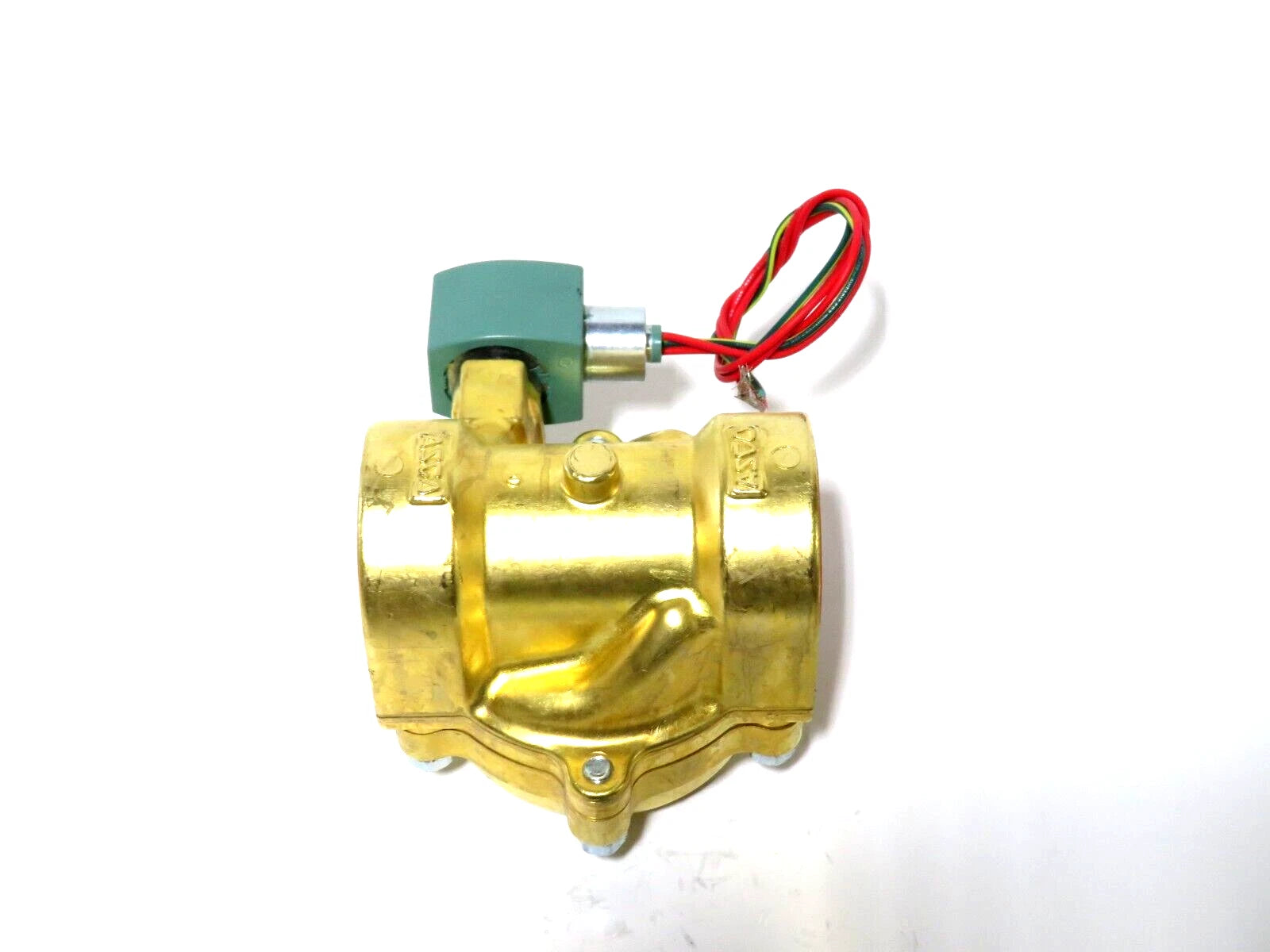

ASCO 8210G100 2-Inch Two-Way Normally Closed Pilot-Operated Brass Solenoid Valve 24 VDC
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G100
Description
The ASCO 8210G100 is a pilot-operated, two-way normally closed solenoid valve engineered for reliable control of air, inert gas, light oil, and water in industrial fluid handling systems. Manufactured by ASCO, the 8210G100 combines a high-flow brass body with a 24 VDC solenoid coil to provide dependable automatic shutoff and flow control in demanding process applications. It is commonly installed in pumps, air compressors, industrial water systems, car wash equipment, and commercial laundry machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8210G100 |
| Subcategory | Solenoid Valve |
| Series | 210 (8210) |
| Valve Type | Two-Way Pilot-Operated Solenoid Valve |
| Valve Configuration | Normally Closed |
| Body Material | Brass |
| Nominal Pipe Size | 2 Inch |
| Orifice Diameter | 1-3/4 Inch |
| Flow Coefficient (Cv) | 43 |
| Operating Voltage | 24 VDC |
| Power Consumption | 6.1 W |
| Media | Air, Inert Gas, Water, Light Oil |
| Seal Material | NBR |
| Pressure Differential (Water) | 5 to 125 psi |
| Pressure Differential (Air/Inert Gas) | 5 to 50 psi |
| Pressure Differential (Light Oil) | 5 to 90 psi |
| Maximum Fluid Temperature | 180°F (82°C) |
| Ambient Temperature Range | 14°F to 140°F (-10°C to 60°C) |
| Electrical Connection | 1/2 Inch Conduit Hub |
| Ingress Protection | IP66 |
| Coil Insulation Class | Class F |
| Connection Type | NPTF Threaded |
| Mounting Orientation | Vertical |
| Standards | UL Listed |
| Weight | 13 lb (5.9 kg) |
Information About 8210G100
The 8210G100 is part of the ASCO Series 210 (8210) family of general-purpose solenoid valves designed for high-flow industrial service. Its pilot-operated brass construction, NBR sealing elements, and watertight coil enclosure provide dependable operation in indoor and outdoor environments where automatic fluid control is required. The valve supports threaded NPTF connections and is compatible with water, compressed air, inert gases, and light oils across a wide operating pressure range. Designed for long service life with minimal internal leakage, it meets UL requirements and is widely used throughout industrial automation, water management, compressor systems, and process equipment.
Key Features:
- High-Flow Design: Large 2-inch valve with a Cv rating of 43 for high-capacity fluid handling.
- Pilot-Operated Construction: Uses system pressure to provide reliable operation while reducing coil power requirements.
- Normally Closed Configuration: Automatically blocks media flow until electrically energized.
- Brass Valve Body: Corrosion-resistant brass construction provides durability in industrial environments.
- Watertight Coil Enclosure: IP66-rated enclosure protects electrical components from dust and water ingress.
- Multiple Media Compatibility: Suitable for air, inert gas, water, and light oil applications.
- Industrial Electrical Design: Operates on 24 VDC with a low 6.1 W power consumption and Class F coil insulation.
- Flexible Installation: Supports vertical mounting with NPTF threaded process connections for industrial piping systems.
The 8210G100 delivers the reliability and precision required for automated industrial fluid control, water management, compressed air systems, and process automation applications.
