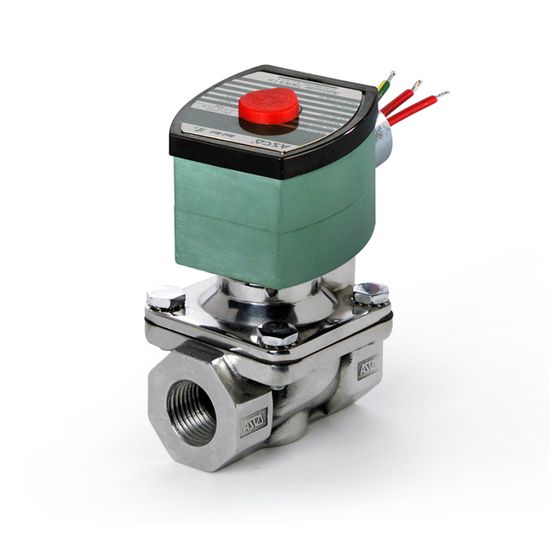

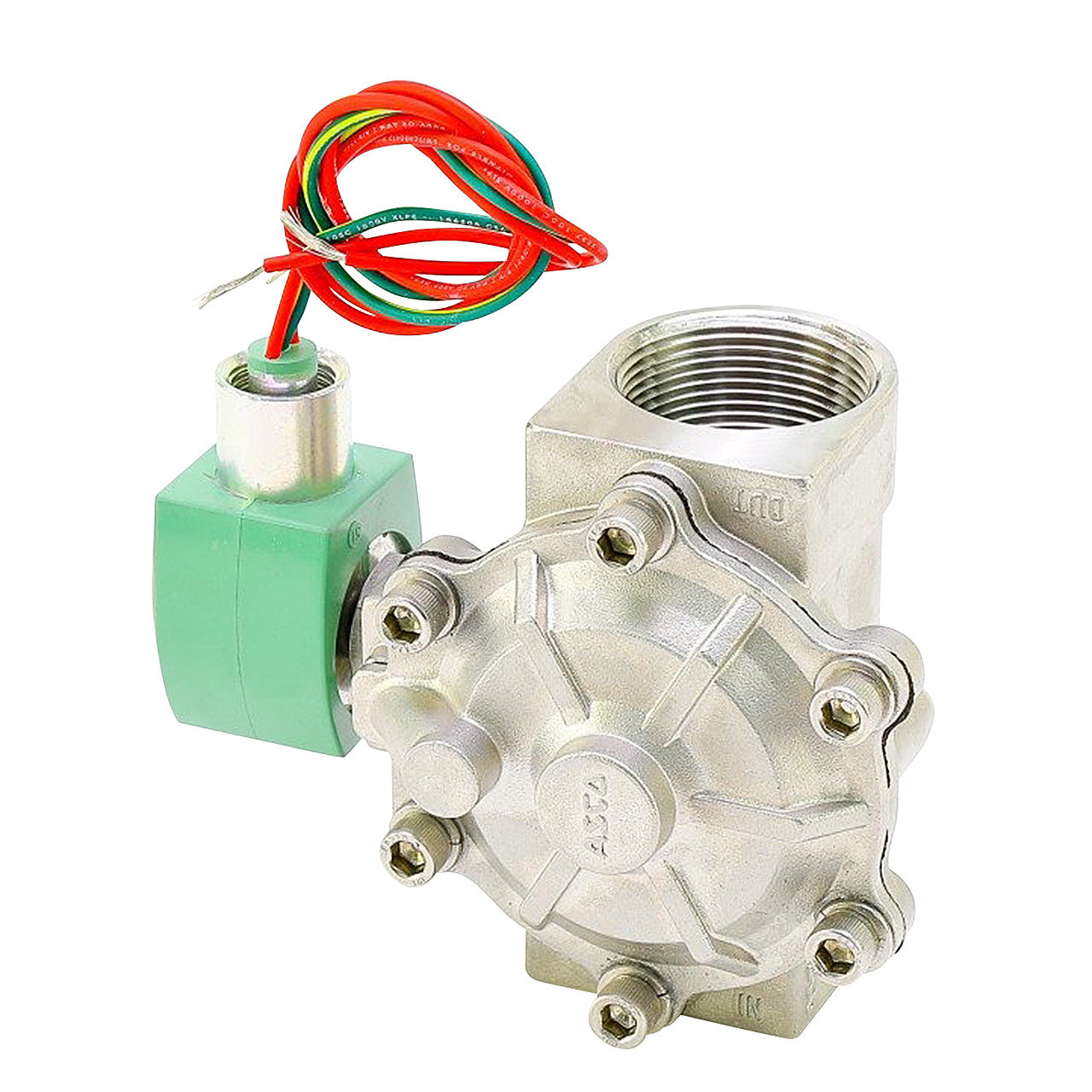

ASCO 8210G127 Series 8210 1-1/2" Stainless Steel Solenoid Valve
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G127
Description
ASCO 8210G127 is a Series 8210 high-flow general service solenoid valve designed for reliable control of air, inert gas, water, and light oil. This 2-way normally closed valve features a stainless steel body, 1-1/2-inch NPT connections, and pilot-operated construction for demanding industrial fluid-control applications.
Technical Specifications
| Brand | ASCO |
| Part Number | 8210G127 |
| Series | 8210 |
| Product Type | General Service Solenoid Valve |
| Valve Actuation | Solenoid |
| Function | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Construction | Pilot Operated |
| Body Material | Stainless Steel |
| Pipe / Port Size | 1-1/2 in |
| Port Type | NPTF |
| Orifice Size | 1-1/4 in |
| Flow Coefficient | 22.5 Cv / 19.5 Kv |
| Media | Air, Inert Gas, Water, Light Oil |
| Maximum Operating Pressure | Up to 150 PSI |
| Maximum Pressure – Light Oil | 100 PSI |
| Maximum Fluid Temperature | 180°F (82°C) |
| Voltage | 120 VAC* |
| Frequency | 60 Hz* |
| Enclosure | Watertight |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Operating Environment | Indoor / Outdoor |
| Rebuild Kit | 325365 |
| Weight | 6.40 lbs |
Information About 8210G127
The 8210G127 is an ASCO Series 8210 general service solenoid valve. It uses a 2-way, normally closed configuration that prevents media flow when the valve is de-energized. Its stainless steel construction provides durability and corrosion resistance for demanding fluid and gas applications. The valve is suitable for industrial water control, pumps, air compressors, laundry equipment, car wash systems, and other process-control installations.
Key Features:
- 2-Way Configuration: Provides straightforward on/off control of compatible liquid and gas media.
- Normally Closed Operation: Remains closed when de-energized and opens when the solenoid is energized.
- Stainless Steel Body: Provides corrosion resistance and durability in demanding industrial environments.
- 1-1/2-Inch Ports: Features 1-1/2-inch NPTF connections for high-flow process applications.
- High Flow Capacity: Provides a flow coefficient of 22.5 Cv / 19.5 Kv.
- Pilot-Operated Design: Uses line pressure to support efficient operation in higher-flow applications.
- Broad Media Compatibility: Suitable for air, inert gas, water, and light oil.
- Operating Pressure: Supports pressure differentials up to 150 PSI depending on the controlled media.
- Indoor/Outdoor Use: Designed for industrial installations in both indoor and outdoor environments.
The 8210G127 delivers the reliability and flow capacity required for industrial fluid control, water systems, pneumatic equipment, and process automation.
