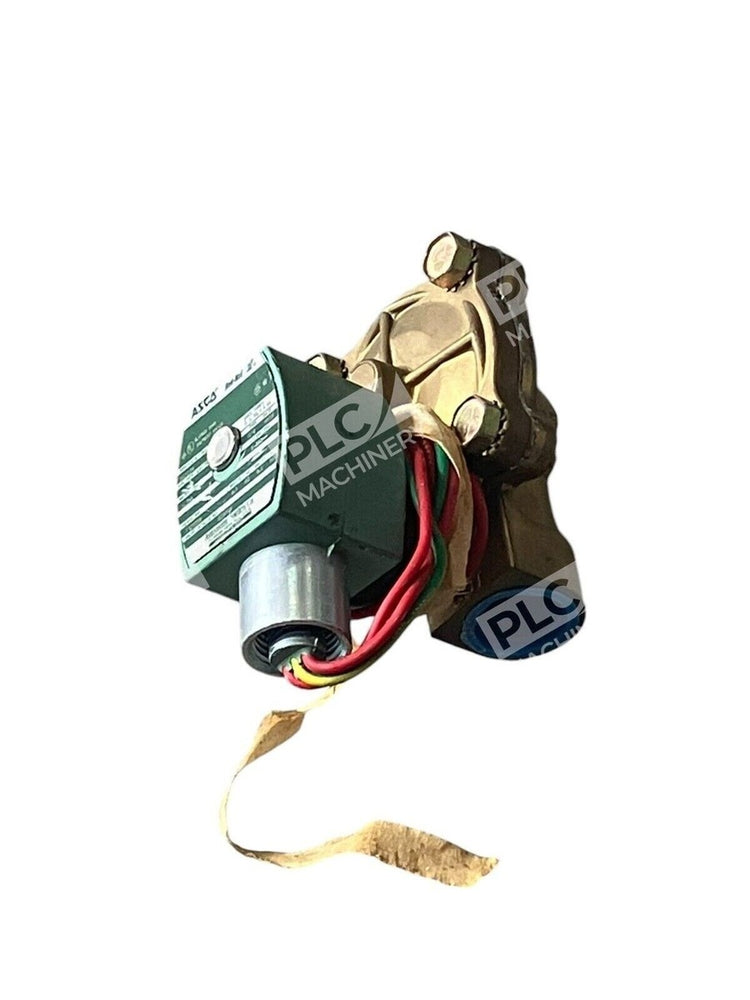

Asco 8210G3 Normally Closed Pilot Operated Brass General Service Solenoid Valve
- Regular price
- $355.00
- Sale price
- $355.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8210G3
Description
The Asco 8210G3 is a pilot-operated, normally closed 2-way solenoid valve for controlling air, water, and light oil in general service systems. Its brass body incorporates 3/4-inch NPT connections and provides a Cv rating of 6.5. The 120 VAC coil opens the valve when energized, while the flow path closes when power is removed.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | 8210G3 |
| Subcategory | General Service Solenoid Valves |
| Series | 8210 / 210 |
| Valve Configuration | 2-way, 2-position; normally closed |
| Actuation Method | Pilot operated |
| Port Size and Connection | 3/4-inch NPT |
| Body Material | Brass |
| Seal Material | NBR (Buna-N) |
| Coil Supply | 120 VAC, 60 Hz / 110 VAC, 50 Hz, standard dual-rated AC configuration |
| Coil Power Rating | 6.1 W at 60 Hz |
| Flow Coefficient | Cv 6.5 |
| Orifice Size | 3/4 in. |
| Enclosure Rating | NEMA 4X |
| Compatible Media | Air, water, and light oil |
| Air Pressure Differential | 5–250 PSI |
| Water Pressure Differential | 5–150 PSI |
| Light Oil Pressure Differential | 5–100 PSI |
| Weight | 3.7 lb (1.68 kg) |
Information About 8210G3
The 8210G3 is part of Asco’s 8210 general service valve series. Its pressure-assisted mechanism requires at least 5 PSI differential pressure for operation. NBR seals provide resilient sealing for compatible media, and threaded ports connect to matching piping fittings. The NEMA 4X enclosure supports installation where the solenoid requires protection against water exposure and corrosion.
Key Features:
- Normally Closed Function: Blocks flow when de-energized and opens when the coil receives power.
- Pilot-Operated Mechanism: Uses fluid pressure to assist valve operation.
- Two-Way Configuration: Controls a single flow path between inlet and outlet.
- Brass Body: Provides the valve housing for compatible general service fluids.
- Threaded Connections: Uses 3/4-inch NPT ports for integration into matching piping.
- Flow Capacity: Provides a Cv rating of 6.5 for system flow sizing.
- NBR Seals: Uses Buna-N elastomer for internal sealing.
- NEMA 4X Enclosure: Protects the solenoid against specified environmental exposure, including water and corrosion.
The 8210G3 delivers the reliability and precision required for automated fluid switching in general service air, water, and light oil systems.
