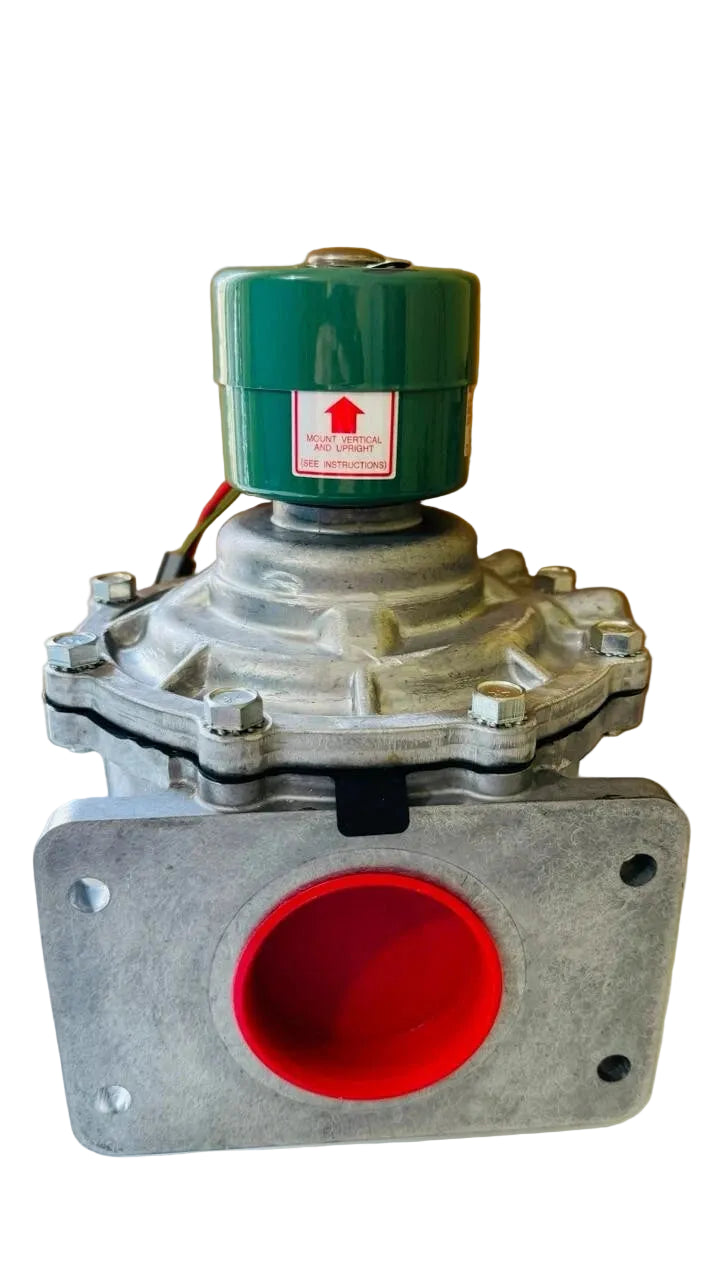

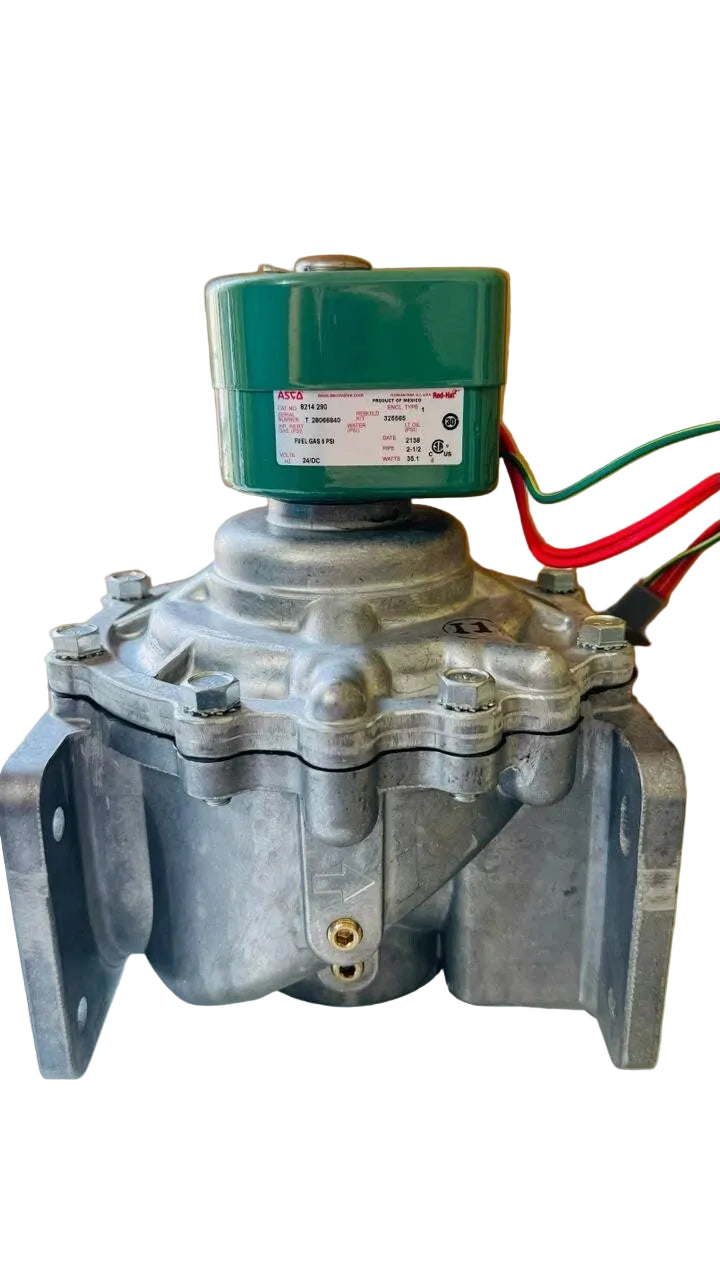

ASCO 8214290 Series 214 2-1/2" Gas Shutoff Solenoid Valve
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8214290
Description
ASCO 8214290 is a Series 214 gas shutoff solenoid valve designed for on-off control of fuel gas in commercial and industrial combustion systems. The valve features a 2-1/2-inch NPT aluminum body, normally closed operation, and a high-flow design for dependable fuel gas isolation in demanding burner applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8214290 |
| Subcategory | Solenoid Valves |
| Series | 214 Series |
| Product Type | Gas Shutoff Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Valve Actuation | Solenoid |
| Body Material | Aluminum |
| Port Size | 2-1/2 in. |
| Port Type | NPT |
| Orifice Size | 3 in. |
| Flow Factor | 104 Cv |
| Seal Material | NBR |
| Application | Fuel Gas Control |
| Item Status | Active |
| Weight | 31.1 lbs |
Information About 8214290
The 8214290 is an ASCO Series 214 normally closed gas shutoff solenoid valve. It uses a double-disc design with overtravel to provide redundant sealing and reliable leak-tight shutoff of pilot or main fuel gas lines. The valve features a 2-1/2-inch NPT connection and aluminum body construction for industrial gas service. It is suitable for applications including boilers, furnaces, kilns, grain dryers, gas generators, and commercial cooking equipment.
Key Features:
- Gas Shutoff Design: Engineered specifically for on-off control and isolation of fuel gas.
- Normally Closed Operation: Maintains a closed position when the solenoid is de-energized.
- 2-1/2-Inch NPT Connection: Designed for high-capacity commercial and industrial gas piping systems.
- Double-Disc Construction: Provides redundant sealing for dependable leak-tight shutoff.
- High-Flow Design: Provides up to 104 Cv flow capacity in applicable configurations.
- Aluminum Body: Combines durable construction with reduced valve body weight.
- Solenoid Actuation: Provides electrically controlled operation for automated burner and combustion systems.
- Industrial Gas Applications: Suitable for boilers, furnaces, kilns, grain dryers, generators, and commercial kitchen equipment.
The 8214290 delivers the reliability and flow capacity required for fuel gas isolation and combustion control in commercial and industrial systems.
