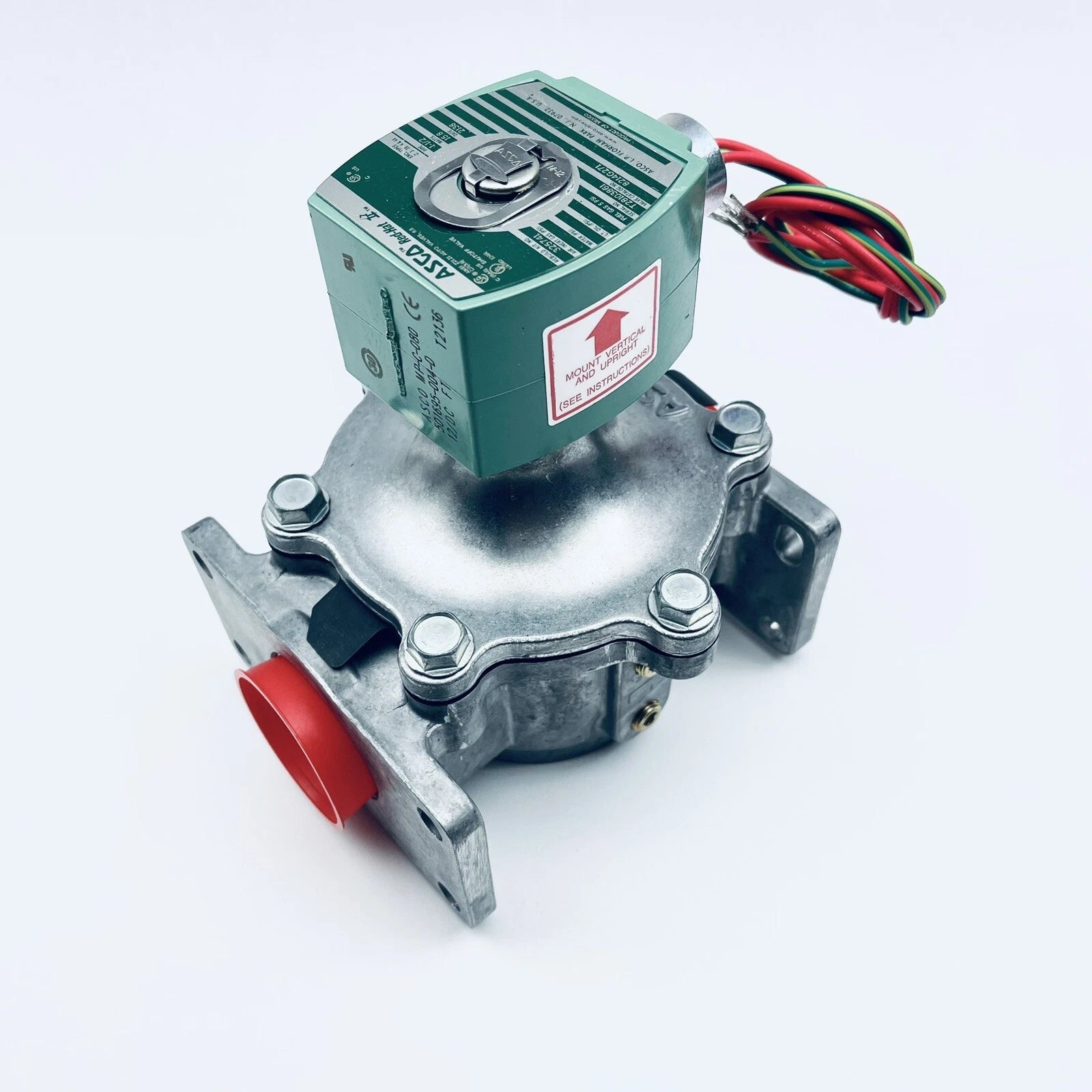

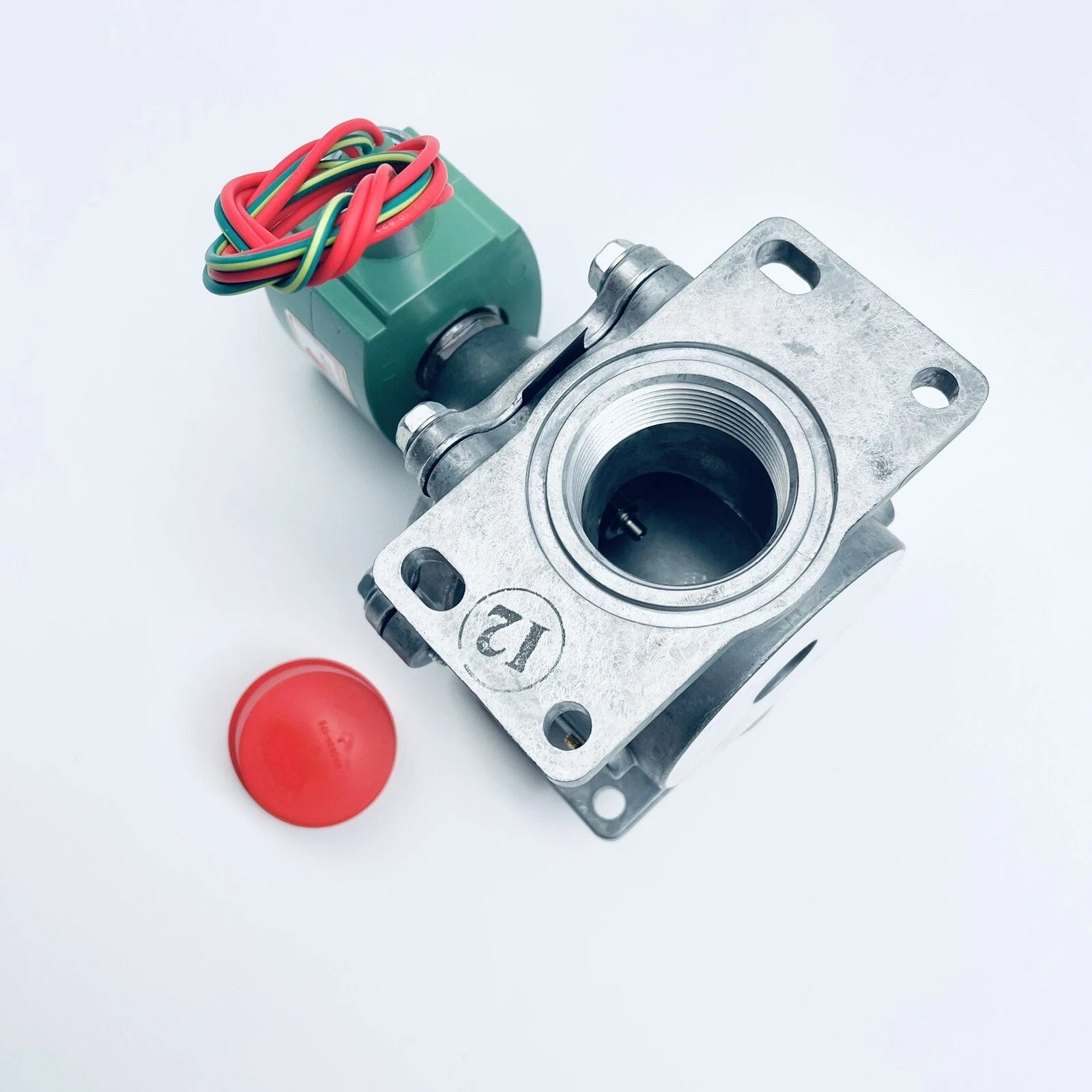

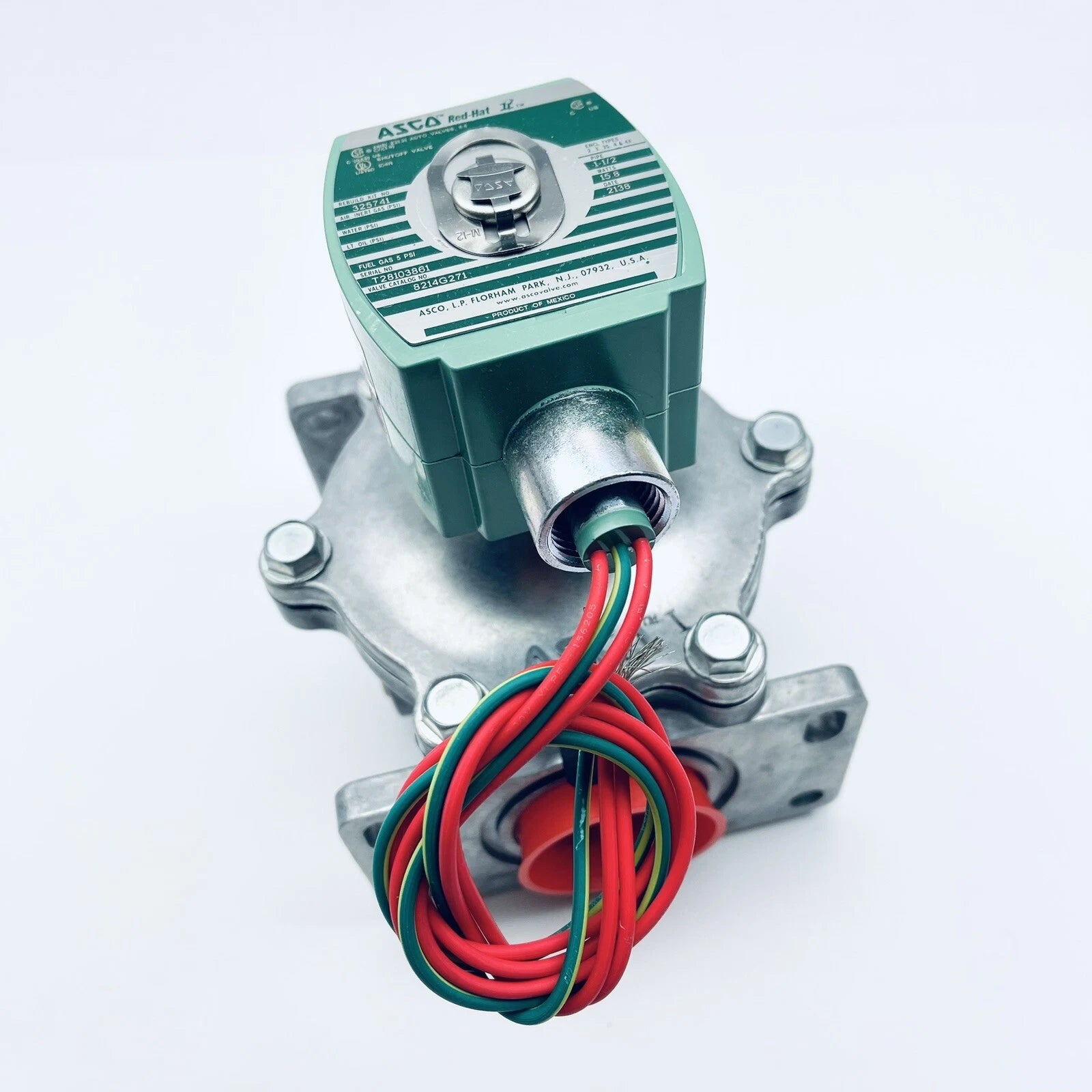

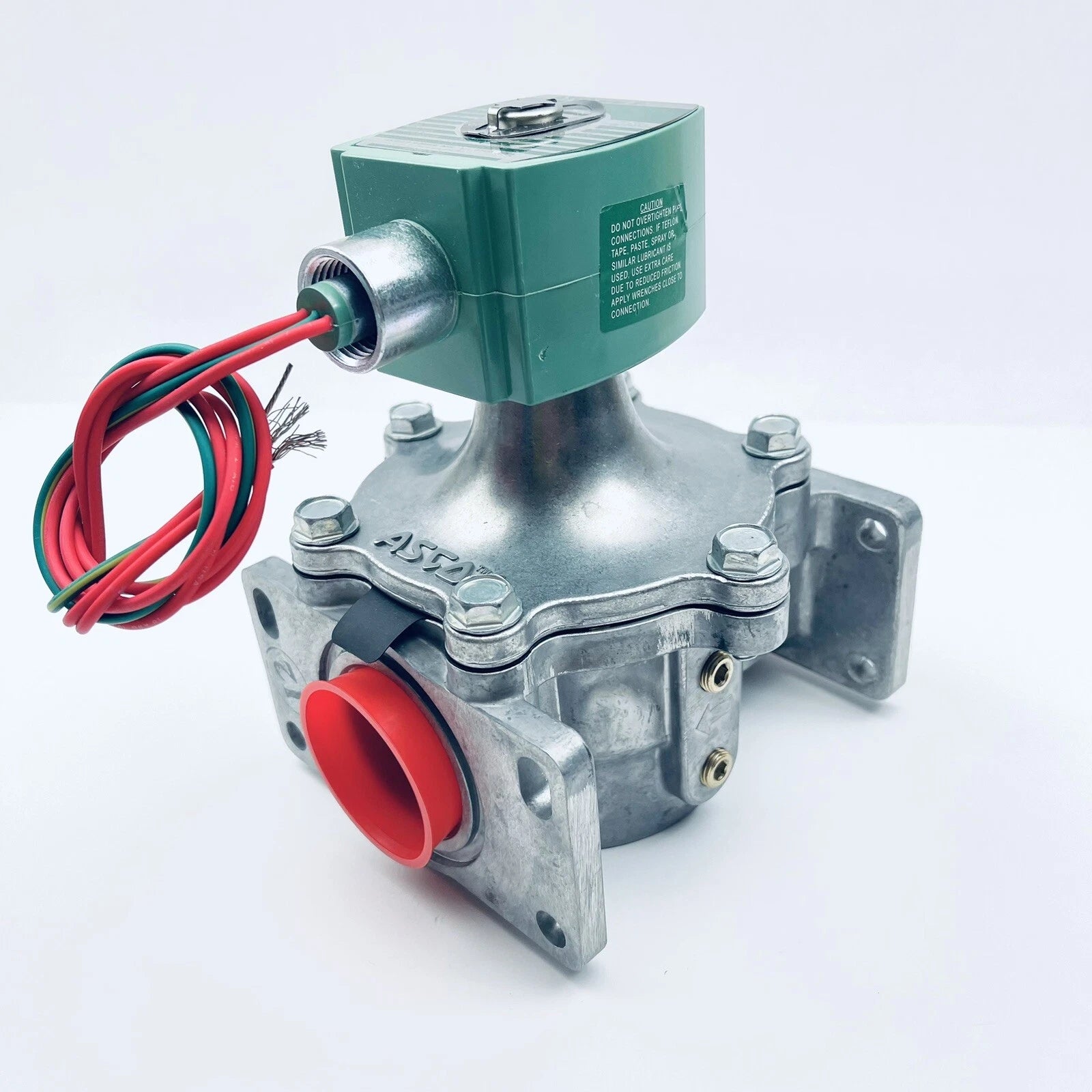

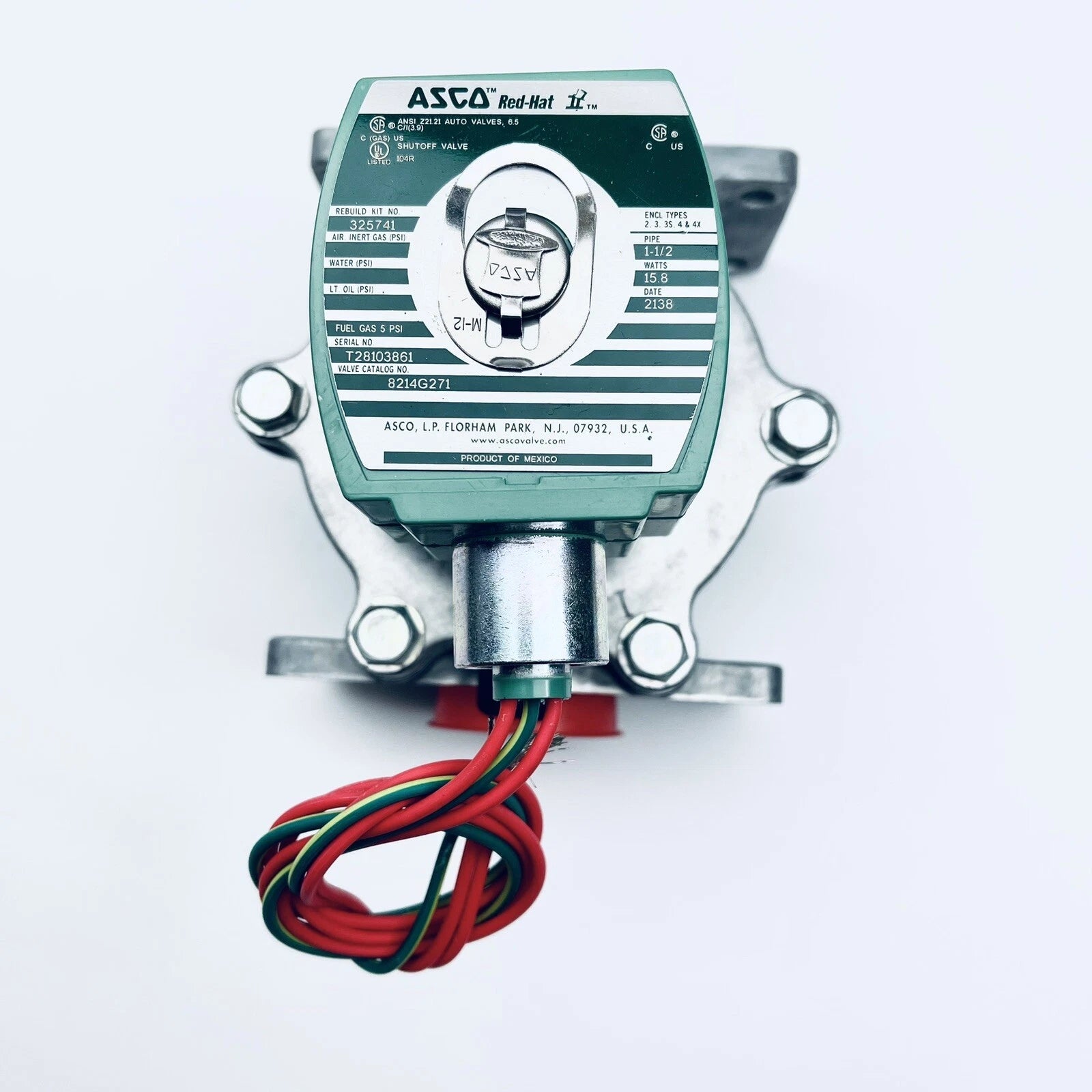

ASCO 8214G271 1-1/2" 120V NC Gas Shut-Off Solenoid Valve
- Regular price
- $555.00
- Sale price
- $555.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8214G271
Description
ASCO 8214G271 is a 1-1/2-inch normally closed gas shut-off solenoid valve designed for on/off fuel gas control in commercial and industrial burner systems. Operating at 120V AC with a 0–5 PSI pressure range, it provides reliable safety shut-off performance for heating and combustion applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Part Number | 8214G271 |
| Series | RedHat II / 8214 Series |
| Product Type | Gas Shut-Off Solenoid Valve |
| Function | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Port Size | 1-1/2 in. |
| Input Voltage | 120 VAC |
| Pressure Range | 0–5 PSI |
| Body Material | Aluminum |
| Media | Fuel Gas |
| Seal Material | NBR |
| Enclosure | Watertight |
| Application | Commercial & Industrial Gas Burners |
| Approvals | UL / CSA |
| Weight | Approx. 6.0 lbs |
Information About 8214G271
The ASCO 8214G271 is a RedHat II Series gas shut-off solenoid valve designed for fuel gas control applications. It features a normally closed configuration that shuts off gas flow when the valve is de-energized. The valve operates within a 0–5 PSI pressure range and uses a double-disc design with overtravel to provide dependable sealing. Its 1-1/2-inch connection and 120V AC operation make it suitable for commercial and industrial gas burners, heating equipment, and related combustion systems.
Key Features:
- Normally Closed Operation: Automatically shuts off fuel gas flow when electrical power is removed.
- 1-1/2-Inch Connection: Designed for higher-capacity commercial and industrial gas piping systems.
- 120V AC Operation: Compatible with standard industrial and commercial control circuits.
- 0–5 PSI Pressure Range: Designed specifically for low-pressure fuel gas applications.
- Safety Shut-Off Design: Provides dependable on/off gas control for combustion equipment.
- Double-Disc Construction: Uses an overtravel design with redundant sealing for leak-tight shutoff.
- Position Indication: Provides visual indication of the valve's open and closed position.
- Industrial Construction: Engineered for commercial burners, heating equipment, and other demanding gas-control applications.
The ASCO 8214G271 delivers the reliability and precision required for commercial and industrial fuel gas safety shut-off applications.
