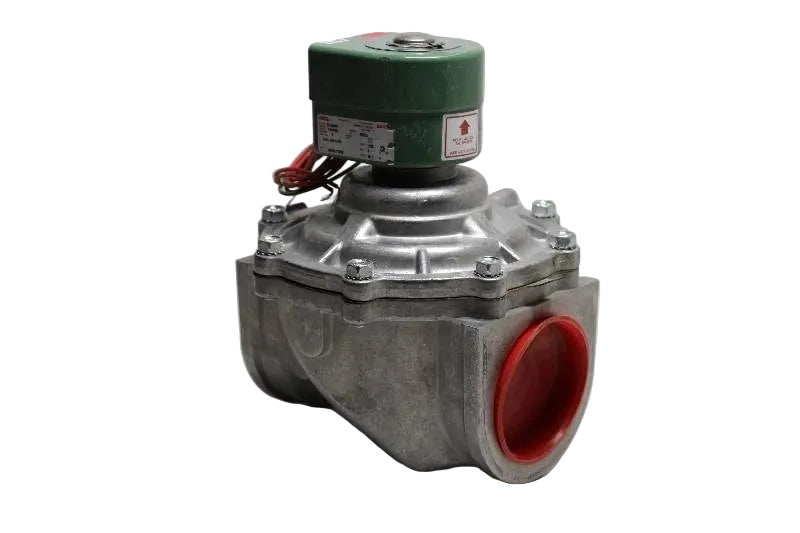

ASCO 8215A040 Series 8215 3" Solenoid Valve 120/110VAC
Part #:
8215A040
Manufactured by:
ASCO
- Regular price
- $1,799.00
- Sale price
- $1,799.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ASCO 8215A040 is a 3-inch, 2-way normally closed solenoid valve designed for high-flow, low-pressure air and fuel gas ...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: 8215A040
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: 8215A040
Description / Specifications
Description
ASCO 8215A040 is a Series 8215 high-flow solenoid valve designed for low-pressure air, fuel gas, and vacuum service. It features a 3-inch NPT connection, normally closed operation, aluminum construction, and a 138 Cv flow capacity for demanding industrial gas-control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8215A040 |
| Subcategory | Solenoid Valve |
| Product Type | High-Flow Solenoid Valve |
| Series | Series 8215 |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Operation Type | Pilot Operated |
| Body Material | Aluminum |
| Seal Material | NBR |
| Disc Material | NBR |
| Trim Material | Stainless Steel |
| Softgoods Material | PTFE |
| Nominal Size | 3 in |
| Connection Type | NPT |
| Orifice Size | 3 in |
| Flow Coefficient (Cv) | 138 |
| Flow Rate (Kv) | 118 m³/h |
| Media | Air, Fuel Gas |
| Minimum Operating Pressure Differential | 0 psi |
| Maximum Operating Pressure | 5 psi |
| Temperature Range | 32–125°F |
| Input Supply Rating | 120 VAC @ 60 Hz / 110 VAC @ 50 Hz |
| Frequency | 50/60 Hz |
| Number of Ports | 2 |
| Number of Positions | 2 |
| Inlet to Outlet Length | 7.79 in |
| Top to Inlet Center | 7.91 in |
| Dimensions | 7.94 in W × 10.25 in H |
| Application | Air, Fuel Gas, Vacuum and Heating Equipment |
| Weight | 34.07 lbs |
Information About 8215A040
Key Features:
- High-Flow Design: Provides up to 138 Cv for large-volume air and gas applications.
- Normally Closed Operation: Maintains the valve closed in its de-energized state.
- Zero Pressure Differential: Pilot-operated construction allows operation from 0 psi differential pressure.
- 3-Inch Connection: Features large 3-inch NPT process connections for high-capacity piping systems.
- Resilient Soft Seating: NBR seating provides tight shutoff in low-pressure service.
- Lightweight Construction: Aluminum body reduces overall weight compared with similarly sized steel or brass valves.
- Air and Gas Service: Designed for air, fuel gas, and vacuum applications.
- AC Coil Operation: Configured for 120 VAC at 60 Hz or 110 VAC at 50 Hz.
The 8215A040 delivers the high-flow capacity and reliable shutoff required for low-pressure industrial air, fuel gas, and vacuum systems.
