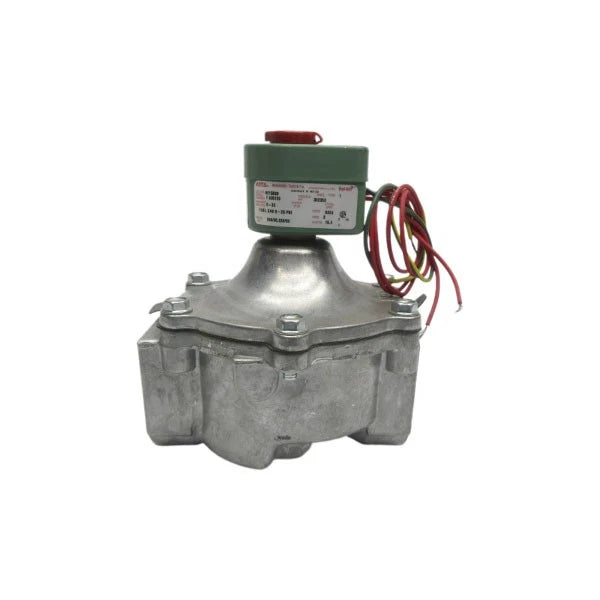

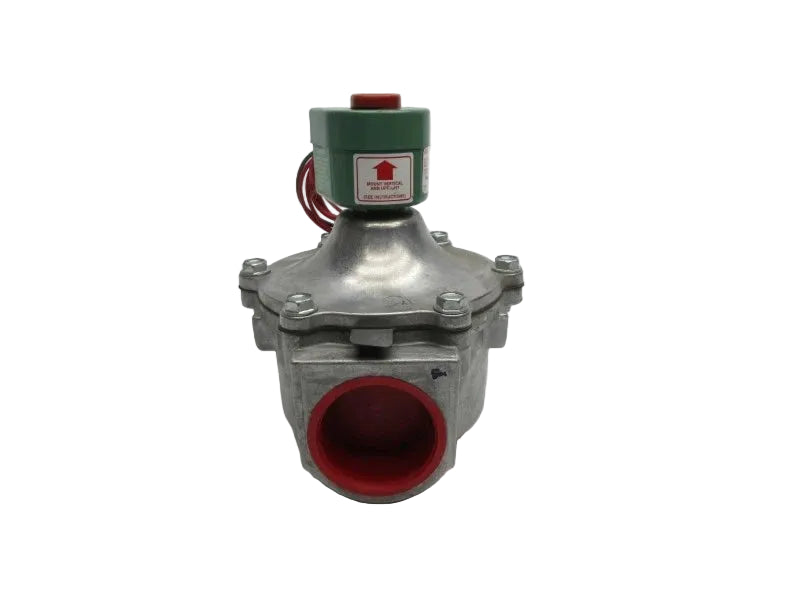

ASCO 8215B80 Series 8215 2 Inch Normally Closed Solenoid Air Valve 120 VAC
- Regular price
- $897.00
- Sale price
- $897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8215B80
Description
The ASCO 8215B80 is a Series 8215 solenoid air valve designed for high-capacity on/off control of air, fuel gas, and vacuum in combustion and industrial burner systems. This 2-way, normally closed valve features a lightweight aluminum body, 2-inch NPT threaded ports, and a 120 VAC coil rated at 15.4 watts for dependable continuous-duty operation. With a maximum gas capacity of 3,251,000 BTU/hr and a flow coefficient of Cv 60, the ASCO 8215B80 is widely used in commercial and industrial combustion control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8215B80 |
| Subcategory | Solenoid Valve |
| Series | 8215 |
| Valve Type | Solenoid Air Valve |
| Valve Configuration | 2-Way Normally Closed |
| Operation | Pilot Operated |
| Body Material | Aluminum |
| Port Size | 2 Inch NPT |
| Orifice Size | 2-3/32 Inch |
| Flow Coefficient (Cv) | 60 |
| Maximum Gas Capacity | 3,251,000 BTU/hr |
| Compatible Media | Air, Fuel Gas, Vacuum |
| Operating Pressure | 0–25 PSI |
| Coil Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Power Consumption | 15.4 W |
| Coil Insulation Class | Class F |
| Enclosure Rating | NEMA 1 |
| Mounting Orientation | Solenoid Vertical and Upright |
| Weight | 3.00 lbs |
Information About 8215B80
The 8215B80 is a member of the ASCO Series 8215 family of pilot-operated solenoid valves engineered for air, fuel gas, and vacuum service in low-pressure combustion systems. Its aluminum body and NBR diaphragm provide reliable sealing while maintaining high flow capacity for industrial burner and process heating applications. The valve operates in a normally closed configuration and is designed to mount with the solenoid in the vertical upright position for optimum performance. Certified for combustion service, it is commonly installed in boiler systems, industrial furnaces, ovens, process heaters, and double block and vent burner assemblies requiring dependable automatic shutoff.
Key Features:
- Series 8215 Construction: Designed for high-capacity combustion air and fuel gas control.
- 2-Way Normally Closed Valve: Provides automatic shutoff until the solenoid is energized.
- High Flow Capacity: Delivers a Cv rating of 60 for demanding industrial applications.
- Aluminum Valve Body: Combines lightweight construction with excellent durability.
- 2-Inch NPT Connections: Standard threaded ports simplify installation and replacement.
- 120 VAC Coil: Operates on 120 VAC 60 Hz / 110 VAC 50 Hz with 15.4-watt power consumption.
- Combustion Service Rated: Supports burner systems with capacities up to 3,251,000 BTU/hr.
- Air and Fuel Gas Compatibility: Designed for low-pressure air, fuel gas, and vacuum service.
The 8215B80 delivers the reliability and precision required for industrial combustion control, burner management, and automated gas shutoff applications.
