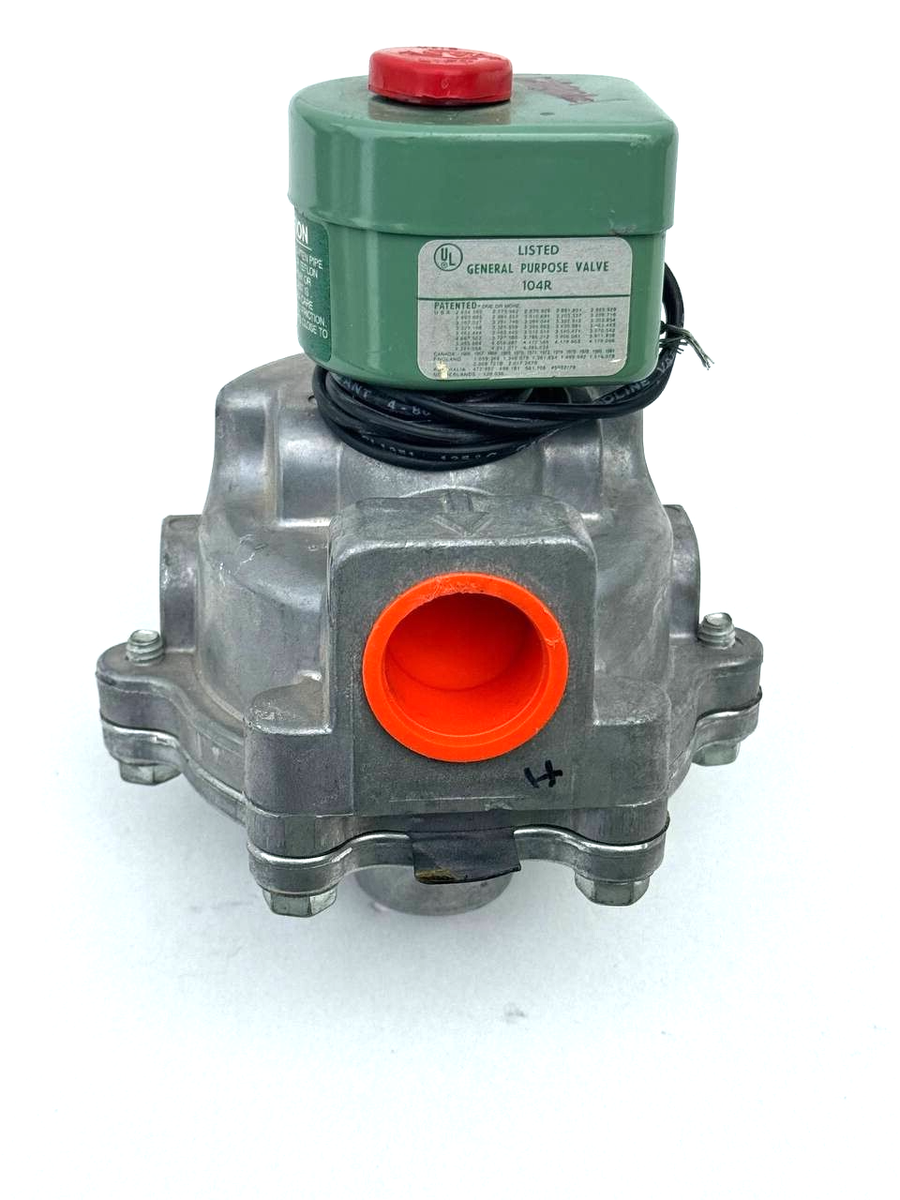

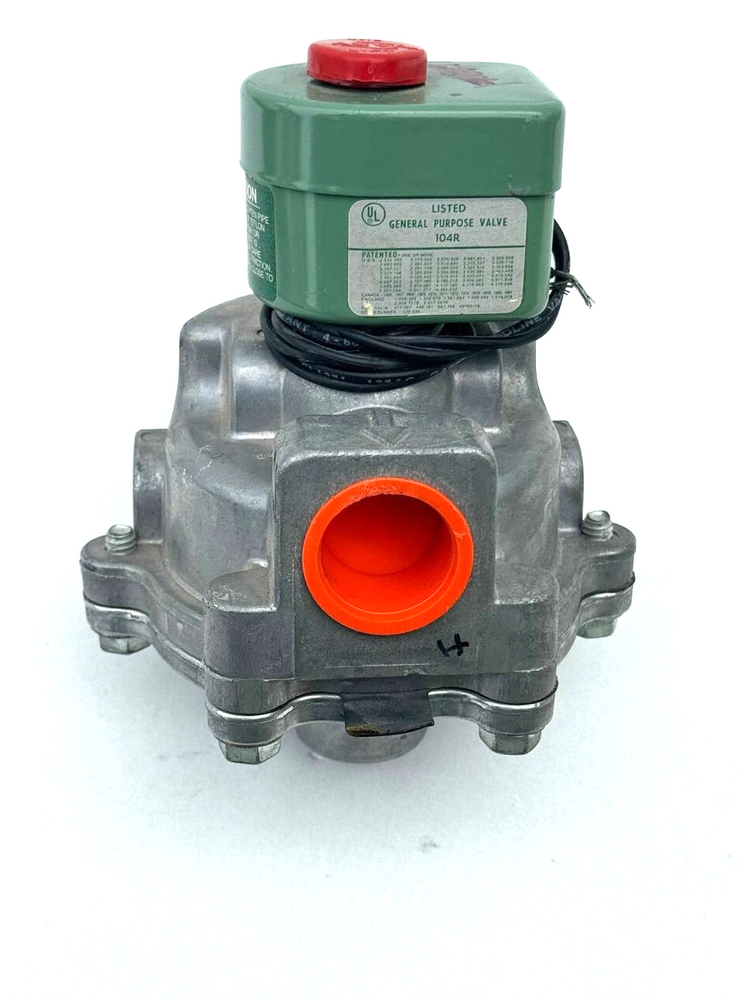

Asco 8215C53 Normally Open 2-Way Aluminum Solenoid Valve for Low-Pressure Gas Control
- Regular price
- $695.00
- Sale price
- $695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8215C53
Description
The Asco 8215C53 is a normally open, 2-way solenoid valve for controlling low-pressure gas flow in industrial equipment. Its 1-inch threaded aluminum body provides a flow coefficient of Cv 22 and operates across a 0–25 PSI pressure range. The AC coil closes the flow path when energized.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | 8215C53 |
| Subcategory | Gas Solenoid Valves |
| Series | 8215 |
| Valve Configuration | 2-way, 2-position |
| Normal Position | Normally open |
| Energized Position | Closed |
| Port Size | 1 in. |
| Connection Type | NPT threaded |
| Body Material | Aluminum |
| Service Media | Compatible air, inert gas, and fuel gas |
| Operating Pressure Range | 0–25 PSI |
| Flow Coefficient | Cv 22 |
| Coil Supply | 120 VAC, 60 Hz / 110 VAC, 50 Hz |
| Coil Power Rating | 15.4 W |
| Maximum Fluid Temperature | 125°F (approximately 52°C), AC version |
| Ambient Temperature Range | 32°F to 125°F (0°C to approximately 52°C), AC version |
| Weight | 4.00 lb (1.81 kg) |
Information About 8215C53
The 8215C53 is part of Asco’s 8215 series of aluminum-body gas valves. Its two-port construction provides an inline connection for compatible gas piping. The normally open configuration allows flow when the coil is de-energized, making it applicable to circuits requiring an open resting state. A 110/120 VAC solenoid converts an electrical control signal into valve switching.
Key Features:
- Normally Open Operation: Allows flow when de-energized and closes when the coil receives power.
- Two-Way Configuration: Controls flow through a single inlet and outlet.
- High Flow Capacity: Provides a Cv rating of 22 for low-pressure gas routing.
- Aluminum Body: Uses an aluminum housing for the valve’s gas flow passage.
- Threaded Connections: Incorporates 1-inch NPT ports for compatible piping and fittings.
- Low-Pressure Range: Operates within a specified pressure range of 0–25 PSI.
- AC Solenoid Coil: Accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz.
- Temperature Range: Supports the specified AC operating range of 32°F to 125°F.
The 8215C53 delivers the reliability and precision required for electrically controlled gas flow and normally open venting circuits.
