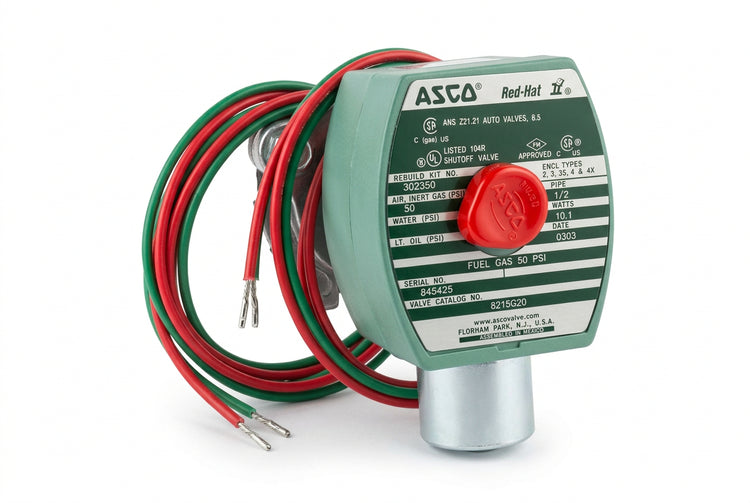

Asco 8215G20 Normally Closed Aluminum Solenoid Valve for Air and Fuel Gas
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8215G20
Description
The Asco 8215G20 is a normally closed, 2-way solenoid valve for controlling low-pressure air and fuel gas flow. Its aluminum body incorporates 1/2-inch NPT ports and a Cv rating of 4.4 for high-flow applications. The AC version operates from zero to 50 PSI differential pressure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | 8215G20 |
| Subcategory | Air and Gas Solenoid Valves |
| Series | 8215 / 215 |
| Valve Configuration | 2-way, 2-position |
| Normal Position | Normally closed |
| Body Material | Aluminum |
| Port Size and Connection | 1/2-inch NPT |
| Orifice Size | 3/4 in. |
| Flow Coefficient | Cv 4.4 |
| Compatible Media | Air, inert gas, and fuel gas |
| Coil Voltage | 24 VAC, assumed configuration |
| Supply Frequency | 60 Hz |
| Coil Power Rating | 10.1 W |
| Operating Pressure Differential | 0–50 PSI, AC version |
| Fluid Temperature Range | 32°F to 125°F (0°C to approximately 52°C), AC version |
| Ambient Temperature Range | 32°F to 125°F (0°C to approximately 52°C), AC version |
| Lead Length | 18 in. (457.2 mm) |
| Weight | 1.70 lb (0.77 kg) |
Information About 8215G20
The 8215G20 is part of Asco’s 8215 series of aluminum-body valves for air and gas service. Its normally closed construction blocks the flow path when electrical power is removed. A 3/4-inch internal orifice provides flow capacity greater than the nominal pipe connection size. The specified assembly combines an AC solenoid with threaded connections for integration into compatible heating and pneumatic equipment.
Key Features:
- Normally Closed Operation: Blocks flow when de-energized and opens when the coil receives power.
- Two-Way Configuration: Controls a single flow path between inlet and outlet.
- High Flow Capacity: Provides a Cv rating of 4.4 for air and gas service.
- Aluminum Body: Uses an aluminum housing for low-pressure fluid routing.
- Threaded Connections: Incorporates 1/2-inch NPT ports for compatible fittings.
- Zero Differential Operation: Supports operation without a minimum pressure differential.
- AC Coil Supply: Uses a 24 VAC, 60 Hz coil rated at 10.1 W for the selected configuration.
- Electrical Leads: Includes 18-inch leads for connection to the control circuit.
The 8215G20 delivers the reliability and precision required for automated air and fuel gas flow control in low-pressure equipment.
