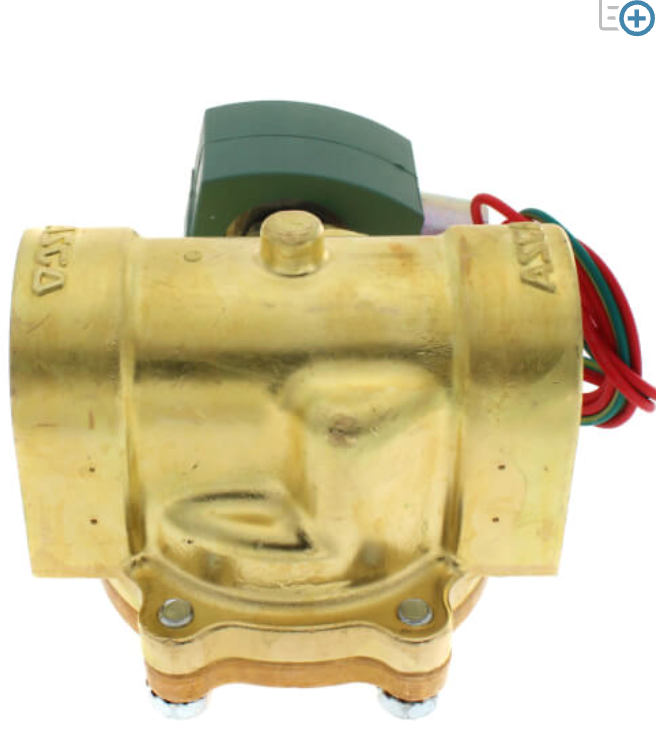

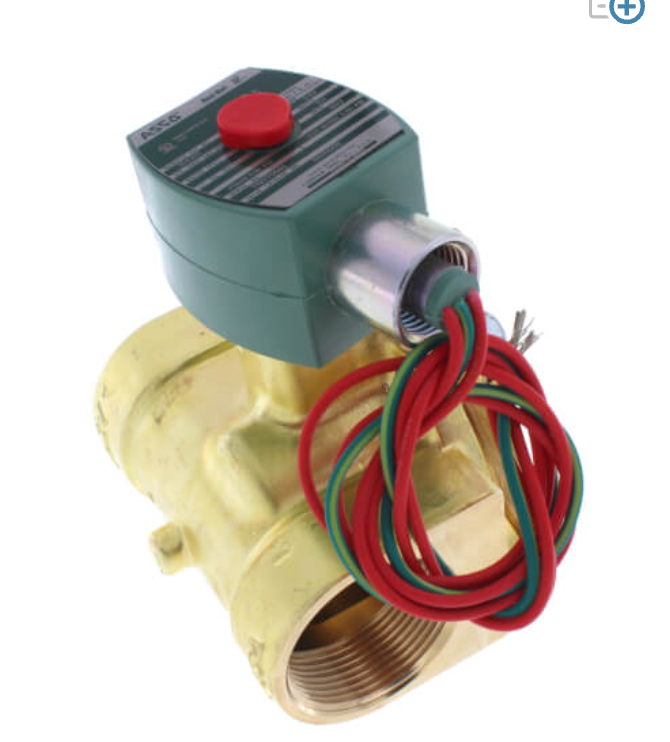

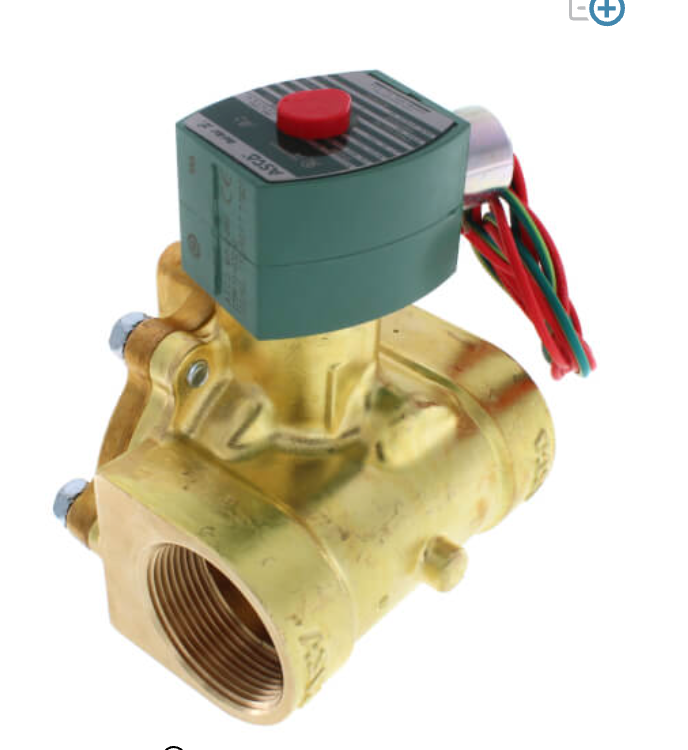

ASCO 8220G009 Series 8220 Hot Water & Steam Solenoid Valve
- Regular price
- $749.00
- Sale price
- $749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G009
Description
ASCO 8220G009 is a Series 8220 pilot-operated solenoid valve designed for reliable hot water and steam control. Featuring a brass body, normally closed operation, and 120 VAC coil, it provides high-flow performance for demanding commercial and industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8220G009 |
| Subcategory | Solenoid Valves |
| Series | 8220 |
| Valve Configuration | 2-Way / 2-Position |
| Operation | Normally Closed (NC) |
| Construction | Pilot Operated |
| Body Material | Brass |
| Valve Service | Hot Water and Steam |
| Flow Factor | 15 Cv |
| Pressure Rating | 5–150 PSI Hot Water; 5–50 PSI Steam |
| Temperature Rating | 210°F Hot Water; 300°F Steam |
| Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Coil Wattage | 10.1 W |
| Enclosure Rating | NEMA 1/2/3/3S/4/4X |
| Seat Material | EPDM |
| Weight | 5.01 lbs |
Information About 8220G009
The ASCO 8220G009 is a 2-way, 2-position normally closed solenoid valve from the Series 8220 product line. It uses a pilot-operated diaphragm and piston design to provide reliable flow control in high-temperature hot water and steam systems. The valve supports pressures up to 150 PSI for hot water and 50 PSI for steam, with a 15 Cv flow capacity. Its rugged construction makes it suitable for laundries, molding equipment, sterilizers, autoclaves, and other industrial process applications.
Key Features:
- Pilot-Operated Design: Provides dependable control for high-flow hot water and steam applications.
- Normally Closed Operation: Maintains the valve in the closed position until the solenoid is energized.
- High Flow Capacity: Delivers a 15 Cv flow coefficient for demanding fluid-control systems.
- Brass Body: Provides durable construction for industrial water and steam service.
- High-Temperature Capability: Rated for hot water temperatures up to 210°F and steam temperatures up to 300°F.
- Wide Pressure Range: Supports 5–150 PSI hot water service and 5–50 PSI steam service.
- Watertight Enclosure: NEMA-rated construction provides protection in demanding operating environments.
- Serviceable Construction: Threaded bonnet design supports easier inspection and maintenance.
The ASCO 8220G009 delivers the reliability and precision required for industrial hot water, steam, sterilization, laundry, and process-control systems.
