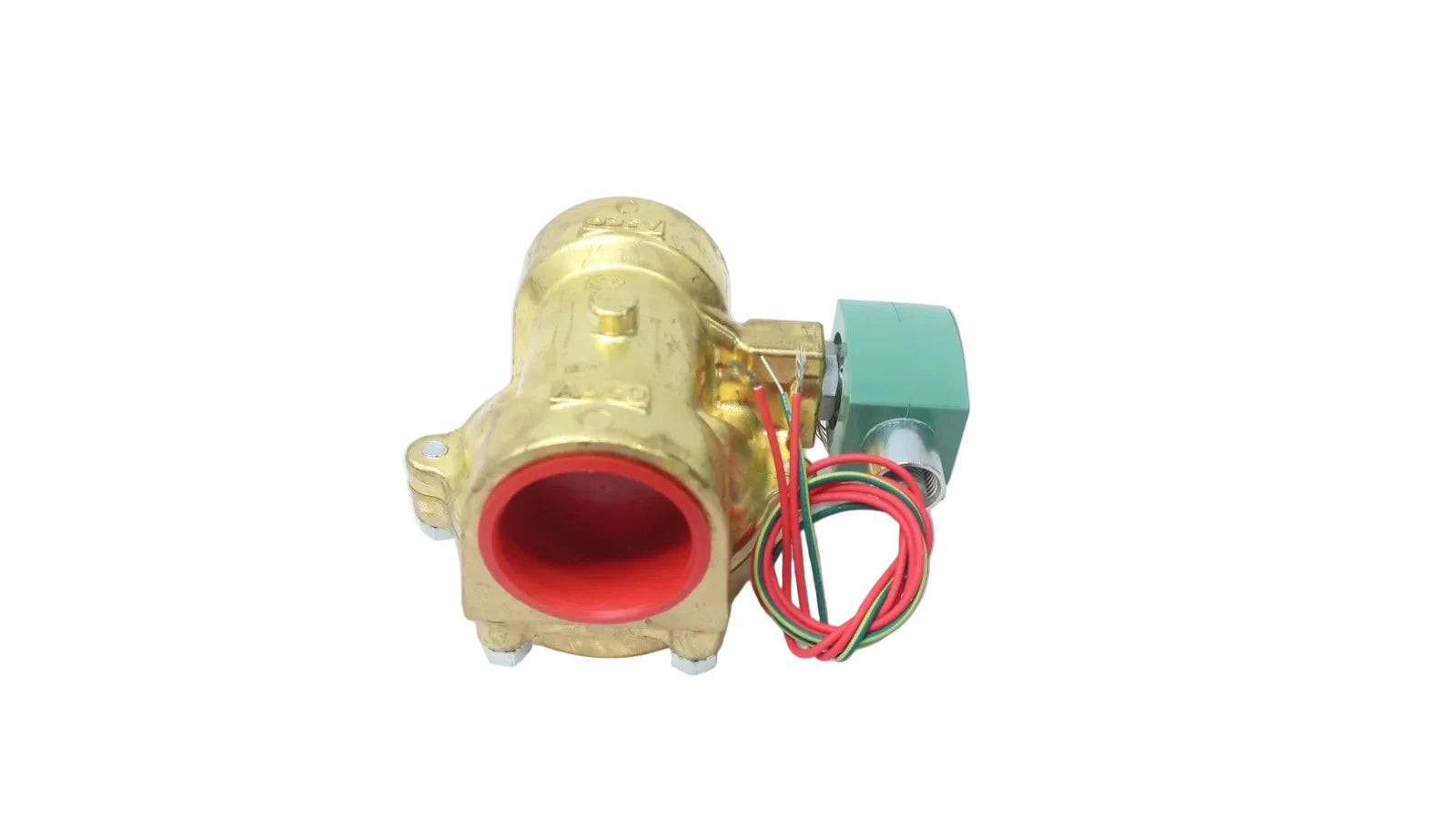

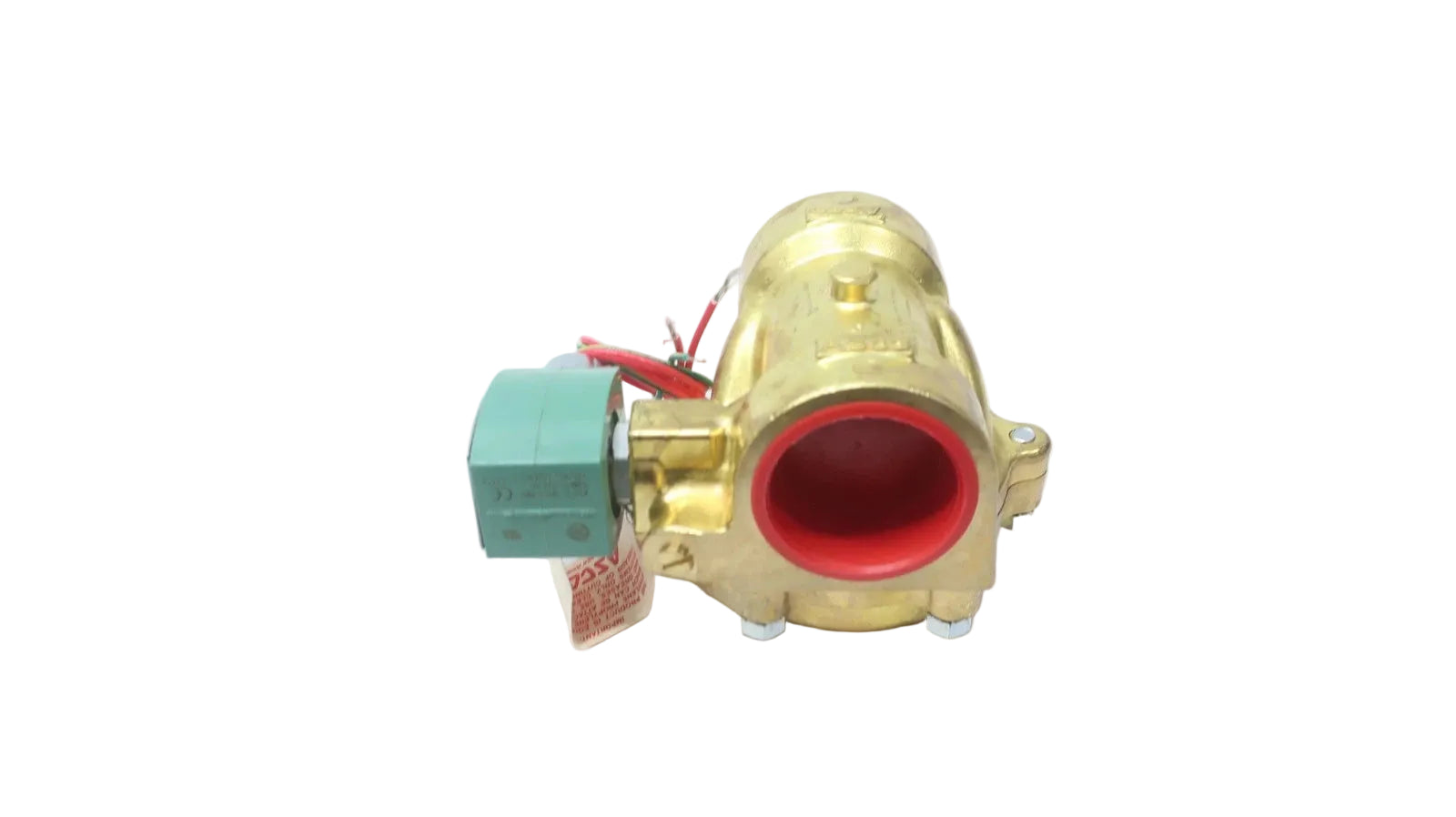

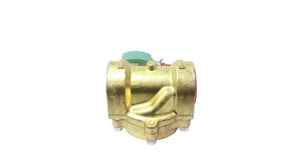

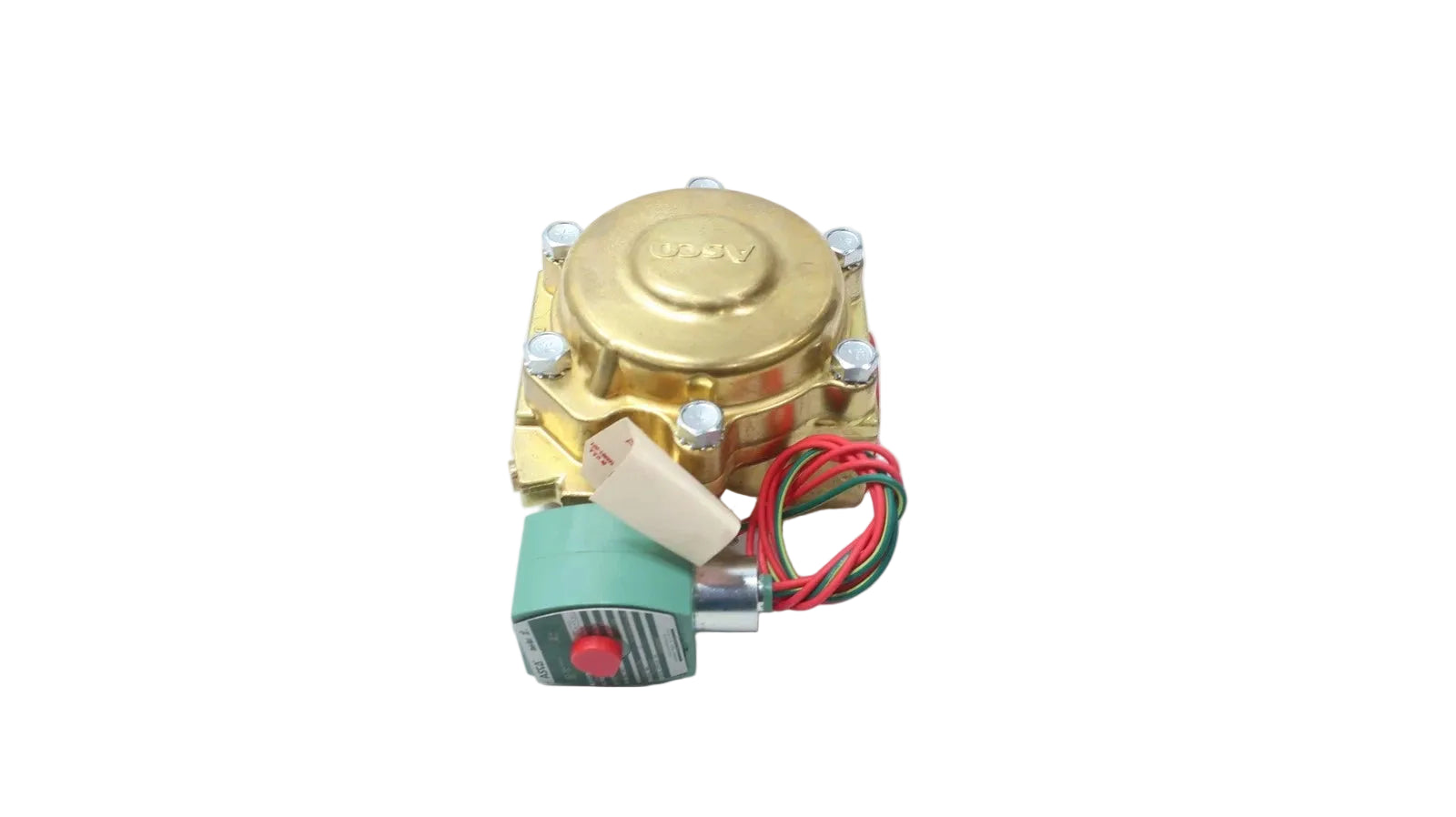

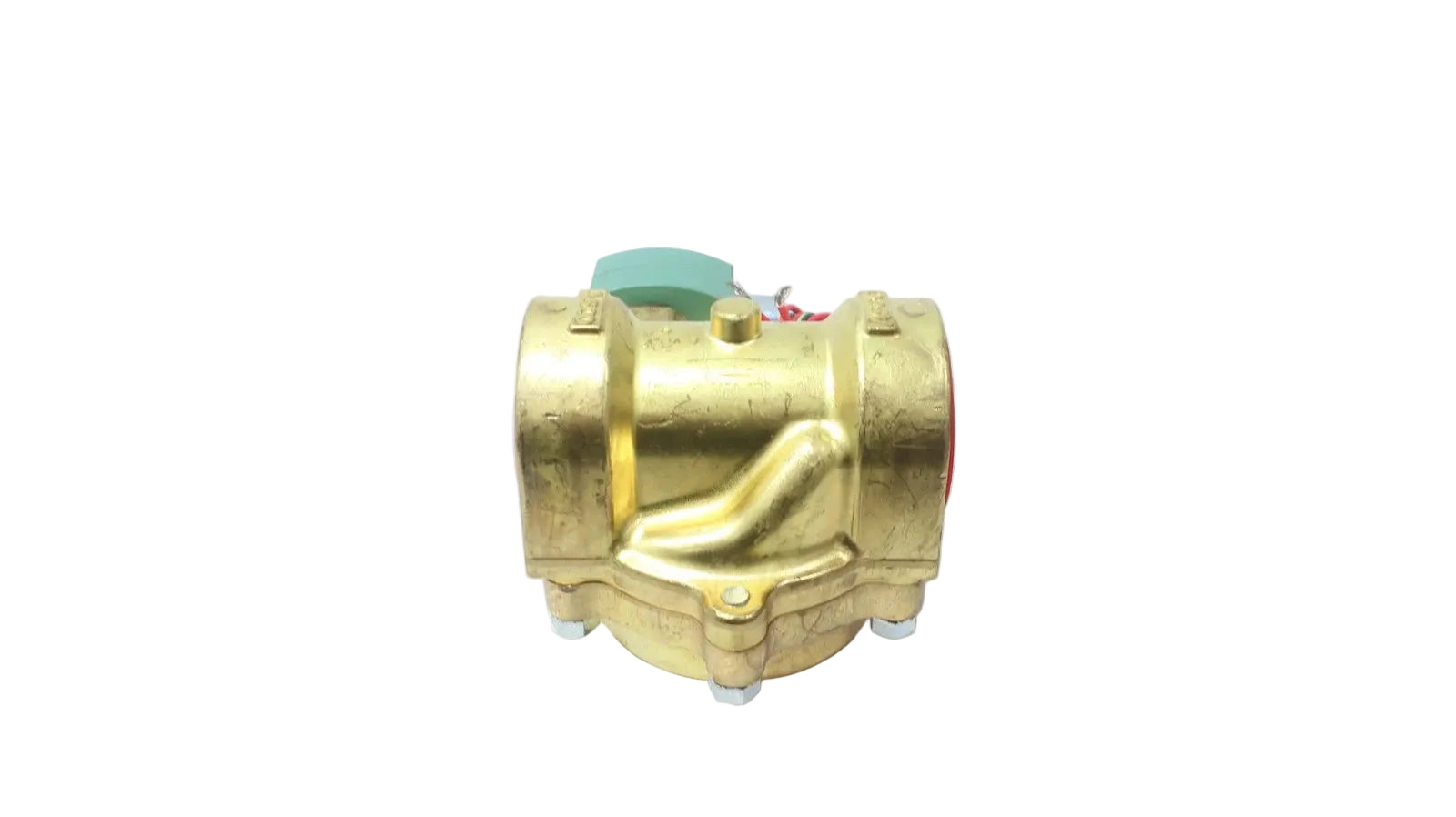

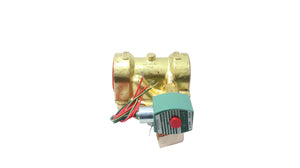

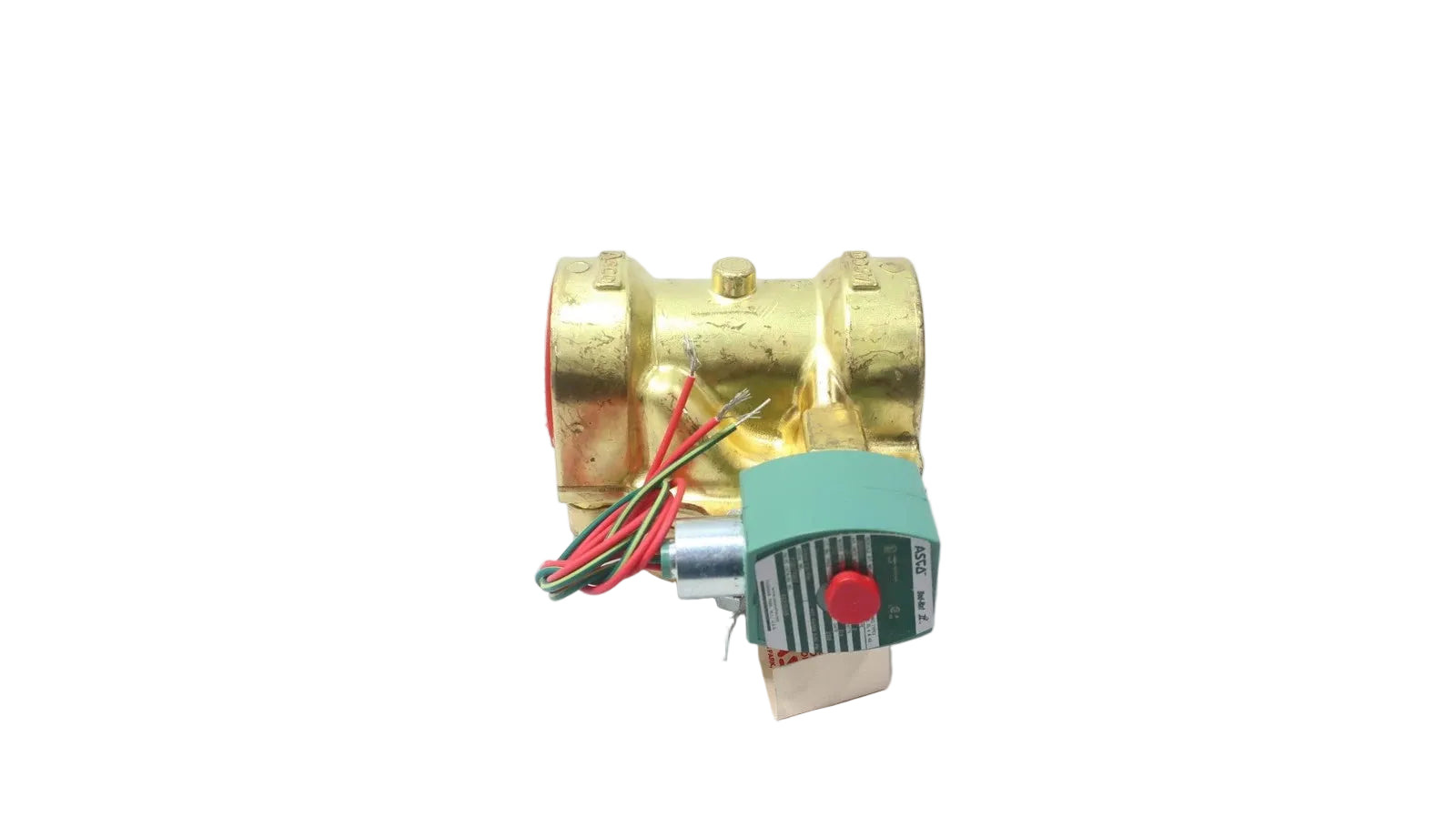

Asco 8220G013 2-Inch Normally Closed Hot Water and Steam Solenoid Valve 120V AC
- Regular price
- $2,255.00
- Sale price
- $2,255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G013
Description
Asco 8220G013 is a RedHat Series 8220 pilot-operated solenoid valve designed for controlling hot water and steam in industrial systems. It features a 2-inch NPTF connection, normally closed 2-way configuration, brass body, and a high-flow Cv rating of 43. The valve operates at 120V AC/60 Hz or 110V AC/50 Hz and supports hot-water pressures up to 150 psi.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | 8220G013 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8220 |
| Product Type | Hot Water and Steam Solenoid Valve |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Valve Configuration | Normally Closed |
| Operation Type | Pilot Operated |
| Valve Design | Diaphragm and Piston |
| Pipe Size | 2 in |
| Connection Type | NPTF |
| Orifice Diameter | 1-3/4 in |
| Flow Coefficient (Cv) | 43 |
| Body Material | Brass |
| Seal Material | EPDM |
| Voltage | 120V AC / 60 Hz; 110V AC / 50 Hz |
| Wattage | 10.1 W |
| Minimum Operating Pressure Differential | 5 psi |
| Hot Water Pressure Range | 5–150 psi |
| Steam Pressure Range | 5–50 psi |
| Maximum Hot Water Temperature | 210°F |
| Maximum Steam Temperature | 300°F |
| Ambient Temperature Range | 14°F to 140°F |
| Electrical Connection | 1/2 in Conduit with 18 in Leads |
| Coil Insulation Class | Class F |
| Coil Enclosure | Watertight, Without Junction Box |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Overall Height | 7-1/2 in |
| Overall Length | 5-1/16 in |
| Overall Width | 4-23/32 in |
| Standards | CSA, UL Listed |
| Weight | 10 lb |
Information About 8220G013
The 8220G013 is an Asco Series 8220 solenoid valve using a pilot-operated diaphragm and piston design for high-temperature fluid control. Its 2-inch flow path incorporates a 1-3/4-inch orifice and EPDM sealing material, providing a Cv coefficient of 43. The valve requires a minimum operating pressure differential of 5 psi and is rated for steam service up to 50 psi and hot-water service up to 150 psi. Its watertight RedHat enclosure supports NEMA 1, 2, 3, 3S, 4, and 4X environmental ratings.
Key Features:
- Normally Closed Configuration: Maintains the flow path closed while the solenoid is de-energized.
- Pilot-Operated Design: Uses a diaphragm and piston mechanism for controlled operation in high-flow hot-water and steam systems.
- 2-Inch NPTF Ports: Provides large threaded inlet and outlet connections for industrial piping installations.
- High Flow Capacity: Features a 1-3/4-inch orifice with a Cv coefficient of 43.
- Hot-Water Service: Supports operating pressure differentials from 5 to 150 psi and fluid temperatures up to 210°F.
- Steam Service: Rated for 5 to 50 psi steam pressure differential and temperatures up to 300°F.
- Dual-Frequency Coil: Operates at 120V AC/60 Hz or 110V AC/50 Hz with 10.1 W power consumption.
- Watertight Enclosure: NEMA 1, 2, 3, 3S, 4, and 4X ratings support indoor, outdoor, and washdown installations.
The 8220G013 delivers the reliability and precision required for high-flow hot-water and steam control in industrial systems.
