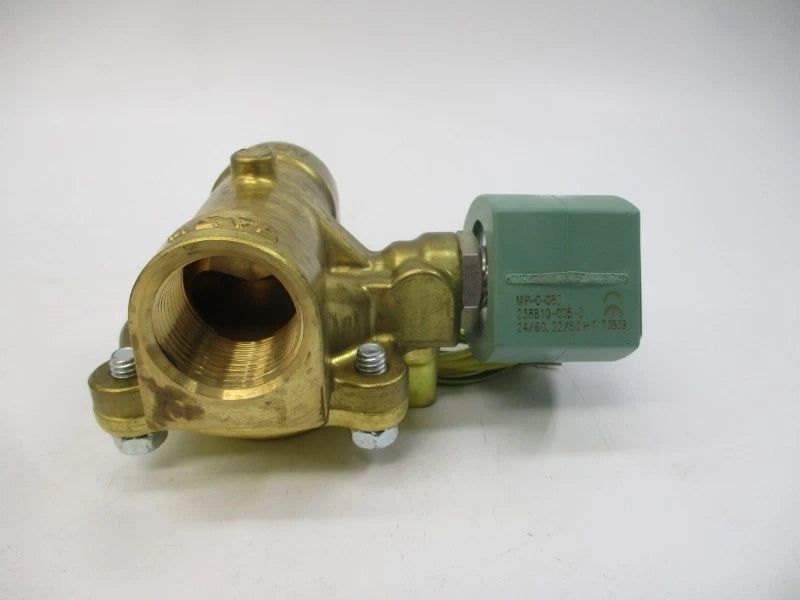

ASCO 8220G025 Series 8220 Hot Water and Steam Brass Solenoid Valve for High Temperature Industrial Applications
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G025
Description
The ASCO 8220G025 is a Series 8220 two-way normally closed pilot-operated solenoid valve designed for controlling hot water and steam in high-temperature industrial systems. Manufactured with a durable brass body, it provides dependable shutoff and reliable continuous-duty operation in demanding process applications such as laundries, sterilizers, autoclaves, molding equipment, and steam distribution systems. The valve operates on 24 VAC 60 Hz and is engineered for long-term service in commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8220G025 |
| Subcategory | Solenoid Valve |
| Product Type | Series 8220 Hot Water and Steam Solenoid Valve |
| Valve Function | Two-Way, Normally Closed |
| Valve Operation | Pilot-Operated Diaphragm and Piston |
| Body Material | Brass |
| Pipe Connection Size | 1 Inch Female National Pipe Thread |
| Compatible Media | Steam, Hot Water |
| Operating Pressure | Steam: 5–125 PSI; Hot Water: 5–150 PSI |
| Maximum Hot Water Temperature | 210 °F (99 °C) |
| Maximum Steam Temperature | 353 °F (178 °C) |
| Seal Material | EPDM / PTFE |
| Supply Voltage | 24 VAC, 60 Hertz |
| Power Consumption | 10.1 Watts |
| Enclosure Type | RedHat II, NEMA 1, 2, 3, 3S, 4, 4X |
| Certifications | UL, CSA, CE |
| Weight | 8.40 lbs |
Information About 8220G025
The 8220G025 is part of the ASCO Series 8220 family of hot water and steam solenoid valves specifically developed for high-temperature fluid control applications. It utilizes a pilot-operated diaphragm and piston design with a two-way, normally closed configuration that opens when the solenoid is energized and automatically closes when power is removed. The valve features a brass body with stainless steel internal components, EPDM and PTFE sealing materials, and a RedHat II solenoid assembly that delivers dependable performance under continuous-duty conditions. Designed for steam service up to 125 PSI and hot water service up to 150 PSI, the 8220G025 is commonly installed in commercial laundry systems, sterilizers, autoclaves, steam atomization equipment, molding machinery, and industrial heating processes.
Key Features:
- Series 8220 Design: Developed specifically for hot water and steam control applications.
- Two-Way Normally Closed Operation: Opens when energized and provides automatic shutoff when de-energized.
- Pilot-Operated Construction: Combines diaphragm and piston technology for dependable high-temperature operation.
- Brass Valve Body: Provides excellent mechanical strength and corrosion resistance.
- Steam and Hot Water Service: Suitable for continuous operation with elevated-temperature media.
- High Temperature Capability: Supports steam temperatures up to 353 °F and hot water temperatures up to 210 °F.
- RedHat II Solenoid: Designed for reliable industrial continuous-duty electrical operation.
- Industrial Certifications: Manufactured to meet UL, CSA, and CE approval requirements.
The 8220G025 delivers the reliability and precision required for high-temperature steam and hot water control in industrial process and commercial heating applications.
