ASCO 8220G11 Series 8220 2-Way Normally Closed Hot Water and Steam Control Valve 1-1/2 Inch NPT
- Regular price
- $915.00
- Sale price
- $915.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G11
Description

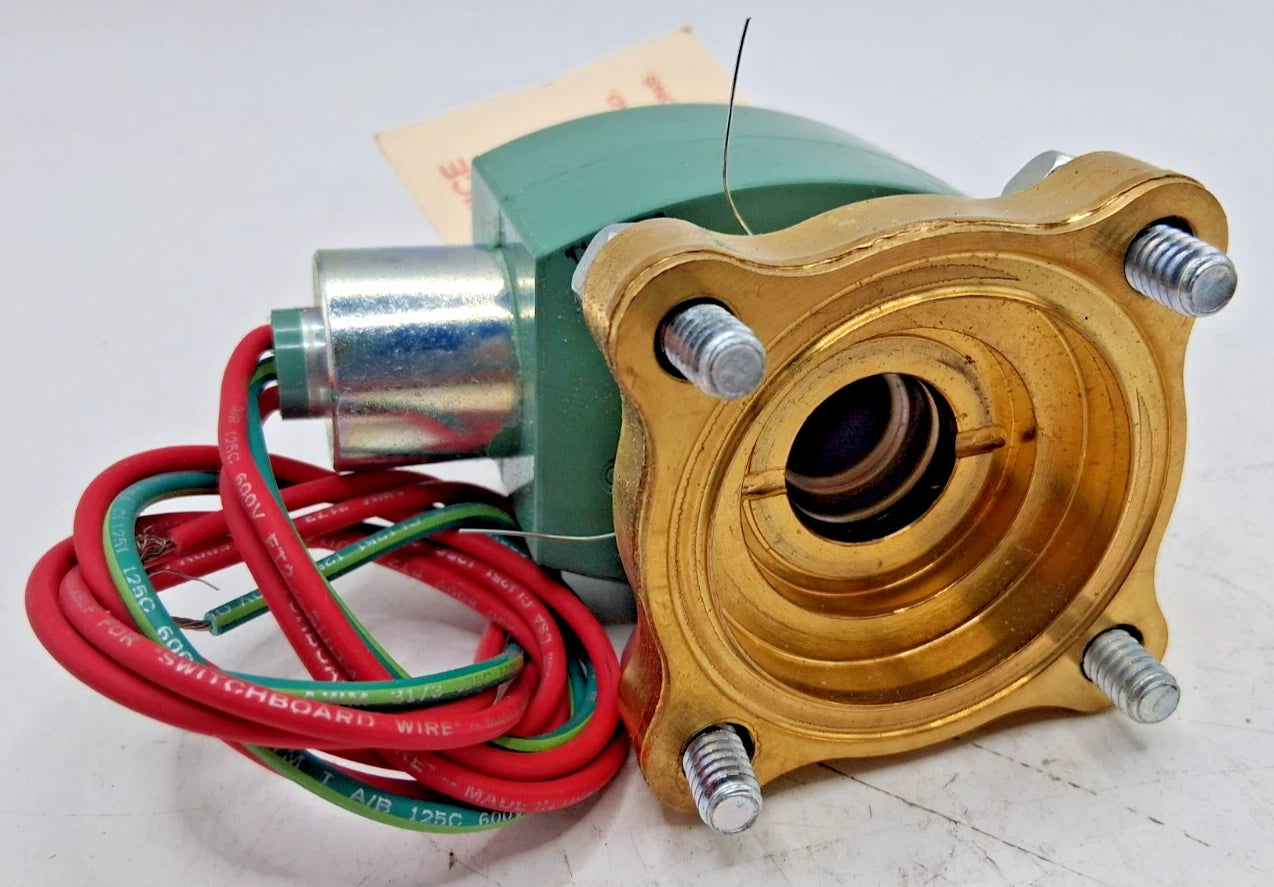

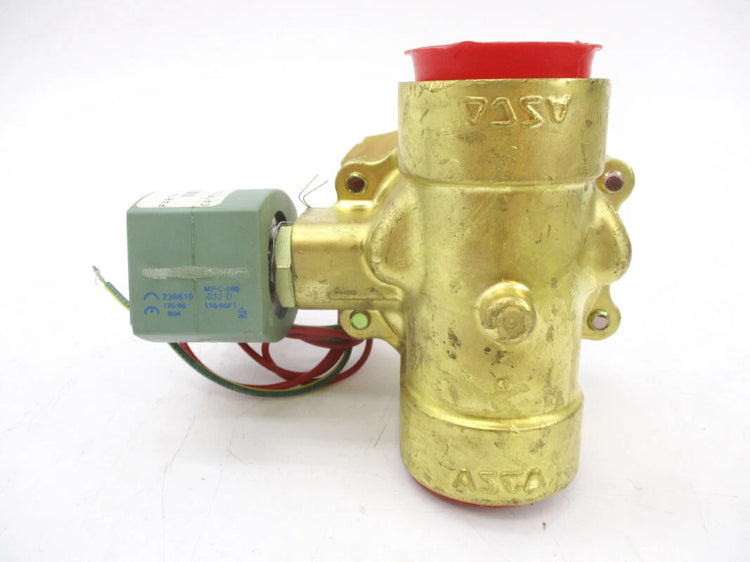

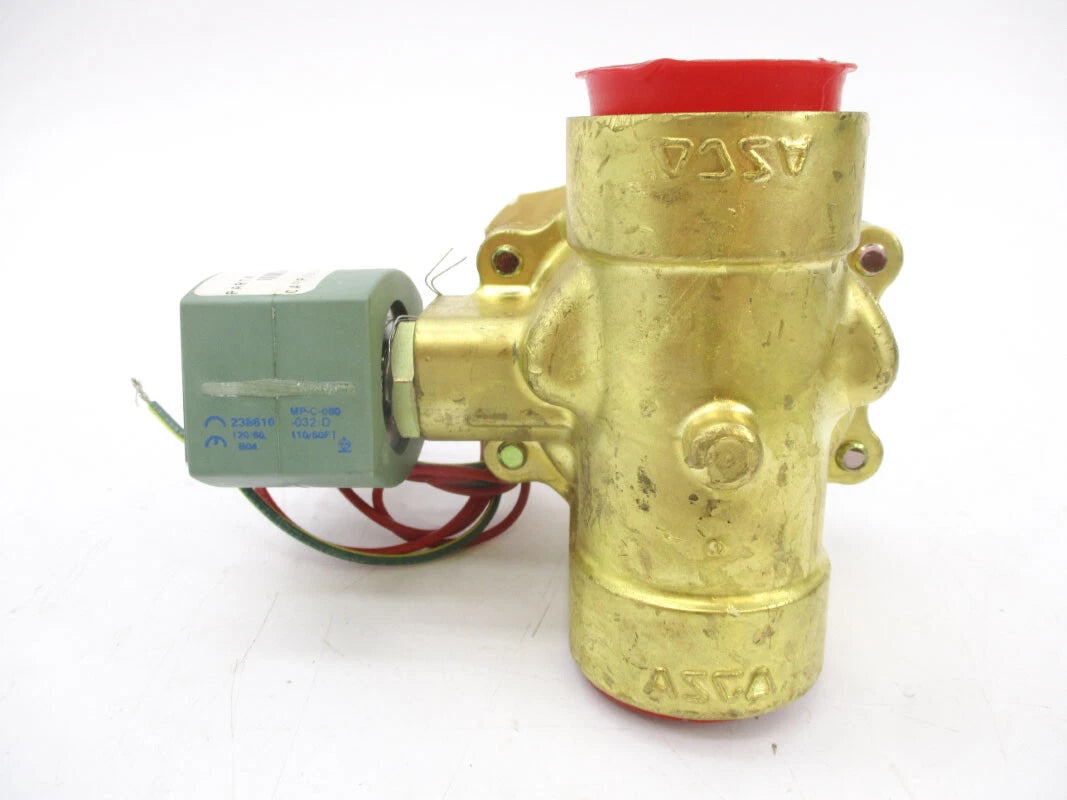

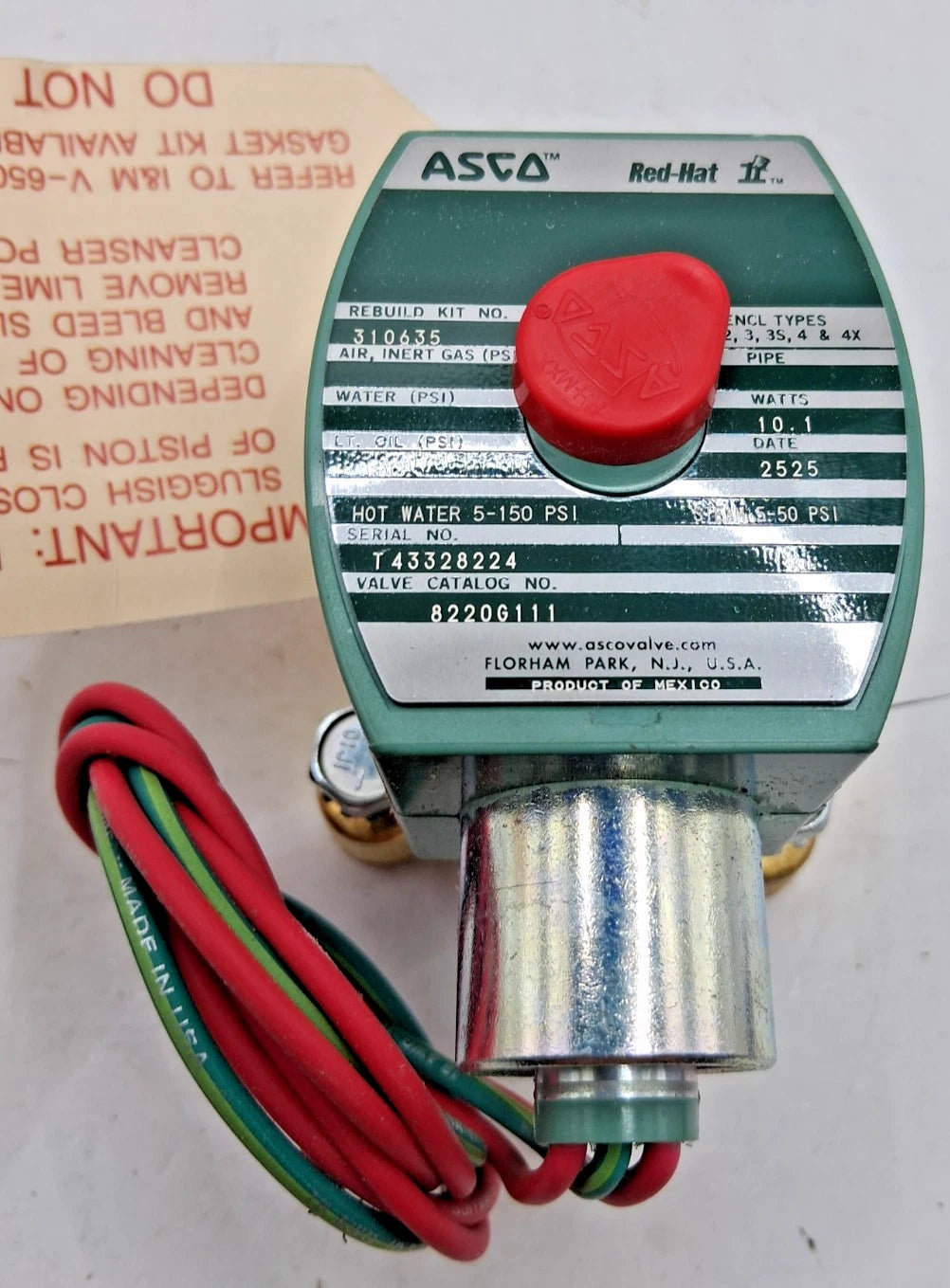

The ASCO 8220G11 is a heavy-duty 2-way normally closed solenoid control valve engineered for reliable on/off control of hot water and low-pressure steam in industrial systems. Designed with a 1-1/2 inch NPT connection, this pilot-operated valve handles operating pressures from 5 to 50 PSI for steam and 5 to 150 PSI for hot water while providing dependable flow control. The ASCO 8220G11 is widely used in boilers, sterilizers, laundries, process heating equipment, and industrial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8220G11 |
| Subcategory | Control Valve |
| Valve Type | Pilot-Operated Solenoid Valve |
| Series | 8220 |
| Valve Configuration | 2-Way |
| Normal Position | Normally Closed |
| Connection Size | 1-1/2 Inch NPT |
| Body Material | Brass |
| Orifice Size | 1-1/4 Inch |
| Flow Coefficient (Cv) | 22.5 |
| Steam Pressure Range | 5–50 PSI |
| Hot Water Pressure Range | 5–150 PSI |
| Compatible Media | Hot Water, Low-Pressure Steam |
| Weight | 7.00 lbs |
Information About 8220G11
The 8220G11 is a member of the ASCO Series 8220 family of pilot-operated solenoid valves developed specifically for hot water and steam service. Its brass body, EPDM diaphragm, and stainless steel internal components are designed to withstand elevated temperatures while maintaining reliable sealing performance. The valve features a normally closed operating configuration that opens when the solenoid coil is energized, making it suitable for automated fluid control systems requiring secure shutoff. With its high flow capacity and rugged construction, the valve is commonly installed in commercial boilers, autoclaves, molding equipment, steam baths, and other industrial heating applications.
Key Features:
- Series 8220 Design: Engineered specifically for hot water and low-pressure steam applications.
- 2-Way Configuration: Provides dependable on/off control through a single inlet and outlet.
- Normally Closed Operation: Remains closed until the solenoid coil is energized.
- Pilot-Operated Valve: Delivers high flow capacity with efficient operation.
- Brass Body Construction: Offers durability and corrosion resistance in demanding environments.
- Hot Water and Steam Service: Rated for 5–150 PSI hot water and 5–50 PSI steam applications.
- 1-1/2 Inch NPT Ports: Standard threaded connections simplify installation and maintenance.
- Industrial Duty Design: Suitable for continuous operation in commercial and industrial process systems.
The 8220G11 delivers the reliability and precision required for industrial hot water and steam flow control applications.
