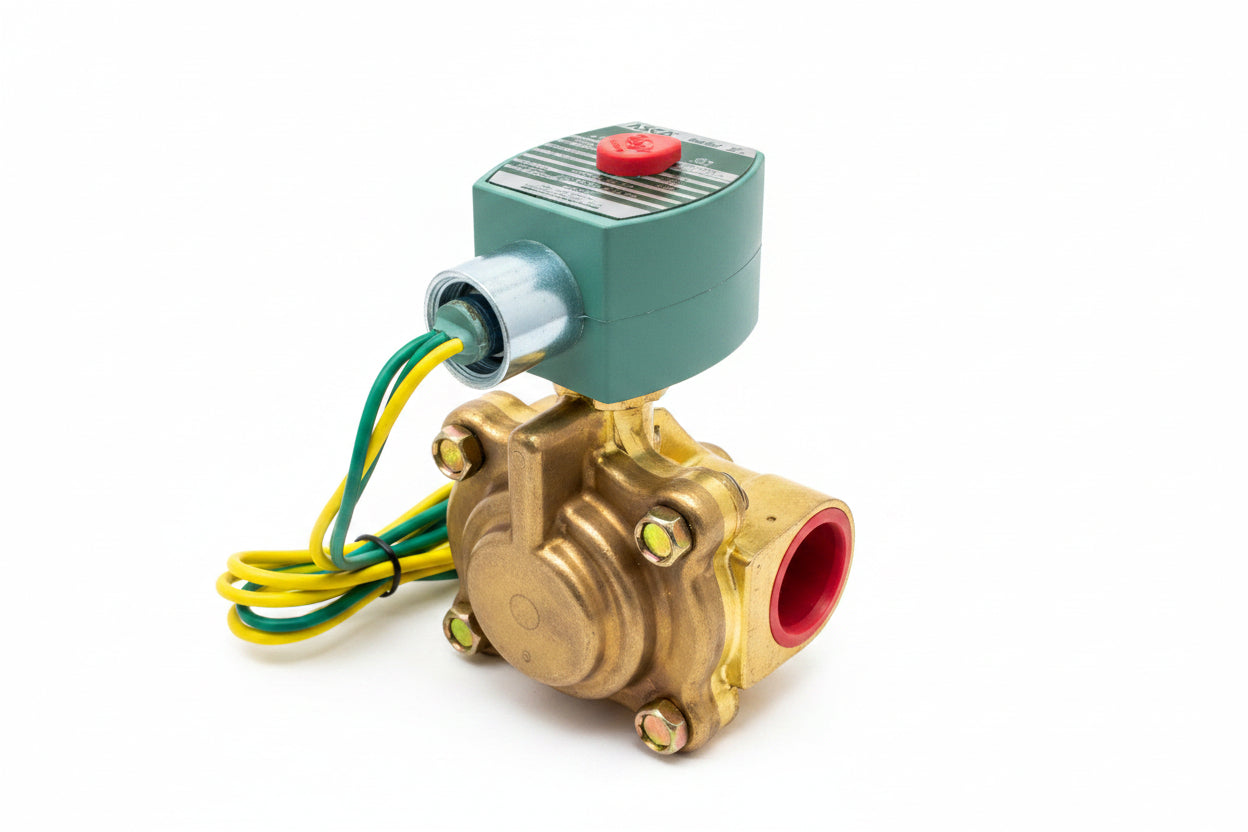

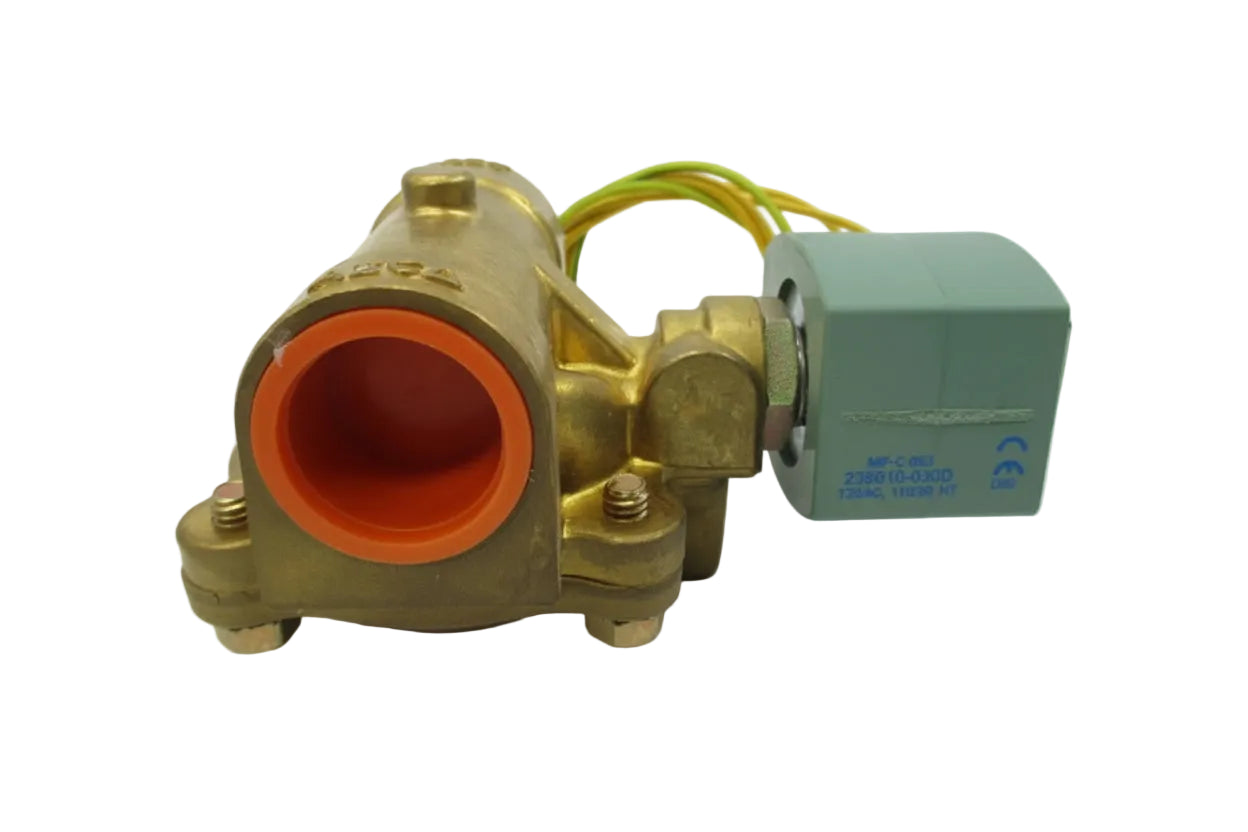

Asco 8220G25 1-Inch Normally Closed Hot Water and Steam Solenoid Valve 120VAC
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G25
Description
Asco 8220G25 is a Series 8220 pilot-operated solenoid valve designed specifically for hot-water and steam control applications. It features a 1-inch NPT connection, 2-way normally closed operation, brass body, and 13.5 Cv flow capacity, with pressure ratings up to 125 psi for steam and 150 psi for hot water.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | 8220G25 |
| Subcategory | Solenoid Valves |
| Series | 8220 |
| Product Type | Hot Water and Steam Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Starting Position | Normally Closed |
| Operation Type | Pilot Operated |
| Port Size | 1 in |
| Connection Type | NPT |
| Orifice Size | 1 in |
| Flow Coefficient (Cv) | 13.5 |
| Body Material | Brass |
| Seal / Disc Material | EPDM / PTFE |
| Voltage | 120 VAC / 60 Hz; 110 VAC / 50 Hz |
| Power Consumption | 10.1 W |
| Steam Pressure Range | 5–125 psi |
| Hot Water Pressure Range | 5–150 psi |
| Maximum Steam Temperature | 353°F |
| Compatible Media | Steam, Hot Water |
| Enclosure | RedHat II |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Mounting Orientation | Vertical / Upright |
| Approvals | UL, CSA, CE |
| Dimensions | 3-3/4 x 3-1/8 x 5-13/16 in |
| Weight | 5 lb |
Information About 8220G25
The 8220G25 is an Asco Series 8220 high-temperature solenoid valve developed for steam and hot-water service. It uses a pilot-operated piston/diaphragm design with stainless-steel internal components and EPDM/PTFE sealing elements for operation in demanding fluid systems. The valve operates at 120 VAC/60 Hz or 110 VAC/50 Hz and requires a minimum 5 psi operating pressure differential. Typical applications include laundries, molding equipment, steam atomization systems, sterilizers, and autoclaves.
Key Features:
- Normally Closed Operation: Maintains the valve in the closed position when the solenoid is de-energized.
- 1-Inch NPT Ports: Provides threaded 1-inch inlet and outlet connections for compatible piping systems.
- Pilot-Operated Design: Uses pilot-assisted operation for efficient control of higher flow rates and pressures.
- 13.5 Cv Flow Capacity: Provides a high-flow coefficient of 13.5 through a 1-inch orifice.
- Steam Service: Rated for steam pressures from 5 to 125 psi and temperatures up to 353°F.
- Hot-Water Service: Supports hot-water pressure from 5 to 150 psi for high-temperature liquid-control applications.
- Brass Body Construction: Uses a brass valve body with stainless-steel internal operating components.
- RedHat II Enclosure: Standard enclosure provides NEMA 1, 2, 3, 3S, 4, and 4X environmental protection.
The 8220G25 delivers the reliability and precision required for automated hot-water and steam control in industrial systems.
