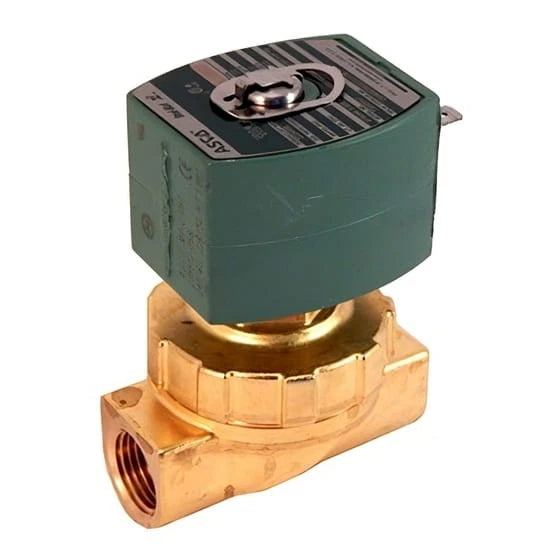

ASCO 8220G409 Series 8220 3/4 Inch Normally Closed Hot Water and Steam Solenoid Valve
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8220G409
Description
The ASCO 8220G409 is a Series 8220 pilot-operated solenoid valve engineered for dependable on/off control of hot water and steam in industrial heating and process systems. This 2-way, normally closed valve features a rugged brass body with 3/4-inch NPT ports and is designed to operate with steam pressures from 5 to 125 PSI and hot water pressures from 5 to 150 PSI. The ASCO 8220G409 is widely used in boilers, sterilizers, autoclaves, laundries, food processing equipment, and other high-temperature industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8220G409 |
| Subcategory | Solenoid Valve |
| Series | 8220 |
| Valve Type | Pilot-Operated Solenoid Valve |
| Valve Configuration | 2-Way |
| Normal Position | Normally Closed |
| Body Material | Brass |
| Connection Size | 3/4 Inch NPT |
| Orifice Size | 3/4 Inch |
| Flow Coefficient (Cv) | 8.8 |
| Compatible Media | Hot Water, Steam |
| Steam Operating Pressure | 5–125 PSI |
| Hot Water Operating Pressure | 5–150 PSI |
| Maximum Steam Temperature | 353°F (178°C) |
| Maximum Hot Water Temperature | 210°F (99°C) |
| Coil Insulation Class | Class H |
| Coil Power Consumption | 10.1 W |
| Enclosure Type | Watertight (NEMA 4X) |
| Weight | 3.00 lbs |
Information About 8220G409
The 8220G409 is part of the ASCO Series 8220 family of heavy-duty solenoid valves developed specifically for hot water and steam service. Its pilot-operated diaphragm construction combines a brass valve body with EPDM/PTFE sealing materials to provide reliable shutoff and extended service life under elevated temperatures. The valve is equipped with a Class H coil housed in a watertight enclosure, allowing dependable operation in demanding industrial environments. With its 3/4-inch orifice, 3/4-inch NPT connections, and high flow capacity, the valve is commonly integrated into commercial boilers, steam generators, molding equipment, sterilization systems, and industrial process heating installations.
Key Features:
- Series 8220 Construction: Designed specifically for hot water and steam control applications.
- 2-Way Normally Closed Valve: Provides automatic shutoff until the solenoid coil is energized.
- Pilot-Operated Design: Delivers high flow capacity with efficient diaphragm operation.
- Brass Valve Body: Offers durability and corrosion resistance for industrial service.
- Hot Water and Steam Rated: Handles 5–125 PSI steam and 5–150 PSI hot water applications.
- Watertight Solenoid Enclosure: Provides reliable operation in wet and demanding environments.
- High Flow Performance: Features a Cv rating of 8.8 for efficient system operation.
- Class H Coil Insulation: Designed for continuous-duty operation in high-temperature applications.
The 8220G409 delivers the reliability and precision required for industrial hot water and steam control systems.
