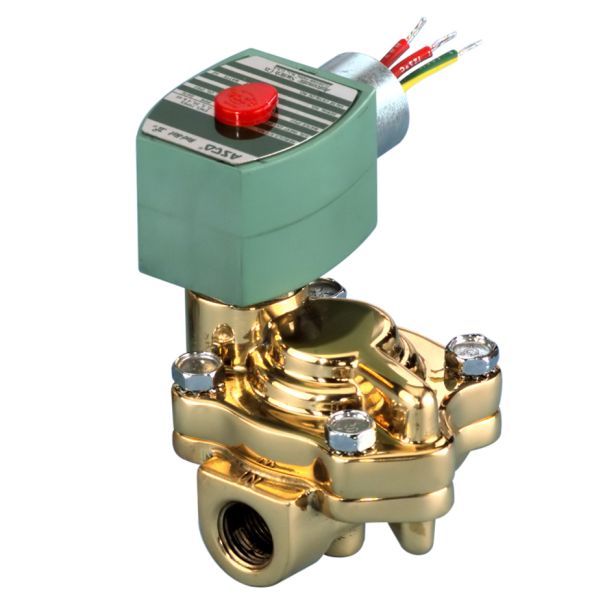

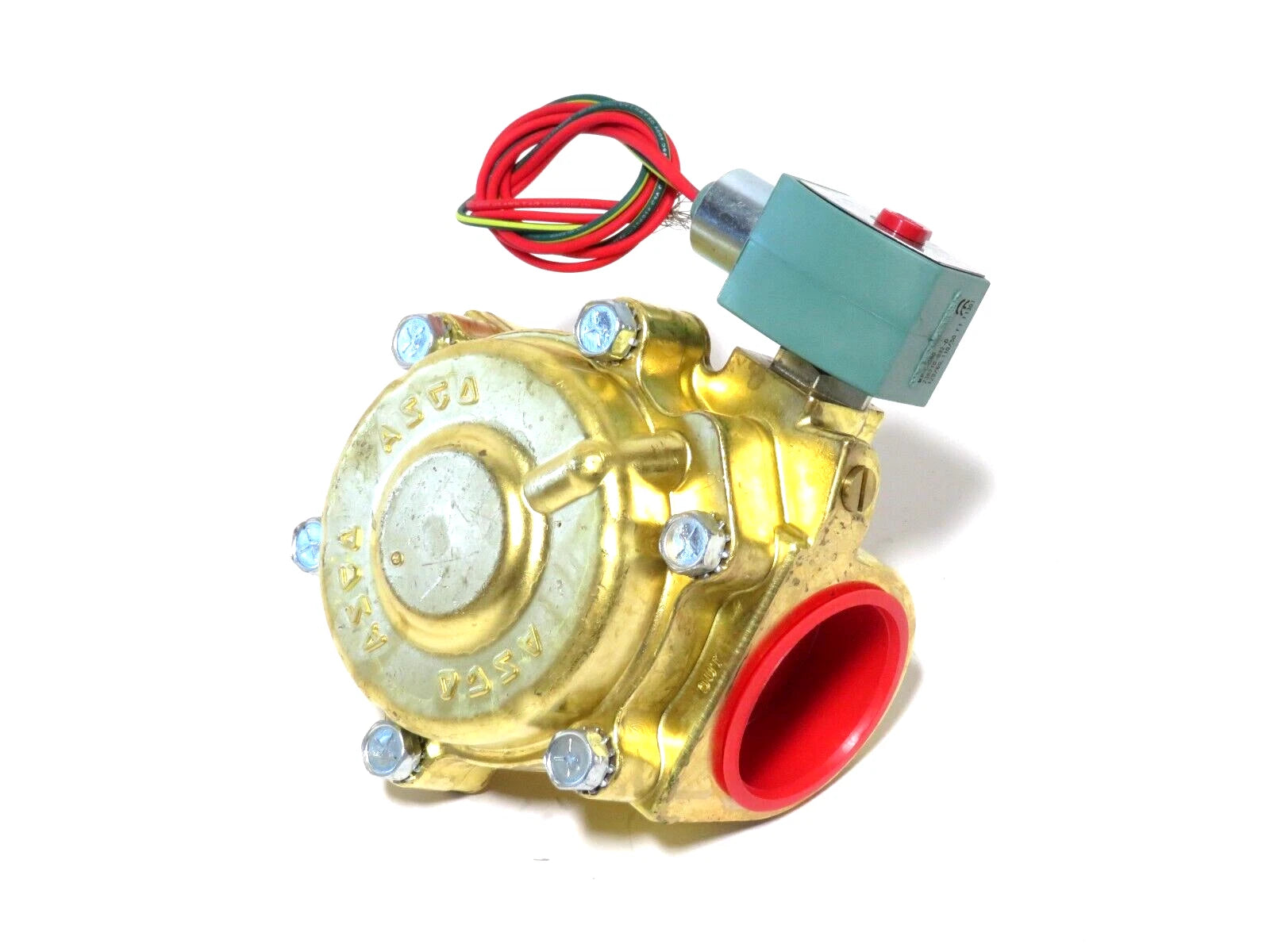

ASCO 8221G013 Series 221 2" Slow-Closing Solenoid Valve
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8221G013
Description
ASCO 8221G013 is a Series 221 slow-closing solenoid valve designed for high-flow water control in commercial and industrial applications. Featuring a 2-inch NPT connection, brass body, and normally closed operation, the valve helps reduce water hammer while providing reliable control for hot and cold-water systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Part Number | 8221G013 |
| Series | 221 / 8221 Series |
| Product Type | Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Actuation | Solenoid, Pilot Operated |
| Body Material | Brass |
| Port Size | 2 in. |
| Connection Type | NPT |
| Orifice Size | 1-3/4 in. |
| Media | Water |
| Operating Pressure | 5–150 PSI |
| Flow Factor | 36 Cv |
| Seal Material | NBR / PTFE |
| Disc Material | NBR |
| Fluid Temperature | 32–180°F |
| Ambient Temperature | 32–125°F |
| Voltage | 110/120 VAC |
| Frequency | 50/60 Hz |
| Power Rating | 6.1 W |
| Coil Insulation Class | Class F |
| Enclosure Rating | NEMA 1/2/3/3S/4/4X |
| Dimensions | 5-1/16 × 4-3/4 × 7-3/8 in. |
| Replacement Kit | 310422 |
| Coil Number | 238210-032-D |
| Weight | 9.11 lbs |
Information About 8221G013
The ASCO 8221G013 is a 2-way, 2-position normally closed solenoid valve from the Series 221 product line. It uses a pilot-operated design with a slow-closing mechanism that reduces pressure spikes caused by water hammer. The valve provides a high 36 Cv flow capacity and supports water pressures from 5 to 150 PSI. Its brass construction and NBR sealing components make it suitable for commercial and industrial water-control applications.
Key Features:
- Slow-Closing Design: Helps minimize pressure spikes and reduce water hammer in piping systems.
- High Flow Capacity: Provides a 36 Cv flow coefficient for demanding water applications.
- 2-Inch NPT Connection: Designed for integration into larger commercial and industrial piping systems.
- Normally Closed Operation: Maintains a closed position until the solenoid is energized.
- Pilot-Operated Design: Provides efficient control of high-flow water service.
- Brass Body: Rugged construction supports reliable operation in hot and cold-water applications.
- Wide Pressure Range: Designed for water service from 5 to 150 PSI.
- Flexible Mounting: Can be installed in any mounting position for easier system integration.
The ASCO 8221G013 delivers the reliability and precision required for commercial water systems, laundries, molding equipment, sterilizers, and autoclaves.
