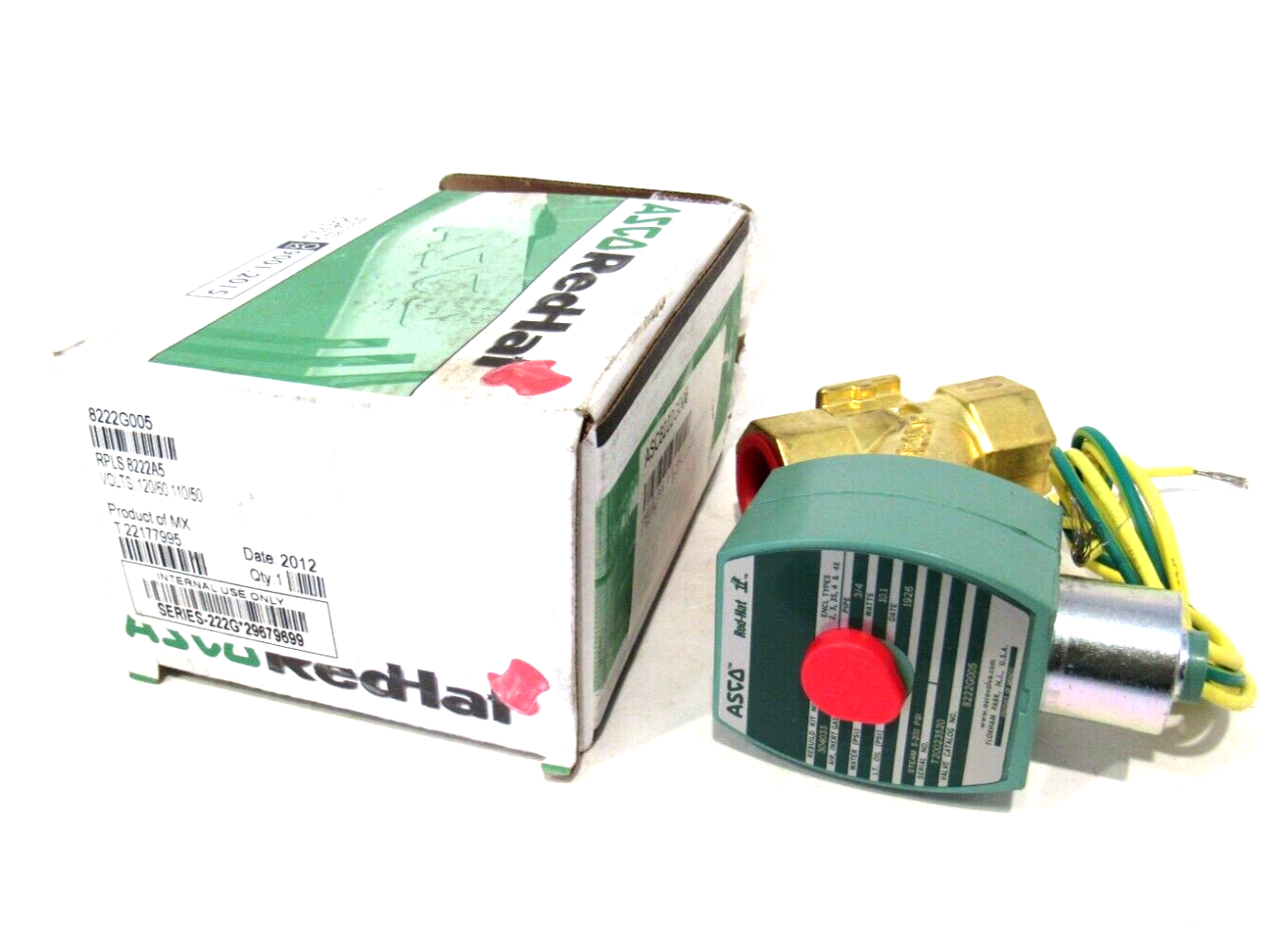

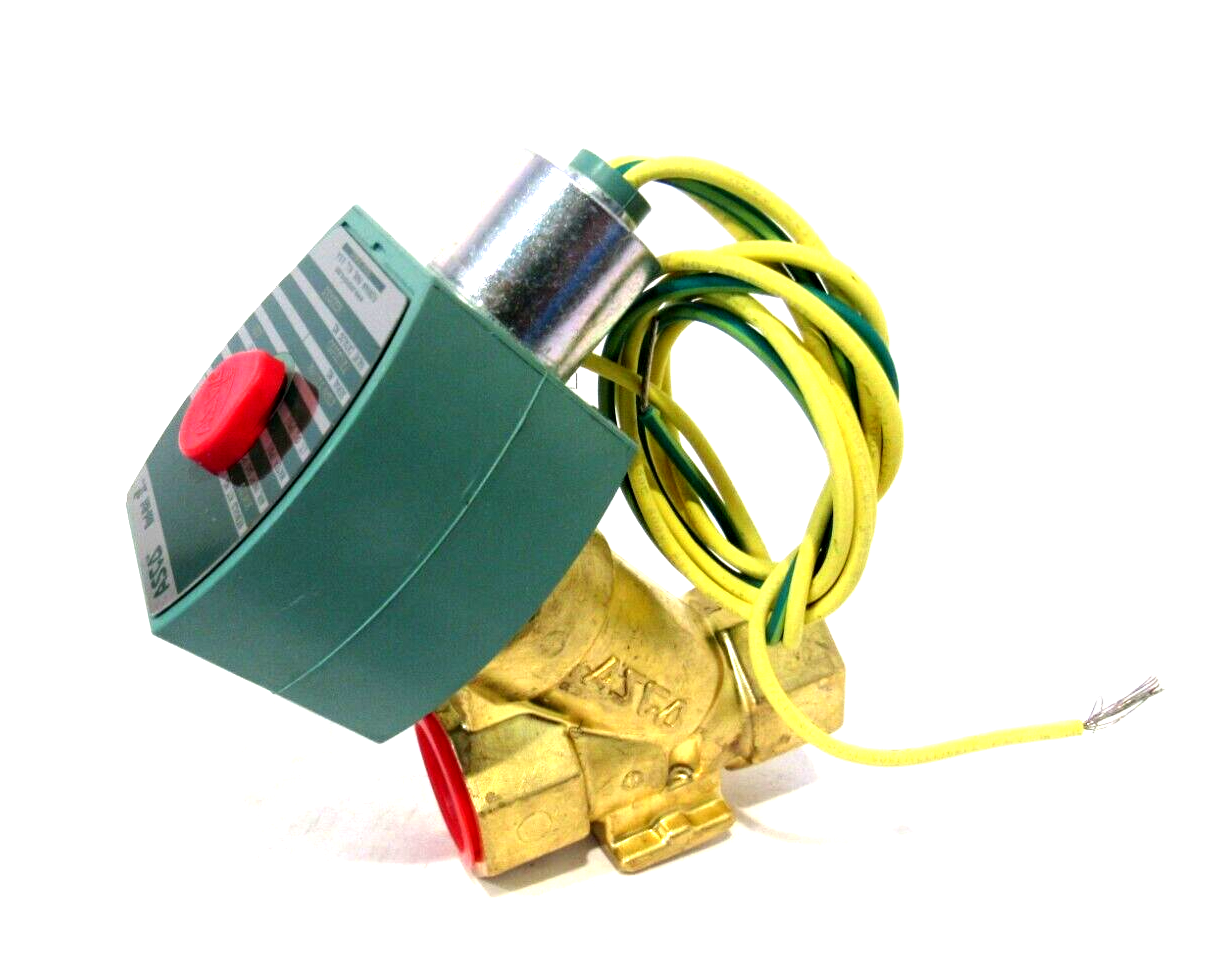

ASCO 8222G005 RedHat 3/4" High-Pressure Steam Solenoid Valve 120VAC
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8222G005
Description
ASCO 8222G005 is a RedHat Series 8222 pilot-operated solenoid valve designed for high-pressure steam control in industrial and commercial systems. Its 3/4-inch brass body, normally closed configuration, and 200 PSI steam rating support demanding thermal applications such as sterilizers, autoclaves, laundry equipment, and heating systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8222G005 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8222 Series |
| Product Type | Steam Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Construction | Pilot Operated, Diaphragm and Piston |
| Body Material | Brass |
| Port Size | 3/4 in. |
| Port Connection | Female Threaded |
| Orifice Size | 1/2 in. |
| Flow Factor | 4.6 Cv |
| Media | Steam |
| Operating Pressure | 5–200 PSI |
| Maximum Fluid Temperature | 388°F |
| Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Power Rating | 10.1 W |
| Coil Insulation | Class H |
| Enclosure Rating | NEMA 1/2/3/3S/4/4X |
| Approvals | UL, CSA, CE |
| Weight | 3.00 lbs |
Information About 8222G005
The 8222G005 is an ASCO Series 8222 steam solenoid valve built with a pilot-operated diaphragm and piston design. It uses 3/4-inch female threaded connections and provides a 4.6 Cv flow factor for controlled steam delivery. The valve operates from 110 VAC at 50 Hz or 120 VAC at 60 Hz and supports steam pressures from 5 to 200 PSI. Its high-temperature construction, Class H coil insulation, and watertight enclosure make it suitable for demanding industrial steam systems.
Key Features:
- High-Pressure Steam Service: Supports steam operating pressures from 5 to 200 PSI.
- High-Temperature Capability: Rated for steam temperatures up to 388°F.
- Pilot-Operated Construction: Uses a diaphragm and piston arrangement for controlled high-pressure flow.
- Normally Closed Operation: Keeps the valve closed when the solenoid coil is de-energized.
- 3/4-Inch Connections: Provides female threaded inlet and outlet ports for standard steam piping.
- 4.6 Cv Flow Capacity: Supports controlled steam flow in commercial and industrial thermal systems.
- Brass Body: Provides durable construction for repeated high-temperature service.
- Watertight Enclosure: NEMA 1/2/3/3S/4/4X protection supports demanding operating environments.
The 8222G005 delivers the reliability and precision required for high-pressure steam control in sterilization, laundry, heating, and industrial process systems.
