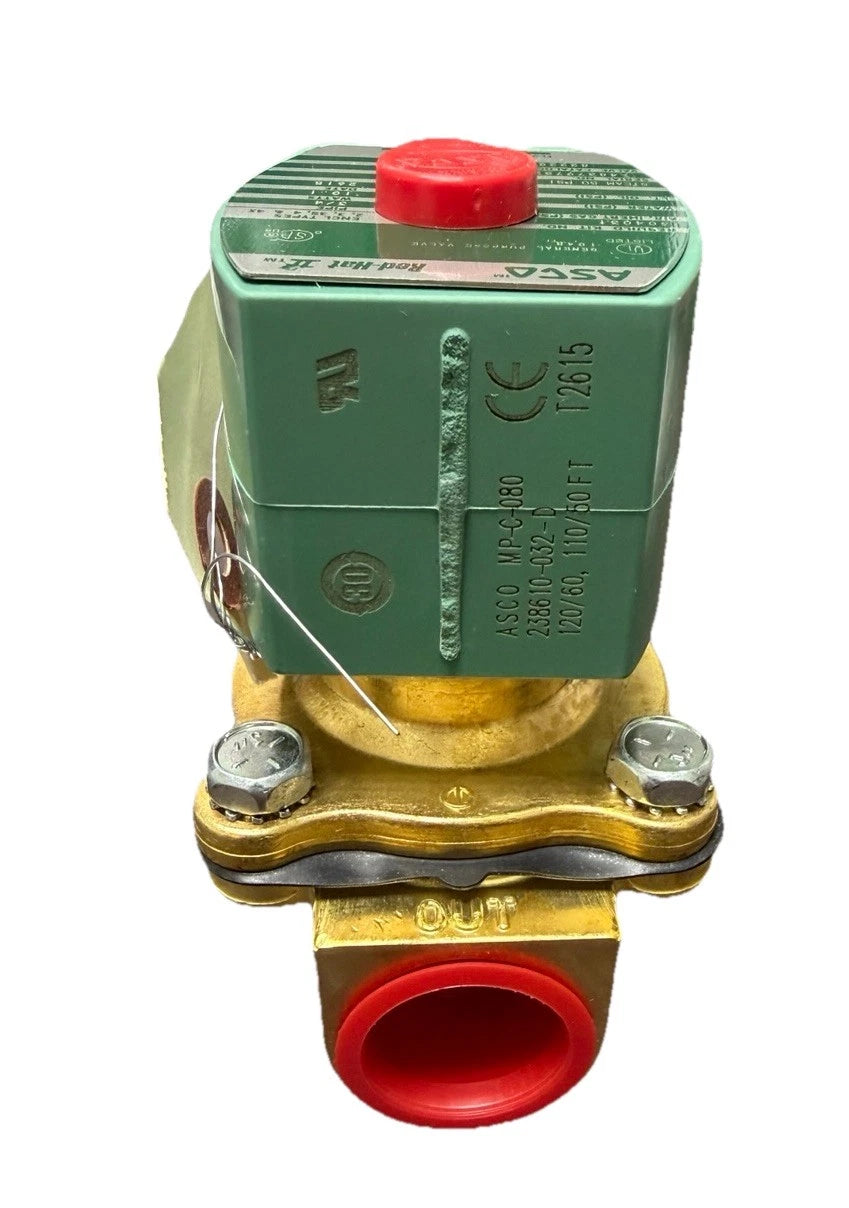

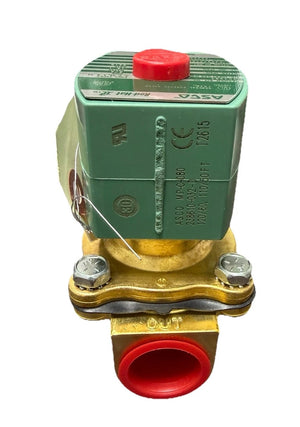

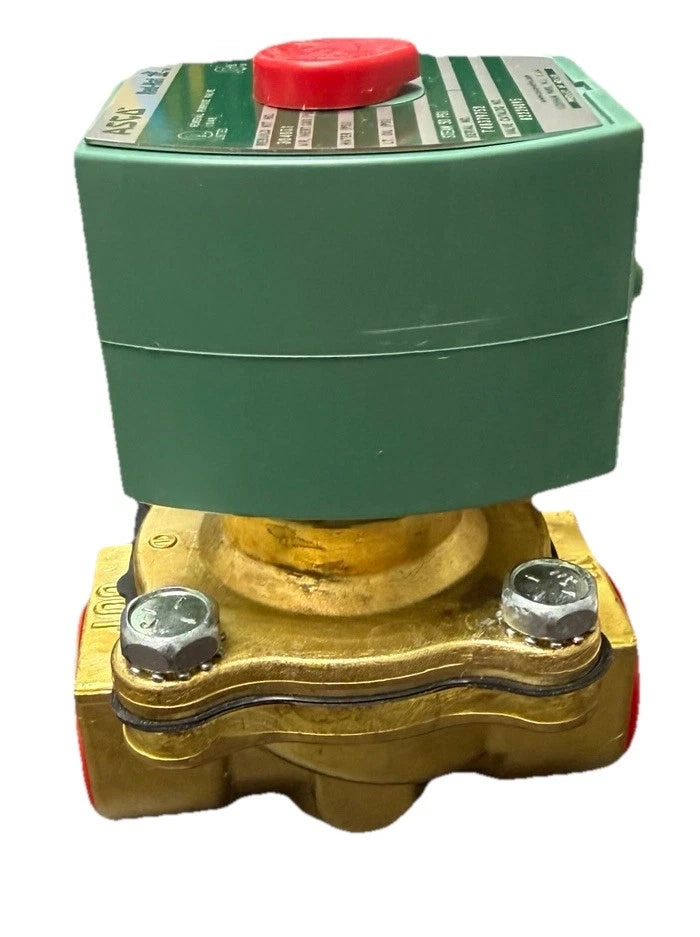

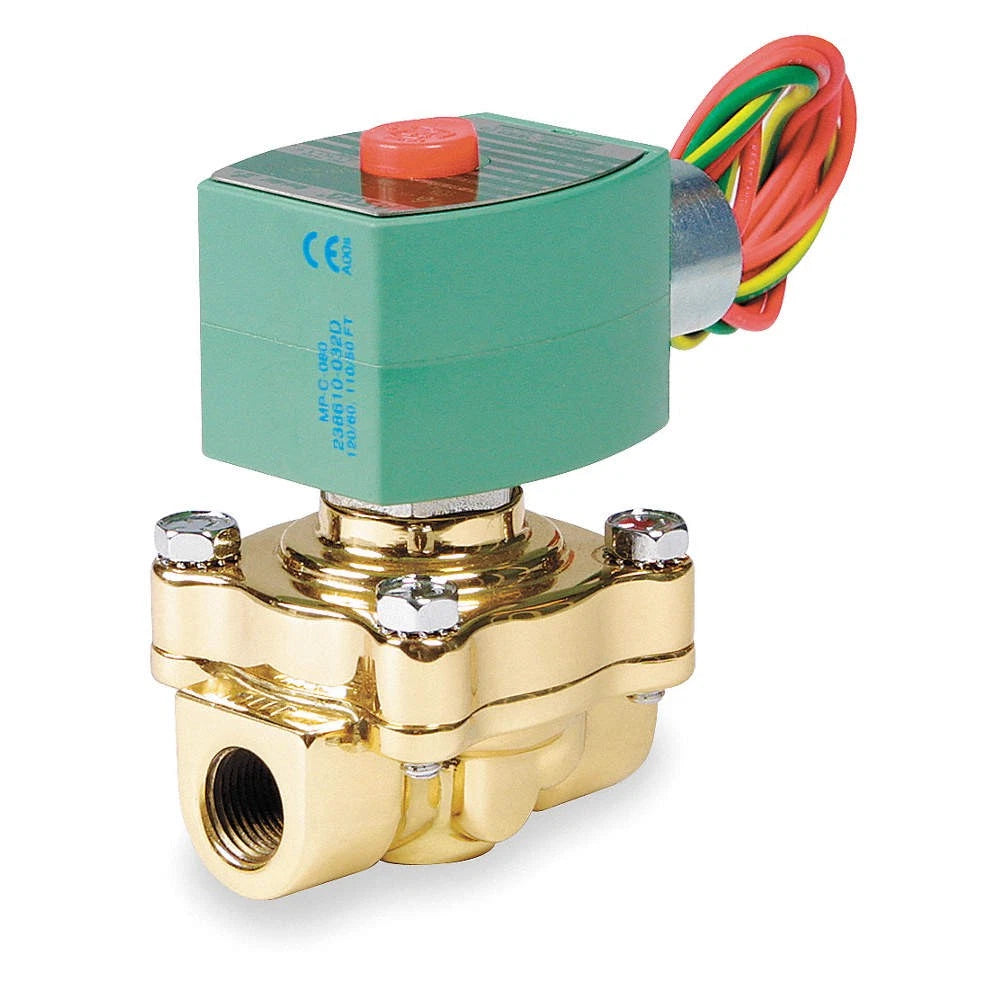

ASCO 8222G095 RedHat 3/4-Inch Normally Closed Steam Solenoid Valve 240VAC
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8222G095
Description
The ASCO 8222G095 is a RedHat Series pilot-operated solenoid valve designed for on/off control of steam in industrial and commercial systems. Its 3/4-inch brass valve body, normally closed configuration, and 5 Cv flow capacity support steam service at pressures up to 50 psi and fluid temperatures up to 300°F.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8222G095 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8222 |
| Valve Type | Pilot-Operated Solenoid Valve |
| Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Port Size | 3/4 in |
| Port Connection | Female Threaded × Female Threaded |
| Body Material | Brass |
| Input Supply | 220 VAC 50 Hz / 240 VAC 60 Hz |
| Power Rating | 10.1 W |
| Pressure Rating | 0–50 psi Steam |
| Flow Factor | 5 Cv |
| Maximum Fluid Temperature | 300°F (149°C) |
| Ambient Temperature | 32–125°F |
| Coil Insulation | Class F |
| Enclosure Rating | NEMA 1/2/3/3S/4/4X |
| Approvals | UL, CSA, CE |
| Weight | 3.10 lbs |
Information About 8222G095
The 8222G095 is an ASCO RedHat Series 8222 two-way, two-position solenoid valve designed primarily for steam and hot-water control applications. Its pilot-operated diaphragm and piston construction combines a brass body with stainless steel internal components and temperature-resistant sealing materials. The valve uses 3/4-inch female threaded connections and operates as normally closed, opening electrically when the solenoid coil is energized. This configuration is suited to commercial kitchen equipment, laundry systems, heating equipment, steam lines, and other applications requiring controlled fluid isolation and flow.
Key Features:
- Pilot-Operated Design: Uses a diaphragm and piston mechanism to provide controlled two-way steam flow.
- Normally Closed Operation: Maintains the flow path closed when the solenoid is de-energized.
- 3/4-Inch Connections: Features 3/4-inch female threaded inlet and outlet connections for standard piping installations.
- Steam Service Rating: Handles steam pressures from 0 to 50 psi and fluid temperatures up to 300°F.
- 5 Cv Flow Capacity: Provides a rated flow coefficient of 5 Cv through the 3/4-inch valve configuration.
- Brass Construction: Uses a brass body with stainless steel core, plugnut, spring, and core tube components.
- 10.1-Watt Coil: Operates at 220 VAC/50 Hz or 240 VAC/60 Hz with Class F coil insulation.
- Environmental Protection: NEMA 1/2/3/3S/4/4X enclosure ratings support installation across varied operating environments.
The 8222G095 delivers the reliability and precision required for controlled steam flow and shutoff in commercial and industrial equipment.
