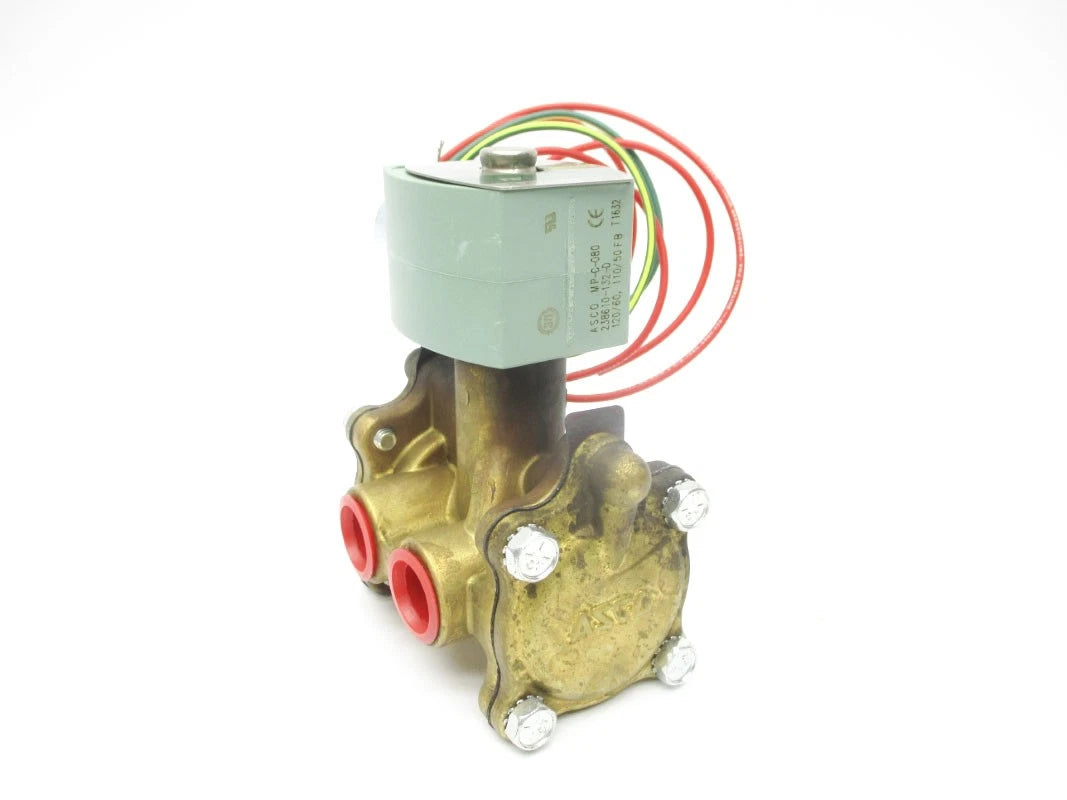

ASCO 8316G024 RedHat 1/2" 3-Way Solenoid Valve 120VAC
Part #:
8316G024
Manufactured by:
ASCO
- Regular price
- $849.00
- Sale price
- $849.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ASCO 8316G024 is a 1/2-inch 3-way/2-position normally closed solenoid valve designed for high-flow industrial control ...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: 8316G024
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: 8316G024
Description / Specifications
Description
ASCO 8316G024 is a RedHat Series 8316 high-flow solenoid valve designed for controlling air, inert gas, and water in industrial fluid systems. It features a 3-way/2-position normally closed, pilot-operated diaphragm poppet design with 1/2-inch female threaded ports and a 3.2 Cv flow coefficient.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8316G024 |
| Subcategory | Solenoid Valve |
| Product Type | General Service Solenoid Valve |
| Series | RedHat Series 8316 |
| Valve Configuration | 3-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Operation Type | Pilot Operated |
| Valve Design | Diaphragm Poppet |
| Body Material | Brass |
| Seal Material | NBR |
| Port Size | 1/2 in |
| Connection Type | Female Threaded (NPTF) |
| Orifice Size | 5/8 in |
| Flow Coefficient (Cv) | 3.2 |
| Media | Air, Inert Gas, Water |
| Operating Pressure Range | 10–250 psi |
| Maximum Fluid Temperature | 180°F |
| Ambient Temperature Range | 32–125°F |
| Input Supply Rating | 110 VAC @ 50 Hz / 120 VAC @ 60 Hz |
| Power Rating | 17.1 W |
| Coil Insulation Class | Class F |
| Enclosure Type | Watertight, General Service |
| NEMA Rating | NEMA 1, 2, 3, 3S, 4, 4X |
| Mounting | Any Position |
| Approvals | CSA, CE |
| Weight | 4.10 lbs |
Information About 8316G024
Key Features:
- 3-Way Control: Provides a 3-way/2-position configuration for directional fluid control applications.
- Normally Closed Operation: Maintains the controlled flow path closed in its normal de-energized state.
- Pilot-Operated Design: Uses internal piloting to control a larger orifice and support high-flow operation.
- Diaphragm Poppet Construction: Combines diaphragm operation with resilient seating for dependable switching and tight shutoff.
- High-Flow Capacity: Provides a 3.2 Cv flow coefficient for demanding fluid and pneumatic applications.
- Actuator Pilot Capability: Can be used to pilot large actuators and assist with quick closing of large control valves.
- Multiple Media Compatibility: Suitable for controlling air, inert gas, and water.
- Flexible Mounting: Can be installed in any mounting position for easier system integration.
The 8316G024 delivers the high-flow control and dependable switching required for industrial fluid, pneumatic, and actuator control applications.
