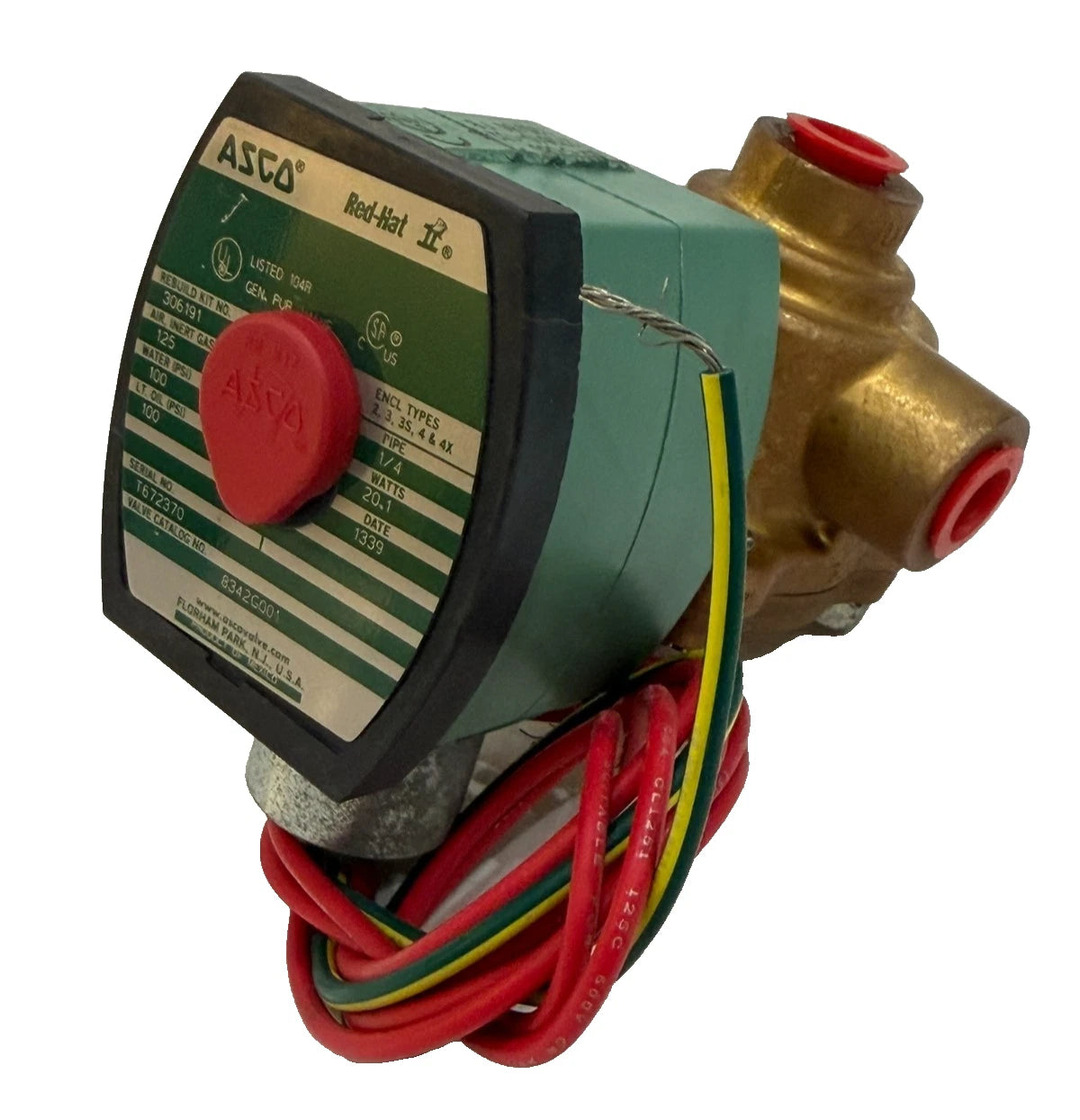

ASCO 8342G001 RedHat 4-Way 1/4" NPT 120 VAC Brass Solenoid Valve
- Regular price
- $592.00
- Sale price
- $592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8342G001
Description
The ASCO 310421 is a valve rebuild kit designed for servicing compatible ASCO 8221-series solenoid valves used in hot water and steam control applications. It provides the internal replacement components needed to restore sealing, flow control, and dependable valve actuation without replacing the complete valve assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Industrial Valves |
| Part Number | 8342G001 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8342 Series |
| Product Type | 4-Way General Service Solenoid Valve |
| Valve Function | 4-Way / 4/2 |
| Actuation Type | Direct Acting |
| Solenoid Configuration | Single Solenoid |
| Coil Voltage | 120 VAC, 60 Hz |
| Port Size | 1/4 in NPT |
| Orifice Size | 3/16 in |
| Flow Factor | Cv 0.70 |
| Body Material | Brass |
| Compatible Media | Air, Inert Gas, Water, Light Oil up to 300 SSU |
| Operating Pressure – Air / Inert Gas | 0–125 psi |
| Operating Pressure – Water / Light Oil | 0–100 psi |
| Maximum Fluid Temperature | 160°F (71°C) |
| Coil Rating / Insulation | 20.1 W / Class F |
| Standard Enclosure | Watertight, NEMA Types 1, 2, 3, 3S, 4, 4X |
| Weight | Approximately 4 lb (1.8 kg) |
Information About 8342G001
The 8342G001 is part of the ASCO RedHat Series 8342 family of 4-way general-service solenoid valves designed for directional fluid and pneumatic control. Its direct-acting slide-style construction uses a brass valve body, stainless-steel internal components, and a 3/16-inch orifice to provide a Cv flow factor of 0.70. The valve operates from zero differential pressure and is suitable for actuator, cylinder, pneumatic equipment, and process-control applications where dependable 4/2 switching is required. Its 120 VAC 60 Hz coil, single-solenoid configuration, and watertight enclosure construction support installation in a wide range of indoor and outdoor industrial systems.
Key Features:
- 4-Way Valve Configuration: Provides 4/2 directional flow control for pneumatic and fluid-control applications.
- Direct-Acting Operation: Shifts the valve directly through solenoid actuation without relying on pilot pressure.
- Zero Minimum Differential: Operates from 0 psi differential pressure for applications where pilot pressure may be unavailable.
- Single Solenoid Design: Uses one electrically operated solenoid for dependable directional switching.
- 120 VAC Coil: Configured for operation from a 120 VAC, 60 Hz electrical supply.
- Brass Valve Body: Provides durable construction for general industrial fluid and pneumatic service.
- 1/4-Inch NPT Ports: Standard threaded connections simplify integration into compatible piping and control systems.
- 3/16-Inch Orifice: Supports a Cv flow coefficient of 0.70 for efficient media transfer.
- Multiple Media Compatibility: Designed for air, inert gas, water, and light oil up to 300 SSU.
- High Operating Pressure: Handles air and inert gas pressures up to 125 psi and water or light oil pressures up to 100 psi.
- Watertight Enclosure: Standard construction supports NEMA Types 1, 2, 3, 3S, 4, and 4X environmental protection.
- Flexible Mounting: Valve construction permits mounting in multiple orientations to simplify equipment integration.
The 8342G001 delivers the reliability and precision required for industrial directional flow control, pneumatic actuation, and general-purpose fluid handling systems.
