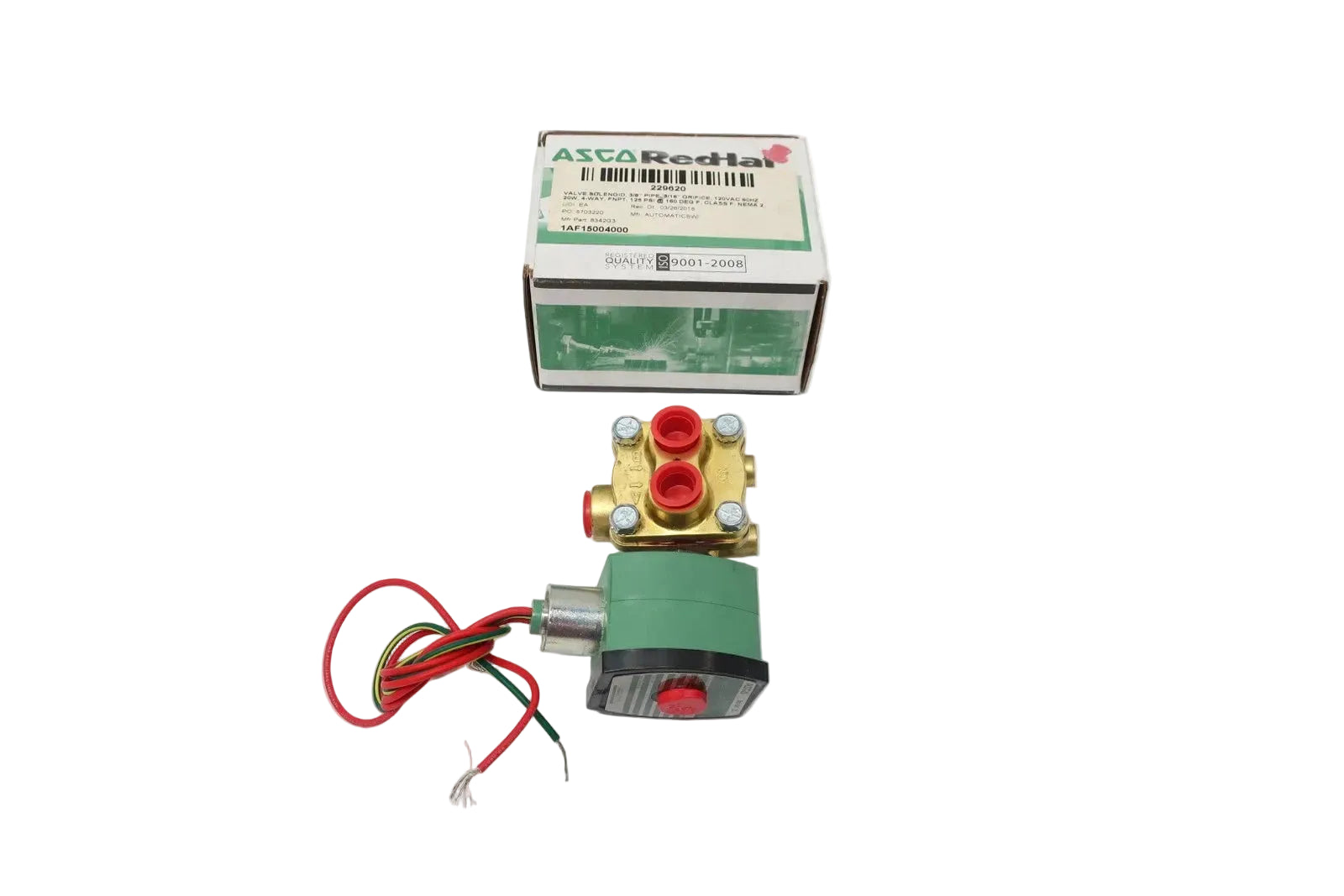

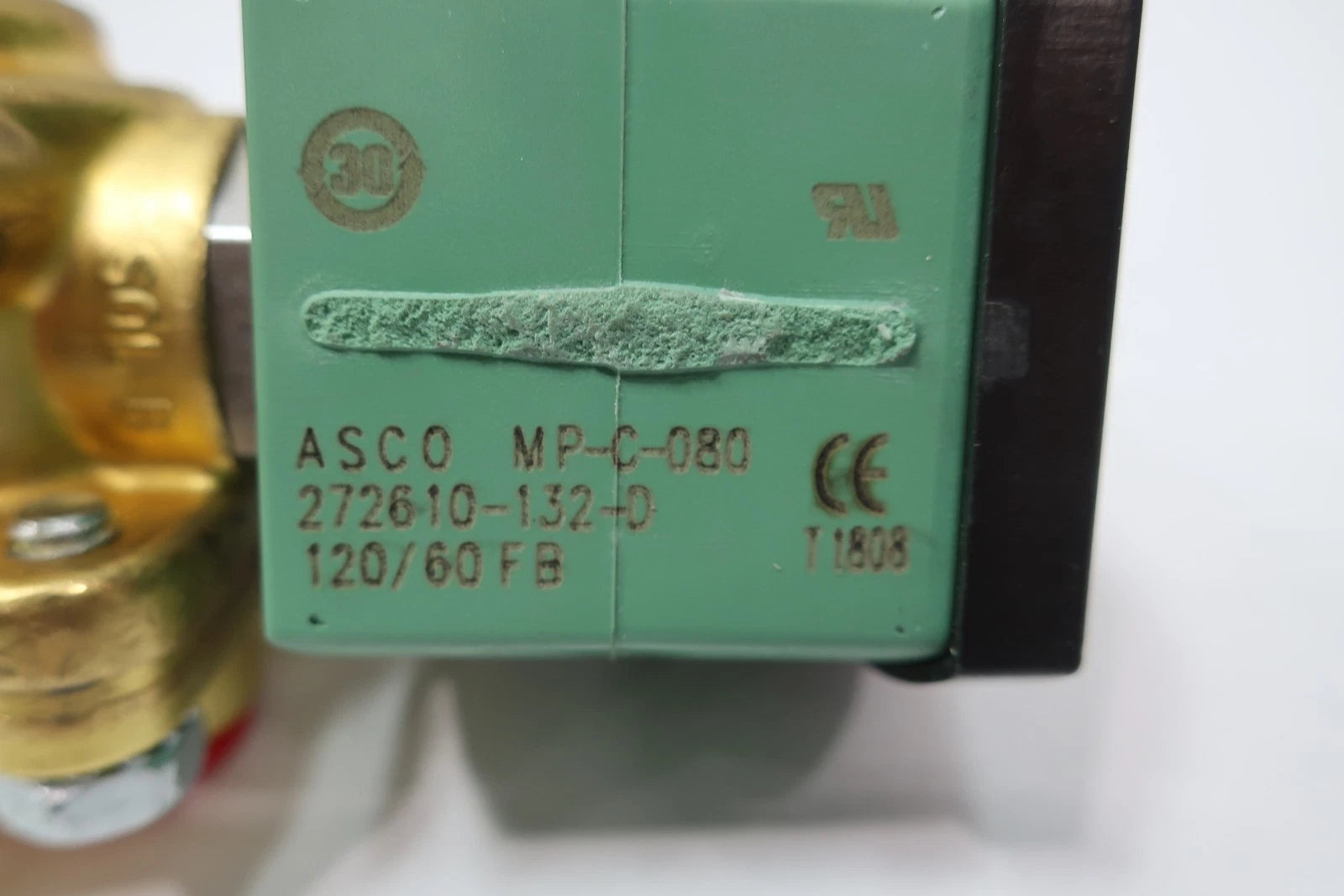

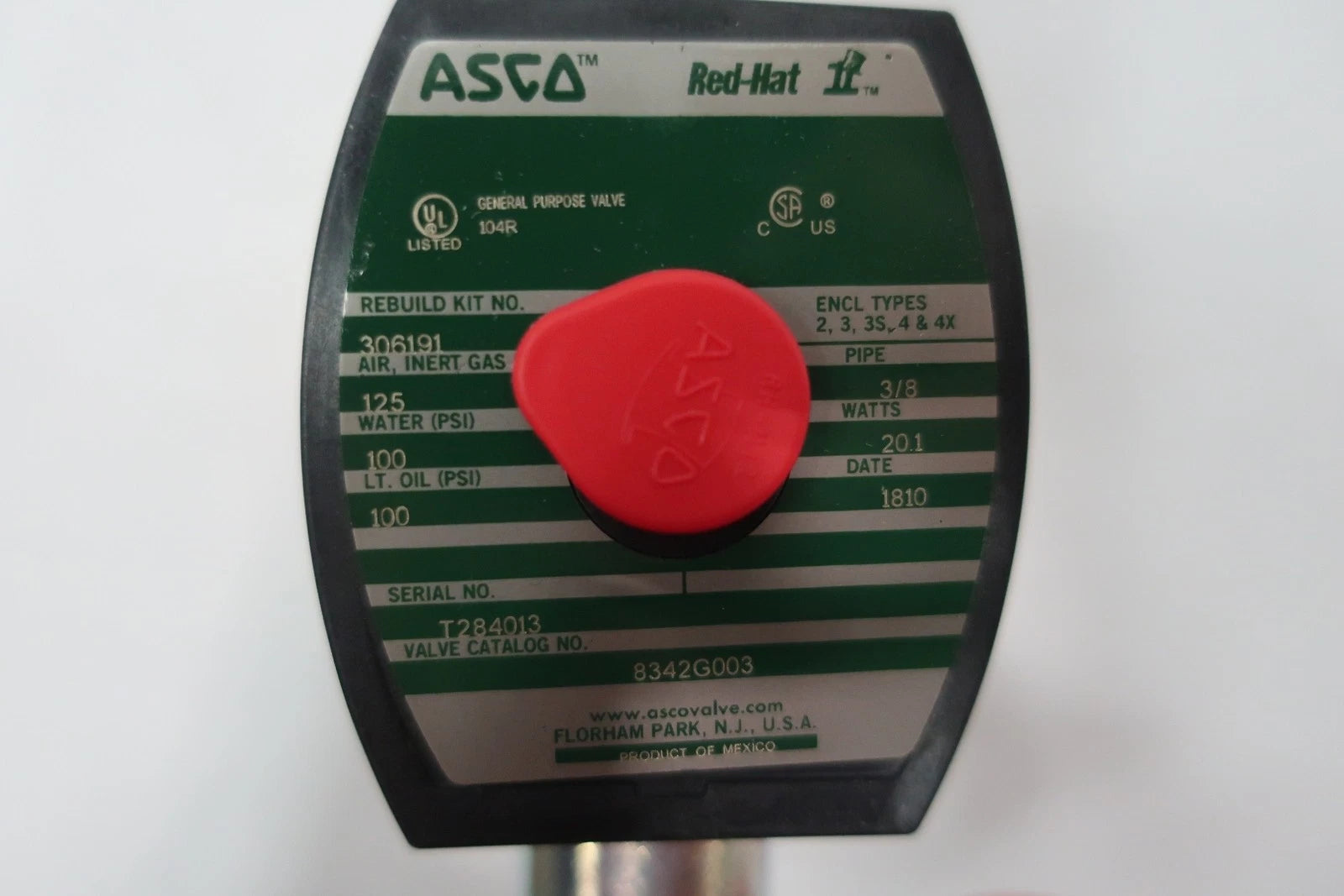

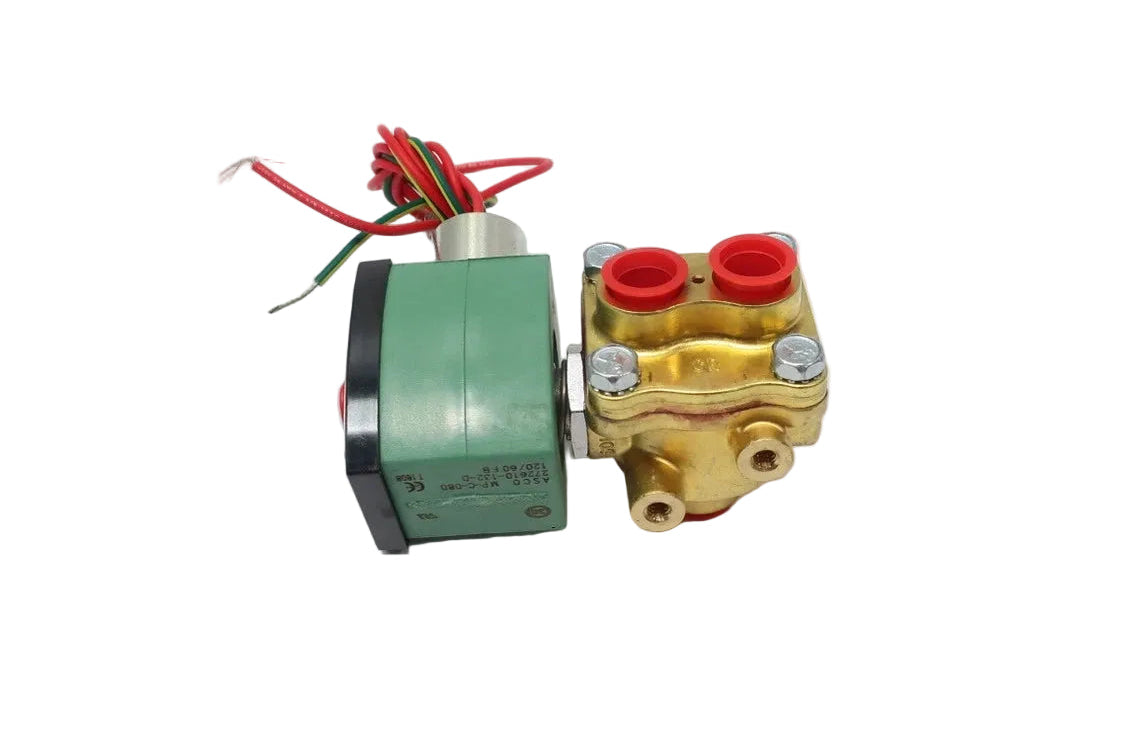

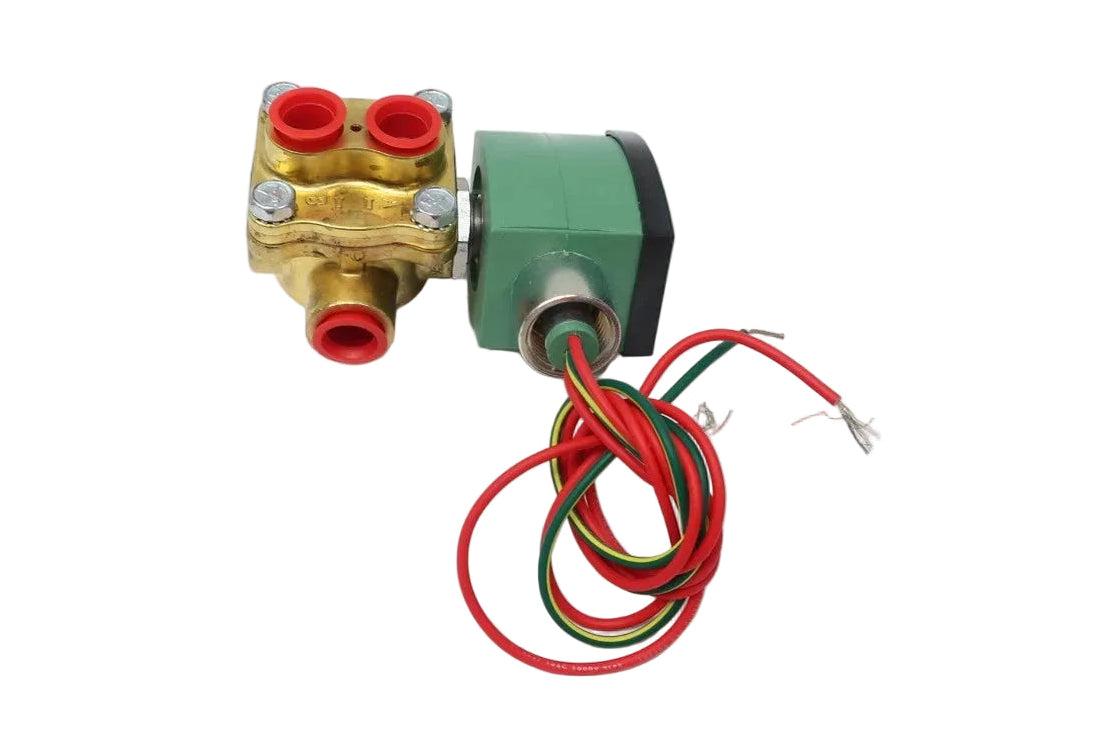

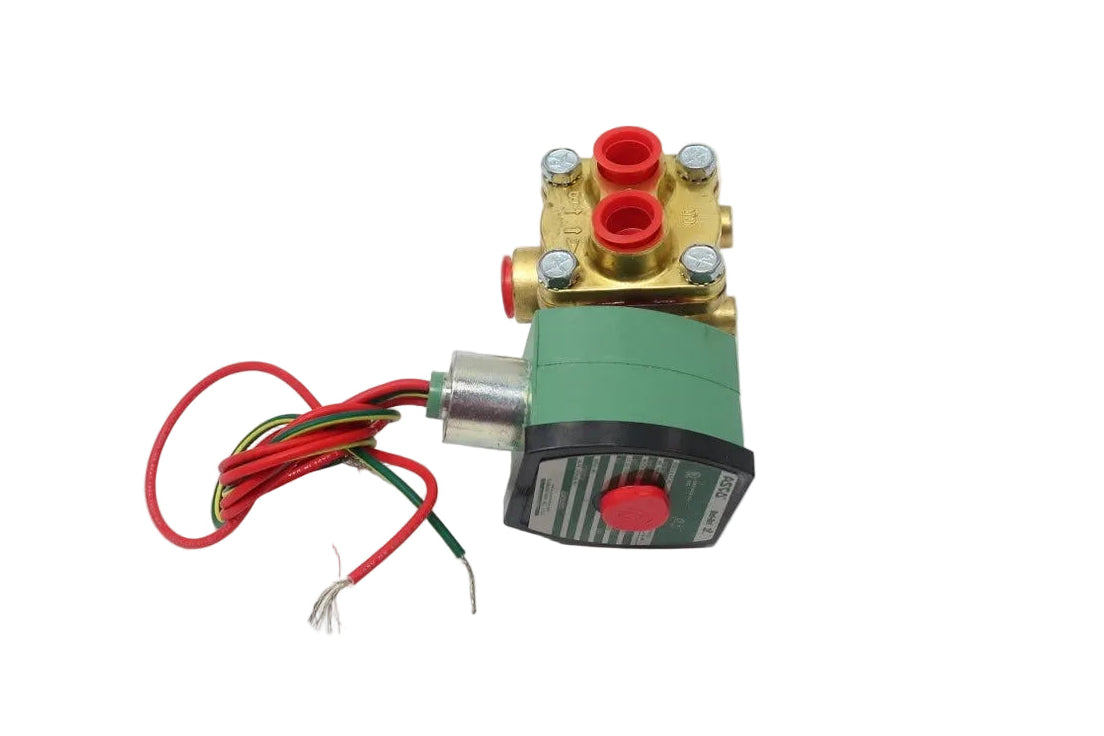

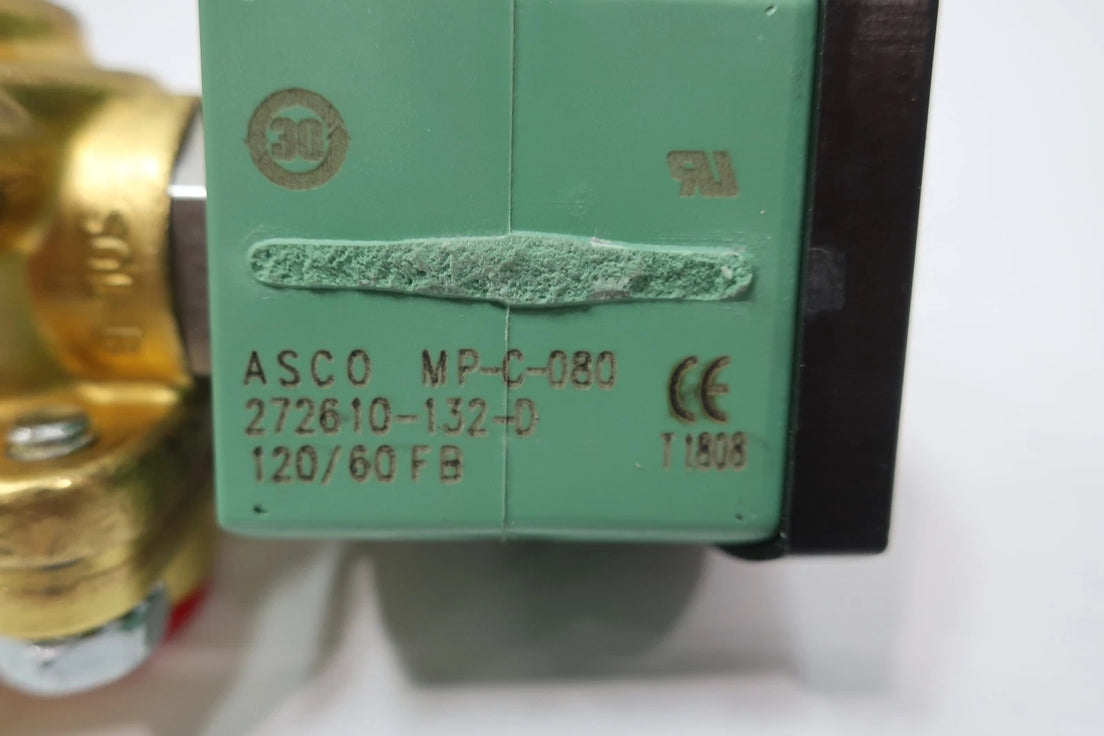

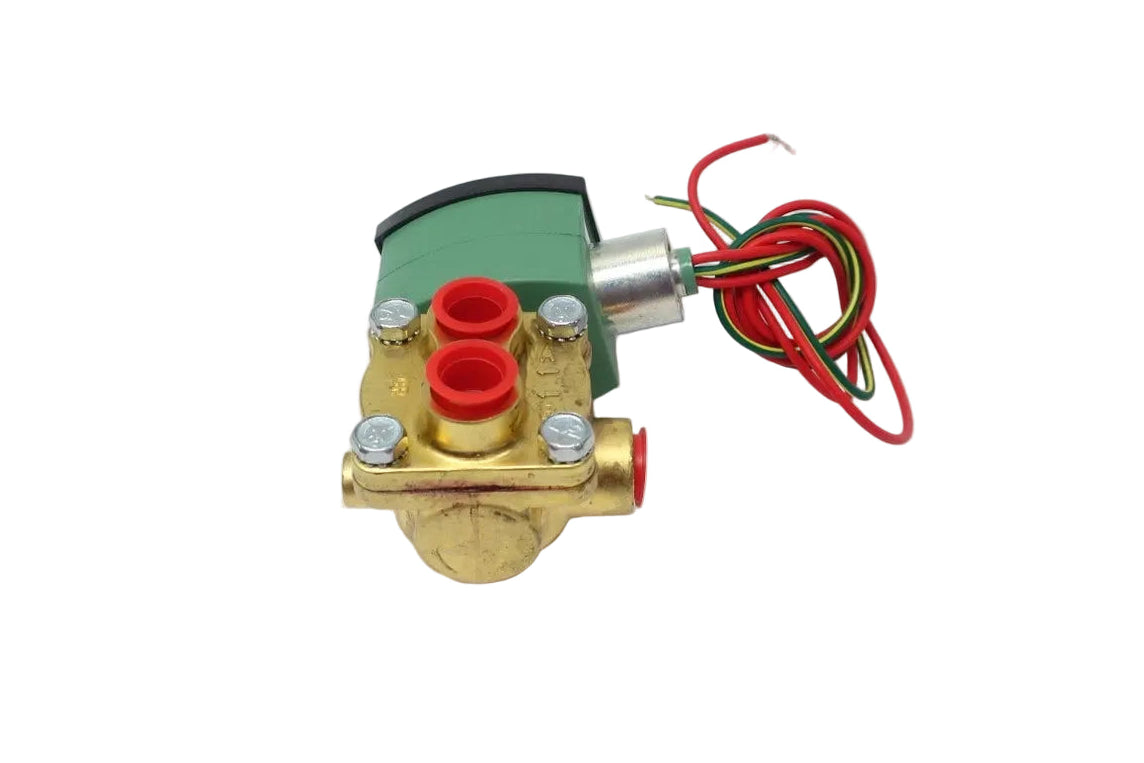

ASCO 8342G003 Series 8342 4-Way 3/8" Solenoid Valve 120V AC
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8342G003
Description
ASCO 8342G003 is a Series 8342 4-way, 2-position direct-acting solenoid valve designed for general-service industrial fluid control. The valve features a brass body, 3/8-inch NPT ports, single-solenoid operation, and 120V AC 60 Hz control for reliable operation with air, inert gas, water, and light oil.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8342G003 |
| Subcategory | Solenoid Valves |
| Series | 8342 |
| Valve Configuration | 4-Way / 2-Position |
| Valve Type | Direct Acting |
| Solenoid Configuration | Single Solenoid |
| Body Material | Brass |
| Port Size | 3/8 in. |
| Port Connection | Female NPT |
| Number of Ports | 4 |
| Voltage | 120 VAC |
| Frequency | 60 Hz |
| Power Rating | 20.1 W |
| Pressure Rating – Air/Inert Gas | Up to 125 PSI |
| Pressure Rating – Water/Light Oil | Up to 100 PSI |
| Maximum Fluid Temperature | 160°F |
| Ambient Temperature Rating | Up to 125°F |
| Orifice Size | 3/16 in. |
| Flow Factor | 0.7 Cv |
| Media | Air, Inert Gas, Water, Light Oil |
| Enclosure | General Purpose |
| Approvals | UL, CSA, CE |
| Weight | 2.40 lbs |
Information About 8342G003
The ASCO 8342G003 is a direct-acting 4-way solenoid valve from the RedHat Series 8342. It uses a single-solenoid configuration and provides a flow capacity of 0.7 Cv through four 3/8-inch female threaded connections. The valve supports pressures up to 125 PSI for air and inert gas and up to 100 PSI for water and light oil. Its brass construction and general-purpose enclosure make it suitable for industrial automation, pneumatic control, heating equipment, dust collection systems, and process applications.
Key Features:
- 4-Way / 2-Position Design: Provides directional flow control for industrial and pneumatic systems.
- Direct-Acting Operation: Enables responsive valve switching without requiring a minimum pressure differential.
- Single Solenoid: Uses a single electrical solenoid for straightforward control and integration.
- 3/8-Inch NPT Ports: Features four female threaded process connections.
- Brass Body Construction: Provides durability for demanding general-service applications.
- 120V AC Operation: Designed for 120V AC, 60 Hz industrial control circuits.
- High Pressure Capability: Rated up to 125 PSI for air and inert gas and 100 PSI for water and light oil.
- Multiple Media Compatibility: Suitable for air, inert gas, water, and light oil applications.
The ASCO 8342G003 delivers the reliability and precision required for industrial automation, pneumatic control, process equipment, and general fluid-control applications.
