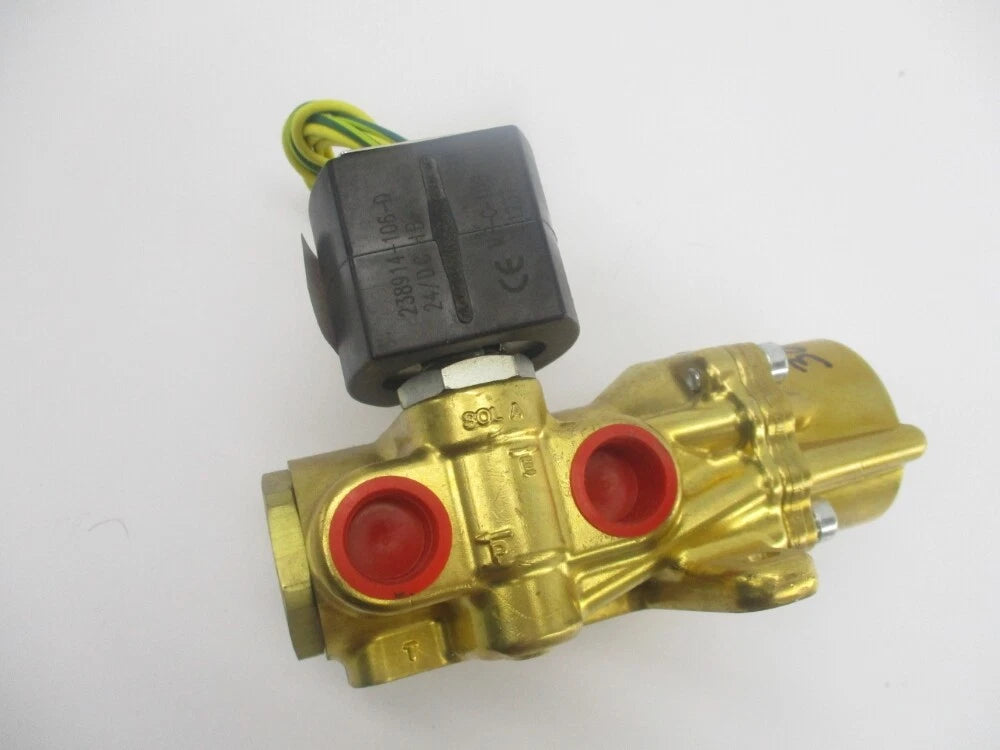

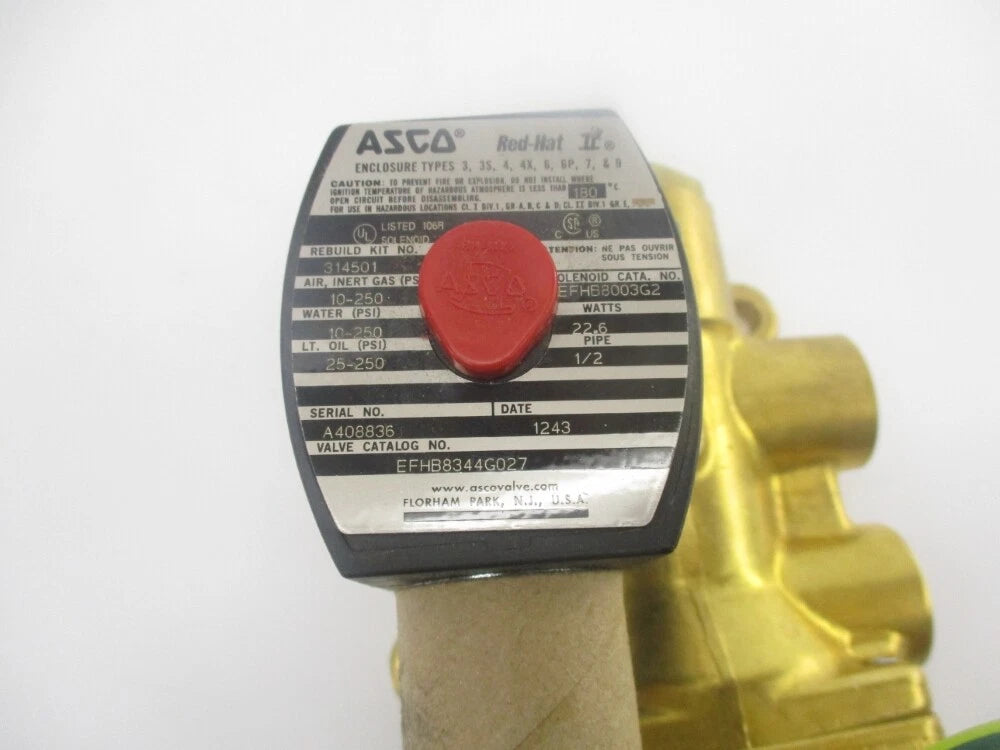

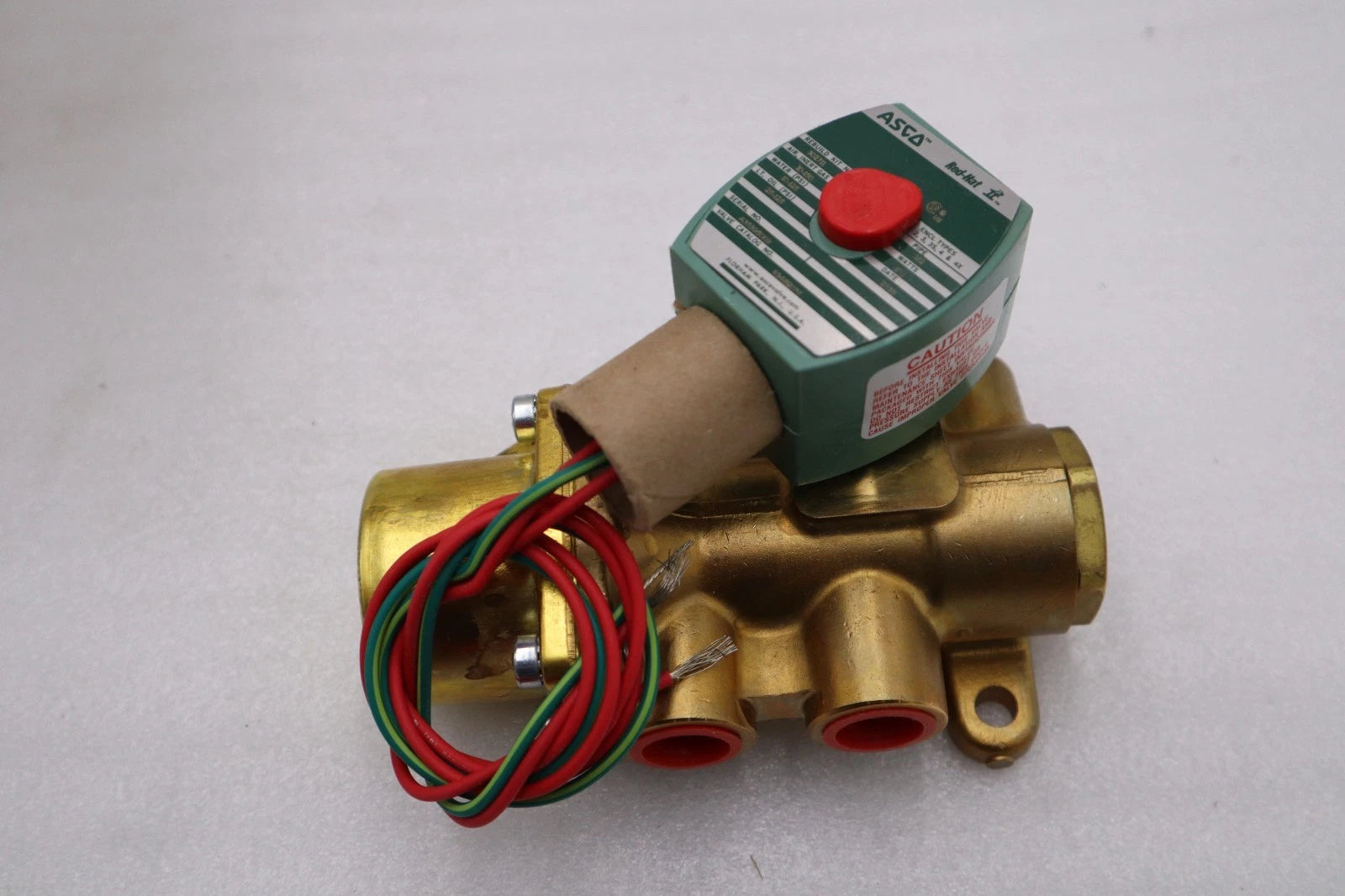

ASCO 8344G027 Series 8344 Four-Way Piston Poppet Solenoid Valve for Industrial Pneumatic Control Applications
- Regular price
- $1,345.00
- Sale price
- $1,345.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8344G027
Description
The ASCO 8344G027 is a Series 8344 four-way, two-position piston/poppet solenoid valve designed for directional control of pneumatic actuators in industrial automation systems. Its rugged brass body, direct-acting pilot-operated design, and high-flow construction provide dependable control of air, inert gas, water, and light oil. Engineered for continuous-duty operation, the valve is suitable for demanding manufacturing and process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8344G027 |
| Subcategory | Solenoid Valve |
| Product Type | Series 8344 Piston/Poppet Solenoid Valve |
| Valve Function | Four-Way, Two-Position |
| Valve Operation | Single Solenoid, Piston/Pilot Operated, Direct Acting |
| Body Material | Forged Brass |
| Pipe Connection Size | 1/2 Inch Female National Pipe Thread |
| Orifice Size | 3/8 Inch |
| Flow Coefficient | Pressure Port: 1.4 Cv; Exhaust Port: 2.2 Cv |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Operating Pressure Range | Air/Inert Gas and Water: 10–250 PSI; Light Oil: 25–250 PSI |
| Supply Voltage | 120 Volts AC, 60 Hertz |
| Power Consumption | 17.1 Watts |
| Seal Material | NBR |
| Enclosure Rating | NEMA 1, 2, 3, 3S, 4, 4X |
| Maximum Fluid Temperature | 180 °F (82 °C) |
| Weight | 3.00 lbs |
Information About 8344G027
The 8344G027 is a member of the ASCO Series 8344 family of piston/poppet solenoid valves developed for industrial directional control applications requiring reliable four-way switching. It features a single-solenoid, four-way, two-position configuration with a piston-operated poppet mechanism that delivers high flow capacity and dependable performance under continuous operation. Manufactured with a forged brass body, NBR sealing elements, and an epoxy-encapsulated RedHat II solenoid, the valve is designed to control air, inert gas, water, and light oil in industrial systems. Equipped with 1/2 inch female National Pipe Thread ports, a 17.1-watt alternating current coil, and a general-purpose NEMA enclosure, the valve is commonly installed in pneumatic cylinders, automated machinery, packaging equipment, and process control systems.
Key Features:
- Series 8344 Design: Engineered for dependable industrial directional flow control.
- Four-Way Two-Position Configuration: Provides precise routing of compressed air and compatible fluids.
- Piston/Poppet Construction: Delivers high flow capacity with durable mechanical operation.
- Forged Brass Body: Provides corrosion resistance and long service life in industrial environments.
- RedHat II Solenoid: Epoxy-encapsulated coil designed for continuous-duty operation.
- Broad Media Compatibility: Suitable for air, inert gas, water, and light oil applications.
- High Pressure Capability: Supports operating pressures up to 250 PSI for compatible media.
- Flexible Installation: May be mounted in any position for simplified system integration.
The 8344G027 delivers the reliability and precision required for pneumatic actuator control and industrial directional flow applications.
