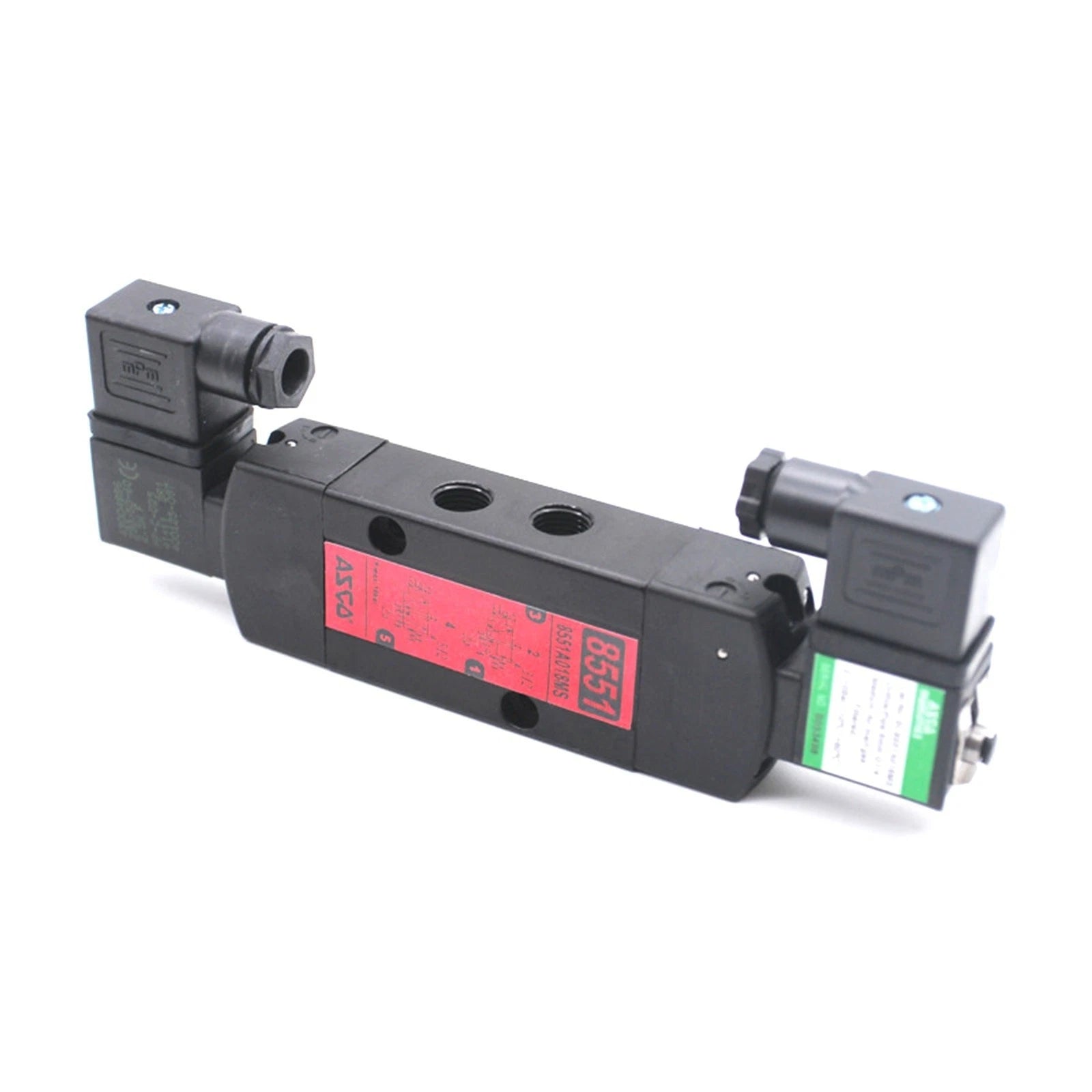

ASCO 8551A018MS Series 551 4-Way 1/4-Inch 120V AC Solenoid Valve
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 8551A018MS
Description
ASCO 8551A018MS is a Series 551/8551 pilot-operated solenoid spool valve designed for directional control of air and inert gases in pneumatic systems. Its 4-way, 2-position configuration, 1/4-inch NPT ports, and 120V AC operation support precise control of double-acting actuators and industrial automation equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | 8551A018MS |
| Subcategory | Solenoid Valves |
| Series | Series 551 / 8551 |
| Product Type | Directional Solenoid Spool Valve |
| Valve Configuration | 4-Way / 2-Position |
| Operation | Pilot Operated |
| Return Type | Spring Return |
| Input Voltage | 120V AC |
| Port Size | 1/4 in NPT |
| Body Material | Black Anodized Aluminum |
| Flow Factor | 0.86 Cv |
| Operating Pressure | 30–150 PSI |
| Media | Air, Inert Gas |
| Operating Temperature | 5°F to 140°F (-15°C to 60°C) |
| Manual Operator | Screw-Type Manual Override |
| Weight | 1.72 lbs |
Information About 8551A018MS
The 8551A018MS is an ASCO Series 551/8551 directional solenoid valve built around a pilot-operated spool mechanism. Its black anodized aluminum body incorporates 1/4-inch NPT connections and a single-solenoid spring-return configuration for controlling pneumatic flow. The valve operates across a 30–150 PSI pressure range and provides a 0.86 Cv flow coefficient for air and inert-gas applications. An integrated manual operator allows the valve to be mechanically actuated during system setup, testing, or maintenance.
Key Features:
- 4-Way Configuration: Provides 4-way, 2-position directional control for pneumatic circuits.
- Pilot-Operated Spool: Uses pilot pressure to shift the internal spool for controlled flow routing.
- Spring Return: Automatically returns the spool to its normal position when the solenoid is de-energized.
- 120V AC Operation: Configured for standard 120V AC industrial control circuits.
- 1/4-Inch NPT Ports: Provides threaded connections for integration with common pneumatic piping and fittings.
- 0.86 Cv Flow Capacity: Supports controlled airflow for actuator and automation applications.
- Aluminum Body: Black anodized aluminum construction provides a compact and durable valve housing.
- Manual Operator: Integrated manual override enables mechanical valve actuation for testing and service.
The 8551A018MS delivers the reliability and precision required for pneumatic actuator control, directional air switching, and industrial automation systems.
