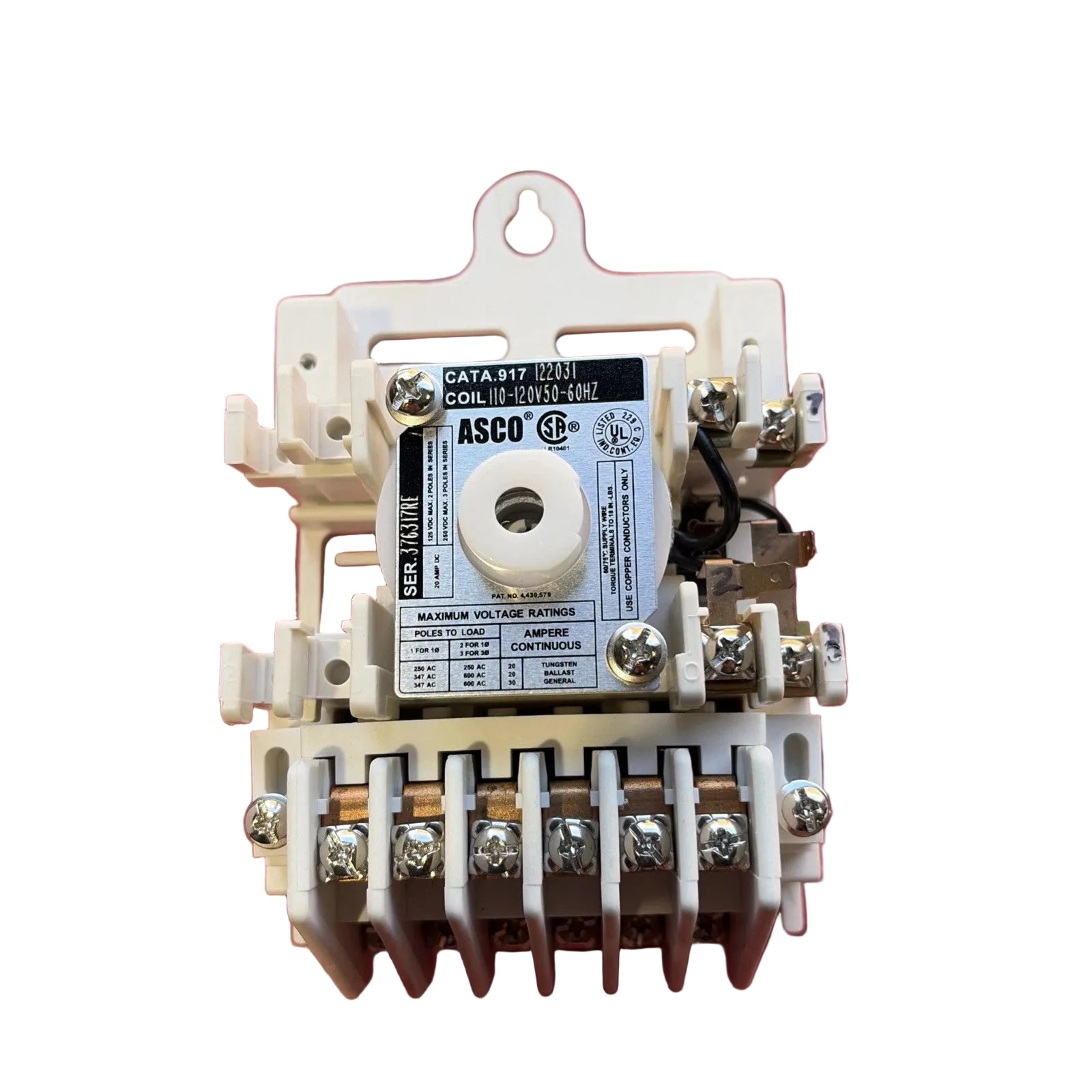

ASCO 917122031 12-Pole 30A Mechanically Held Lighting Contactor
- Regular price
- $1,559.00
- Sale price
- $1,559.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 917122031
Description
ASCO 917122031 is a 12-pole mechanically held lighting contactor designed for remote switching of commercial and industrial lighting circuits. Rated at 30A with a 110/120V AC control coil, it provides dependable multi-circuit control while its mechanical latching design minimizes continuous coil power consumption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Part Number | 917122031 |
| Alternate Part Number | 917-122031 |
| Product Type | Lighting Contactor |
| Operation | Mechanically Held |
| Number of Poles | 12 |
| Current Rating | 30 A |
| Coil Voltage | 110/120 VAC |
| Frequency | 50/60 Hz |
| Maximum System Voltage | 600 VAC / 250 VDC |
| Mounting Type | Panel Mount / Open Type |
| Application | Commercial & Industrial Lighting Control |
| Weight | Approx. 3.0–3.2 lbs |
Information About 917122031
The ASCO 917122031 is a mechanically held remote-control lighting contactor designed for switching multiple lighting circuits. It features a 12-pole configuration with a 30A continuous current rating for general lighting applications. The mechanically held design allows the contacts to remain in position without continuous energization of the control coil. Its 110/120V AC coil and industrial construction make it suitable for commercial facilities, industrial buildings, and centralized lighting control panels.
Key Features:
- 12-Pole Configuration: Provides centralized switching capability for multiple lighting circuits.
- 30A Current Rating: Supports commercial and industrial lighting loads up to 30 amperes.
- Mechanically Held Design: Maintains contact position mechanically without continuous coil energization.
- 110/120V AC Coil: Designed for standard 110–120V AC control circuits.
- 50/60 Hz Operation: Suitable for common industrial and commercial AC power systems.
- Remote Lighting Control: Designed for centralized and remotely operated lighting systems.
- Reduced Coil Consumption: Mechanical latching eliminates the need to continuously energize the coil after switching.
- Industrial Construction: Built for dependable operation in electrical control panels and demanding facility applications.
The ASCO 917122031 delivers the reliability and switching performance required for commercial and industrial multi-circuit lighting control systems.
