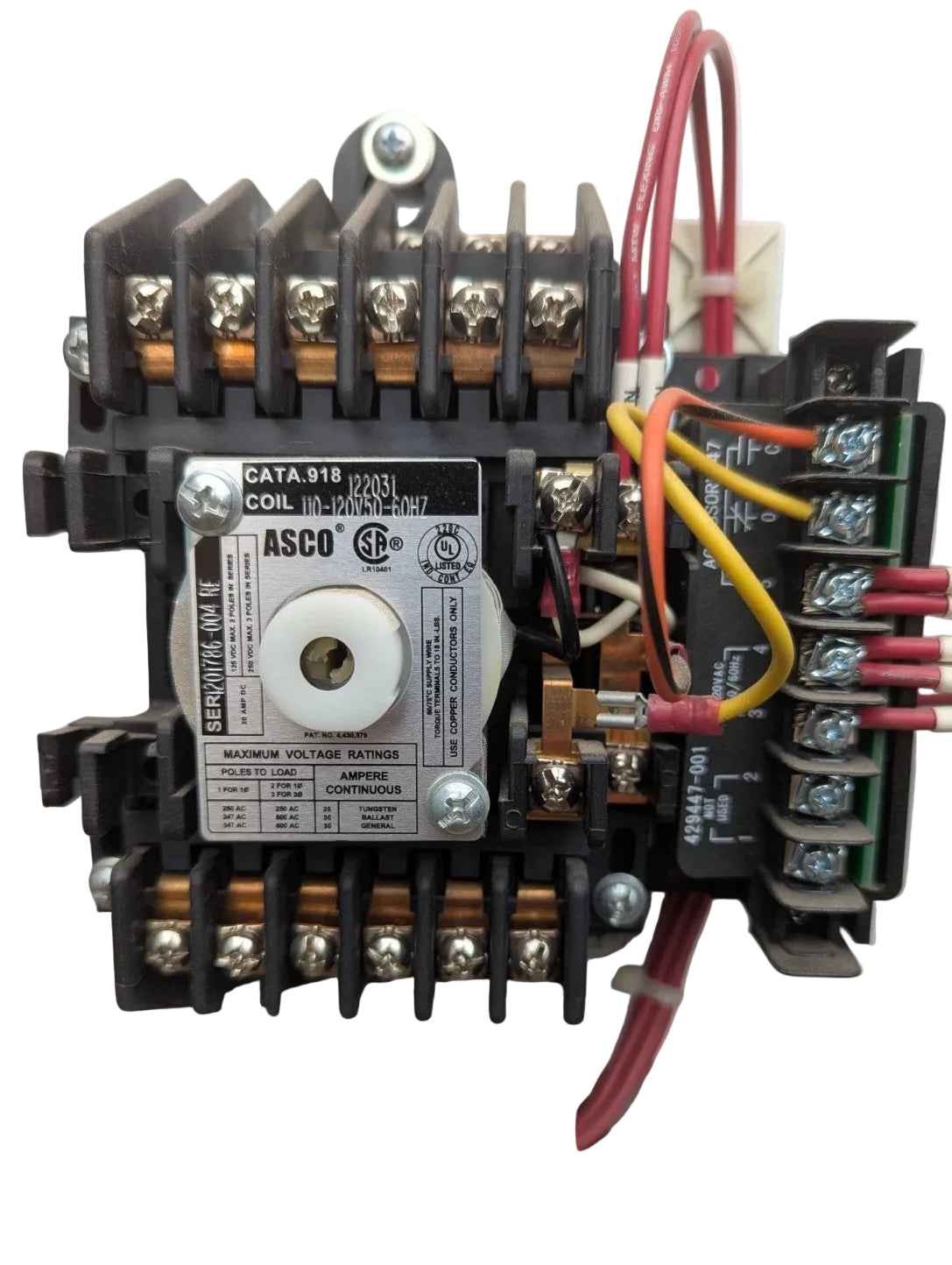

ASCO 918122031 918 Series 12-Pole Mechanically Held Lighting Contactor 120VAC
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 918122031
Description
The ASCO 918122031 is a 918 Series mechanically held lighting contactor designed for remote switching of commercial and industrial lighting branch circuits. Its 12-pole configuration provides centralized control of multiple lighting loads while the mechanical latching mechanism maintains contact position without continuous coil energization.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Lighting Control |
| Part Number | 918122031 |
| Subcategory | Lighting Contactors |
| Series | 918 |
| Product Type | Mechanically Held Lighting Contactor |
| Number of Poles | 12 |
| Switching Type | Single Throw |
| Control Coil Voltage | 110–120 VAC |
| Frequency | 50/60 Hz |
| Continuous Current Rating | 30 A |
| Tungsten Load Rating | 20 A up to 250 VAC |
| Maximum AC Voltage | 600 VAC |
| Maximum DC Voltage | 250 VDC |
| Construction | Open Type |
| Wire Size Range | No. 18 to No. 10 AWG |
| Mounting Application | Electrical Control Panel |
| Weight | 3.20 lbs |
Information About 918122031
The 918122031 is an ASCO 918 Series mechanically held lighting contactor configured with 12 poles and an open-type construction for installation inside an electrical control enclosure. It uses a 110–120 VAC control coil to change contact position and mechanically retains that position after the switching operation is completed. The contactor supports branch-circuit lighting control with ratings up to 30 A for applicable ballast and general-use loads. Its design is suited to commercial buildings, industrial facilities, and other installations requiring centralized remote control of multiple lighting circuits.
Key Features:
- 12-Pole Configuration: Provides simultaneous control capability for multiple lighting branch circuits.
- Mechanically Held Operation: Maintains the selected contact position mechanically without continuous coil power.
- 110–120 VAC Coil: Operates from a standard 110–120 VAC, 50/60 Hz control supply.
- 30 A Contact Rating: Supports up to 30 A for applicable ballast and general-use lighting loads.
- High System Voltage: Designed for circuits rated up to 600 VAC or 250 VDC where applicable.
- Open-Type Construction: Intended for mounting within a suitable electrical panel or control enclosure.
- Single-Throw Switching: Provides straightforward on/off switching for connected lighting circuits.
- Wiring Compatibility: Terminals accommodate conductor sizes from No. 18 through No. 10 AWG.
The 918122031 delivers the reliability and precision required for centralized switching of commercial and industrial lighting branch circuits.
