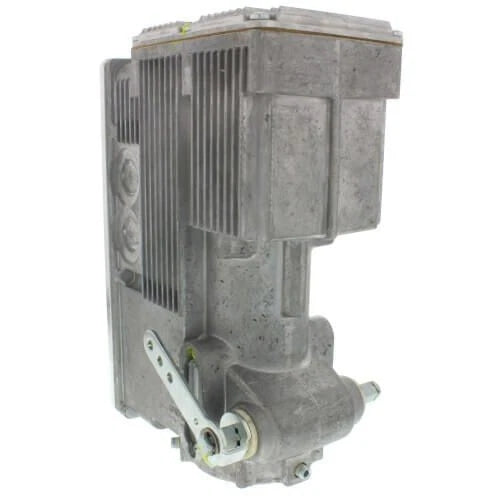

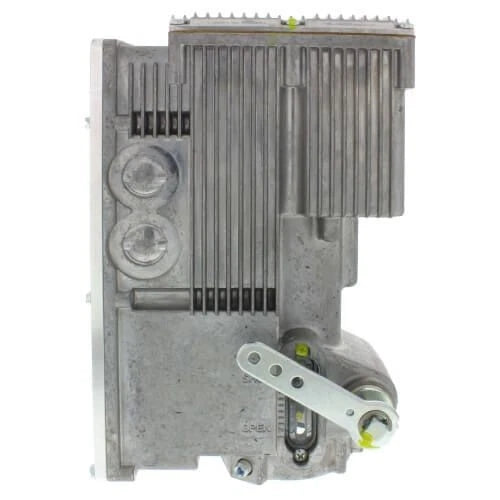

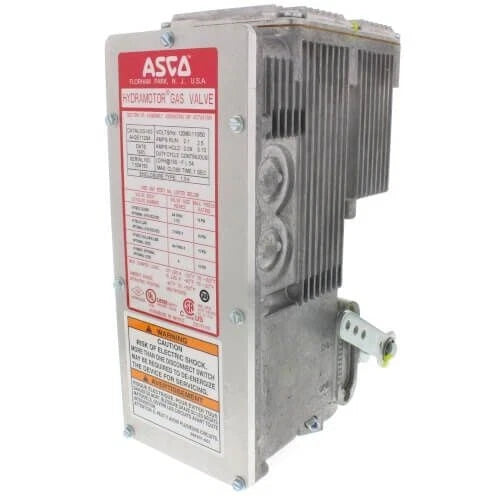

ASCO AH2E112S4 AH2 Series 120VAC Electrohydraulic Linear Actuator
- Regular price
- $5,992.00
- Sale price
- $5,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AH2E112S4
Description
The ASCO AH2E112S4 is an AH2 Series self-contained electrohydraulic linear actuator designed for on/off control of compatible V710 gas valves. It provides fast opening within 14 seconds and spring-powered closing in one second or less for safety shutoff and proof-of-closure applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Machine Parts |
| Part Number | AH2E112S4 |
| Subcategory | Linear Actuators |
| Series | AH2 |
| Product Type | Electrohydraulic Linear Actuator |
| Actuator Design | Self-Contained, Push Type, Spring Return |
| Input Supply | 110/120 VAC |
| Frequency | 50/60 Hz |
| Power Rating | 220 VA |
| Operation Type | On/Off, Fast Opening |
| Opening Time | 14 Seconds Maximum |
| Closing Time | 1 Second or Less |
| Enclosure Rating | NEMA 4, Watertight |
| Proof of Closure | Yes |
| Compatible Valve | ASCO V710 Gas Valve Body |
| Ambient Temperature | -40 to 150°F |
| Included Components | Damper Shaft and Arm |
| Weight | 11.25 lbs |
Information About AH2E112S4
The AH2E112S4 is an AH2 Series push-type electrohydraulic actuator manufactured by ASCO for industrial and commercial gas control systems. Its self-contained mechanism extends the actuator when electrical power is applied and uses spring force for rapid retraction when power is interrupted. The unit operates from a 110/120 VAC, 50/60 Hz supply and is designed for use with ASCO V710 gas valve bodies in proof-of-closure configurations. Its watertight NEMA 4 enclosure and fast-return mechanism support gas control applications in boilers, furnaces, ovens, burners, and related combustion equipment.
Key Features:
- Electrohydraulic Operation: Uses a self-contained hydraulic mechanism to provide controlled linear actuation.
- Fast Opening: Completes the opening stroke within a maximum of 14 seconds.
- Spring Return: Retracts by spring force in one second or less following interruption of electrical power.
- Proof of Closure: Supports safety systems requiring confirmation that the associated gas valve has reached its closed position.
- 120 VAC Supply: Designed for 110/120 VAC operation at 50/60 Hz.
- NEMA 4 Enclosure: Watertight construction protects the actuator in demanding industrial environments.
- V710 Compatibility: Engineered for operation with ASCO V710 gas valve bodies.
- Position Indication: Provides visible open and closed valve position indication when installed with a compatible V710 valve.
The AH2E112S4 delivers the reliability and precision required for safety shutoff and on/off gas valve actuation in industrial combustion systems.
