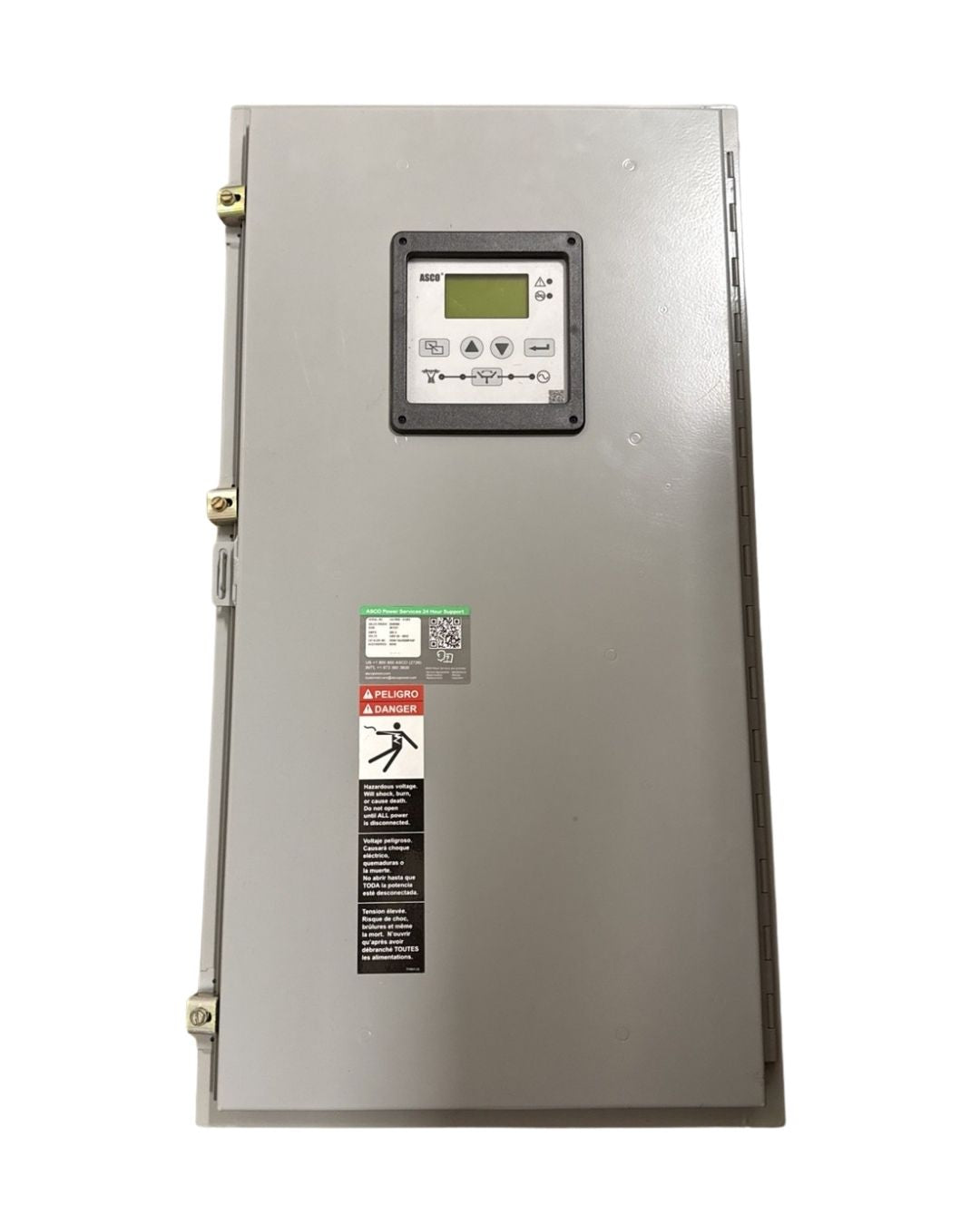

ASCO D03ATSA20200FGXF Series 300 200A 240V 1-Phase 2-Pole Automatic Transfer Switch
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D03ATSA20200FGXF
Description
ASCO D03ATSA20200FGXF is a Series 300 automatic transfer switch designed to transfer electrical loads between normal and emergency power sources in single-phase standby systems. It provides a 200A current rating, 240V AC operation, and 2-pole open-transition switching within a NEMA Type 3R enclosure suitable for indoor or outdoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Power Distribution |
| Part Number | D03ATSA20200FGXF |
| Subcategory | Automatic Transfer Switches |
| Series | Series 300 |
| Product Type | Automatic Transfer Switch |
| Frame | D-Frame |
| Rated Current | 200A |
| System Voltage | 240V AC |
| Frequency | 50/60 Hz |
| Phase | Single Phase |
| Number of Poles | 2 Pole |
| Neutral Configuration | Solid Neutral |
| Transition Type | Open Transition |
| Switching Method | Break-Before-Make |
| Enclosure Rating | NEMA Type 3R |
| Terminal Wire Range | #14 to 4/0 AWG |
| Country of Origin | Mexico |
| Weight | 87 lbs |
Information About D03ATSA20200FGXF

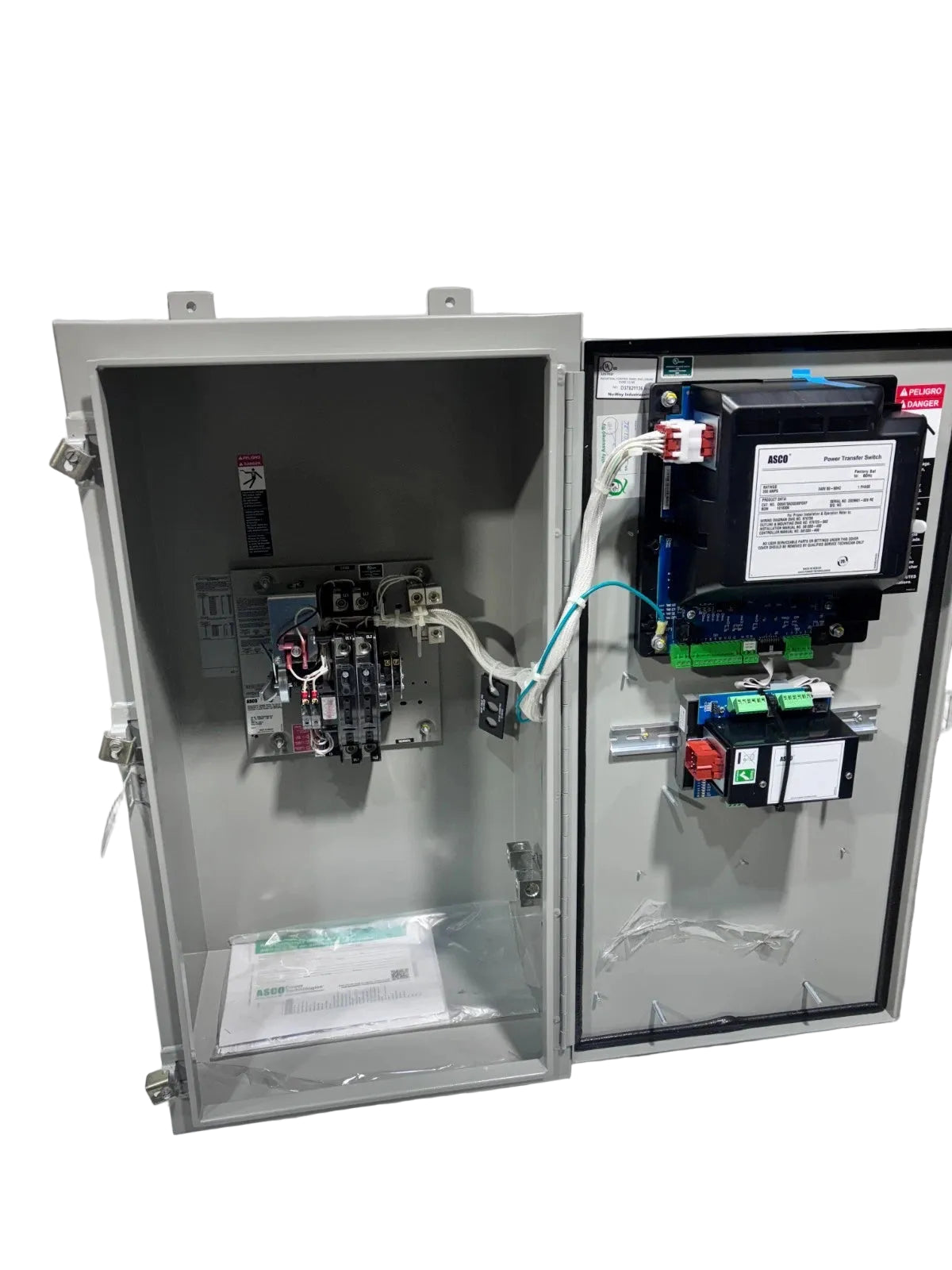

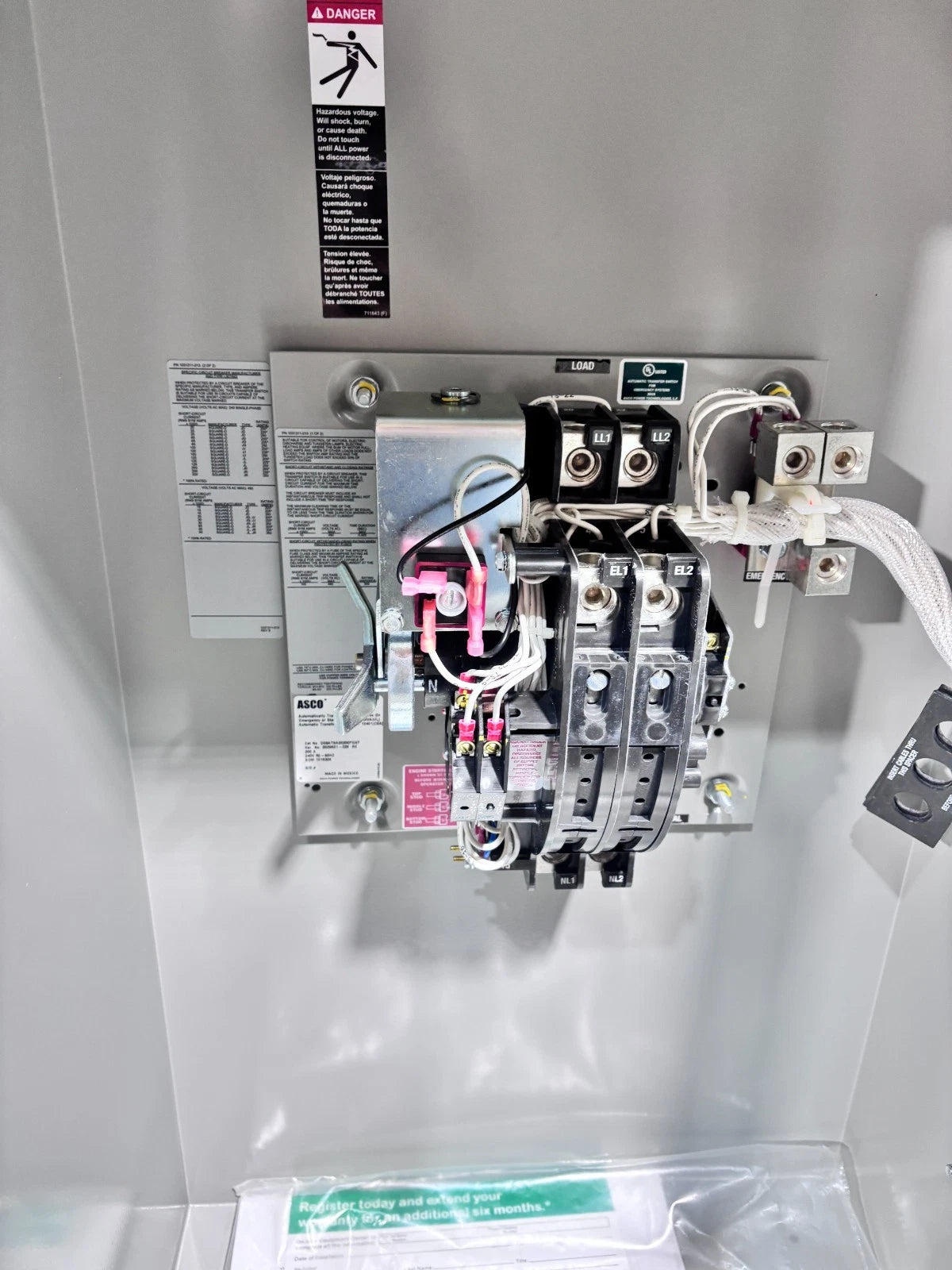

The D03ATSA20200FGXF is an ASCO Series 300 D-Frame automatic transfer switch configured for single-phase standby and emergency power applications. Its electromechanical switching assembly uses open-transition, break-before-make operation to isolate the normal source before connecting the alternate source. The unit supports 200A loads at 240V AC and incorporates two switched poles with a solid neutral configuration. A NEMA Type 3R weather-resistant enclosure protects the switch assembly and controls in indoor or outdoor installations.
Key Features:
- 200A Current Rating: Supports continuous electrical loads rated up to 200 amperes.
- 240V AC Operation: Configured for 120/240V single-phase power distribution systems.
- Single-Phase Design: Provides source transfer for 1-phase standby and emergency power applications.
- 2-Pole Configuration: Uses two switched poles with a solid neutral arrangement.
- Open Transition: Break-before-make switching prevents simultaneous connection of normal and emergency sources.

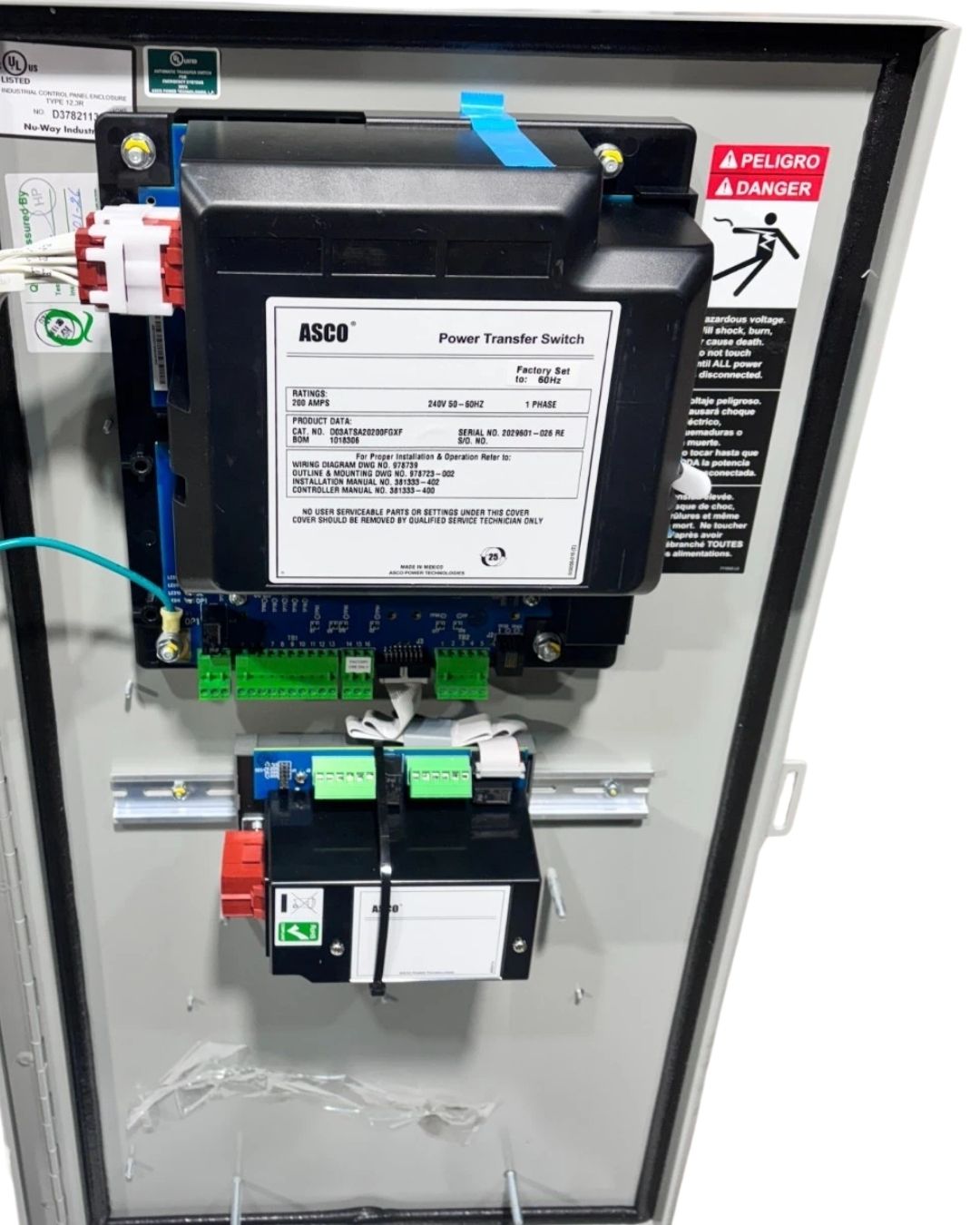

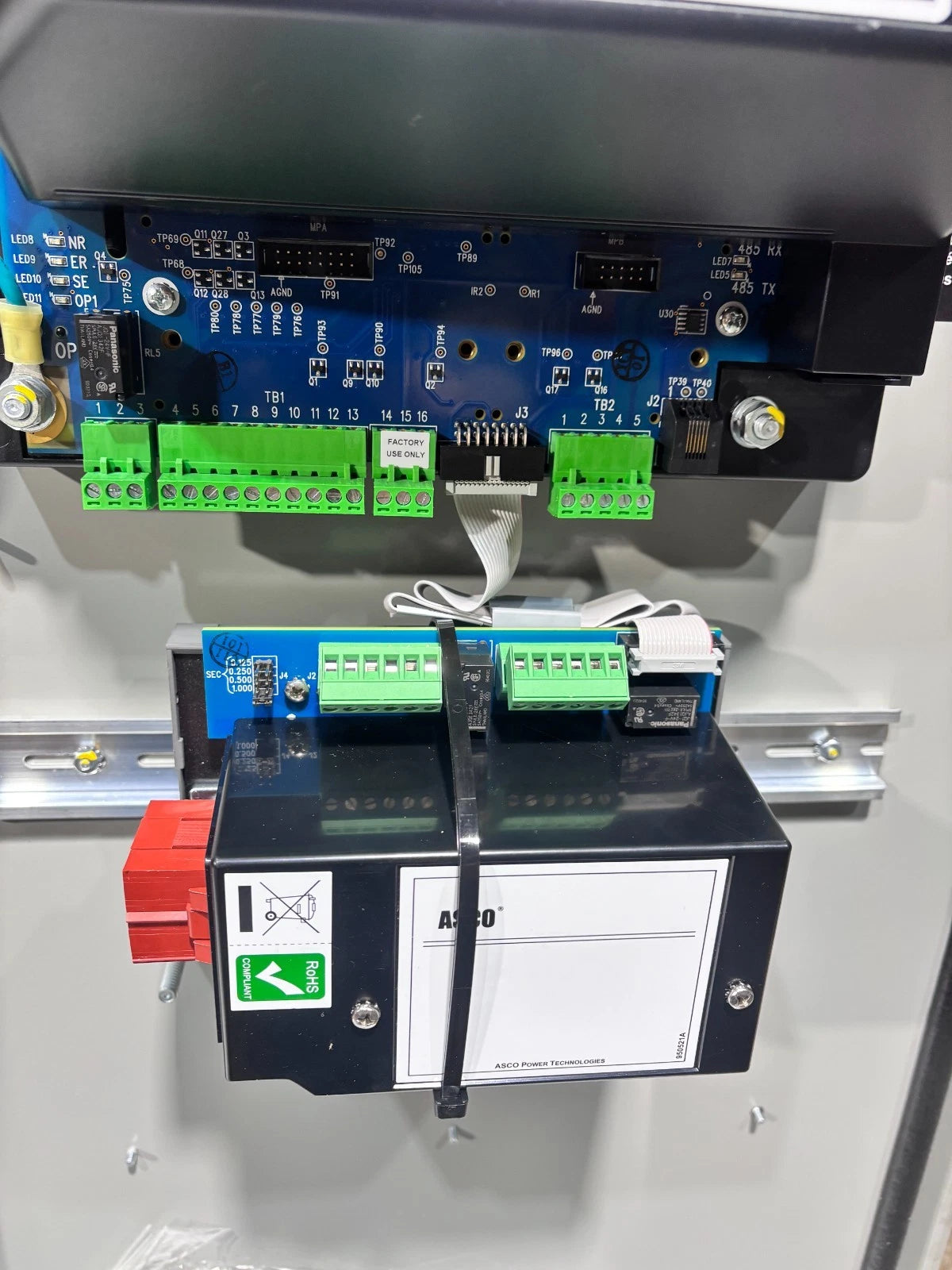

- Automatic Transfer Control: Monitors source conditions and manages transfer and retransfer sequences automatically.
- NEMA Type 3R Enclosure: Provides weather-resistant protection for indoor and outdoor installations.
- D-Frame Construction: Uses the Series 300 D-Frame platform designed for the specified 200A configuration.
The D03ATSA20200FGXF delivers the reliability and precision required for automatic power-source transfer in single-phase commercial and industrial standby systems.
