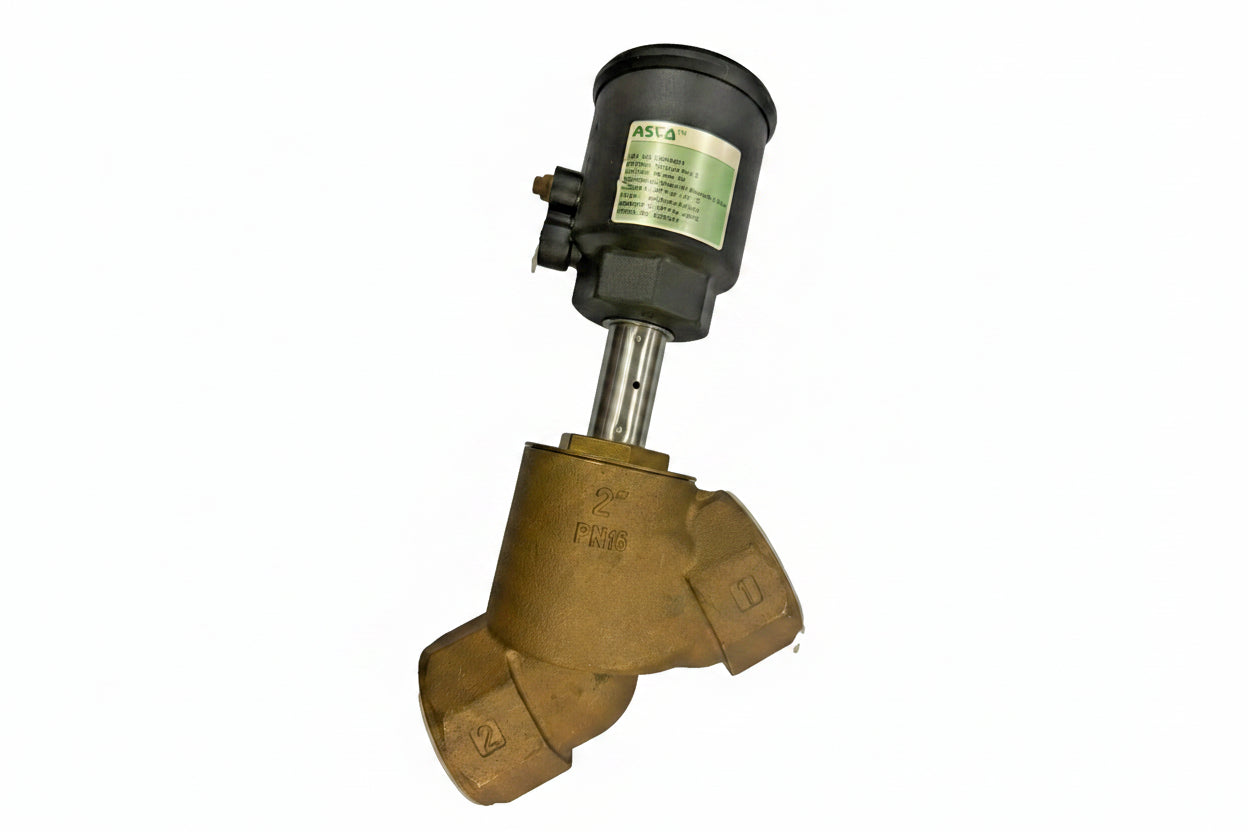

Asco E290A024 Series E290 2-Inch Normally Closed Bronze Pressure-Operated Piston Valve
- Regular price
- $2,699.00
- Sale price
- $2,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E290A024
Description
Asco E290A024 is a Series E290 pressure-operated piston valve designed for high-flow control of air, water, oil, steam, gases, and compatible aggressive fluids. It features a 2/2 normally closed configuration, G2 connection, DN50 / 50 mm orifice, bronze body, and a 63 mm piston operator.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | E290A024 |
| Subcategory | Pressure-Operated Piston Valves |
| Series | E290 |
| Valve Function | 2/2 Normally Closed |
| Body Material | Bronze |
| Port Connection | G2 |
| Nominal Size | DN50 / 2 in |
| Orifice Size | 50 mm |
| Operator Type | Piston |
| Operator Diameter | 63 mm |
| Flow Coefficient (Kv) | 59 m³/h / 983 L/min |
| Minimum Working Pressure | 0 bar |
| Maximum Working Pressure | 2.5 bar |
| Maximum Pilot Pressure | 10 bar |
| Compatible Media | Air, Gas, Water, Oil, Steam, Compatible Corrosive Fluids |
| Valve Design | Angled Seat |
| Operator Rotation | 360° |
| Weight | 3.7 kg / 8.16 lb |
Information About E290A024
The E290A024 is an Asco Series E290 pressure-operated valve featuring an angled-seat design for high flow capacity. Its normally closed configuration uses fluid entry under the disc and a piston-type pneumatic operator that can rotate through 360 degrees for installation flexibility. The valve provides a Kv flow coefficient of 59 m³/h and operates from zero differential pressure up to 2.5 bar in this specific configuration. Asco identifies E290A024 as the previous reference for the newer E290D0750DA0000 configuration.
Key Features:
- 2/2 Normally Closed Function: Provides two-way on/off fluid control with a normally closed operating position.
- High-Flow Angle Seat: Angled-seat construction provides a Kv flow coefficient of 59 m³/h or approximately 983 L/min.
- G2 Port Connection: Features a G2 threaded connection with a DN50 nominal valve size.
- 50 mm Orifice: Uses a 50 mm flow opening for high-capacity process applications.
- 63 mm Piston Operator: Pneumatic actuation is provided by a 63 mm diameter piston operator.
- Bronze Construction: Uses a bronze valve body with brass and stainless-steel internal components.
- Anti-Waterhammer Design: Fluid entry under the disc helps reduce hydraulic shock during valve operation.
- Multi-Media Capability: Series E290 construction supports compatible air, gas, water, oil, steam, and aggressive-fluid applications.
The E290A024 delivers the reliability and precision required for high-flow process and industrial fluid-control applications.
