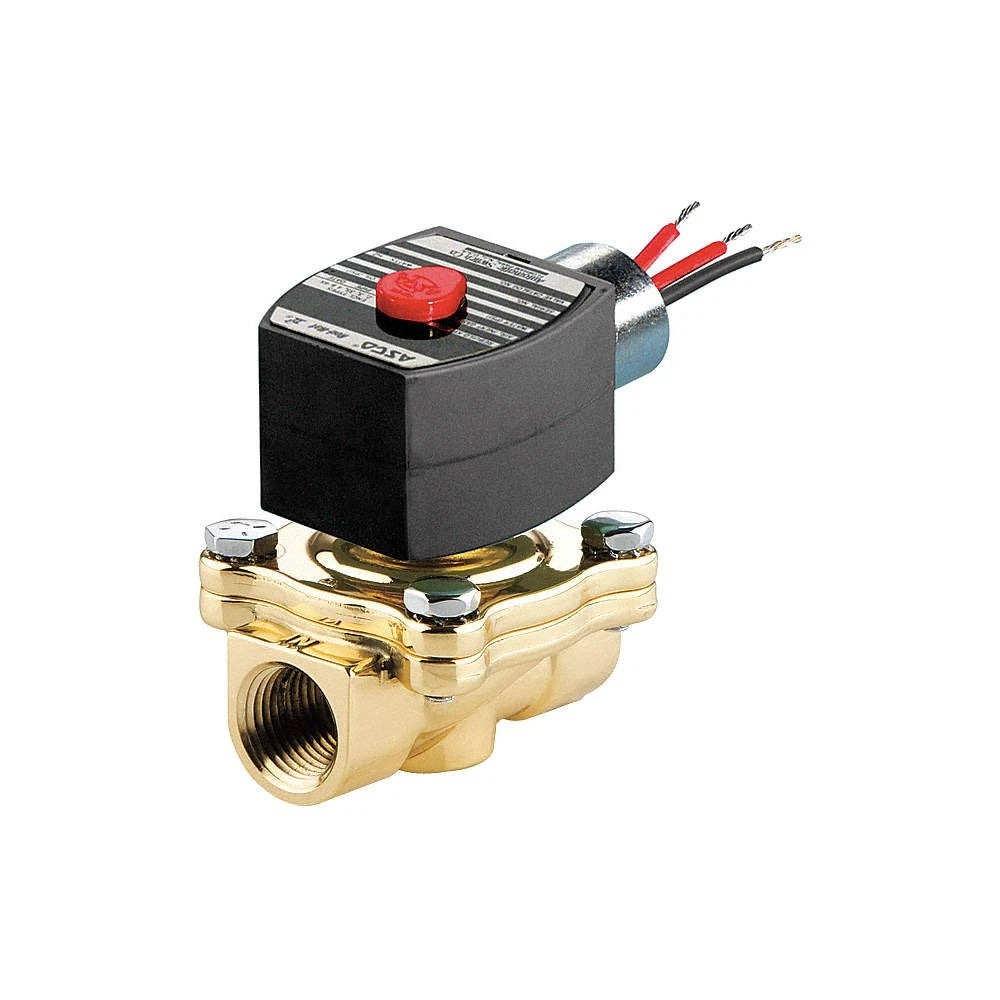

ASCO EF8210G100 RedHat II 2-Inch Solenoid Valve 120VAC
Part #:
Manufactured by:
ASCO
- Regular price
- $2,285.00
- Sale price
- $2,285.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ASCO EF8210G100 is a 2-inch, normally closed pilot-operated solenoid valve designed for high-flow control of air, iner...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #:
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N:
Description / Specifications
Description
The ASCO EF8210G100 is a RedHat II Series 8210 high-flow solenoid valve designed for controlling air, inert gas, water, and light oil in industrial fluid systems. It features a 2-way normally closed, pilot-operated design with a 2-inch NPT connection, durable brass body, and explosion-proof and watertight solenoid enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8210G100 |
| Subcategory | Solenoid Valve |
| Series | RedHat II Series 8210 |
| Product Type | General Purpose Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Operation Type | Pilot Operated, Piston |
| Body Material | Brass |
| Seal Material | NBR |
| Port Size | 2 in |
| Connection Type | Female NPT |
| Orifice Size | 1-3/4 in |
| Flow Coefficient (Cv) | 43 |
| Media | Air, Inert Gas, Water, Light Oil |
| Operating Pressure – Air/Inert Gas | 5–150 psi |
| Operating Pressure – Water | 5–125 psi |
| Operating Pressure – Light Oil | 5–90 psi |
| Maximum Fluid Temperature | 180°F |
| Voltage / Frequency | 120 VAC, 60 Hz |
| Power Rating | 6.1 W |
| Coil Insulation Class | Class F |
| Coil Enclosure | Explosion-Proof, Watertight |
| NEMA Rating | NEMA 1, 2, 3, 3S, 4, 4X |
| Electrical Connection | 1/2 in Conduit Hub |
| Mounting Orientation | Vertical |
| Operating Environment | Indoor / Outdoor |
| Overall Dimensions | 5-1/16 in L × 4-7/8 in W × 7-5/16 in H |
| Approvals | UL, CE |
| Country of Origin | Mexico |
| Weight | 8.91 lbs |
Information About EF8210G100
Key Features:
- High-Flow Design: Provides a 43 Cv flow coefficient and 1-3/4-inch orifice for efficient handling of high-volume fluid and gas applications.
- Normally Closed Operation: Maintains the flow path closed when the solenoid is de-energized for dependable on/off process control.
- Pilot-Operated Piston: Uses a pilot-operated piston mechanism for reliable control through the 2-inch valve body.
- Multiple Media Compatibility: Designed for use with air, inert gases, water, and light oil across a range of industrial systems.
- 2-Inch NPT Connections: Features female NPT inlet and outlet connections for integration into standard industrial piping systems.
- 120 VAC Solenoid: Operates from a 120 VAC, 60 Hz supply with a low 6.1 W power rating and Class F coil insulation.
- Rugged Brass Construction: Uses a durable brass valve body with NBR sealing components for dependable general-purpose service.
- Protected Coil Enclosure: Explosion-proof and watertight construction supports operation in demanding indoor and outdoor industrial environments.
The EF8210G100 delivers the reliability and performance required for high-flow industrial fluid and pneumatic control applications.
