Product Description P/N: EF8215G020
Description

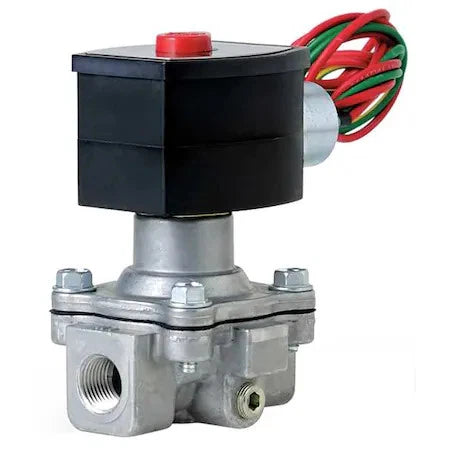

Asco EF8215G020 is a RedHat Series 8215 high-flow solenoid valve designed for fuel-gas, air, inert-gas, and vacuum-control applications. It features a 1/2-inch NPTF connection, 2-way normally closed operation, aluminum body, and a Cv rating of 4.4. The EF configuration combines direct-acting operation with an explosion-proof enclosure for designated hazardous locations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | EF8215G020 |
| Subcategory | Explosion-Proof Solenoid Valves |
| Series | RedHat 8215 |
| Product Type | High-Flow Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position, Normally Closed |
| Operation Type | Direct Acting |
| Pipe Size | 1/2 in |
| Connection Type | NPTF |
| Orifice Diameter | 3/4 in |
| Flow Coefficient (Cv) | 4.4 |
| Body Material | Aluminum |
| Seal Material | NBR |
| Voltage | 120V AC / 60 Hz; 110V AC / 50 Hz |
| Holding Wattage | 10.1 W |
| Minimum Operating Pressure Differential | 0 psi |
| Maximum Pressure | 50 psi, AC configuration |
| Maximum Fluid Temperature | 125°F |
| Ambient Temperature Range | 14°F to 140°F |
| Response Time | 120 ms |
| Electrical Connection | 18 in Leads |
| Coil Insulation Class | Class F |
| Coil Enclosure | Explosion Proof, Watertight |
| NEMA Rating | 7, 9 |
| IP Rating | IP65 |
| Compatible Media | Air, Inert Gas, Natural Gas, LP Gas, Oxygen |
| Standards | CSA, FM, UL Listed |
| Overall Height | 4 in |
| Overall Length | 2-3/4 in |
| Overall Width | 2-15/32 in |
| Weight | 2.8 lb |
Information About EF8215G020
The EF8215G020 is an Asco Series 8215 solenoid valve engineered for low-pressure gas and industrial flow-control applications. Its direct-acting mechanism operates from zero differential pressure and uses a 3/4-inch orifice to provide a Cv flow coefficient of 4.4. The valve incorporates an aluminum body with NBR sealing material and operates at 120V AC/60 Hz or 110V AC/50 Hz in the specified AC configuration. The EF enclosure provides explosion-proof protection for compatible hazardous-location installations.
Key Features:
- Normally Closed Configuration: Maintains the flow path closed while the solenoid is de-energized.
- Direct-Acting Operation: Provides valve actuation from zero operating pressure differential.
- High-Flow Design: Uses a 3/4-inch orifice with a Cv flow coefficient of 4.4.
- 1/2-Inch Connection: Features 1/2-inch NPTF ports for connection to compatible gas and fluid piping.
- Aluminum Body: Lightweight aluminum construction is paired with NBR sealing material.
- AC Coil Operation: Configured for 120V AC/60 Hz or 110V AC/50 Hz with 10.1 W holding power.
- Explosion-Proof Enclosure: EF construction supports use in designated hazardous industrial environments.
- Gas Control Capability: Series 8215 valves are designed for low-pressure fuel-gas applications and provide rapid electrically controlled shutoff.
The EF8215G020 delivers the reliability and precision required for automated fuel-gas and industrial flow-control applications.
