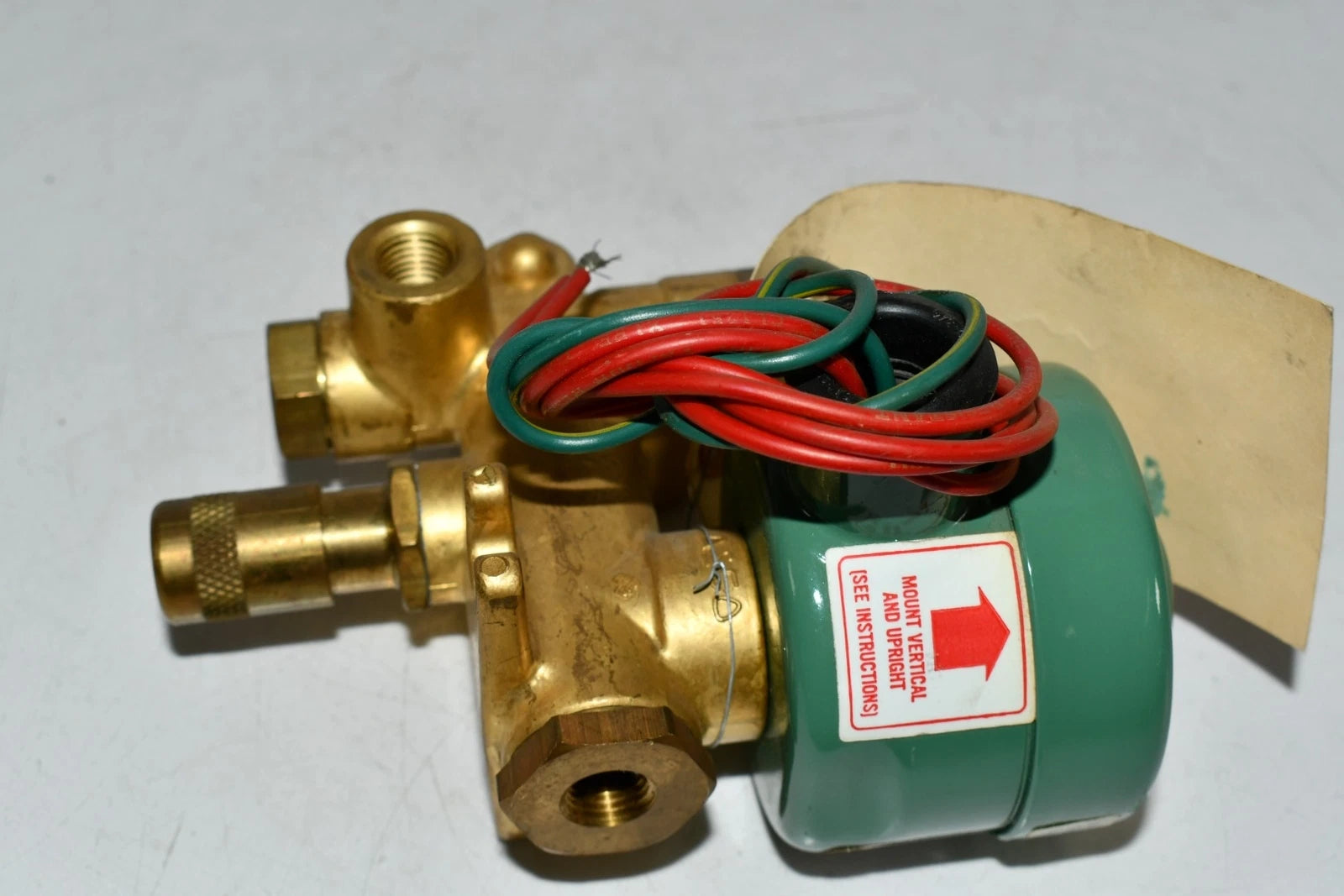

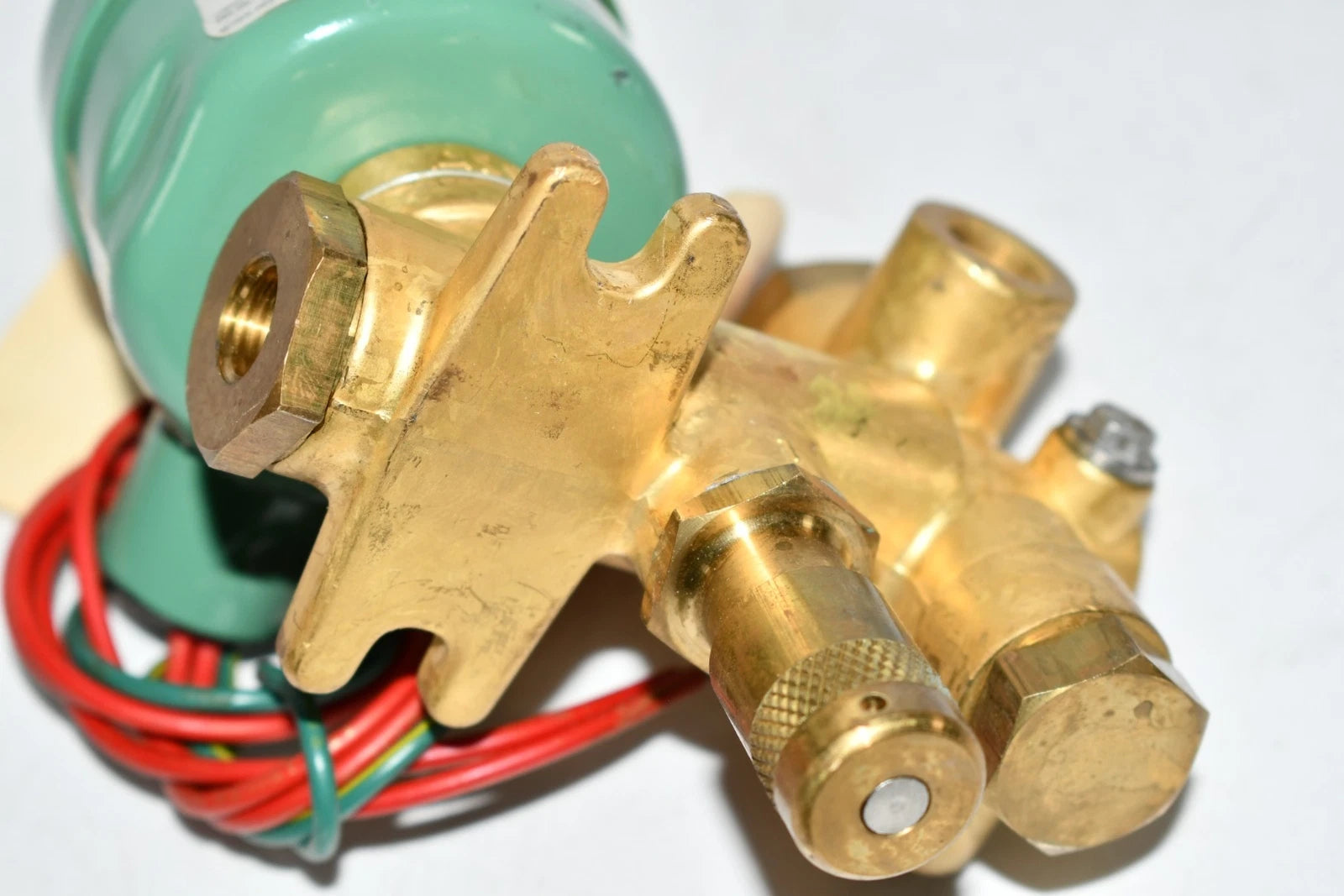

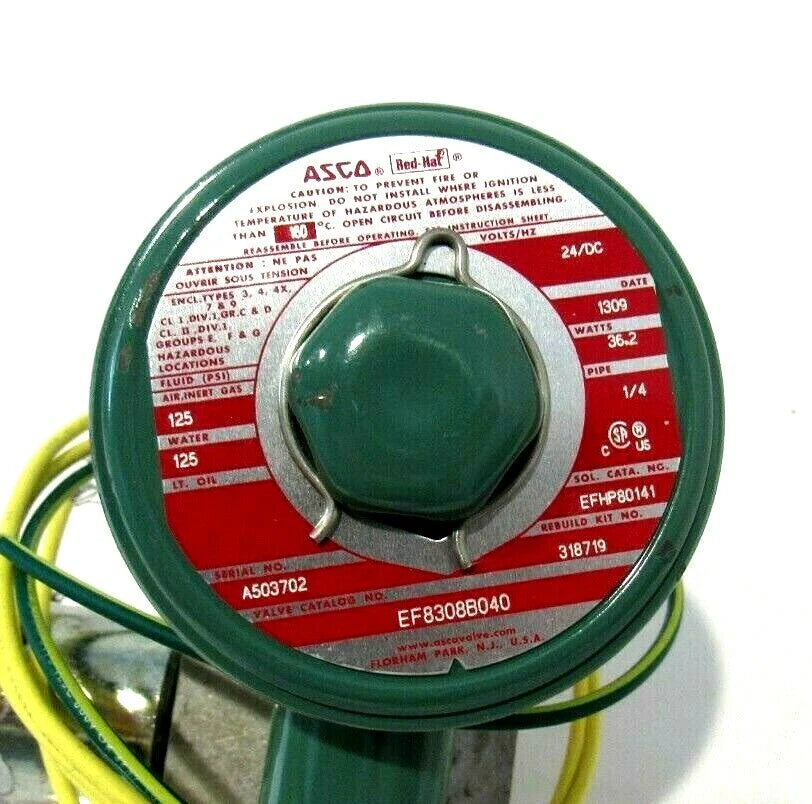

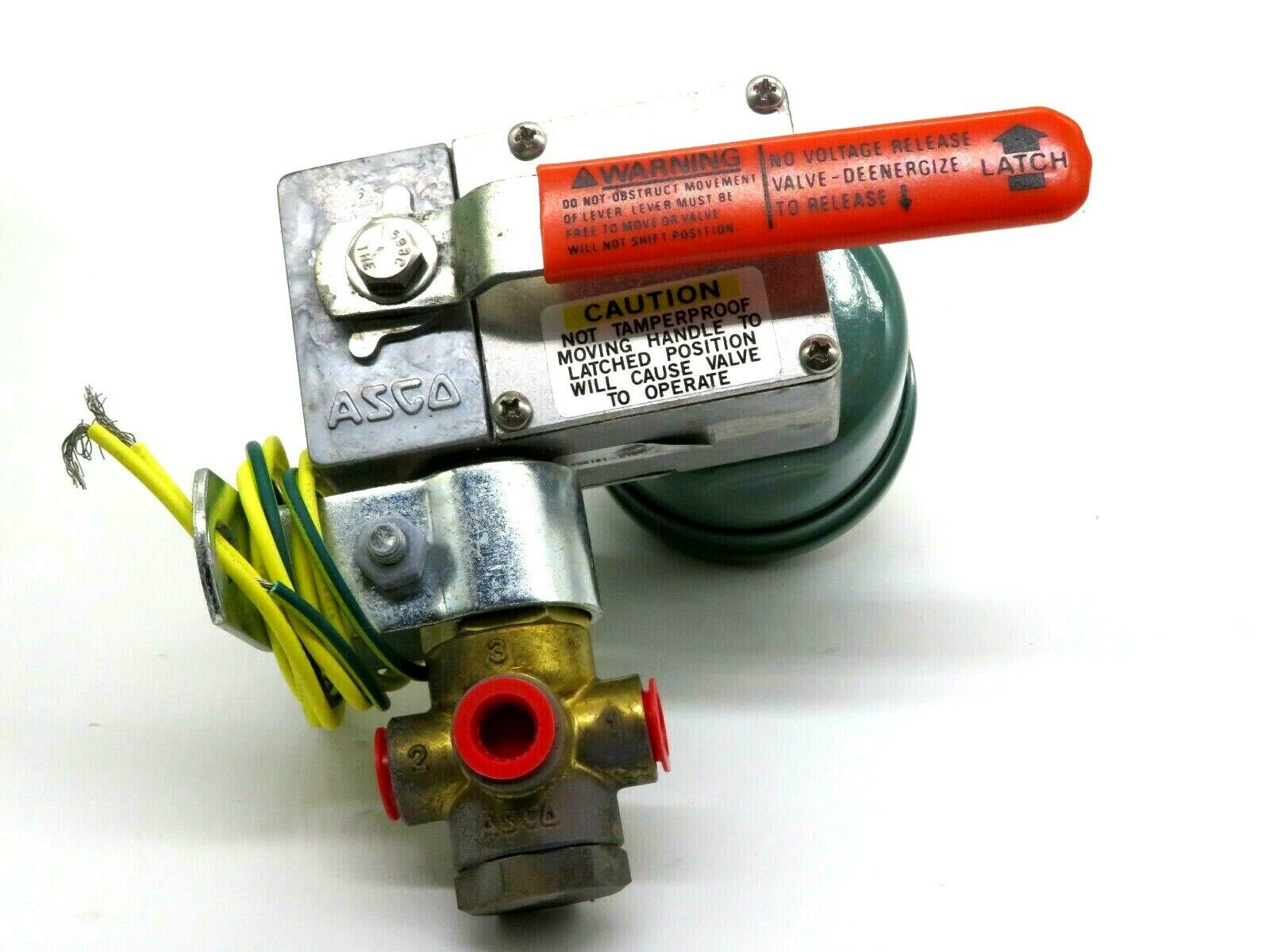

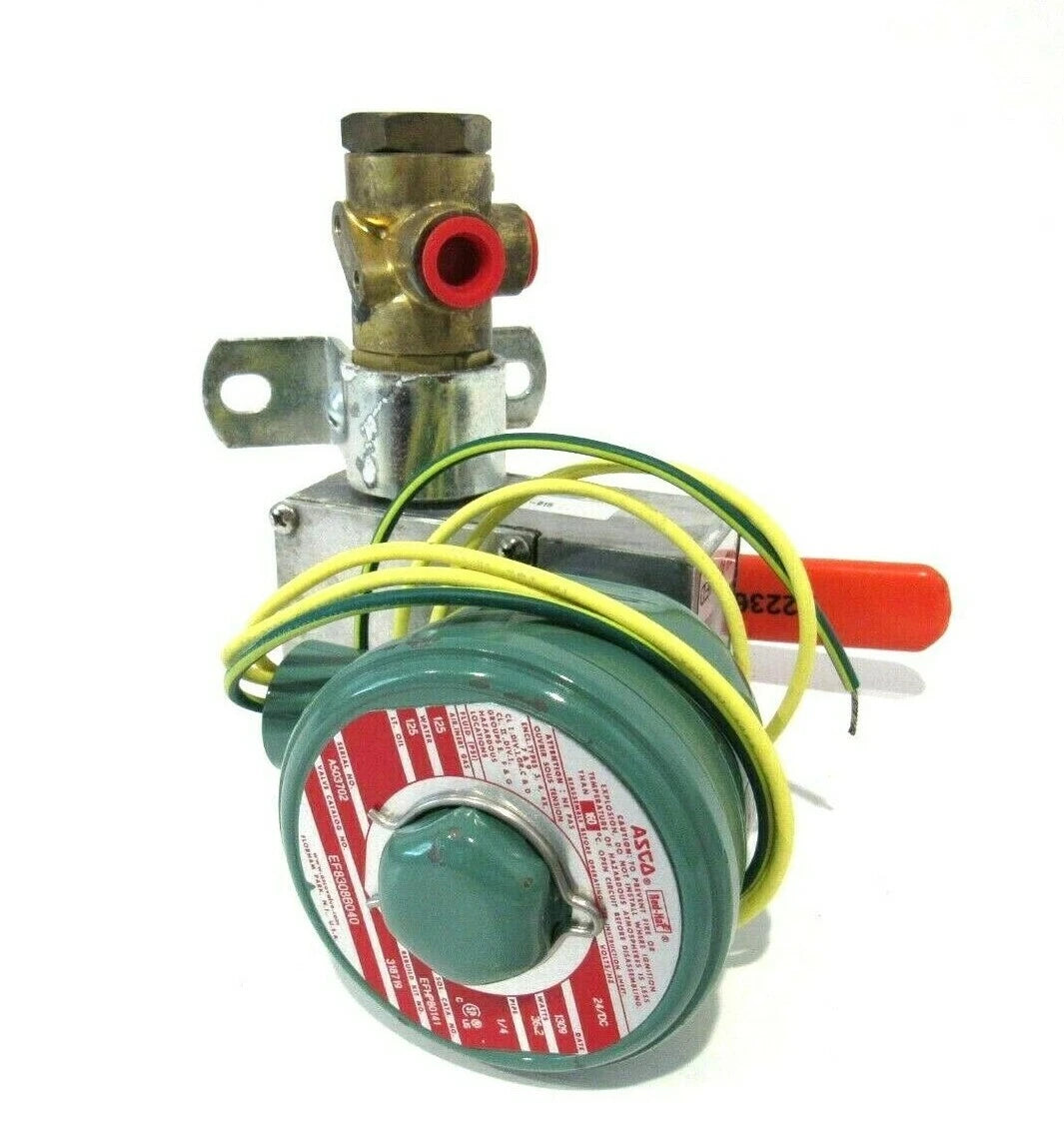

ASCO EF8308B040 Series 8308 Manual Reset Solenoid Valve for Industrial Process and Hazardous Area Applications
- Regular price
- $2,049.00
- Sale price
- $2,049.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8308B040
Description
The ASCO EF8308B040 is a Series 8308 RedHat™ manual reset solenoid valve designed for reliable control of air, inert gas, and water in industrial process applications. Its three-way, two-position configuration with manual reset functionality helps prevent unintended system restart after a trip or power interruption. Engineered with a forged brass body and explosion-proof solenoid enclosure, the valve is suitable for demanding industrial and hazardous locations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8308B040 |
| Subcategory | Solenoid Valve |
| Product Type | Series 8308 Manual Reset Solenoid Valve |
| Valve Function | Three-Way, Two-Position, Universal Operation |
| Valve Operation | Manual Reset, Electrically Tripped |
| Body Material | Forged Brass |
| Pipe Connection Size | 1/4 Inch Female Pipe Thread |
| Orifice Size | 11/64 Inch |
| Compatible Media | Air, Inert Gas, Water |
| Operating Pressure Range | 0 to 125 PSI |
| Supply Voltage | 110 VAC 50 Hz / 120 VAC 60 Hz |
| Power Consumption | 20 Watts |
| Seal Material | Buna-N (NBR) |
| Enclosure Rating | NEMA 3, NEMA 7, NEMA 9 Explosion-Proof |
| Approvals | CSA Certified |
| Weight | 3.75 lbs |
Information About EF8308B040
The EF8308B040 is a member of the ASCO RedHat™ Series 8308 family of tamper-proof manual reset solenoid valves developed for critical process control applications. This model features a universal three-way, two-position valve design that must be manually reset after electrical tripping, providing an additional level of operational safety where automatic restart is not acceptable. Constructed with a forged brass body, Buna-N sealing material, and an explosion-proof and watertight solenoid enclosure, it is designed for reliable operation with air, inert gas, and water service. Operating from 110 VAC 50 Hz or 120 VAC 60 Hz with a 20-watt coil, the valve is commonly used in industrial automation, process equipment, and hazardous-area installations requiring dependable manual reset operation.
Key Features:
- Series 8308 Design: Engineered for critical industrial process control requiring manual reset operation.
- Manual Reset Function: Prevents automatic valve restart after electrical trip or power interruption.
- Three-Way Two-Position Configuration: Provides dependable directional flow control for compatible media.
- Forged Brass Body: Offers strength, corrosion resistance, and long service life.
- Explosion-Proof Enclosure: Suitable for hazardous industrial environments with NEMA 3, 7, and 9 protection.
- Universal Operation: Designed for air, inert gas, and water service in demanding applications.
- AC Powered Coil: Operates on 110 VAC 50 Hz or 120 VAC 60 Hz with a 20-watt solenoid.
- High-Pressure Construction: Supports operating pressures up to 125 PSI for compatible media.
The EF8308B040 delivers the reliability and precision required for manual reset fluid control in critical industrial process and safety applications.
Description
The ASCO EF8308B040 is a Series 8308 RedHat™ manual reset solenoid valve designed for reliable control of air, inert gas, and water in industrial process applications. Its three-way, two-position configuration with manual reset functionality helps prevent unintended system restart after a trip or power interruption. Engineered with a forged brass body and explosion-proof solenoid enclosure, the valve is suitable for demanding industrial and hazardous locations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8308B040 |
| Subcategory | Solenoid Valve |
| Product Type | Series 8308 Manual Reset Solenoid Valve |
| Valve Function | Three-Way, Two-Position, Universal Operation |
| Valve Operation | Manual Reset, Electrically Tripped |
| Body Material | Forged Brass |
| Pipe Connection Size | 1/4 Inch Female Pipe Thread |
| Orifice Size | 11/64 Inch |
| Compatible Media | Air, Inert Gas, Water |
| Operating Pressure Range | 0 to 125 PSI |
| Supply Voltage | 110 VAC 50 Hz / 120 VAC 60 Hz |
| Power Consumption | 20 Watts |
| Seal Material | Buna-N (NBR) |
| Enclosure Rating | NEMA 3, NEMA 7, NEMA 9 Explosion-Proof |
| Approvals | CSA Certified |
| Weight | 3.75 lbs |
Information About EF8308B040
The EF8308B040 is a member of the ASCO RedHat™ Series 8308 family of tamper-proof manual reset solenoid valves developed for critical process control applications. This model features a universal three-way, two-position valve design that must be manually reset after electrical tripping, providing an additional level of operational safety where automatic restart is not acceptable. Constructed with a forged brass body, Buna-N sealing material, and an explosion-proof and watertight solenoid enclosure, it is designed for reliable operation with air, inert gas, and water service. Operating from 110 VAC 50 Hz or 120 VAC 60 Hz with a 20-watt coil, the valve is commonly used in industrial automation, process equipment, and hazardous-area installations requiring dependable manual reset operation.
Key Features:
- Series 8308 Design: Engineered for critical industrial process control requiring manual reset operation.
- Manual Reset Function: Prevents automatic valve restart after electrical trip or power interruption.
- Three-Way Two-Position Configuration: Provides dependable directional flow control for compatible media.
- Forged Brass Body: Offers strength, corrosion resistance, and long service life.
- Explosion-Proof Enclosure: Suitable for hazardous industrial environments with NEMA 3, 7, and 9 protection.
- Universal Operation: Designed for air, inert gas, and water service in demanding applications.
- AC Powered Coil: Operates on 110 VAC 50 Hz or 120 VAC 60 Hz with a 20-watt solenoid.
- High-Pressure Construction: Supports operating pressures up to 125 PSI for compatible media.
The EF8308B040 delivers the reliability and precision required for manual reset fluid control in critical industrial process and safety applications.
