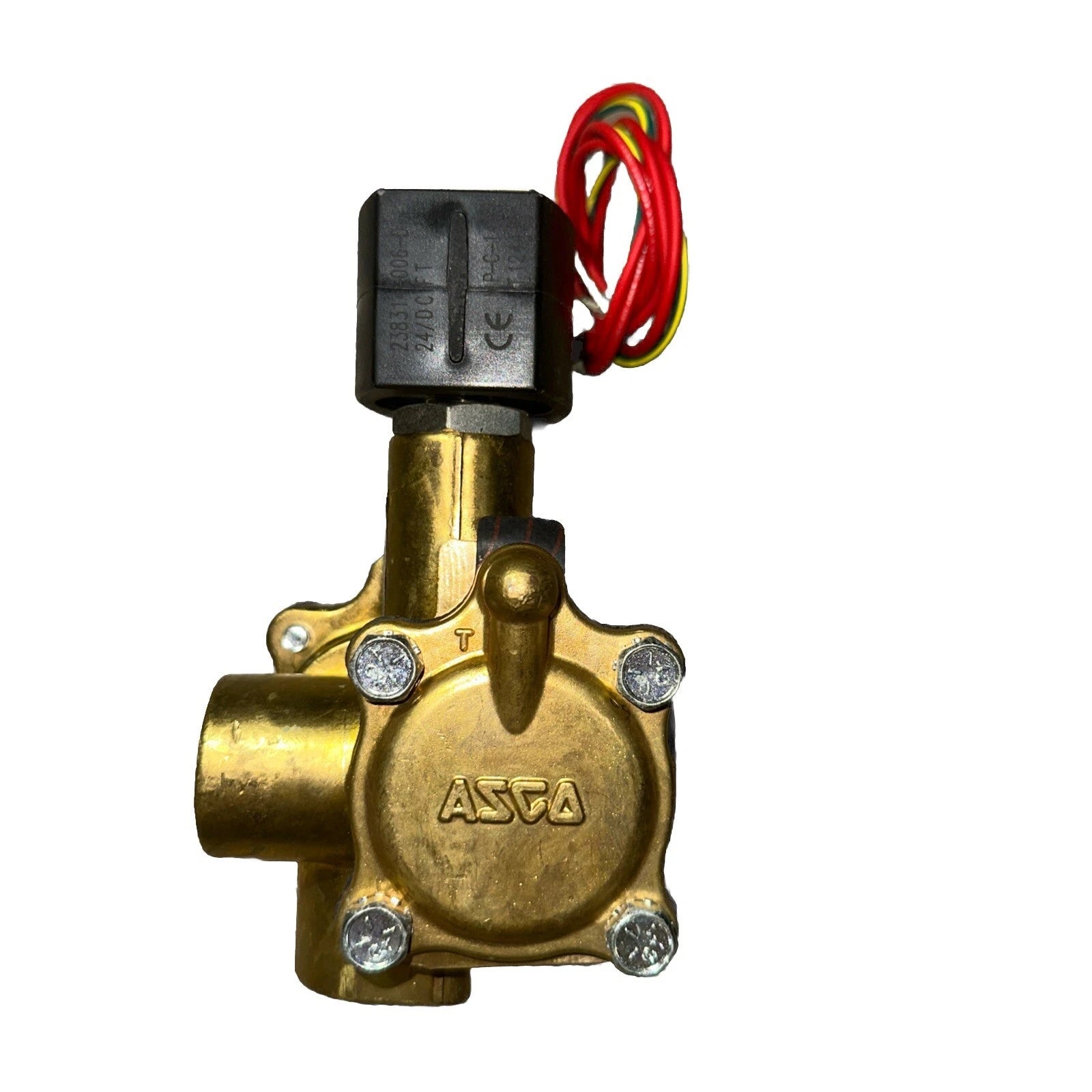

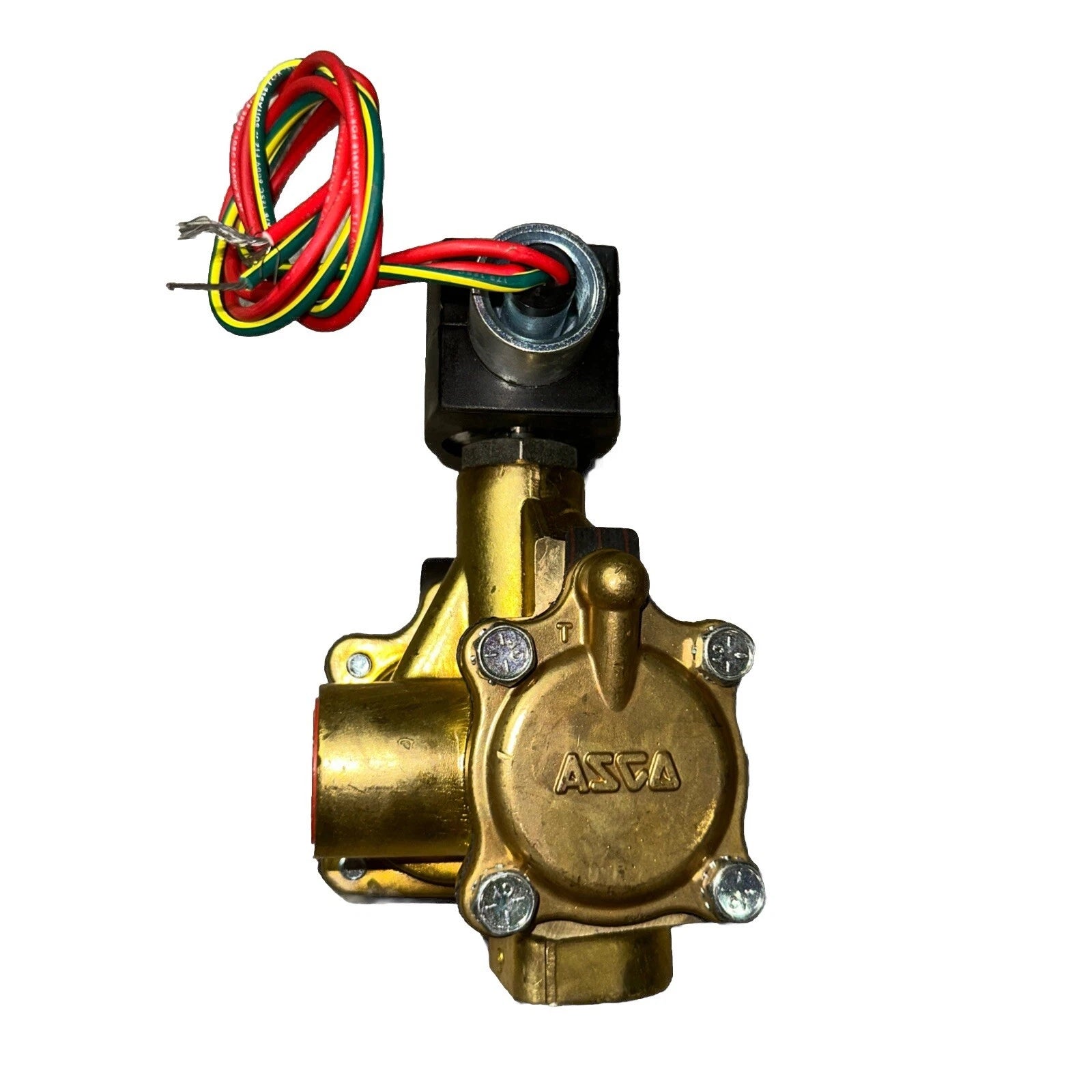

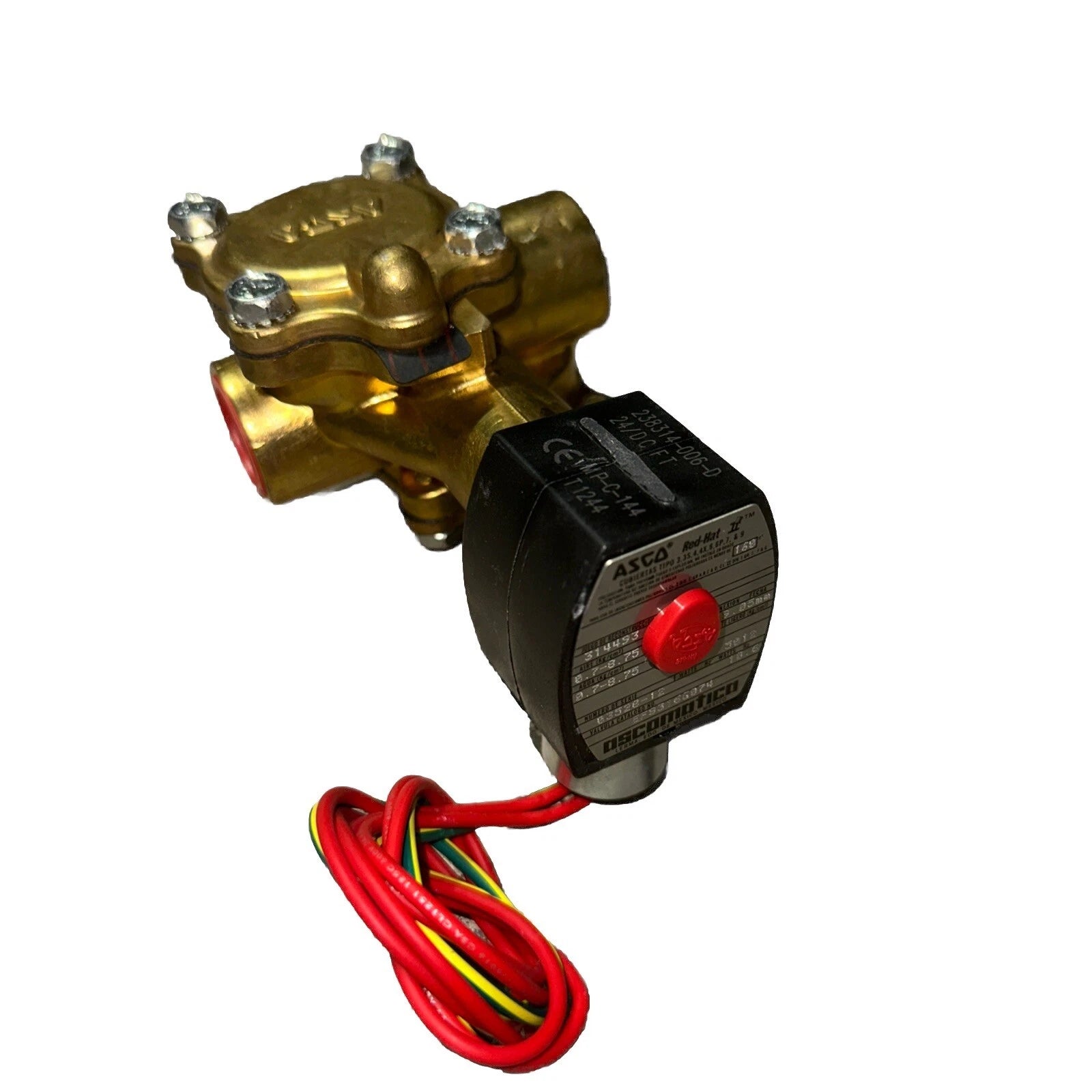

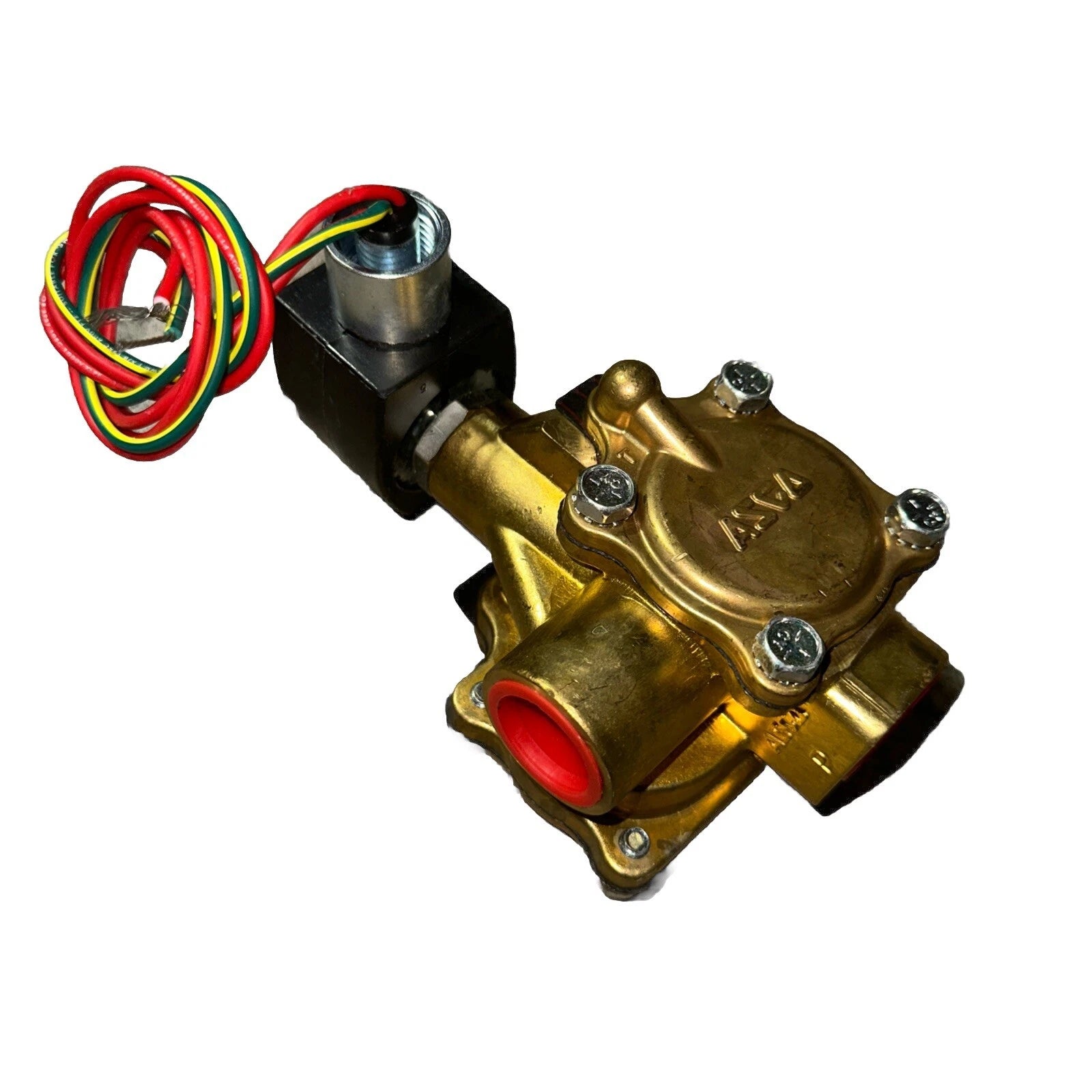

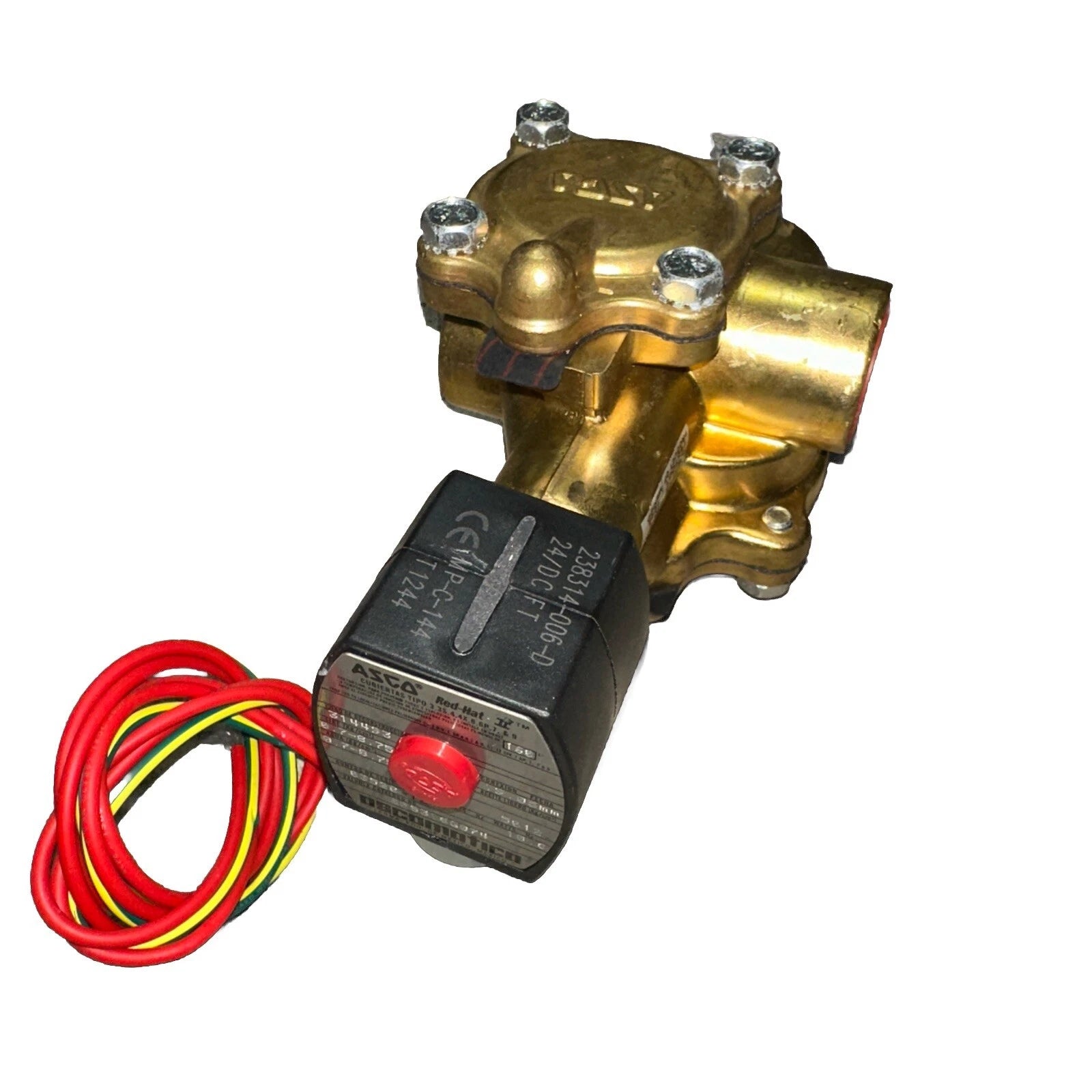

ASCO EF8316G074 RedHat 8316 3-Way 3/4-Inch Normally Closed Solenoid Valve
- Regular price
- $1,035.00
- Sale price
- $1,035.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8316G074
Description
ASCO EF8316G074 is a 3-way normally closed pilot-operated solenoid valve designed for controlling air, inert gas, and water in industrial fluid systems. Its brass body, diaphragm-poppet construction, and high-flow design provide controlled switching for process lines and actuator pilot applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8316G074 |
| Subcategory | Solenoid Valves |
| Series | RedHat 8316 Series |
| Valve Type | Pilot-Operated Solenoid Valve |
| Function | 3-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Body Material | Brass |
| Port Size | 3/4 in NPT |
| Orifice Size | 11/16 in |
| Flow Factor | 4.8 Cv / 4.15 Kv |
| Media | Air, Inert Gas, Water |
| Operating Pressure | 10–125 PSI |
| Fluid Temperature | Up to 120°F |
| Seal Material | NBR |
| Power Rating | 10.6 W |
| Coil Class | Class F |
| Coil Number | 238314-006-D |
| Enclosure Rating | NEMA 3/3S/4/4X/6/6P/7/9 |
| Ambient Temperature | 32–104°F |
| Mounting Direction | Any Position |
| Weight | 4.10 lbs |
Information About EF8316G074
The EF8316G074 is an ASCO RedHat Series 8316 solenoid valve featuring a 3-way, 2-position normally closed configuration. Its brass construction incorporates a diaphragm-poppet mechanism with internal piloting to control larger orifices and provide a 4.8 Cv flow factor. The valve uses 3/4-inch NPT connections and NBR sealing components for compatibility with air, inert gas, and water service. Its watertight and explosionproof enclosure construction supports installation in demanding industrial control, process, and equipment applications.
Key Features:
- 3-Way Operation: Provides 3-way, 2-position normally closed flow control for industrial fluid systems.
- Pilot-Operated Design: Internal piloting controls the diaphragm-poppet assembly for efficient operation of the 11/16-inch orifice.
- High Flow Capacity: Provides a 4.8 Cv flow factor for air, inert gas, and water applications.
- Brass Valve Body: Provides a durable fluid-handling structure for general industrial service.
- 3/4-Inch NPT Ports: Uses three female threaded connections for integration into standard process piping.
- NBR Sealing: Incorporates an NBR seal and diaphragm assembly for controlled shutoff.
- Industrial Enclosure: NEMA 3/3S/4/4X/6/6P/7/9 construction provides watertight and explosionproof protection.
- Flexible Mounting: Valve construction permits installation in any mounting orientation.
The EF8316G074 delivers the reliability and precision required for high-flow fluid switching, actuator piloting, and industrial process control applications.
