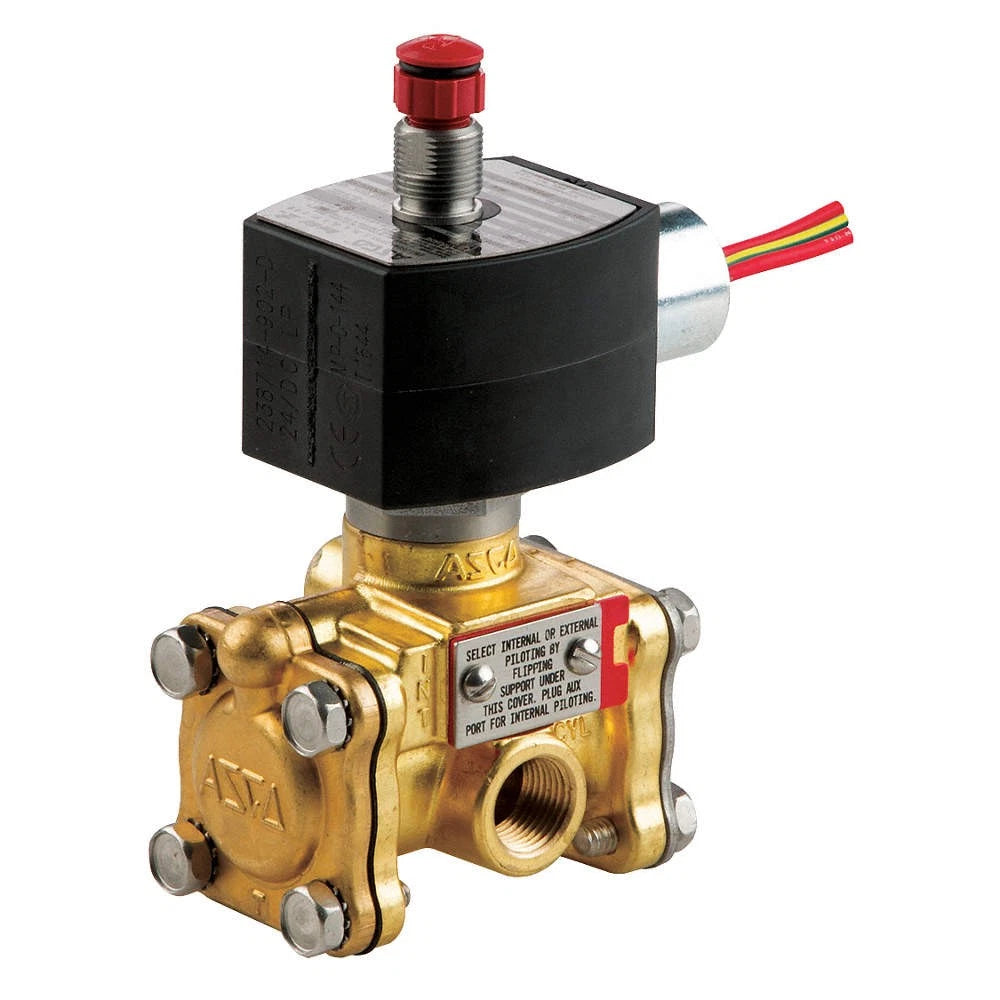

Asco EF8316G302 3/8-Inch 3-Way Normally Closed Explosion-Proof Solenoid Valve 24V DC
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8316G302
Description
Asco EF8316G302 is a RedHat Series 8316 low-power solenoid valve designed for directional control of air and inert gases in industrial systems. It features a 3-way, 2-position normally closed configuration, 3/8-inch NPTF connections, brass body, and a 24V DC coil. Its explosion-proof and watertight enclosure supports installation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | EF8316G302 |
| Subcategory | Explosion-Proof Solenoid Valves |
| Series | RedHat 8316 |
| Product Type | Low-Power Solenoid Valve |
| Valve Configuration | 3-Way / 2-Position, Normally Closed |
| Valve Type | Diaphragm Poppet |
| Pipe Size | 3/8 in |
| Connection Type | NPTF |
| Orifice Diameter | 5/16 in |
| Flow Coefficient (Cv) | 1.8 |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24V DC |
| Catalog Coil Wattage | 1.4 W |
| Minimum Operating Pressure Differential | 15 psi |
| Maximum Air/Inert Gas Pressure Differential | 150 psi |
| Maximum Fluid Temperature | 140°F |
| Electrical Connection | 1/2 in Conduit with 18 in Leads |
| Coil Insulation | Class F |
| Coil Enclosure | Explosion Proof, Watertight |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Overall Height | 5-1/2 in |
| Overall Length | 3-1/4 in |
| Overall Width | 2-1/16 in |
| Standards | CE, CSA |
| Weight | 4.1 lb |
Information About EF8316G302
The EF8316G302 is an Asco Series 8316 solenoid valve using a diaphragm-poppet mechanism for 3-way fluid control. Its normally closed configuration operates with a 15 psi minimum pressure differential and supports air and inert-gas pressure up to 150 psi. The valve combines a 5/16-inch orifice with a Cv rating of 1.8 and uses a brass body with NBR seals. Its explosion-proof/watertight enclosure carries NEMA 3, 3S, 4, 4X, 6, 6P, 7, and 9 ratings.
Key Features:
- 3-Way Operation: Provides three ports and two switching positions for directional flow control.
- Normally Closed Configuration: Maintains its specified pressure-to-cylinder flow path closed until electrically actuated.
- 3/8-Inch Connections: Uses three 3/8-inch female threaded ports for connection to compatible piping.
- Cv 1.8 Flow Capacity: Features a 5/16-inch orifice with a rated Cv flow coefficient of 1.8.
- 24V DC Coil: Configured for low-voltage DC control in industrial automation systems.
- Brass and NBR Construction: Combines a brass valve body with NBR sealing material.
- Explosion-Proof Enclosure: EF enclosure provides explosion-proof and watertight protection for designated installations.
- Environmental Protection: NEMA 3, 3S, 4, 4X, 6, 6P, 7, and 9 ratings support demanding operating environments.
The EF8316G302 delivers the reliability and precision required for directional air and inert-gas control in industrial systems.
