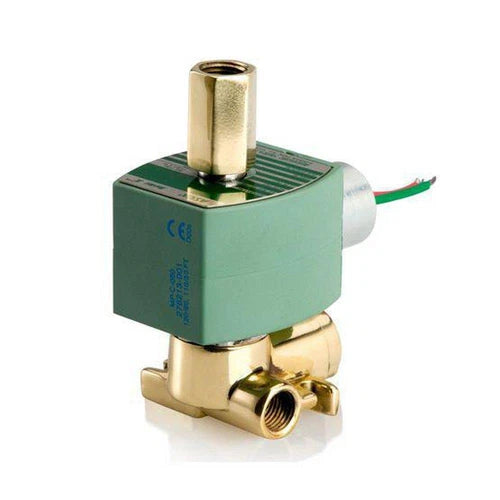

Asco EF8317G35 Normally Closed Quick Exhaust Solenoid Valve
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8317G35
Description
The Asco EF8317G35 is a normally closed, pilot-operated 3-way solenoid valve designed for quick exhaust in industrial control circuits. Its brass body and 1/4-inch NPT ports provide connections for compatible air, water, and light oil systems. The 24 VDC coil controls switching between pressure supply and exhaust.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | EF8317G35 |
| Subcategory | Quick Exhaust Solenoid Valves |
| Series | 8317 / 317 |
| Valve Configuration | 3-way, 2-position; normally closed |
| Operation | Pilot operated; quick exhaust |
| Port Size and Connection | 1/4-inch NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Coil Voltage | 24 VDC |
| Coil Power Rating | 11.6 W |
| Solenoid Enclosure | Explosionproof and watertight, EF configuration |
| Compatible Media | Air, inert gas, water, and light oil |
| Air/Inert Gas Pressure Differential | 5–75 PSI |
| Water Pressure Differential | 5–55 PSI |
| Light Oil Pressure Differential | 10–30 PSI |
| Pressure / Exhaust Orifice Sizes | 3/32 in. / 1/4 in. |
| Flow Coefficient | Pressure Cv: 0.20; exhaust Cv: 0.73 |
| Weight | 2.00 lb (0.91 kg) |
Information About EF8317G35
The EF8317G35 is part of Asco’s 8317 quick-exhaust valve series. Its pilot mechanism requires a minimum pressure differential between the pressure and exhaust ports. The EF configuration incorporates an explosionproof and watertight solenoid enclosure. NBR seals and resilient seating support fluid control, while the enlarged exhaust passage helps release downstream pressure quickly.
Key Features:
- Normally Closed Function: Blocks the pressure supply path when the coil is de-energized.
- Three-Way Switching: Provides separate connections for pressure, controlled flow, and exhaust.
- Quick Exhaust Design: Releases downstream pressure through a larger exhaust passage.
- Pilot Operation: Uses fluid pressure to assist valve switching.
- Brass Construction: Provides a metal body for compatible gas and liquid service.
- Threaded Connections: Uses 1/4-inch NPT ports for matching fittings.
- DC Coil Supply: Operates with a 24 VDC coil rated at 11.6 W.
- EF Solenoid Enclosure: Incorporates explosionproof and watertight construction.
The EF8317G35 delivers the reliability and precision required for pressure switching and rapid exhaust in industrial control systems.
