Asco EF8320G200 Universal Direct Acting Stainless Steel Solenoid Valve
- Regular price
- $392.00
- Sale price
- $392.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8320G200
Description

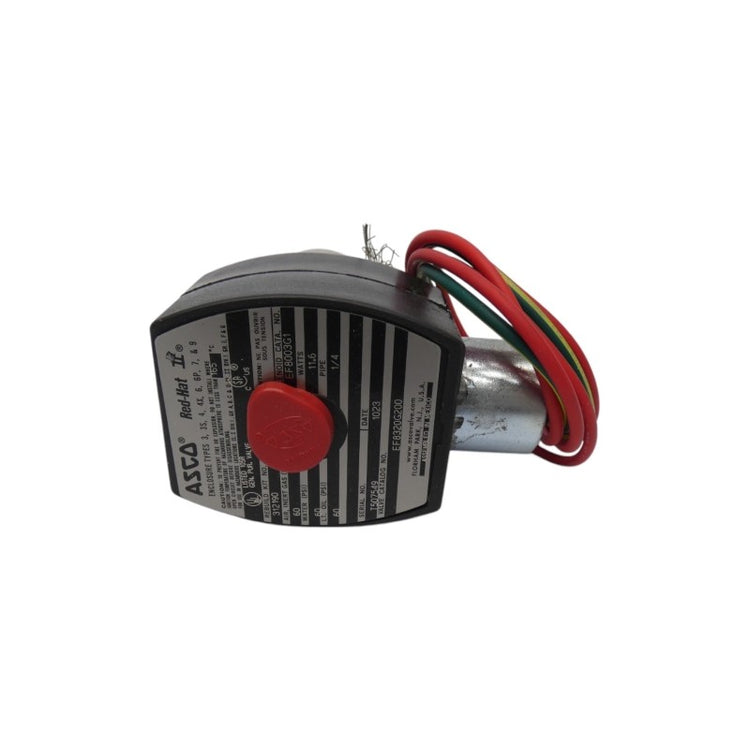

The Asco EF8320G200 is a direct-acting, universal 3-way solenoid valve for switching flow in pneumatic and fluid control circuits. This 24 VDC version combines a stainless steel body with 1/4-inch NPT connections for compatible air, inert gas, water, and light oil service.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | EF8320G200 |
| Subcategory | Solenoid Valves |
| Series | 8320 / 320 |
| Valve Function | Universal 3-way, 2-position |
| Actuation Method | Direct-acting solenoid |
| Port Size and Type | 1/4-inch NPT |
| Body Material | Stainless steel |
| Coil Voltage | 24 VDC |
| Coil Power Rating | 11.6 W |
| Flow Coefficient | Cv 0.12; Kv 0.10 |
| Orifice Size | 3/32 in. (approximately 2.38 mm) |
| Compatible Media | Air, inert gas, water, and light oil |
| Seating Elastomer | NBR |
| Ambient Temperature Range | −40°F to +104°F (−40°C to +40°C) |
| Fluid Temperature Range | −40°F to +150°F (−40°C to approximately +66°C) |
| Mounting Orientation | Any |
| Lead Length | 18 in. (457.2 mm) |
| Weight | 1.61 lb (0.73 kg) |
Information About EF8320G200
The EF8320G200 is part of Asco’s 8320 general service valve series. Its three-port construction permits different flow arrangements through the selected piping connections. Electromagnetic actuation operates the valve directly without requiring a pilot pressure differential. The assembly uses NBR seating seals and can be mounted in any orientation.
Key Features:
- Universal Configuration: Provides 3-way, 2-position operation for different fluid routing arrangements.
- Direct Actuation: Switches the valve without relying on a pilot pressure differential.
- Stainless Steel Body: Provides the valve housing for compatible gas and liquid service.
- Threaded Ports: Uses 1/4-inch NPT connections for matching piping fittings.
- DC Coil Supply: Operates from a 24 VDC electrical control supply.
- Flow Coefficient: Provides a Cv of 0.12 and a Kv of 0.10.
- NBR Seating Seals: Uses nitrile elastomer at the valve seating surfaces.
- Flexible Mounting: Allows installation in any mounting orientation.
The EF8320G200 delivers the reliability and precision required for electrically controlled flow switching in pneumatic and fluid handling systems.
