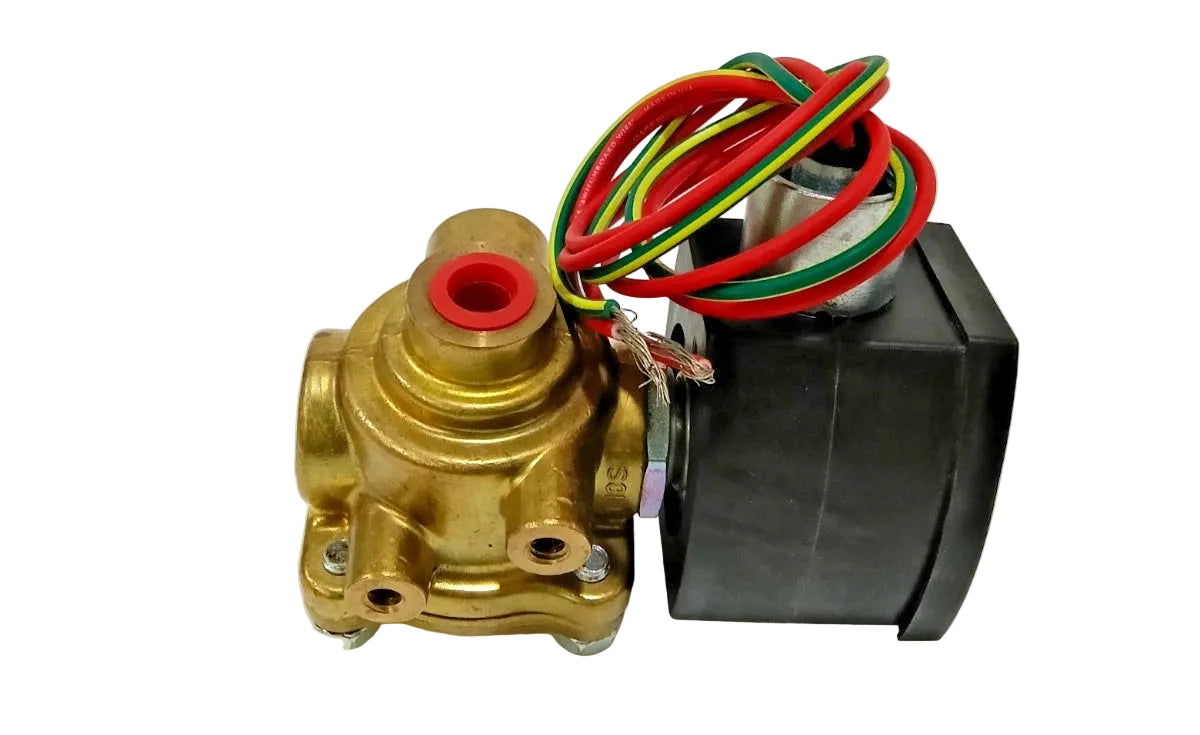

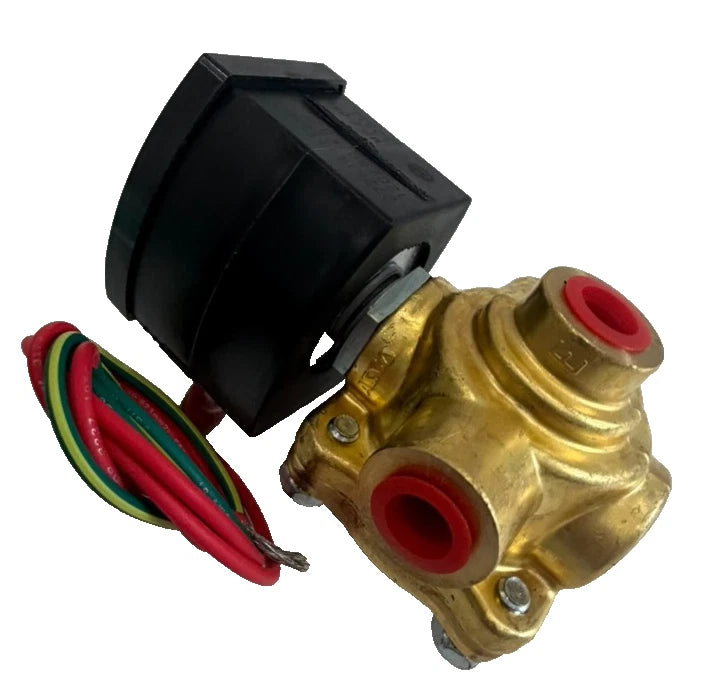

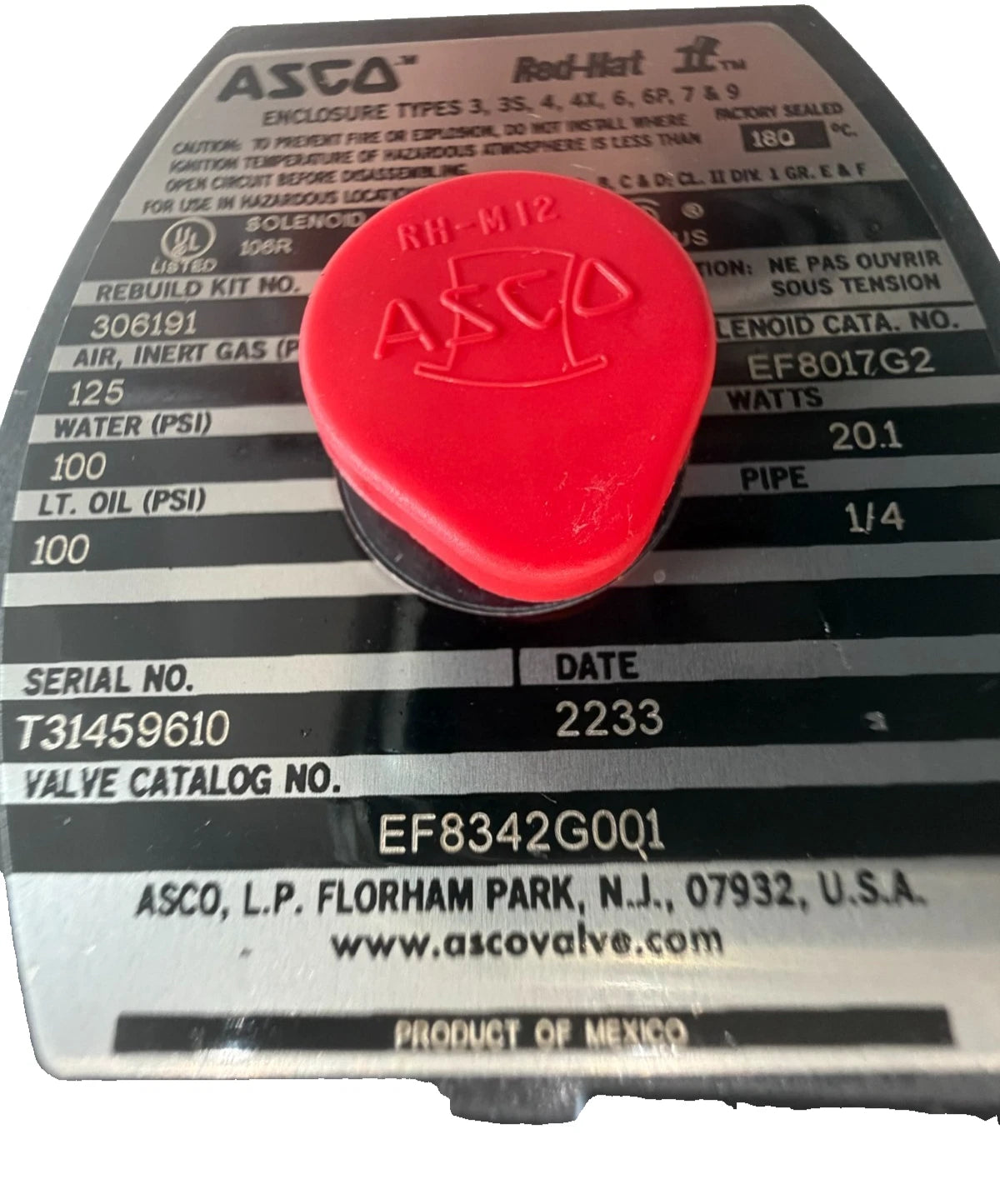

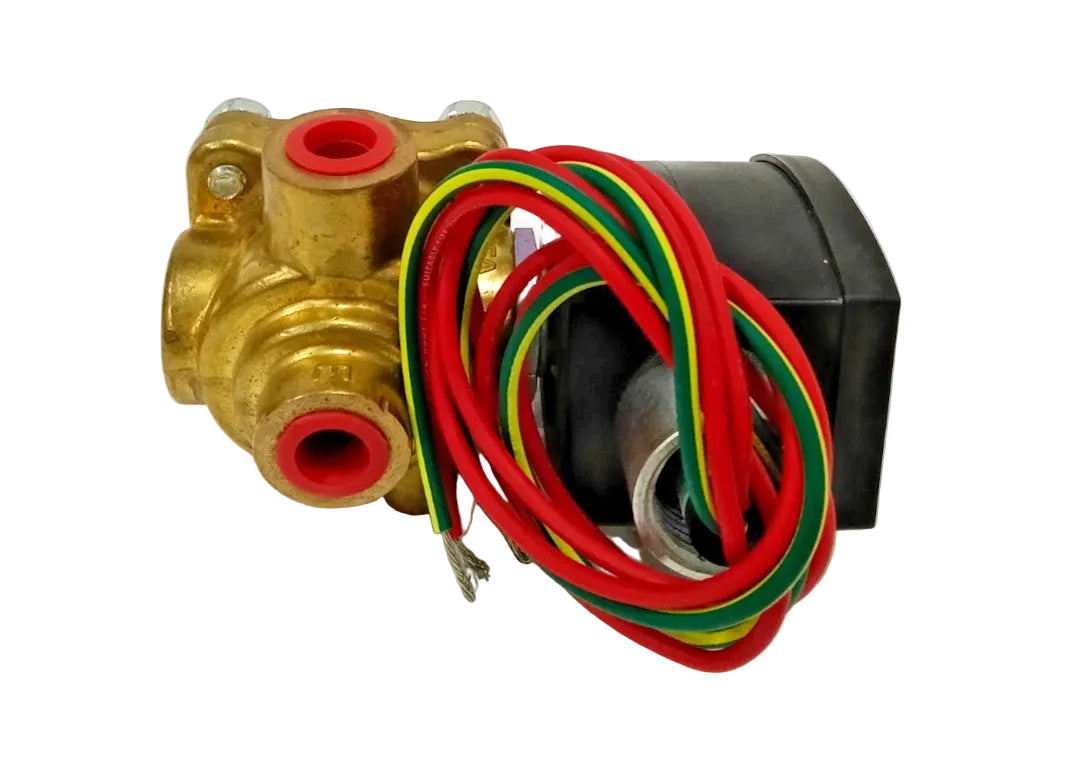

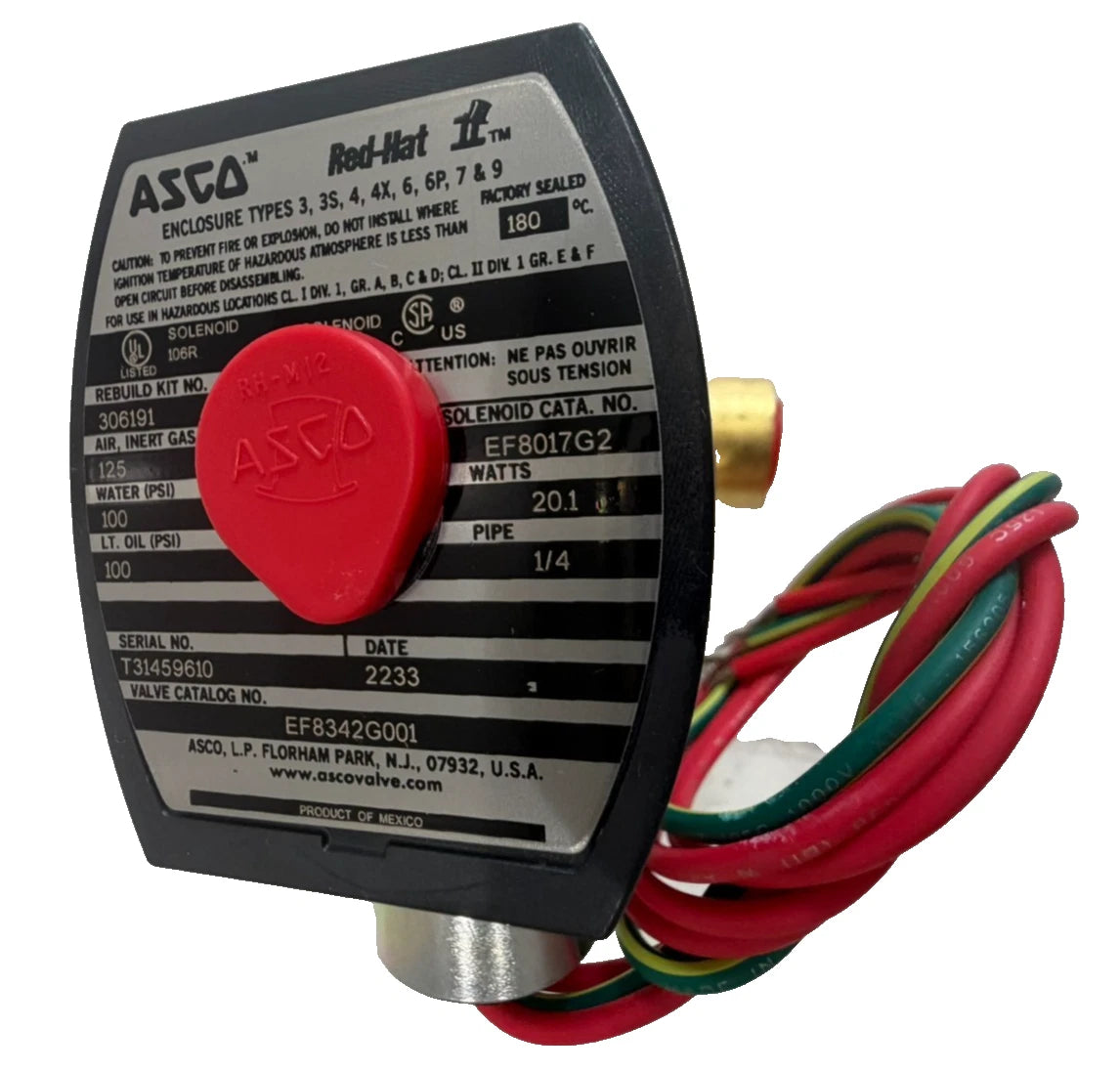

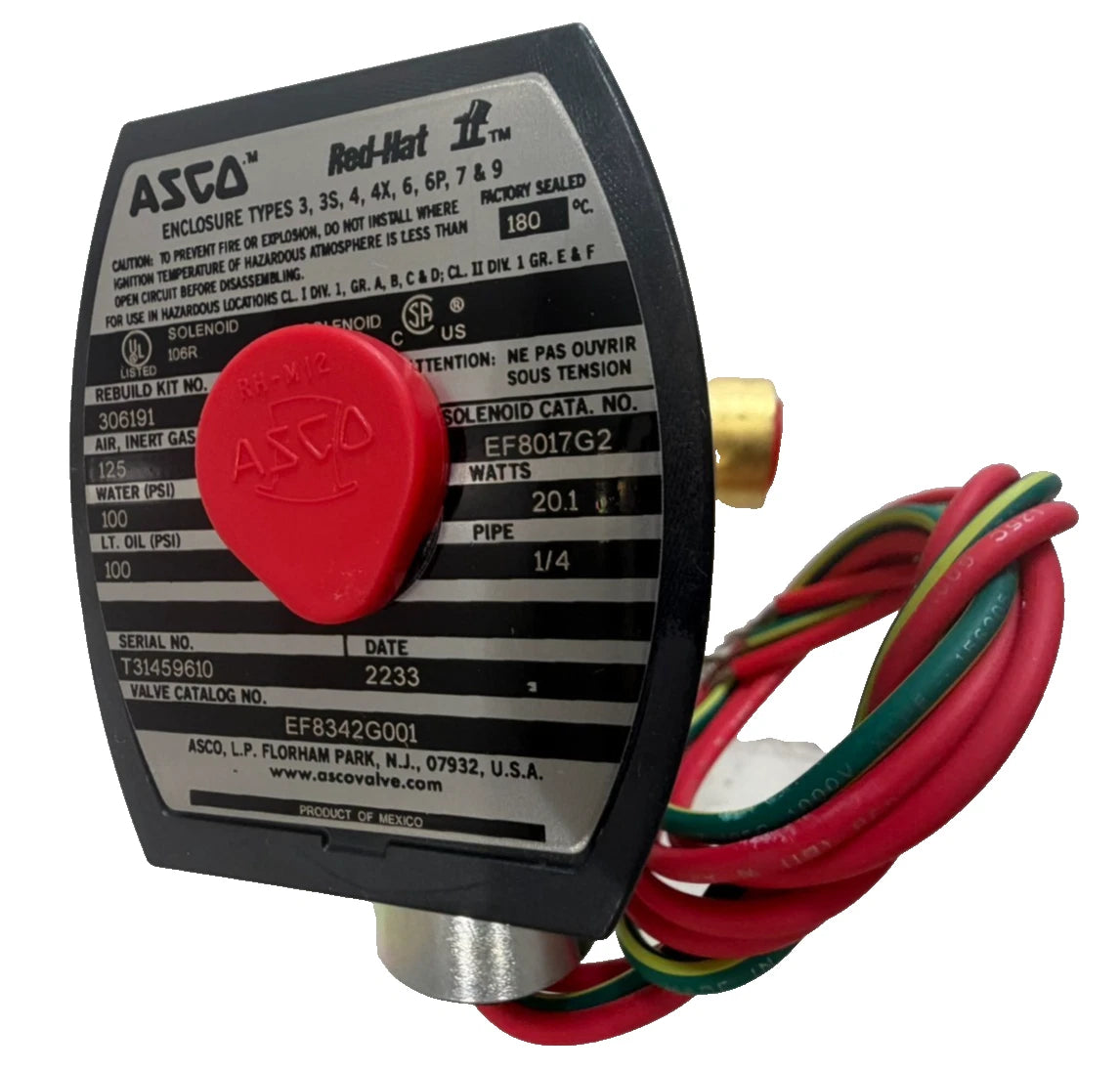

ASCO EF8342G001 1/4" 4-Way Direct-Acting Solenoid Valve
- Regular price
- $689.00
- Sale price
- $689.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8342G001
Description
ASCO EF8342G001 is a RedHat Series 8342 direct-acting 4-way solenoid valve designed for reliable control of air, inert gas, water, and light oil in industrial systems. Featuring a brass body, 1/4-inch ports, and an explosion-proof and watertight enclosure, it provides high-flow operation for demanding automation and process-control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Part Number | EF8342G001 |
| Series | RedHat 8342 Series |
| Product Type | Solenoid Valve |
| Valve Configuration | 4-Way / 2-Position |
| Actuation | Direct Acting |
| Solenoid Configuration | Single |
| Port Size | 1/4 in. |
| Port Connection | Female Threaded |
| Body Material | Brass |
| Media | Air, Inert Gas, Water, Light Oil |
| Pressure – Air/Inert Gas | Up to 125 PSI |
| Pressure – Water/Light Oil | Up to 100 PSI |
| Flow Factor | 0.7 Cv |
| Orifice Size | 3/16 in. |
| Power Rating | 20.1 W |
| Seal / Seat Material | Graphite-Filled PTFE |
| Maximum Fluid Temperature | 160°F |
| Maximum Ambient Temperature | 125°F |
| Enclosure | Explosion-Proof & Watertight |
| NEMA Rating | 3/3S/4/4X/6/6P/7/9 |
| Approvals | UL / CSA / CE |
| Weight | 2.40 lbs |
Information About EF8342G001
The ASCO EF8342G001 is a 4-way, 2-position direct-acting solenoid valve from the RedHat 8342 Series. It uses a single-solenoid configuration and a high-flow slide-style valve design for dependable directional fluid control. The valve supports operating pressures up to 125 PSI for air and inert gas and up to 100 PSI for water and light oil. Its EF enclosure configuration provides explosion-proof and watertight protection for installation in demanding industrial environments.
Key Features:
- 4-Way / 2-Position Design: Provides directional control for industrial pneumatic and fluid systems.
- Direct-Acting Operation: Delivers responsive switching without relying on pilot pressure.
- Single Solenoid Configuration: Uses a single electromagnetic operator for valve actuation.
- 1/4-Inch Ports: Features four female threaded connections for compact system integration.
- High Flow Construction: 0.7 Cv design supports efficient flow through a compact valve body.
- Brass Body: Provides durable construction for air, inert gas, water, and light oil applications.
- Explosion-Proof & Watertight: EF configuration is designed for demanding and hazardous industrial environments.
- Flexible Mounting: Valve construction permits installation in any mounting position.
The ASCO EF8342G001 delivers the reliability and precision required for industrial automation, pneumatic control, and general-purpose fluid handling systems.
