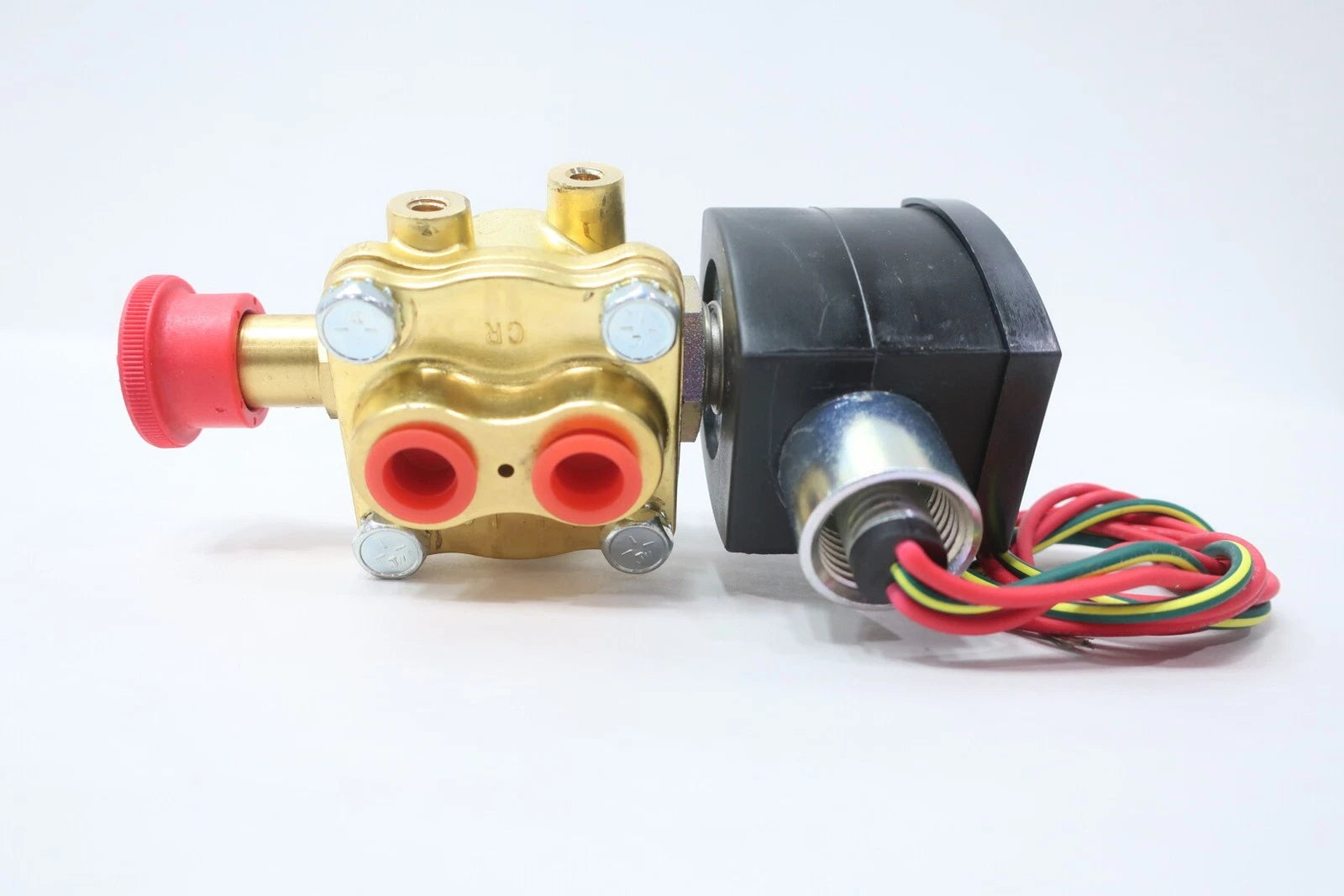

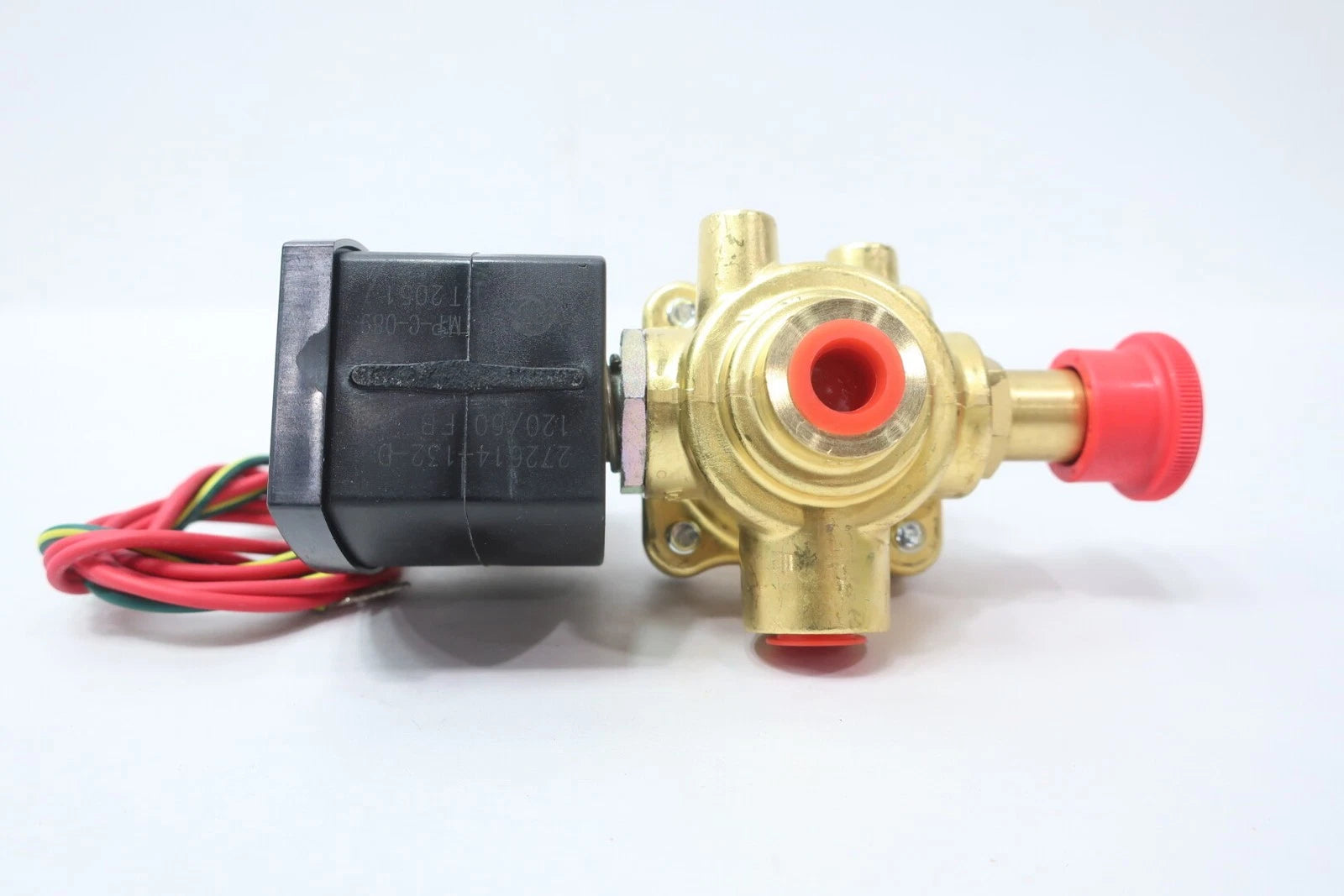

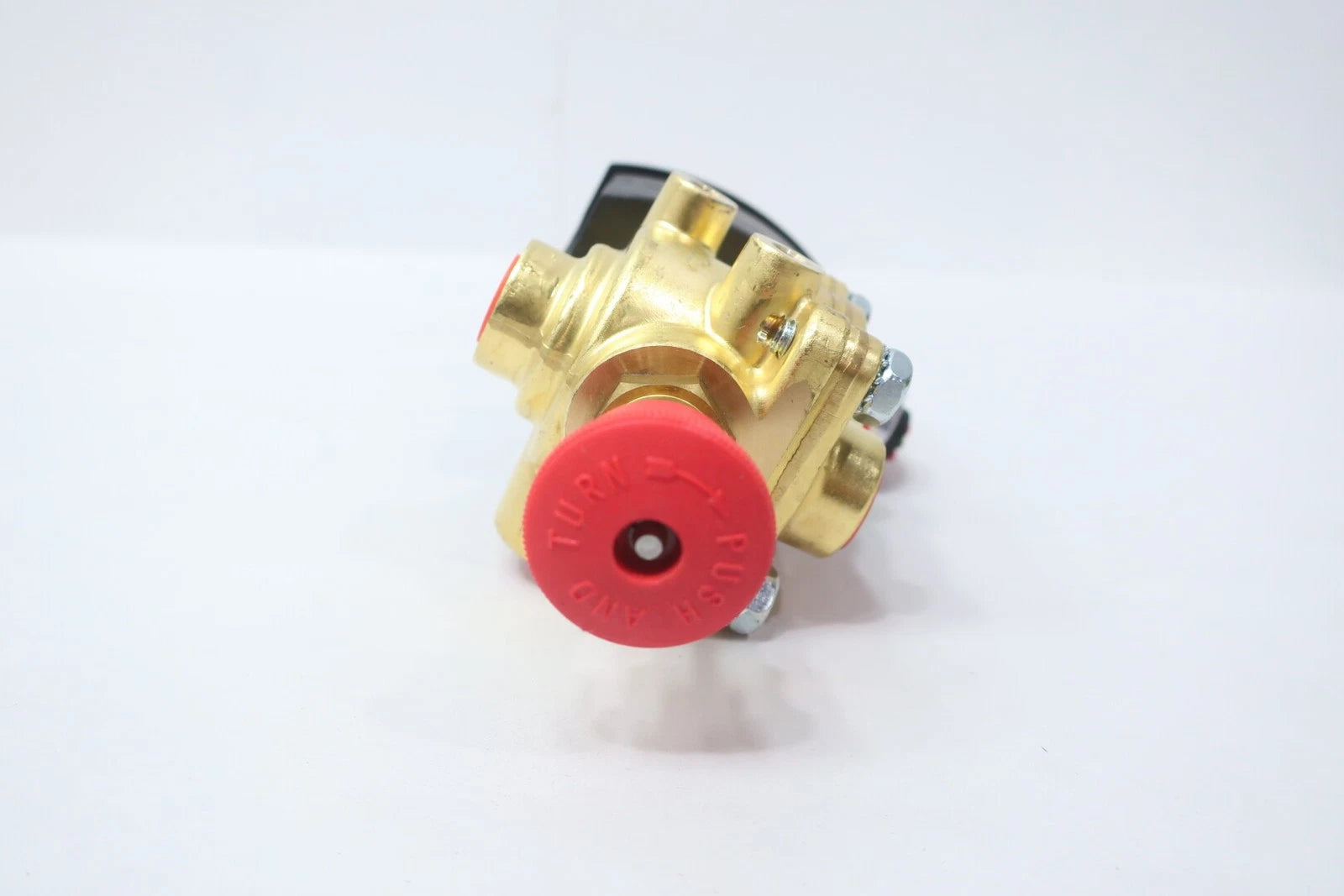

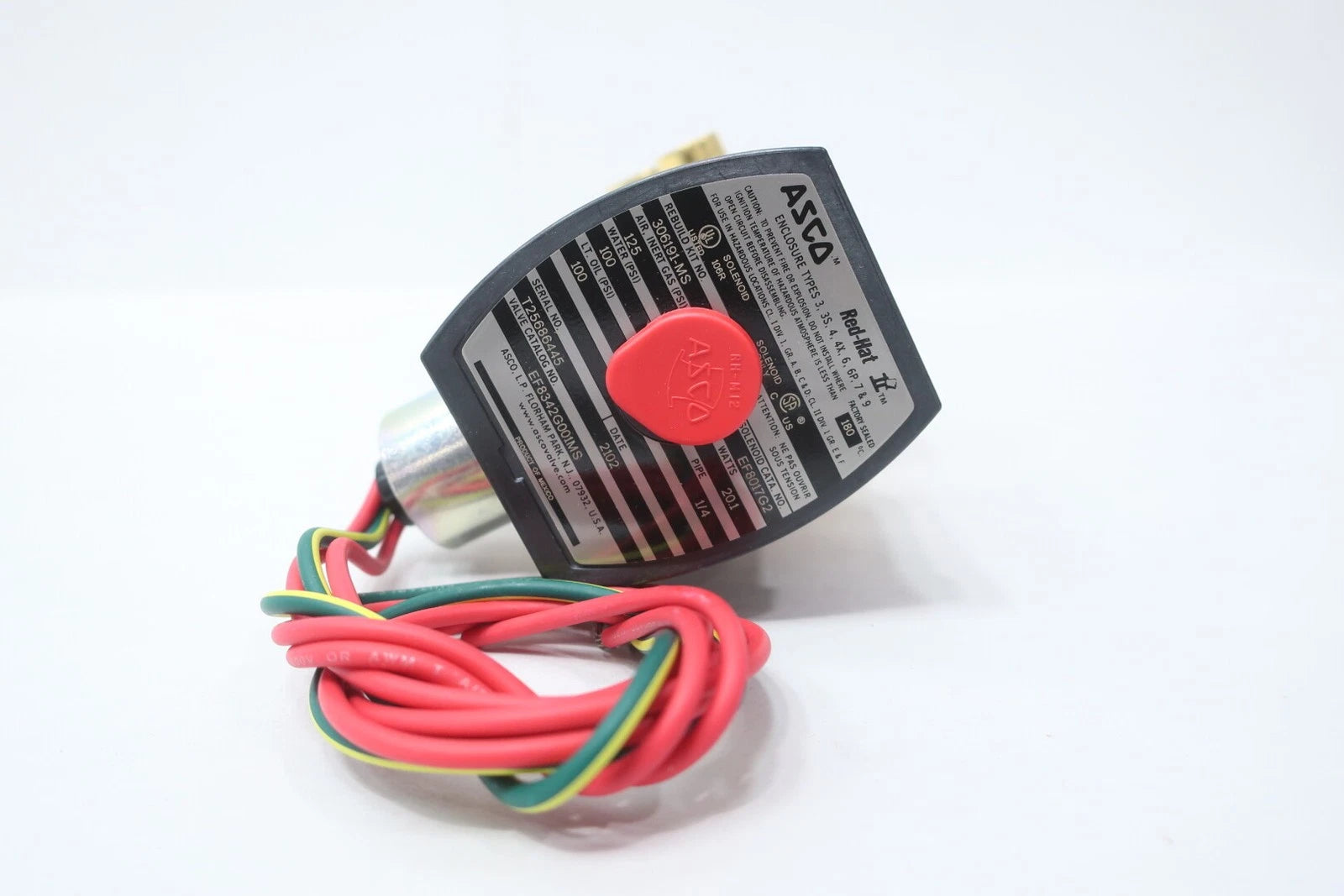

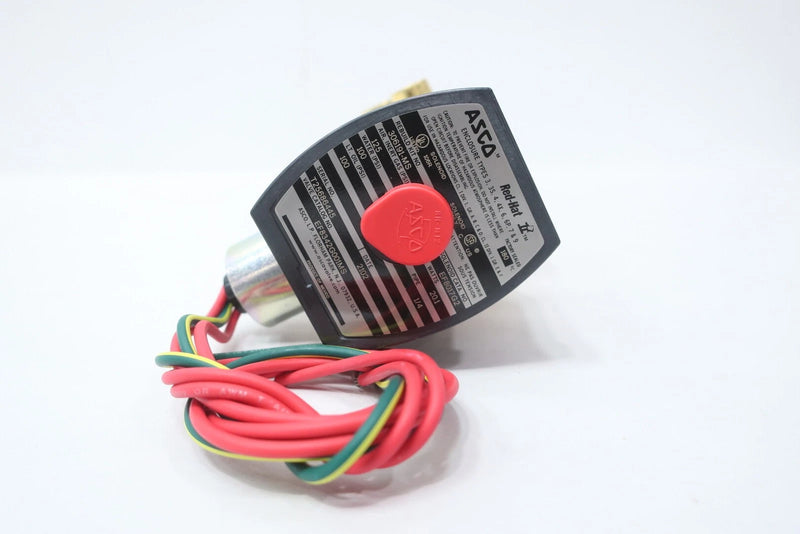

ASCO EF8342G001MS Series 8342 Explosion-Proof Four-Way Solenoid Valve with Manual Override for Industrial Control
- Regular price
- $745.00
- Sale price
- $745.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8342G001MS
Description
The ASCO EF8342G001MS is a Series 8342 four-way, two-position direct-acting solenoid valve designed for directional control of pneumatic actuators and industrial automation equipment. Featuring a brass body, explosion-proof enclosure, and single-solenoid configuration with screw-type manual operator, the valve delivers dependable performance for air, inert gas, water, and light oil applications. It operates on 120 Volts AC and is engineered for continuous-duty industrial service.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8342G001MS |
| Subcategory | Solenoid Valve |
| Product Type | Series 8342 Four-Way Direct-Acting Solenoid Valve |
| Valve Function | Four-Way, Two-Position |
| Valve Operation | Direct-Acting, Single Solenoid, Spring Return |
| Body Material | Brass |
| Pipe Connection Size | 1/4 Inch National Pipe Thread |
| Orifice Size | 3/16 Inch |
| Flow Coefficient | 0.7 Cv |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Operating Pressure Range | Air/Inert Gas: 0–125 PSI; Water/Light Oil: 0–100 PSI |
| Supply Voltage | 120 Volts AC, 60 Hertz |
| Power Consumption | 20.1 Watts |
| Seal Material | NBR (Nitrile) |
| Manual Operator | Screw Type |
| Enclosure Type | Explosion-Proof |
| Mounting Position | Any Position |
| Weight | 4.00 lbs |
Information About EF8342G001MS
The EF8342G001MS is part of the ASCO Series 8342 family of direct-acting slide-style solenoid valves developed for high-flow industrial directional control applications. It incorporates a four-way, two-position valve design with a single solenoid, spring return, and screw-type manual override that allows manual operation during maintenance or commissioning. Manufactured with a brass body, NBR sealing material, and an explosion-proof RedHat™ enclosure, the valve is suitable for hazardous locations while providing reliable control of air, inert gas, water, and light oil. Its direct-acting construction eliminates the need for a minimum operating pressure differential, making it well suited for pneumatic cylinders, process automation equipment, packaging machinery, and general industrial control systems.
Key Features:
- Series 8342 Construction: Designed for high-flow industrial directional control applications.
- Four-Way Two-Position Valve: Provides dependable routing of compressed air and compatible fluids.
- Direct-Acting Operation: Requires no minimum operating pressure differential for reliable shifting.
- Explosion-Proof Enclosure: Suitable for hazardous industrial environments requiring protected electrical components.
- Brass Valve Body: Provides durability and corrosion resistance for long service life.
- Screw-Type Manual Operator: Allows manual actuation during testing and maintenance procedures.
- Single Solenoid Design: Includes spring return for automatic valve reset after de-energization.
- Broad Media Compatibility: Suitable for air, inert gas, water, and light oil service.
The EF8342G001MS delivers the reliability and precision required for industrial directional control, pneumatic automation, and hazardous-location process applications.
