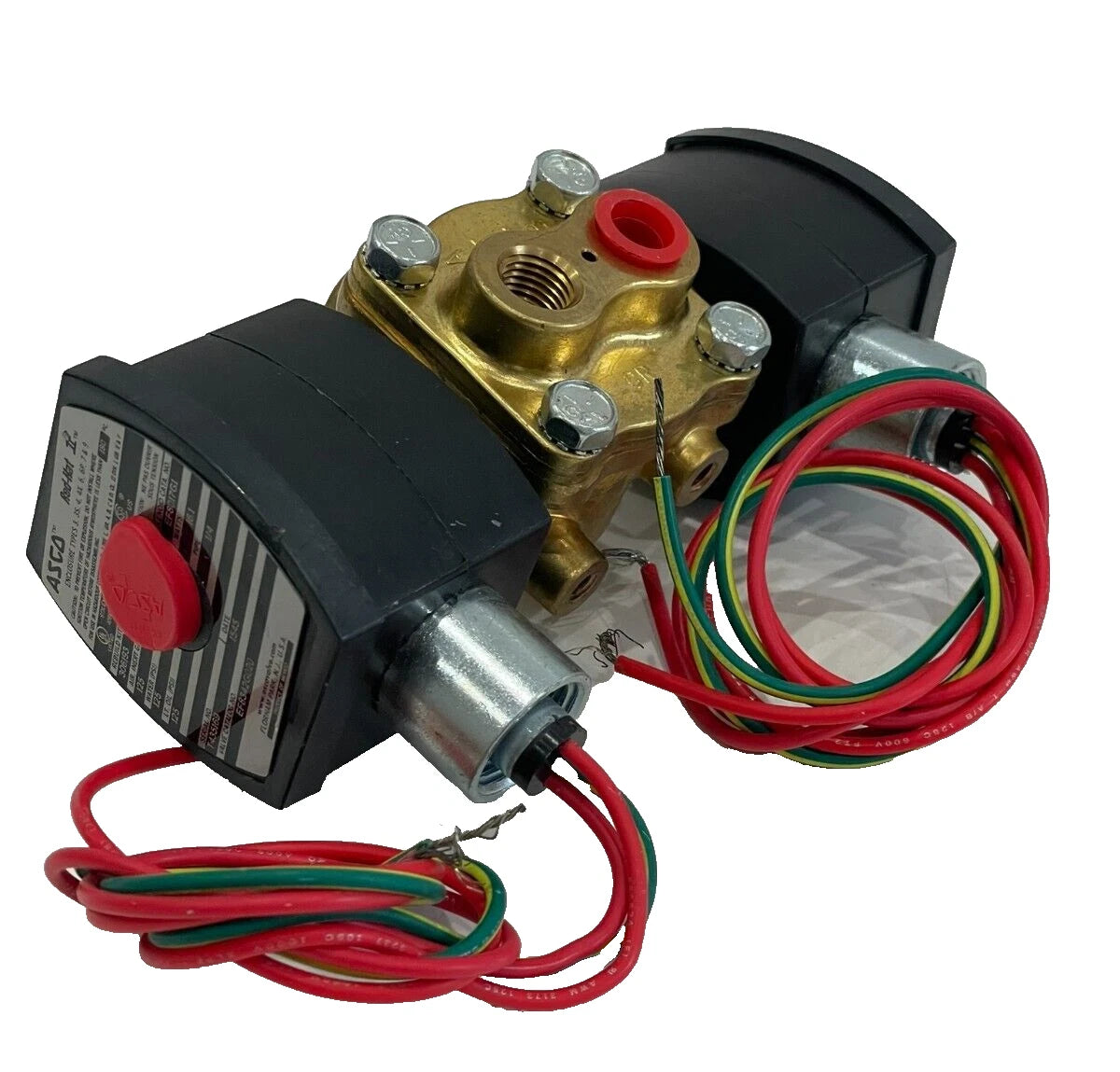

ASCO EF8342G020 Series 8342 1/4" 4-Way Solenoid Valve 120VAC
Part #:
EF8342G020
Manufactured by:
ASCO
- Regular price
- $759.00
- Sale price
- $759.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ASCO EF8342G020 is a 1/4-inch 4-way/2-position direct-acting solenoid valve designed for general service fluid control...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: EF8342G020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: EF8342G020
Description / Specifications
Description
ASCO EF8342G020 is a RedHat Series 8342 general service solenoid valve designed for directional control of air, inert gas, water, and light oil. The valve features a 4-way/2-position dual-solenoid, direct-acting design with 1/4-inch female threaded ports and an explosion-proof, watertight enclosure for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | EF8342G020 |
| Subcategory | Solenoid Valve |
| Product Type | General Service Solenoid Valve |
| Series | Series 8342 |
| Valve Configuration | 4-Way / 2-Position |
| Operation Type | Direct Acting |
| Solenoid Configuration | Dual Solenoid |
| Body Material | Brass |
| Seat Material | Graphite-Filled PTFE |
| Seal Material | FKM |
| Port Size | 1/4 in |
| Connection Type | Female Threaded (FPT/NPT) |
| Orifice Size | 3/16 in |
| Flow Coefficient (Cv) | 0.7 |
| Media | Air, Inert Gas, Water, Light Oil |
| Minimum Operating Pressure Differential | 0 psi |
| Maximum Operating Pressure | 125 psi |
| Maximum Fluid Temperature | 160°F |
| Maximum Ambient Temperature | 125°F |
| Input Supply Rating | 120 VAC, 60 Hz |
| Power Rating | 16.1 W |
| Solenoid Enclosure | Explosion-Proof & Watertight |
| NEMA Rating | NEMA 3, 3S, 4, 4X, 6, 6P, 7, 9 |
| Mounting | Any Position |
| Approvals | UL, CSA, CE |
| Weight | 3.81 lbs |
Information About EF8342G020
Key Features:
- 4-Way Control: Provides a 4-way/2-position configuration for directional fluid control.
- Direct-Acting Operation: Operates without requiring a minimum pressure differential or minimum flow.
- Dual Solenoid Design: Supports momentary or continuous solenoid energization for flexible control.
- Mechanical Detent: Maintains the last valve position following loss of electrical power or system pressure.
- High-Flow Construction: Slide-style design provides a 0.7 Cv flow coefficient for efficient operation.
- Multiple Media Compatibility: Suitable for air, inert gas, water, and light oil.
- Flexible Mounting: Can be installed in any mounting position.
- Protected Enclosure: Explosion-proof and watertight construction supports demanding industrial environments.
The EF8342G020 delivers the reliable directional control and flexible operation required for industrial fluid and pneumatic systems.
