Asco HB26A215 Series H Miniature Pressure Switch 20-50 PSI 1/8-Inch NPT
- Regular price
- $607.00
- Sale price
- $607.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HB26A215
Description

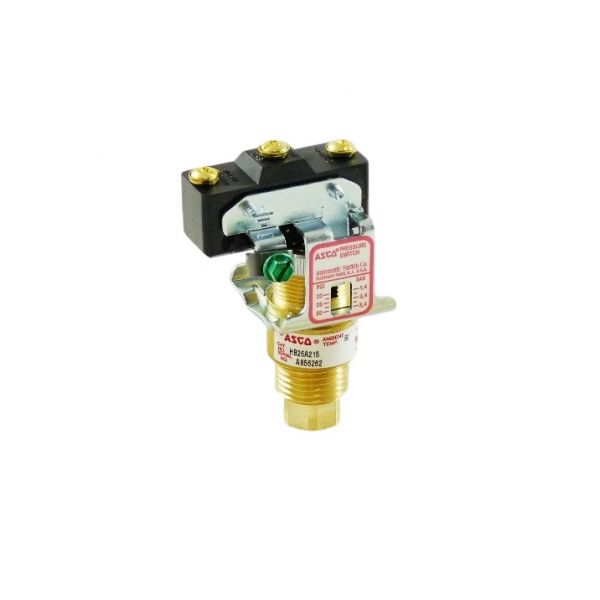

Asco HB26A215 is a Tripoint Series H miniature pressure switch designed for compact pressure monitoring and control applications. It provides an adjustable 20–50 psi operating range, SPDT electrical contacts, and a 1/8-inch internal NPT pressure connection. The open-frame construction uses brass components with a Buna-N diaphragm/piston sensing mechanism.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Controls |
| Part Number | HB26A215 |
| Subcategory | Pressure Switches |
| Product Type | Miniature Pressure Switch |
| Series | Tripoint Series H |
| Operating Pressure Range | 20–50 psi (1.4–3.4 bar) |
| Deadband | 2.4 psi |
| Proof Pressure | 250 psi |
| Pressure Connection | 1/8 in Internal NPT |
| Contact Configuration | SPDT |
| Sensor Type | Buna-N Diaphragm/Piston |
| Construction | Open Frame |
| Internal Material | Brass |
| AC Contact Rating | 15 A at 125 VAC; 10 A at 250 VAC |
| DC Contact Rating | 0.5 A at 125 VDC; 0.25 A at 250 VDC |
| Motor Rating | 1/8 HP and 1/4 HP |
| Adjustment | Adjustable |
| Approvals | UL Listed |
| Weight | 0.8 lb |
Information About HB26A215
The HB26A215 is an Asco Series H miniature pressure switch designed for applications requiring adjustable pressure-based electrical switching. It incorporates a Buna-N diaphragm/piston sensor with an adjustable 20–50 psi operating range and a 2.4 psi deadband. The switch uses an SPDT contact configuration rated for AC and DC electrical loads and provides a 250 psi proof-pressure rating. Its compact open-frame design and 1/8-inch internal NPT process connection support installation in analytical equipment, automotive systems, commercial equipment, and industrial controls.
Key Features:
- Adjustable Pressure Range: Provides an adjustable operating range from 20 to 50 psi.
- 2.4 PSI Deadband: Series H catalog data specifies a 2.4 psi deadband for the HB26A215 configuration.
- 250 PSI Proof Pressure: Designed to withstand pressures up to 250 psi without permanent performance degradation under specified conditions.
- SPDT Contacts: Single-pole double-throw switching provides flexibility for pressure-control and monitoring circuits.
- 1/8-Inch NPT Connection: Uses a 1/8-inch internal threaded pressure connection for compact installations.
- Buna-N Sensor: Incorporates a Buna-N diaphragm/piston sensing mechanism for pressure actuation.
- Open-Frame Construction: Compact open-frame configuration minimizes installation space requirements.
- Electrical Load Capability: Contacts are rated at 15 A at 125 VAC and 10 A at 250 VAC, with additional DC and horsepower ratings.
The HB26A215 delivers the reliability and precision required for pressure monitoring and switching in industrial and commercial control systems.
Description
Asco HB26A215 is a Tripoint Series H miniature pressure switch designed for compact pressure monitoring and control applications. It provides an adjustable 20–50 psi operating range, SPDT electrical contacts, and a 1/8-inch internal NPT pressure connection. The open-frame construction uses brass components with a Buna-N diaphragm/piston sensing mechanism.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Controls |
| Part Number | HB26A215 |
| Subcategory | Pressure Switches |
| Product Type | Miniature Pressure Switch |
| Series | Tripoint Series H |
| Operating Pressure Range | 20–50 psi (1.4–3.4 bar) |
| Deadband | 2.4 psi |
| Proof Pressure | 250 psi |
| Pressure Connection | 1/8 in Internal NPT |
| Contact Configuration | SPDT |
| Sensor Type | Buna-N Diaphragm/Piston |
| Construction | Open Frame |
| Internal Material | Brass |
| AC Contact Rating | 15 A at 125 VAC; 10 A at 250 VAC |
| DC Contact Rating | 0.5 A at 125 VDC; 0.25 A at 250 VDC |
| Motor Rating | 1/8 HP and 1/4 HP |
| Adjustment | Adjustable |
| Approvals | UL Listed |
| Weight | 0.8 lb |
Information About HB26A215
The HB26A215 is an Asco Series H miniature pressure switch designed for applications requiring adjustable pressure-based electrical switching. It incorporates a Buna-N diaphragm/piston sensor with an adjustable 20–50 psi operating range and a 2.4 psi deadband. The switch uses an SPDT contact configuration rated for AC and DC electrical loads and provides a 250 psi proof-pressure rating. Its compact open-frame design and 1/8-inch internal NPT process connection support installation in analytical equipment, automotive systems, commercial equipment, and industrial controls.
Key Features:
- Adjustable Pressure Range: Provides an adjustable operating range from 20 to 50 psi.
- 2.4 PSI Deadband: Series H catalog data specifies a 2.4 psi deadband for the HB26A215 configuration.
- 250 PSI Proof Pressure: Designed to withstand pressures up to 250 psi without permanent performance degradation under specified conditions.
- SPDT Contacts: Single-pole double-throw switching provides flexibility for pressure-control and monitoring circuits.
- 1/8-Inch NPT Connection: Uses a 1/8-inch internal threaded pressure connection for compact installations.
- Buna-N Sensor: Incorporates a Buna-N diaphragm/piston sensing mechanism for pressure actuation.
- Open-Frame Construction: Compact open-frame configuration minimizes installation space requirements.
- Electrical Load Capability: Contacts are rated at 15 A at 125 VAC and 10 A at 250 VAC, with additional DC and horsepower ratings.
The HB26A215 delivers the reliability and precision required for pressure monitoring and switching in industrial and commercial control systems.
