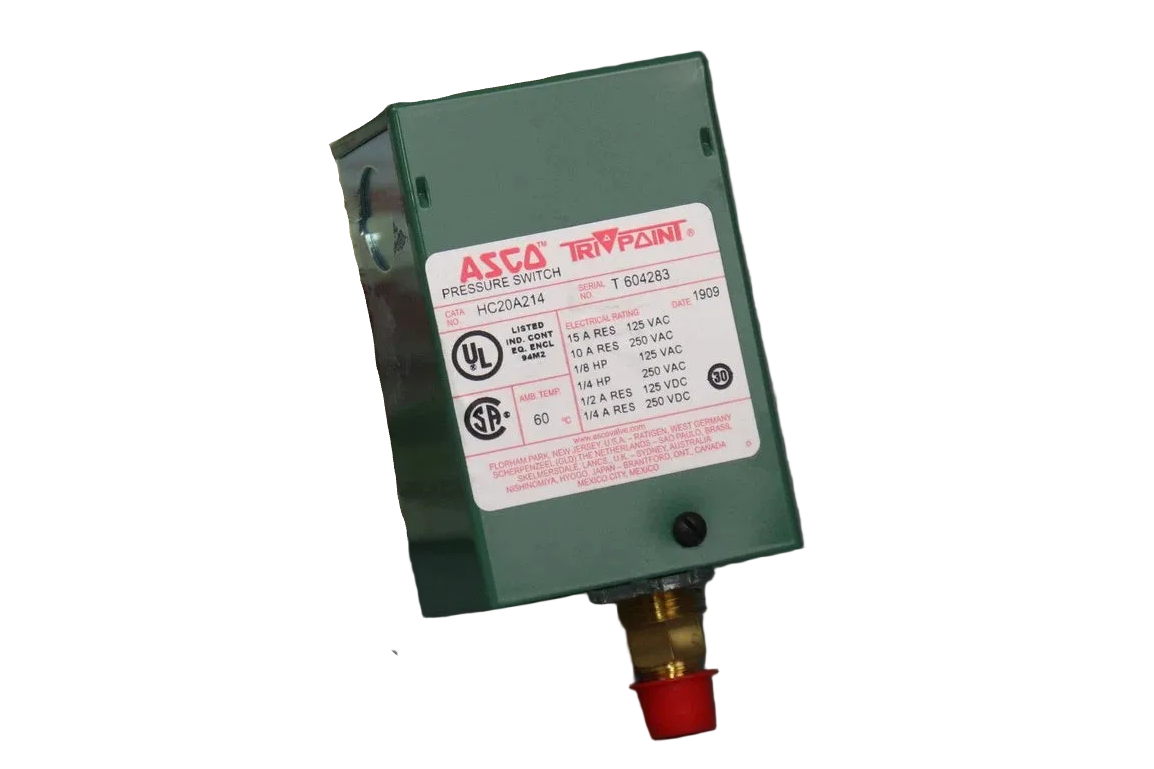

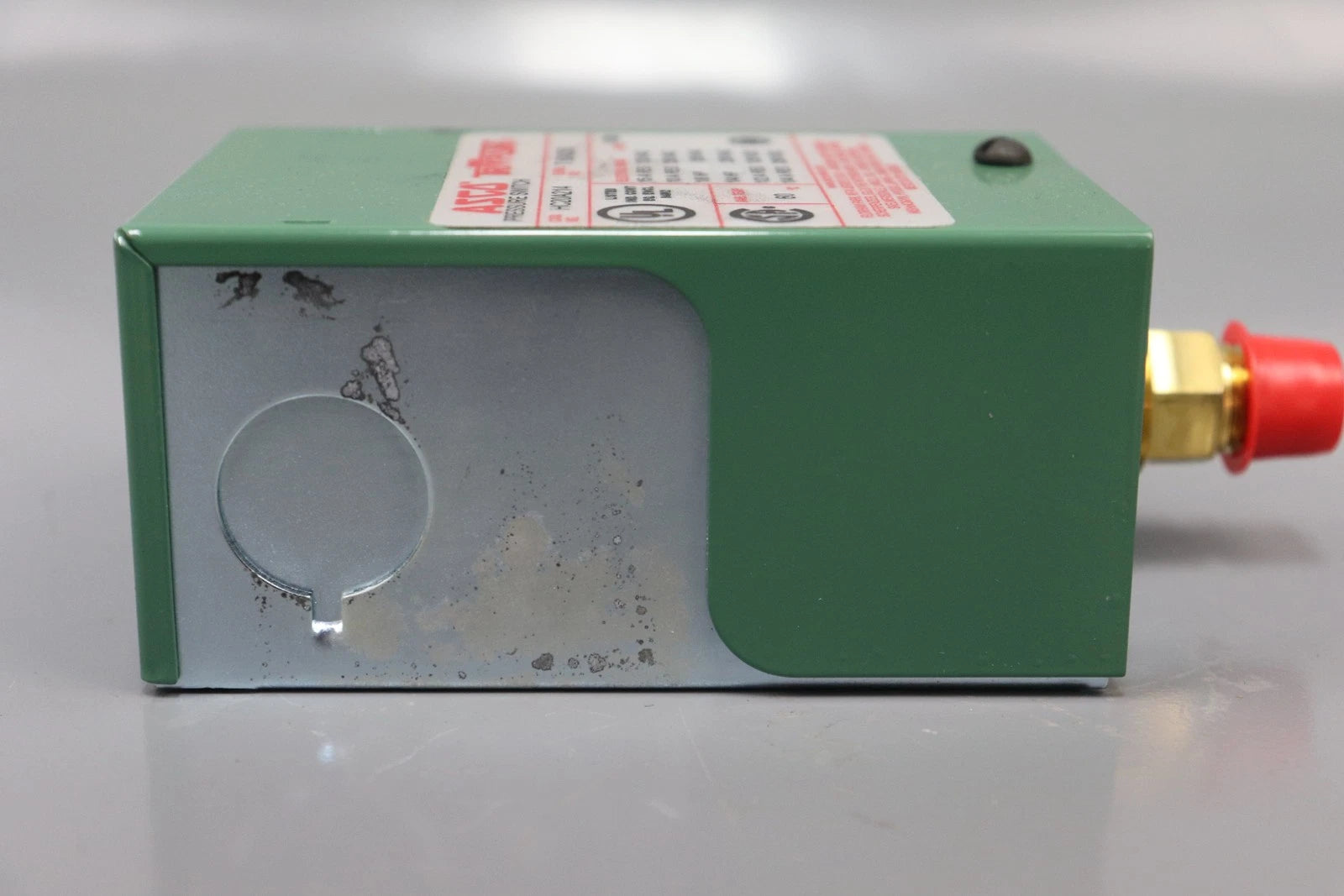

ASCO HC20A214 H Series Tri-Point Miniature Pressure Switch 40–120 psig
- Regular price
- $1,307.00
- Sale price
- $1,307.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HC20A214
Description
ASCO HC20A214 is an H Series Tri-Point miniature pressure switch designed for adjustable pressure monitoring and switching in industrial equipment. It features a 40–120 psig adjustable operating range, SPDT Form C contacts, and a 1/4-inch NPT external process connection for compact control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Controls & Indicators |
| Part Number | HC20A214 |
| Subcategory | Pressure Switches |
| Series | H Series |
| Product Type | Tri-Point Miniature Pressure Switch |
| Contact Configuration | SPDT, Form C |
| Operating Range | 40–120 psig |
| Adjustable Deadband | 8–13 psig at Mid-Range |

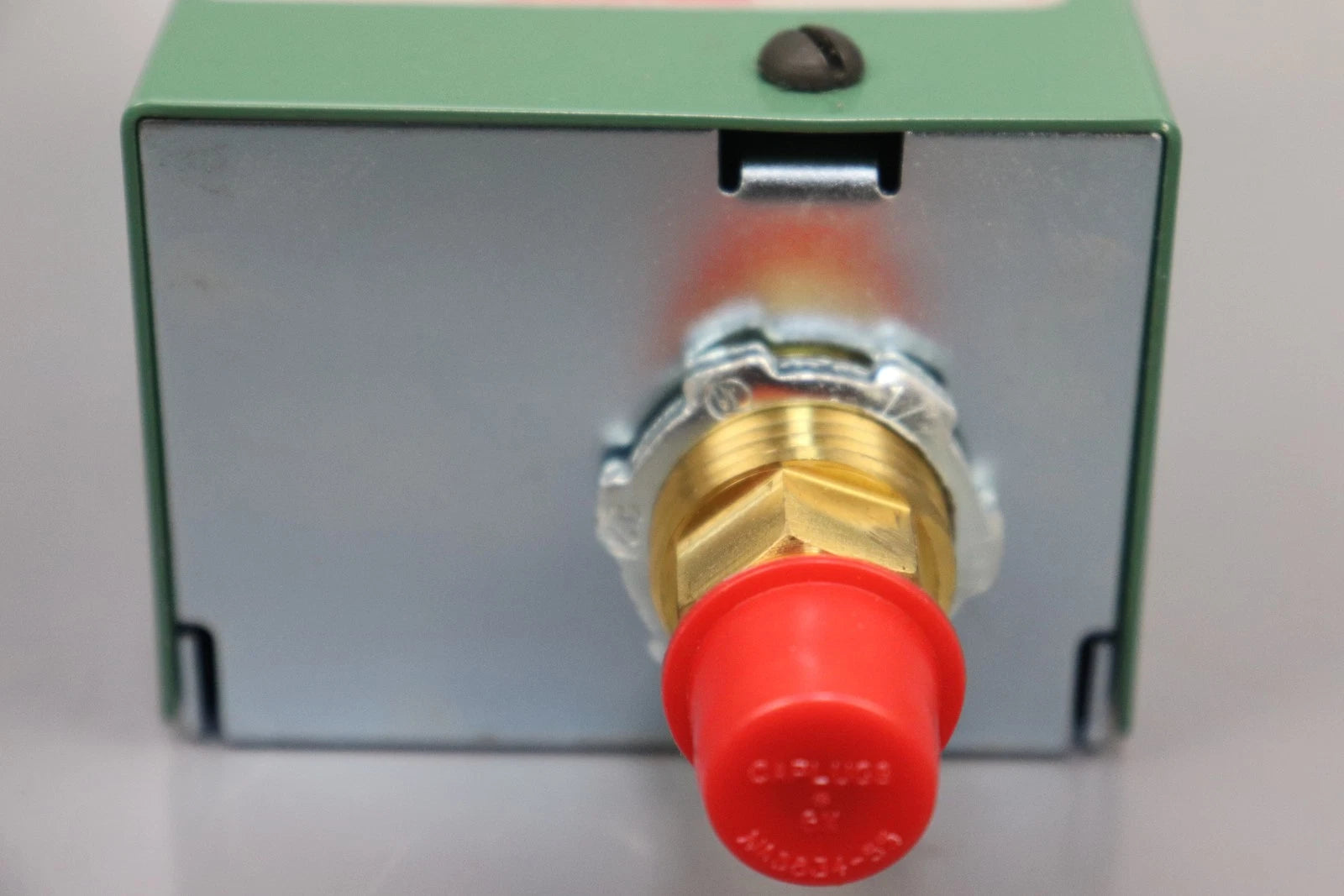

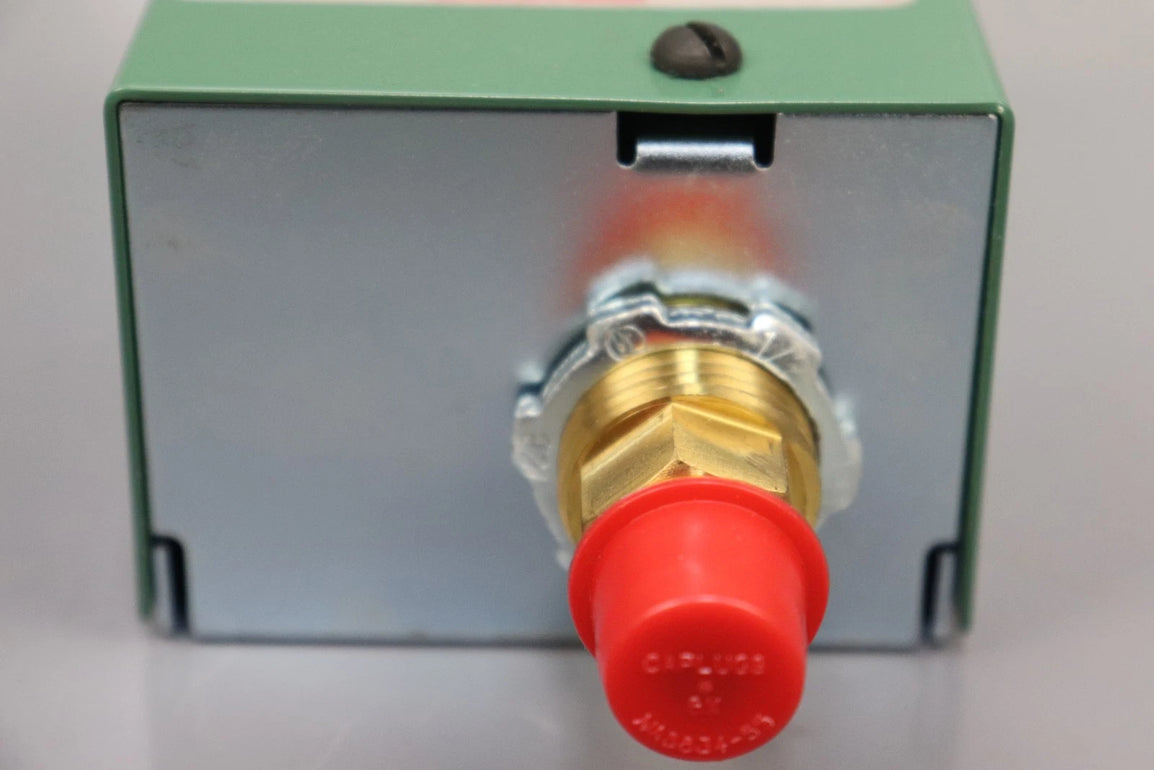

| Process Connection | 1/4 in. NPT External |
| Enclosure Type | General Purpose |
| Mounting Position | Any Position |
| Primary Application | Pressure Monitoring and Switching |
| Typical Applications | Compressors, Pneumatic Systems, Industrial Equipment |
| Weight | 1.76 lbs |
Information About HC20A214
The HC20A214 is an ASCO H Series miniature pressure switch built for compact industrial pressure-control applications. Its general-purpose enclosure houses an adjustable switching mechanism with field-settable pressure points and an adjustable deadband. The switch uses SPDT Form C contacts and a 1/4-inch NPT process connection for integration with compressors, pneumatic systems, and related equipment. Its rugged construction and vibration resistance make it suitable for installations where stable pressure switching is required in limited mounting space.
Key Features:
- Adjustable Pressure Range: Provides a field-adjustable operating range from 40 to 120 psig.
- SPDT Contacts: Uses Form C single-pole double-throw contacts for flexible control circuit integration.
- Adjustable Deadband: Supports a mid-range deadband adjustment of approximately 8 to 13 psig.
- H Series Design: Part of ASCO’s compact Tri-Point miniature pressure switch family.
- 1/4-Inch NPT Connection: Provides a standard external threaded process connection for pressure input.
- General-Purpose Enclosure: Designed for standard industrial indoor control applications.
- Compact Construction: Small housing allows installation in restricted equipment spaces.
- Vibration Resistance: Built for stable operation in compressor and machinery environments subject to vibration.
The HC20A214 delivers the reliability and precision required for adjustable pressure monitoring and switching in industrial control systems.
